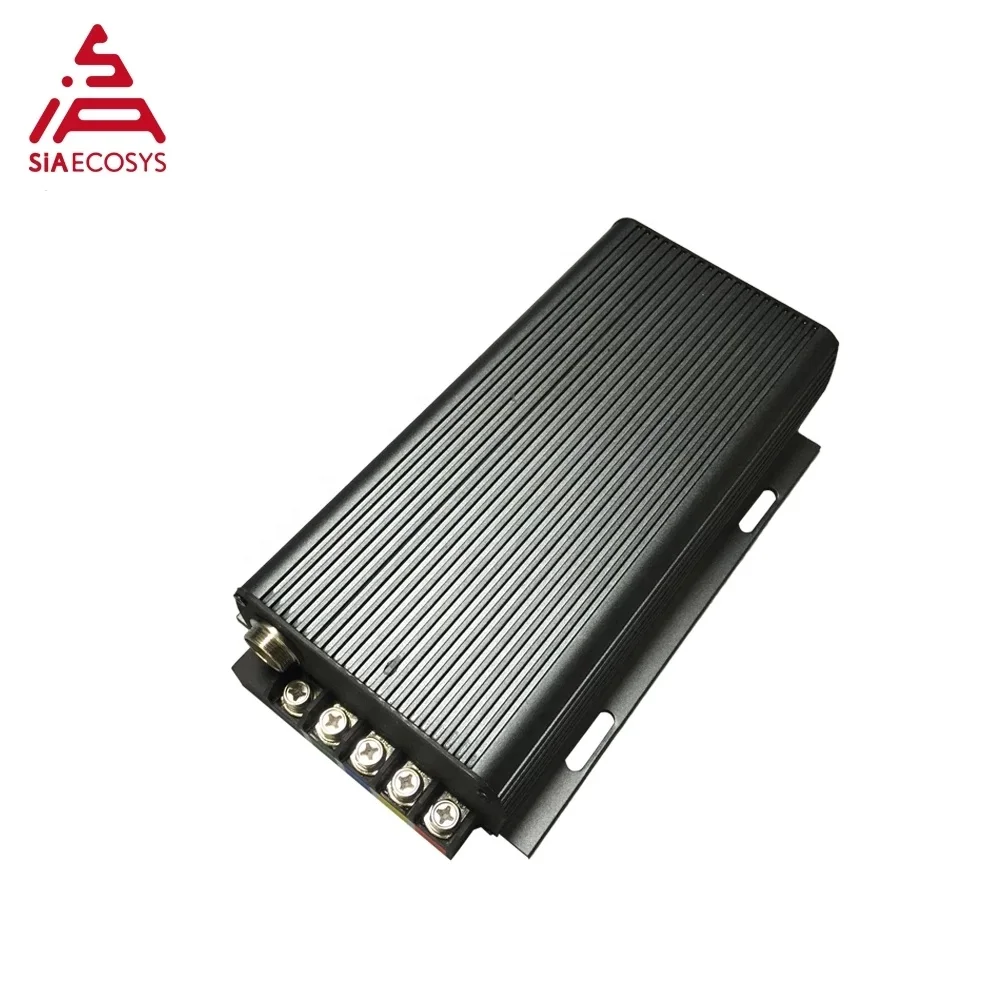

80A for 1500w Electric Scooter Hub Motor SVMC48080 Controller Motor Sabvoton BLDC Motor Controller with BT Adapter
- Category: >>>
- Supplier: Taizhou Quanshun Vehicle Accessories Co. Ltd.
Share on (1972870450):
Product Overview
Description

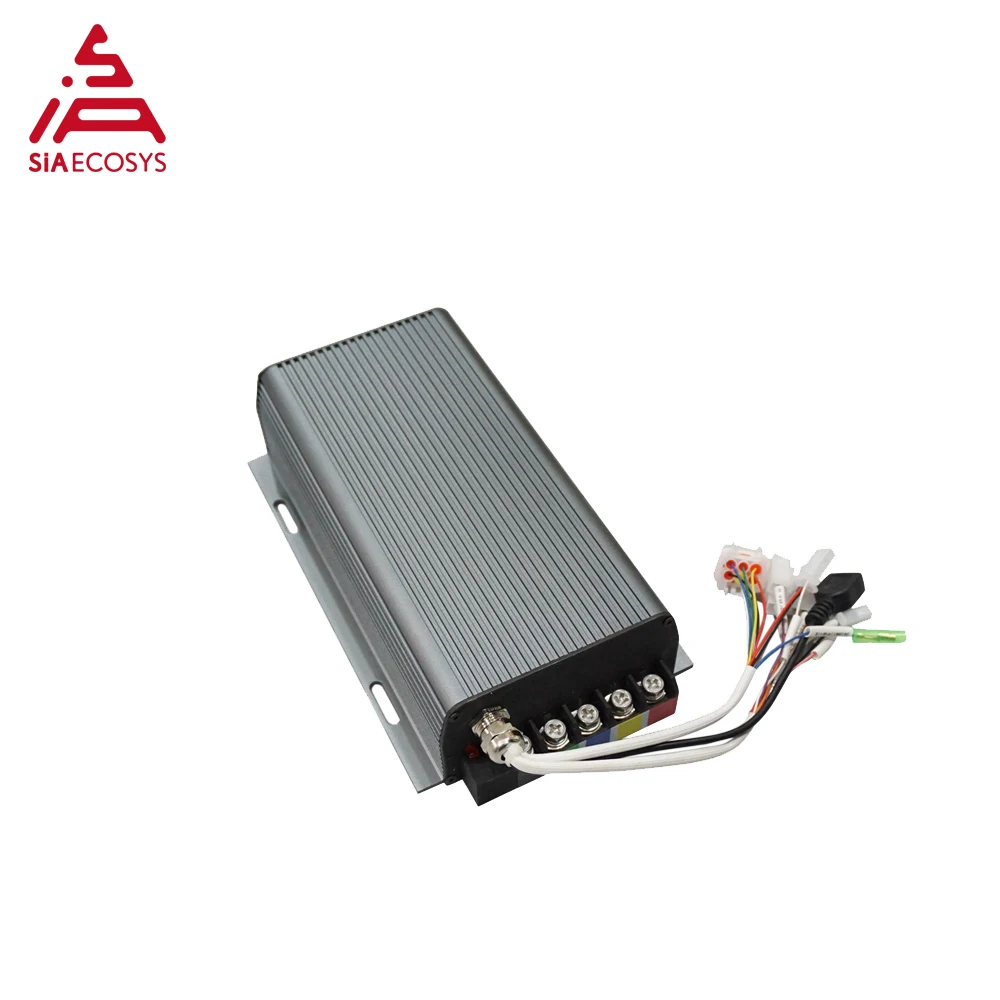

BLDC Motor Controller Sabvoton SVMC480680 80A sine wave controller for 1500w Electric Scooter hub motor
It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1500W.if you want to match with new brand motor, some parameters should be tested by yourself.
Key Features
1). Cost-effective
2). It can match with almost brushless BLDC motor
3). Programmable
4). Sine wave without noise, silence during the usage
Product description

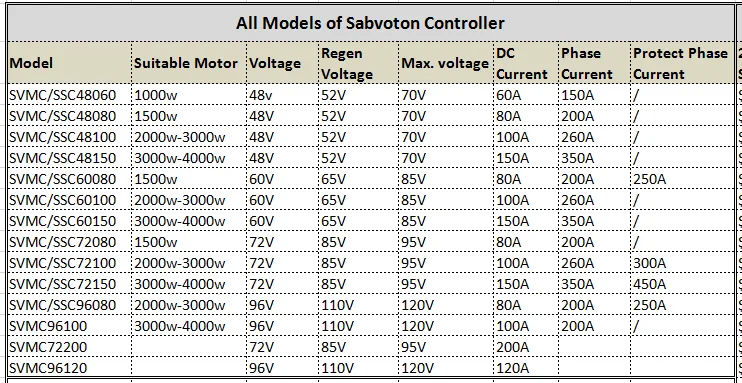

1. Specification
1). Sine wave controller, programmable, with regen function
2). DC Current Limit: 80A
3). Max. Phase Current: 200A
4). Protect Phase Current: 260A
5). Battery Voltage: 24V-48V rated, Max. 70V
6). Thermic Probe: KTY83-122

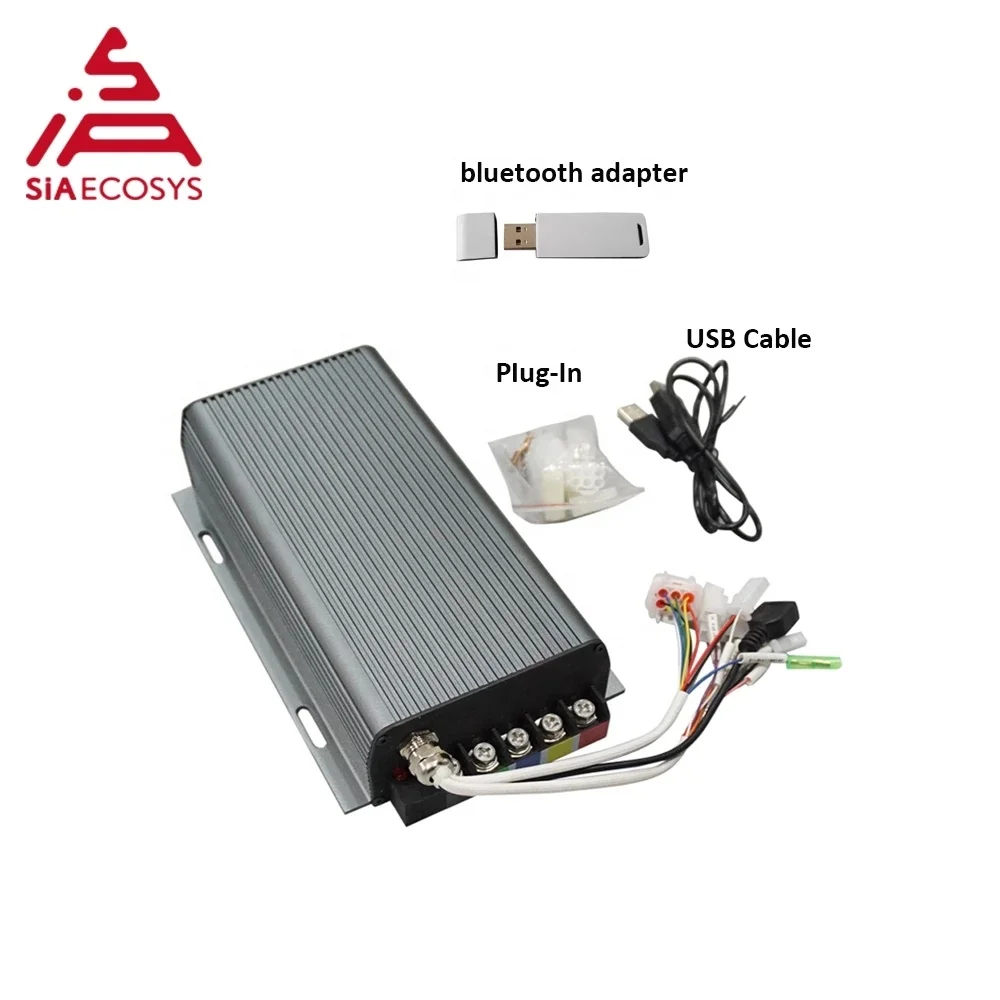

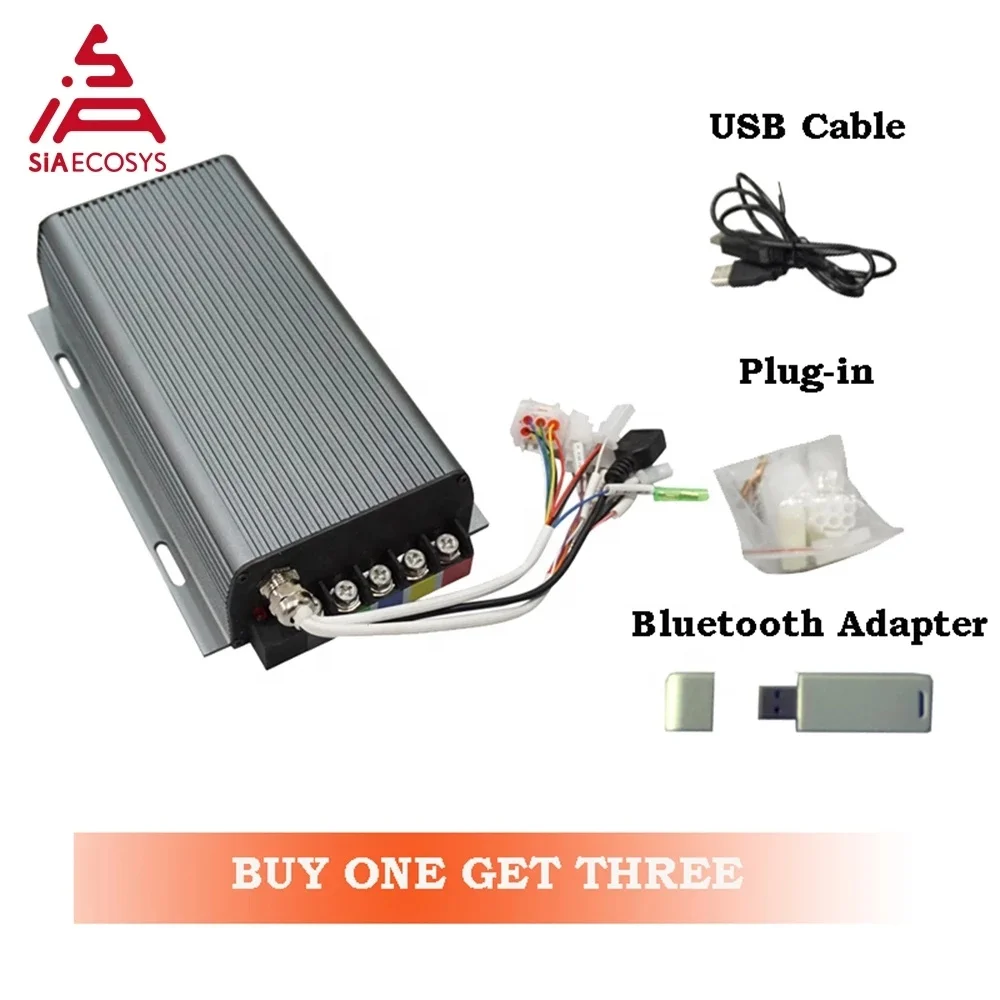

7). Including one controller + USB convertor cable + matched plug
8). Controller size: 247mm*146mm*62mm
9). Net weight: 2.2kg
10). It includes BT adapter as default
11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, Curise.
Notes:
1). We have updated the 0-5v e-brake function.
Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.
Update: you can achieve 0-5v e-brake function without press the brake switch.
2). For unlock type controller(higher amps), there is no warranty service, but we could offer our suggestions for you.
3). CA function not support anymore. You could customize the controller according to our provided drawing.
4). Pls. make sure all the connection is correct before power on.
PS:
1). There is no warrant for unlocked type controller and 96100 controller(even though normal type).
2). For SVMC 60A model, only support classic function.
3). Customzied CA function not support anymore from May of 2017, but we will offer the drawing for you to guide how to connect with your CA displayer.
SVMC Normal Size: 247mm*146mm*62mm
SVMCxx060 Size: 215mm*146mm*62mm
SVMC96120 Size: 283mm*147mm*62mm

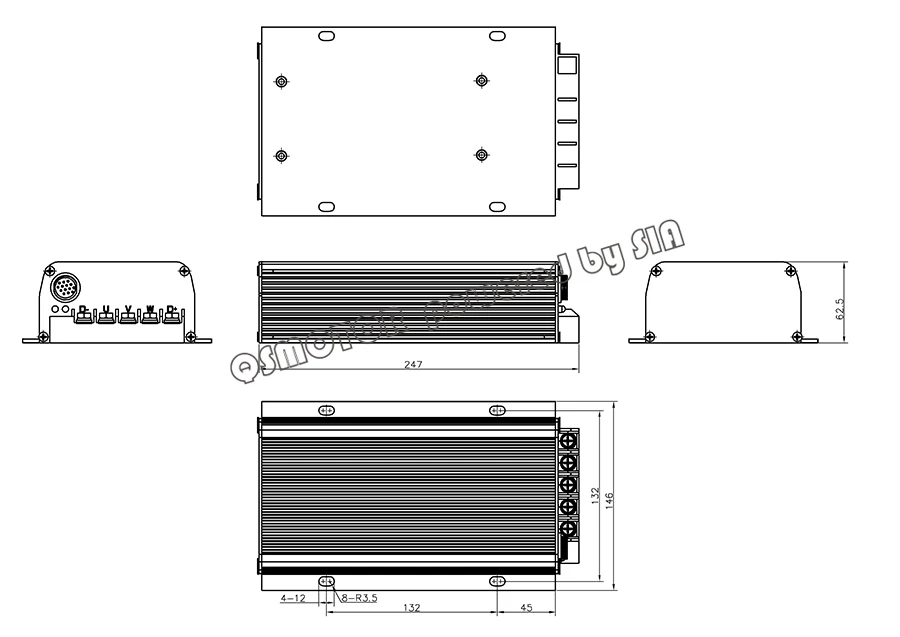

2.Drawing of controller:
3.Sabvoton Controller Software Interface
4.SVMC Series wring diagram:
Wire connection:
1.0-5v e-brake Pin Definition
Red: brake +5v
Brown: brake signal
Black: brake negative
2.Three Speed Pin Definition
Pink: high speed
Black: GND
Transparent: low speed
High brake Pin Definition
Purple: high brake
3.Hall Pin Definition
Red: Hall +5v
Yellow-white: temp sensor
Black: Hall negative
Yellow: Hall signal(U)
Blue: Hall signal(W)
Green: Hall signal(V)
4.Ignition Definition
Orange: Ignition
5.Hall speedometer Definition
Dark blue: Hall speedometer
The controller can communicate with the phone app.
More controller for your reference:
If you want to know more controller, please click the below picture:
