Product Overview

Description

Linan Xinhui Cable Co.,Ltd specialized in coaxial cable,bare wire,such like :RG6,RG59,RG11,RG58,silver wire,OCC wire,Silver plated copper,Nickel wire,CCS(copper clad steel wire),CCA(Copper clad aluminum wire),Al-mg wire,Enameled wire ,aluminum wire



rg11 crimp tool

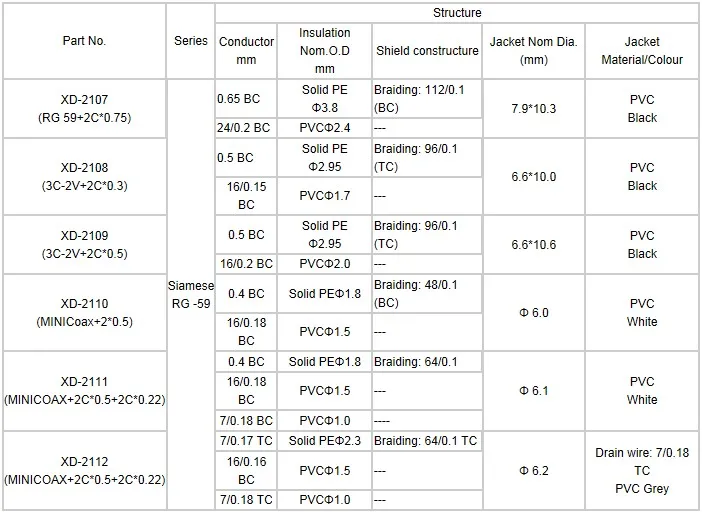

Specification:



RG59 Coaxial cable +power cable: 0.81mm BC + 3.66mm FPE + AL/ pet Foil  Gloden color + 128*0.12mm CCA Braiding 95% Coverage +6.0mm PVC+power cable:0.38*7CCA black Insulate PE +0.38*7CCA red Insulate PE+5.0mmPVC



2Core DC: 2*18AWG  0.75mm2   12*0.3CCA ; 7*0.37CCA ; 24*0.2CCA



2Core DC: 0.5mm2     16*0.2CCA





Electrical Characteristics :



1) Characteristics Impedance:                          75+/- 3 Ohms

2) Capacitance Conductor to Shield:               53.1 pF/m

3) Velocity of Propagation :                                 82%

4) Delay:                                                            4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) :  20 dB

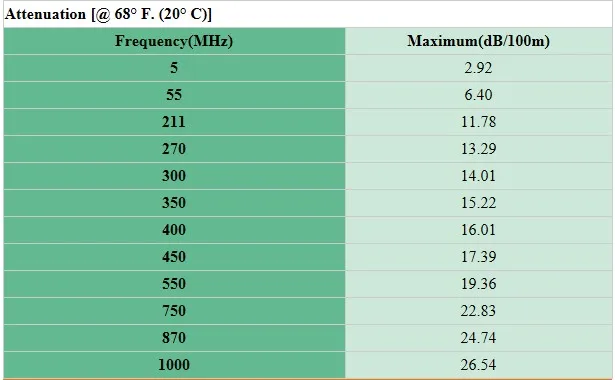

6) Max. Attenuation :



PACKING:

Packing lengths: 100m, 200m, 305m, 400m and 500m per roll;

• Other lengths available according to client's request


• Inner: wooden reel, plastic reel and paper reel


• available Outer: carton box, pull out box and pallet available


• Other packing available



5.Question and Answer:



Q1.What kind of cable do u produce?







A1.We specialize in producing coaxial cable,lan cable,telephone cable,speaker cable,alarm cable etc.











Q2.What's ur MOQ?







A2.The MOQ of coaxial cable is 20KM,lan cable is 100boxes.











Q3.What's ur delivery time?







A3.Our delivery time is about 20days after comfriming the deposite or L/C ,it is based on the quantity of the order.







Q4.What's ur payment terms?







A4.Normally,we accept T/T in advance,other payment term,we can negociate with clients







Q5.What's ur trade term ?







A5.We can accept FOB,CIF,CFR term.







Q6.what's ur manner of packing ?







A6.Inner packing, 100m in PE film,100m/plastic or wooden drum,305m/wooden drum,500m/wooden drum or paper,shrink wrap







      Outer packing,Carton box,pull put box,pallet available







      Other packing can according to clients' demand.







Q7.Can ur factory customize cables base on clients' samples or data sheet ?







A7.Yes,we can.
