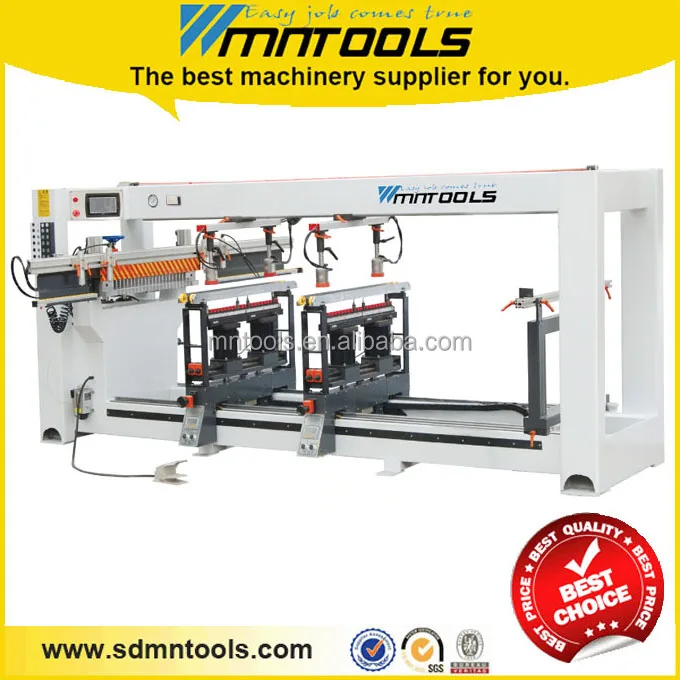

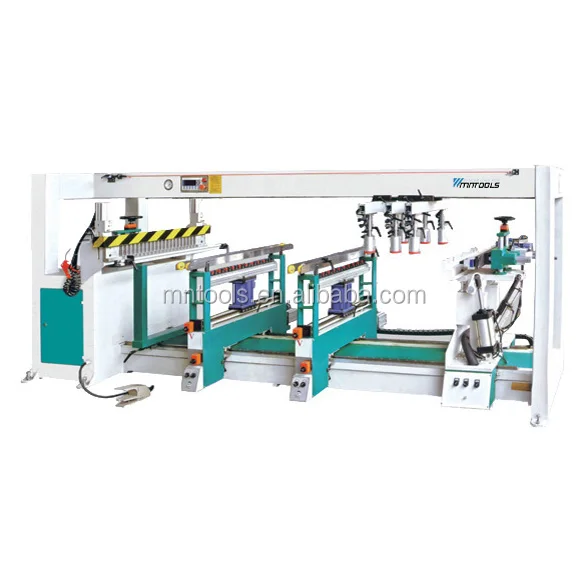

Multiple spindle boring machine for furniture production

Model No.

MTMB73223

Maximum diameter of holes

35mm(Single)  13mm(Multi)

Depth of drilled holes

0~60mm

The number of spindles

11*4+22*1=66

Installation Dia. Of drill bit shaft

10mm

Max. Center distance between holes

L Max.* B Max.=1750mm*672mm

Min. Center distance between holes

L Min. * B Min=130mm*32mm

Spindle speed

2840rpm

Wielding Air Pressure

0.5~0.6Mpa

Total motor power

7.5kw

Overall size

2600*2500*1570mm

Net weight

1000kg
