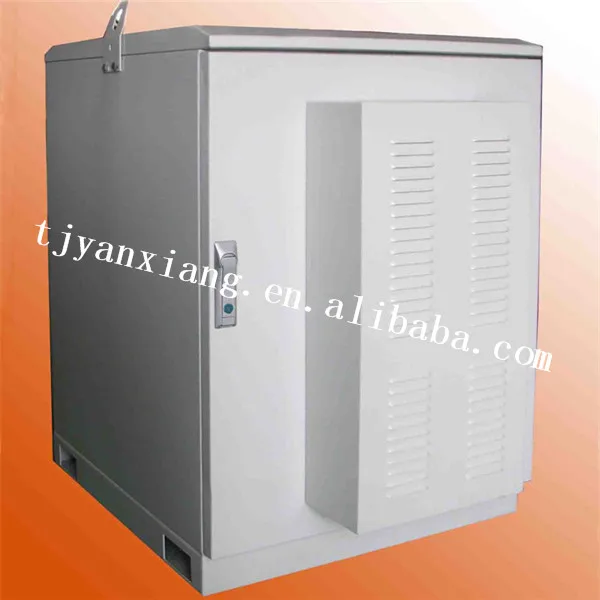

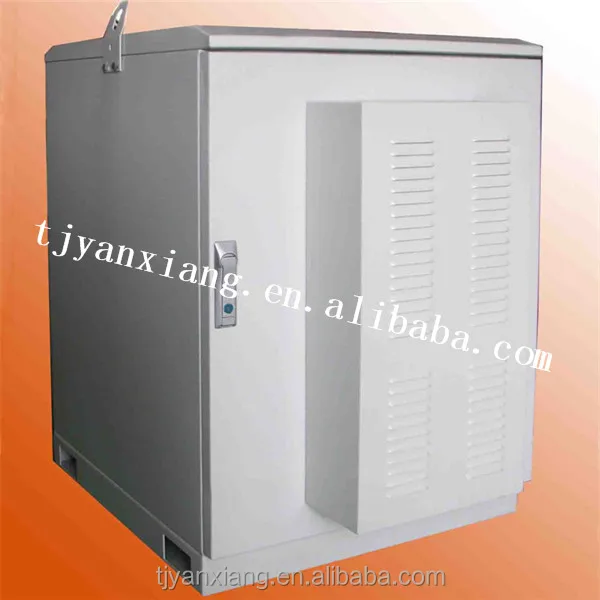

China manufacturer Outdoor battery enclosure/battery cabinet

Model No.:                     SK-65100

External Size:                650*820*1000mm(W*D*H)

Internal Capacity:           120Ah battery*8, two floors

Cooling System:             340W air conditioner installed on the door

Color:                           RAL7035

Weight:                        75KGS

Protection lever:           IP55, weatherproof, waterproof

Cabinet Standard:          IEC297-2; DIN41491:PART1

Structure:                      Double layer with filter to insulate heat

Material:                       Galvanizing Iron; Thickness of galvanizing iron plate is

                                   1.0mm or 1.5mm, Bearing structure with 2.0~3.0mm thick

                                   steel plate

Power Supply:               AC220V±15%, 50/60HZ

Surface Treatment:              Painting outdoor epoxy powder

Wire Hole:                            There are some intake wire holes on the bottom

Others:                         And also could match with Temperature Control System

                                    and Temperature Alarm Function

*  Practical design

*  Proper structure

*  Functional material,IP55 Grade

*  ISO9001-2008 Certified

*  Reasonable Low Price

* Choose best match materials according to customers inquiry purpose ,    such as  Waterproof, moistureproof, dustproof, and corrosion resistance

*  TT

*  AT SIGHT LC

*  others can discuss

* Wooden Box

* Customized is acceptable

 Click for more information!!

* Introduction

Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone. It is a high-tech company with technology R&D and service combination as well as information and industry. Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin. The company passed the ISO9001 International Quality System Certification in 2004 January. We have acquired multiple software copyrights and invention patents. Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.

We own 20 national patents,including 5 inventions patent , other 5 techniques obtained Tianjin Science and technology achievement. Our company is granted as Tianjin Outstanding Privately Owned Enterprise .Besides, we got Chinese Privately Owned Science and Technology Enterprise Technology Innovation Award.

The company focus on the telecommunications cabinets, battery cabinets and communication engineering heat exchanger production and sales, from 2006 we begin to supply products to Huawei technology company, at present, out main customers including China Mobile, China Unicom, Huawei Technology Company and Naval Communications Department. Foreign customers from Europe, Asia, Africa, South Asia and North America and other countries speak highly of our products.

In the future, Yanxiang will stick to the aim of providing good quality products, excellent service, advanced management and pioneering technology, It will be our honor to provide clients with quality electronic science and technology products .We will reward the support from cooperative companies and concern of social circles with more excellent achievements.

 * Factory Tour

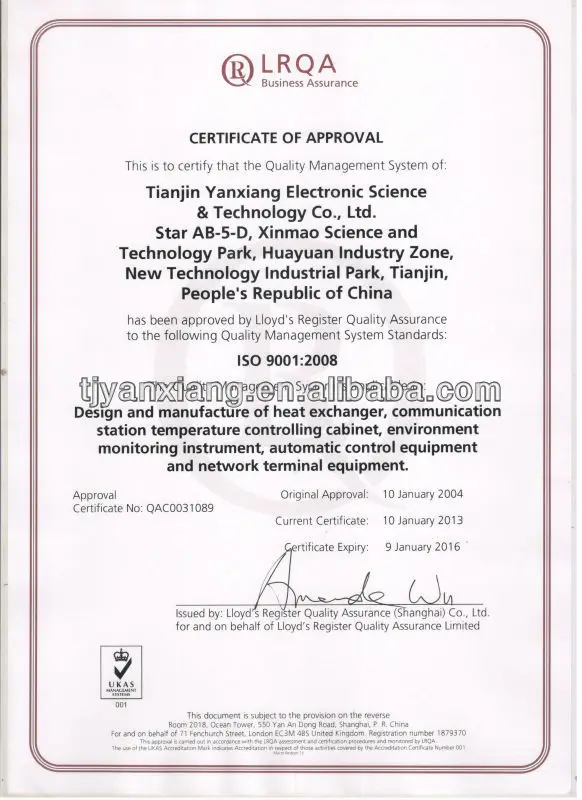

 * Certificates

For more details, pls contact Us . thank you.
