Outdoor Tap catv

Product Overview

Description

CATV Outdoor Tap





Discription:

The HT Standard 1GHz 2way 4way & 8way outdoor taps have built into the housing which provides uninterrupted service when the tap plate is removed.







Application benefits:

Traditional 1GHz Multi-Tap used when delivering video serv-ice. Faceplates are interchangeable with HT204B11 series power extending faceplates.





BENEFITS:

5MHz to 1GHz bandwidth capacity with low loss performance

Aerial or pedestal installation with 5/8 port enter

1Kv blocking capacitor on the F-port protects the F-ports from power surges

GENERAL SPECIFICATIONS:

EMI Shielding 100dB minimum

Power Rating 15 amps ac/dc, 60-90Volts,1-60Hz

Hum Modulation @ 12amps 65dB minimum

Water Tigh15PSI

Pedestal port Spacing

2 and 4 narrow body, in.(cm.)1.5(3.81)(Center to Center)

8 way  Wide Body, in.(cm.)3.0(7.62)(Center to Center)

Physical Dimensions:

Narrow Body(L*W*H) in.(cm)3.75*3.5*2.5(9.53*8.89*6.35)

Wide Body(L*W*H) in.(cm) 4.5*5.25*2.25(11.43*13.33*5.72)

TORQUE SPECIFICATIONS:

Housing Closure Screws20-30 in./lbs.

Center Conductor Seizure 7-10 in./lbs

Port Plugs 10-15 in./lbs.

F-Ports 30-40 in./lbs.





Ordering information:

HT204B11	2-way tap	-4dB
HT208B11	2-way tap	-8dB
HT211B11	2-way tap	-11dB
HT214B11	2-way tap	-14dB
HT217B11	2-way tap	-17dB
HT220B11	2-way tap	-20dB
HT223B11	2-way tap	-23dB
HT226B11	2-way tap	-26dB
HT229B11	2-way tap	-29dB
HT232B11	2-way tap	-32dB
HT235B11	2-way tap	-35dB

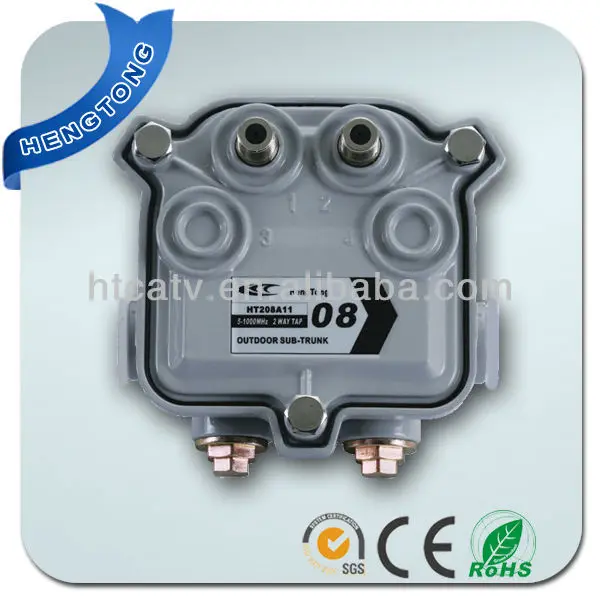

Photos:





Case A(SA):





Package:

All of our export products are packed carefully, make sure which can be arrived at your place safely.



Delivery time:

Our delivery time is between 10-20 days.



After sale:

We have a professional after sale service team, any problem will get our first attention and promptly reply.
