led backlit tft panel 7 inch 16:9TFT LCD Display

Product Overview

Description

SKD700N : led backlit tft panel 7 inch 16:9TFT LCD Display .









7 inch SKD Monitor

or 5wire resistive Touchscreen (USB or RS232 interface optional)
VGA input: 15 pin D-SUB analog RGB interface.
High resolution- up to 1024 x 768 (H x V) formatted.
Automatic display adjustment.

High-Brightness LED Backlight
4 adjustable backlight levels for daytime or night-time use
PAL/NTSC/SECAM
2 RCA video inputs, Audio Input
PAL/NTSC color system
Speaker built-in
Full-function IR remote control
On Screen Display menu control (Multi-language)
Last power setting memory for choice available

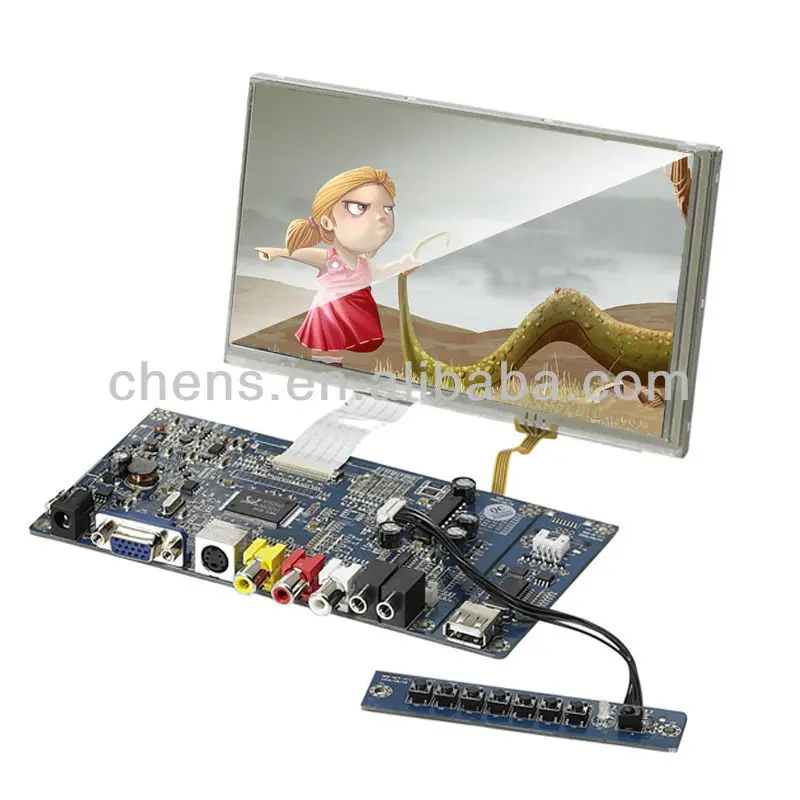

  hdmi SKD Module





Size	7 inch
Model	SKD700N
Touch Panel	4-wires resistive
resolution	640 X (RGB) X 480
contrast	300:1
respond time	25ms
Brightness	250 cd/m2
Aspect	16:9
Backlight	LED
Power	DC9-15V
power consumption	≤6W
Signal iput	VGA.Video.Audio.
Remote Control	1PCS
Home AC adpater	1PCS
Driver CD (For Touch)	1PCS
USB cable (For Touch)	1PCS
Touch Pen	1PCS
9 pin VGA Cable.	1PCS







  hdmi SKD Module
