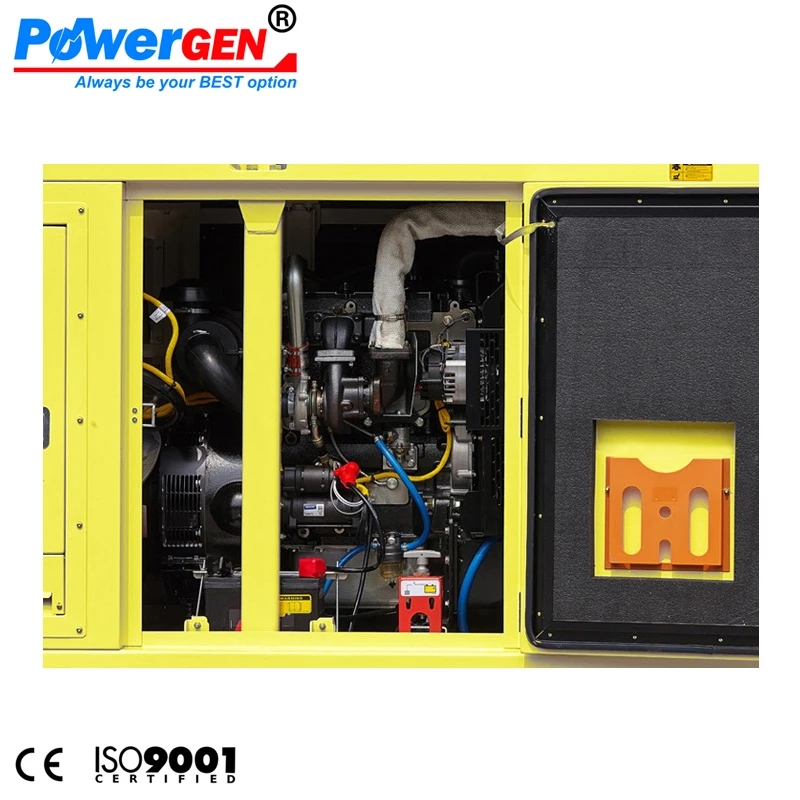

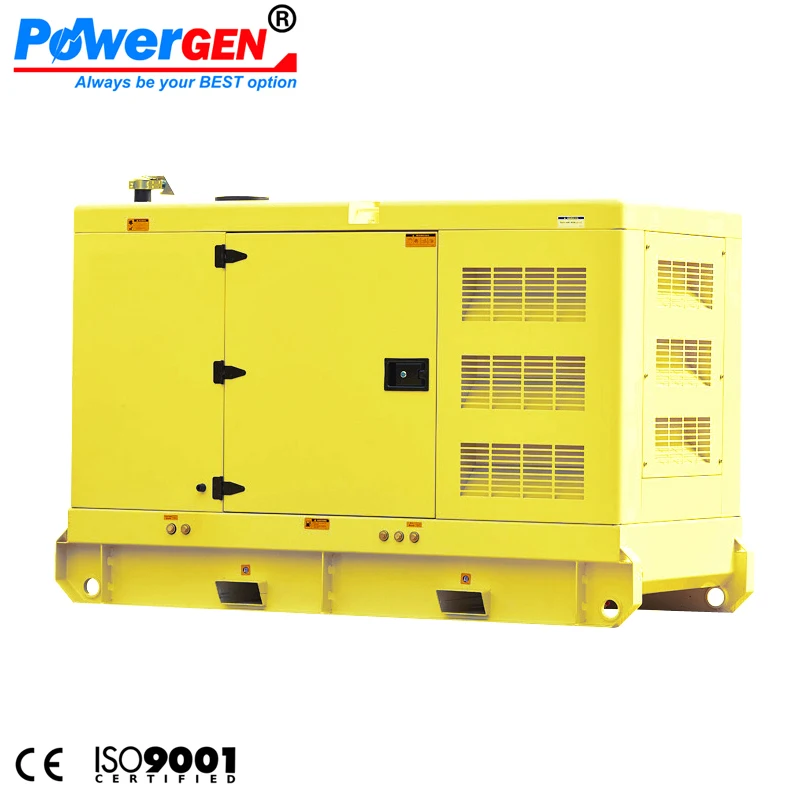

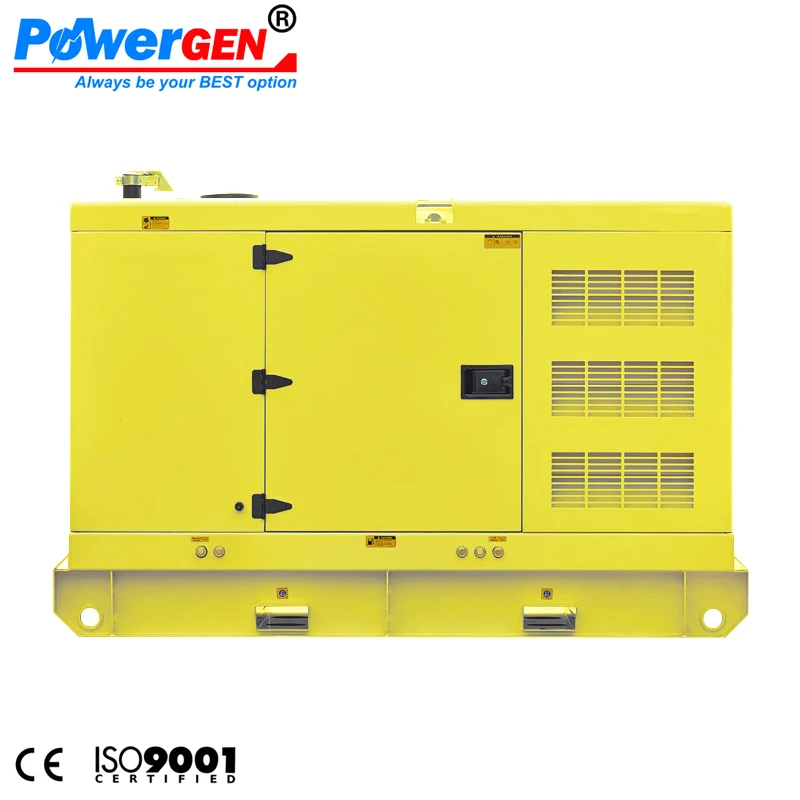

60Hz!!! 3 Phase 110 480V 24KW Back up Silent Type 30KVA Diesel Generator Price

Share on (1975425106):


Price:

Quantity:


Product Overview

Description


Product Description

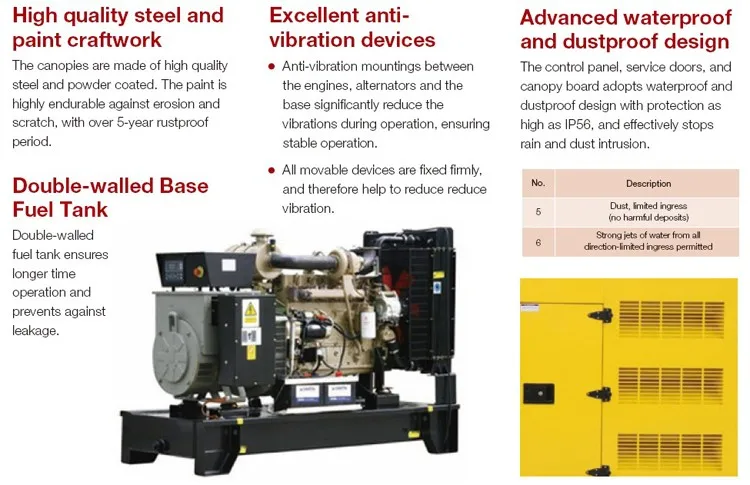

GOOD AT TOUGH WORKS

Stability is demonstrated everywhere in POWERGEN diesel generators, from performance to manufacturing craftwork. High stability makes Powerlink diesel generators the best choice for applications in harsh environment, like desert, mining, etc.

\t
SPECIFICATIONS
\t
MODEL NO.:
\t
BD-C24S
\t
Frequency
\t
Hz
\t
60
\t
Voltage
\t
V
\t
110/480
\t
Phase No.
\t
\t
3-phase
\t
Prime Output
\t
KW/KVA
\t
24/30
\t
Standby Output
\t
KW/KVA

\t
26/33
\t
Engine Model
\t
\t
CUMMINS 4B3.9-G12
\t
Alternator Model
\t
\t
POWERGEN PG220
\t
Controller
\t
\t
DEEPSEA DSE6020
\t
Fuel Tank Capacity
\t
L
\t
160
\t
Fuel Consumption
\t
L/Hour
\t
7.6 (@100% prime)
\t
Noise Level @7M
\t
dBA
\t
70
\t
Dimensions
\t
LxWxH
\t
2300 x 1100 x 1210
\t
N.W.
\t
Kgs
\t
1280
\t
Please feel free to contact us for detailed specifications datasheet.

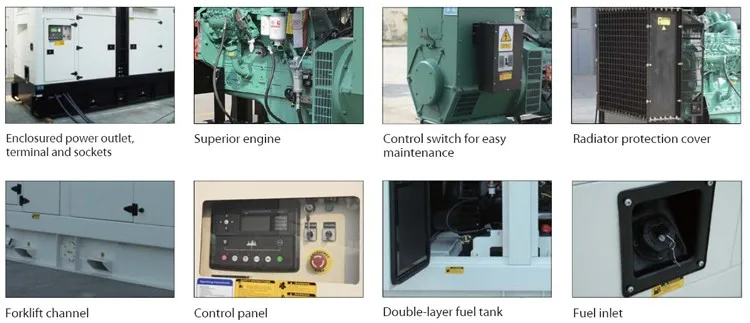

Features
1. Strong Power & Stable Performance


2. Enhanced Safety

By applying multiple protective measures, POWERGEN diesel generators effectively protect the operators from hazard, to make a safety operation environment.


3. Environmental Protection

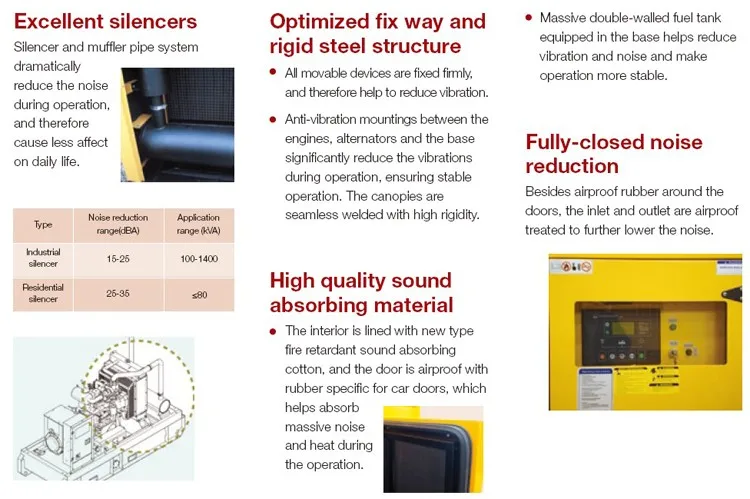

The noise level can be reduced by 18-30dB(A) through multiple noise control devices, which enables quiet operation and causes less affect to daily life. This feature makes our diesel generators ideal for using at night, in residential, in office and other environments sensitive to noise. Cleaner exhaust, lesser affect to the environment, especially in outdoor application.


4. Easy to Operate

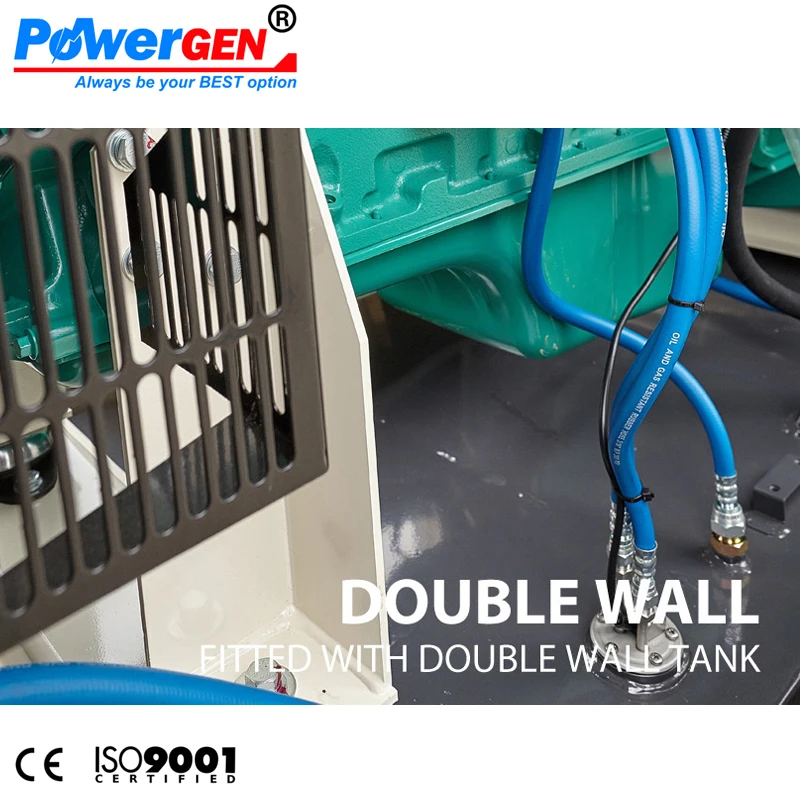

Inheriting the advantages of the old design products, POWERGEN new generation diesel generators are significantly improved in fuel tank, easy transportation, and human operation, to meet special requirements of some applications.

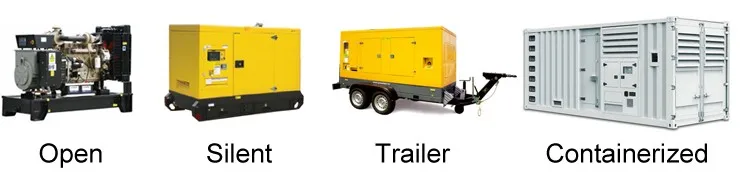

Types Available
Optional Equipment

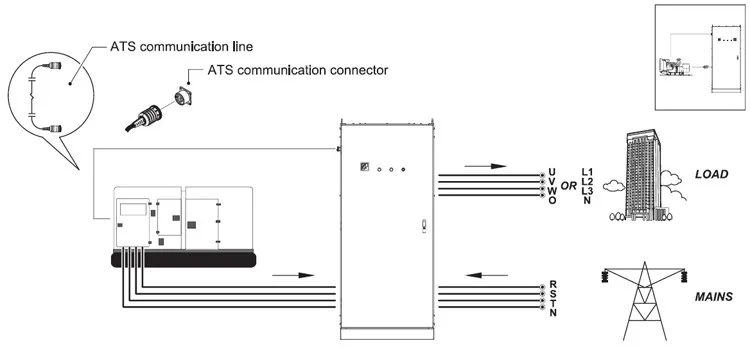

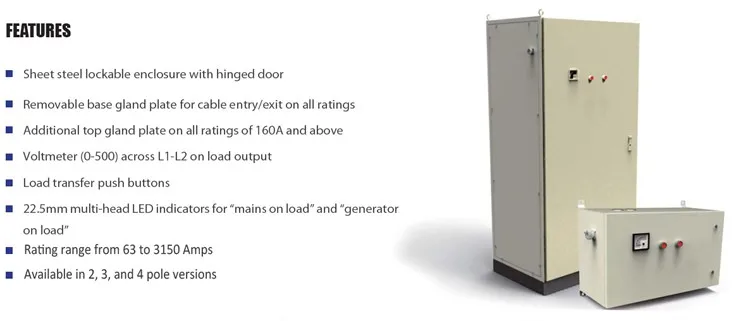

1. AUTO TRANSFER SWITCH - ATS

For emergency power in buildings, an Auto Transfer Switch (ATS) is essential. The ATS can automatically transfer load from main power to emergency power without operator intervention. When the main power fails or voltage drop below 80% of normal voltage, the ATS will start the emergency generator , after a preset time of 0 to 10 seconds (adjustable). At rated speed, the ATS will transfer load to emergency power with available size ranging afrom 40A to 4000A. There is a switch suitable for every project's need.

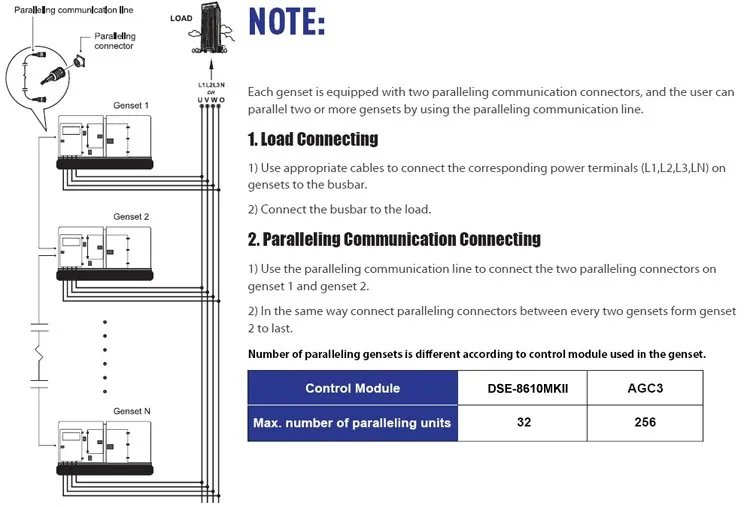

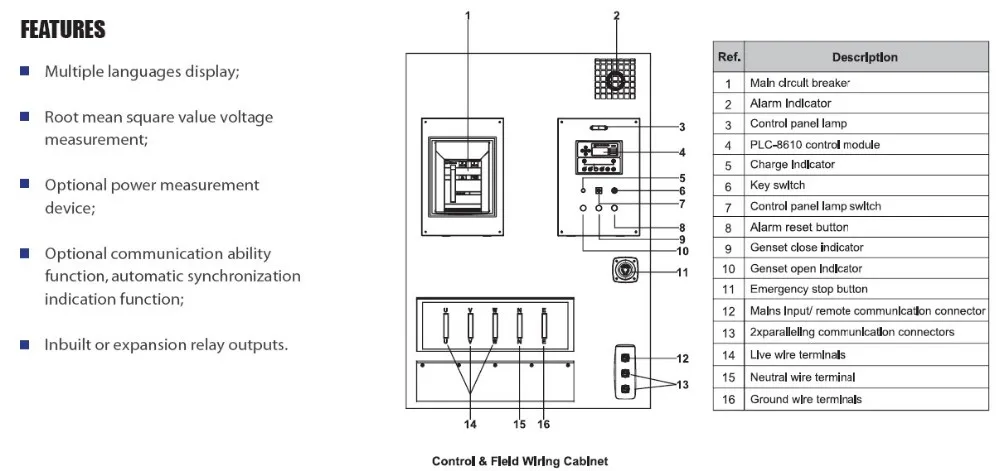

2. PARALLELING SWITCHGEAR
By using inbuilt device with synchronization, power matching and paralleling functions, the controller can be synchronized with the mains, uninterruptedly returning when reaching the peak; Can parallel up to 32 generator sets as a group.

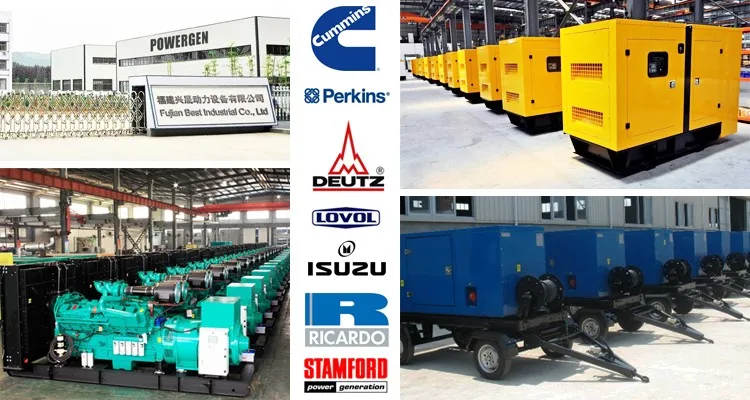

About us

We offer a wide range of diesel generators powered by world famous top-grade diesel engines, with prime power output from 10KVA to 1600KVA. The types available are Open type, Silent type and Trailer type, as well as the Containerized type for power output more than 800KVA. Top Quality and Best Price are what you can expect from us.

Certifications

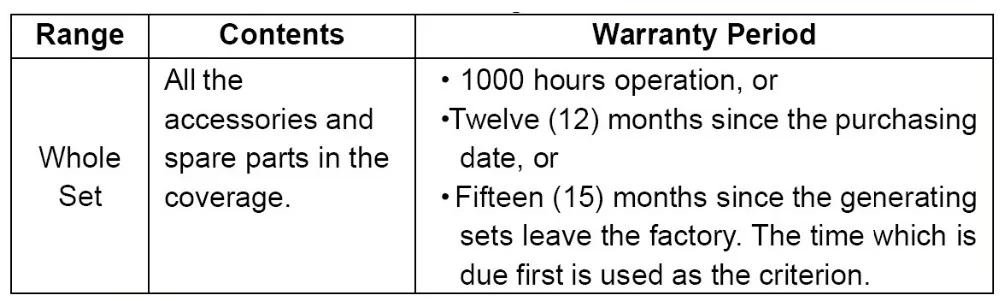

Warranty Period
Limited Warranty for New Generating Sets


Repaired Parts Warranty Period

If the repaired or replaced accessories and spare parts are POWERGEN genuine accessories and spare parts, six months warranty is provided. If not, no warranty is provided.

All the repaired or replaced accessories and spare parts or generating sets can only enjoy the remaining time of warranty period of the original accessories, spare parts or generating sets.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
