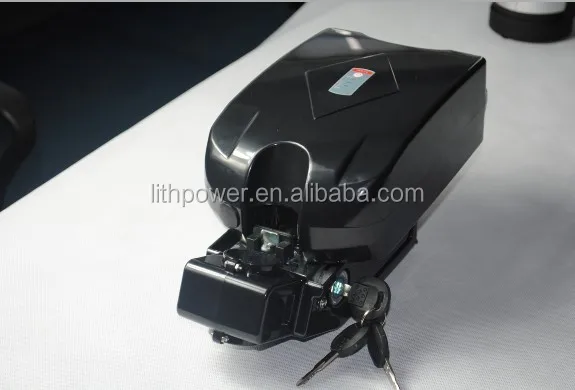

36V,48V lifepo4 Electric bike frog battery, high power e bike frog battery, long lifecycle frog lithium battery for 36V48V motor

Product Overview

Description

36V, 48V High power Electric bike lifepo4 Frog battery, with long lifecycle for lithium E-bike/Electric bike frog battery. 36V10-20AH and 48V10-20Ah High power , long life lithium ion Frog ebike battery

SHENZHNE LITHPOWER provides a vertical supply chain from lithium ion single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution.We provides a vertical supply chain from single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.

Battery Material	Lithium Ion/Lifepo4 Frog Bike Battery
Battery Pack Model	24V12Ah	36V12Ah	48V10Ah
Combination Model	7S6P	10S8P	13S6P
Outer Packing Material	PVC, Plastic shell, Plastic and Aluminum Shell, Steel Sheel
Nominal Voltage	24V	36V	48V
Rated Capacity	12AH/15Ah	12/15Ah	10/12Ah
Max. Charge Voltage	29.4V	42V	54.6V
Normal Charege Current	2-3A	2-3A	2-3A
Cut-Off Discharge Voltage	21V	30V	39V
Max.ConstantDischarge Current	10-20A	10-20A	10-20A
Max.Discharge Current (pulse)	30A	60A	60A
Charging Model	CC/CV	CC/CV	CC/CV
Cycle Life(80%DOD)	800 Cycles	800 Cycles	800 Cycles
Charge Temperature	0-45°C	0-45°C	0-45°C
Discharge Temperature	-20-55°C	-20-55°C	-20-55°C
Motor Range	24V250-350W	36V350-500W	48V350-500W

Features:

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 800 times recycles, 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.
