0.1um Micronizing Mill Planetary Ball Mill Lab Grinder for Sale



Product overview

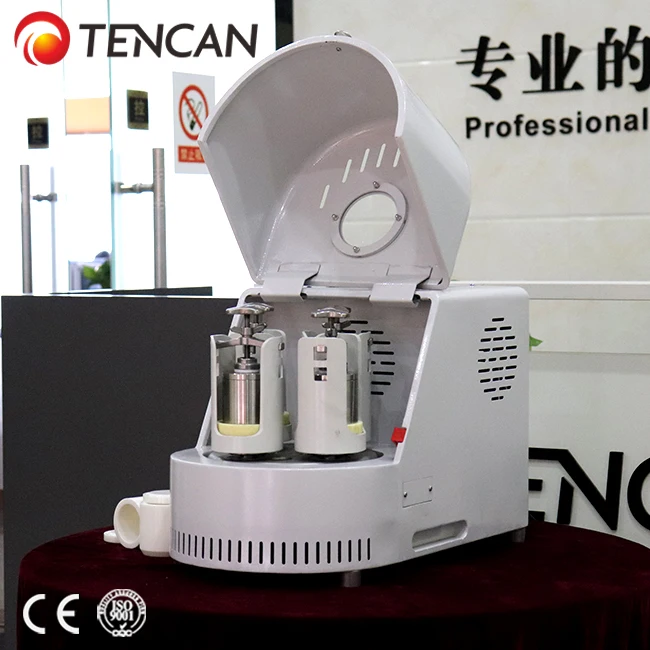

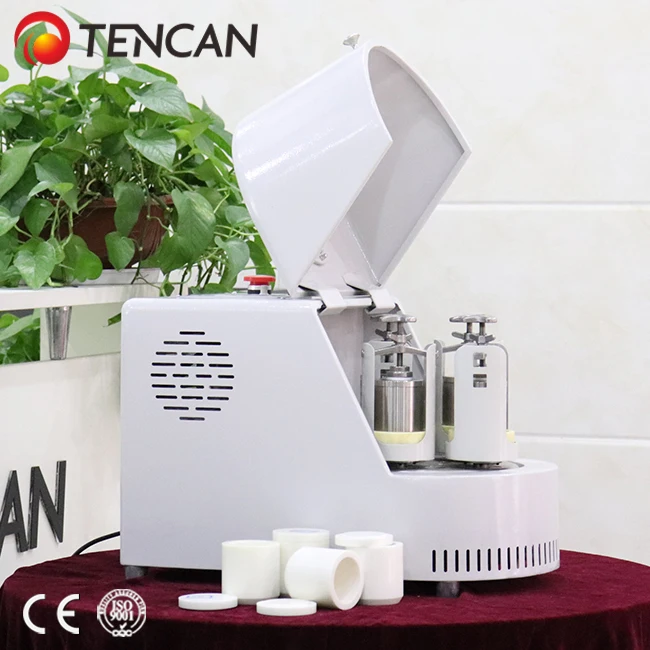

XQM-0.4A Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.It is widely used in many fields of geology, mine, metallurgy, electric industry, construction, ceramics, chemicals, light industry, medicine, environmental protection etc.

Verticle Planetary ball mill working principle:

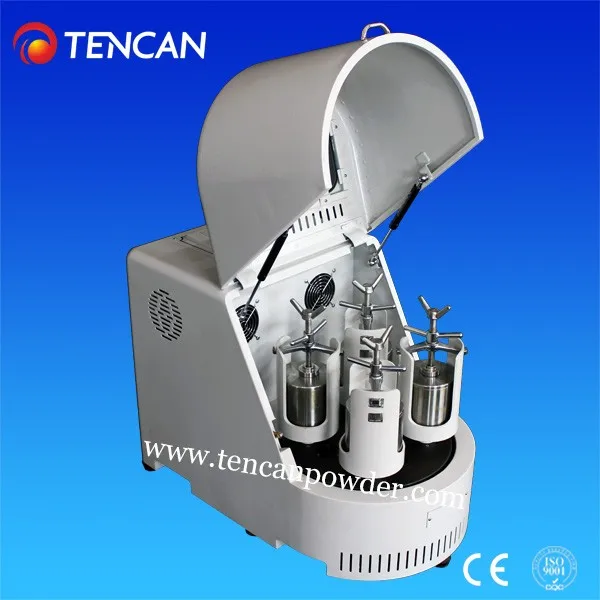

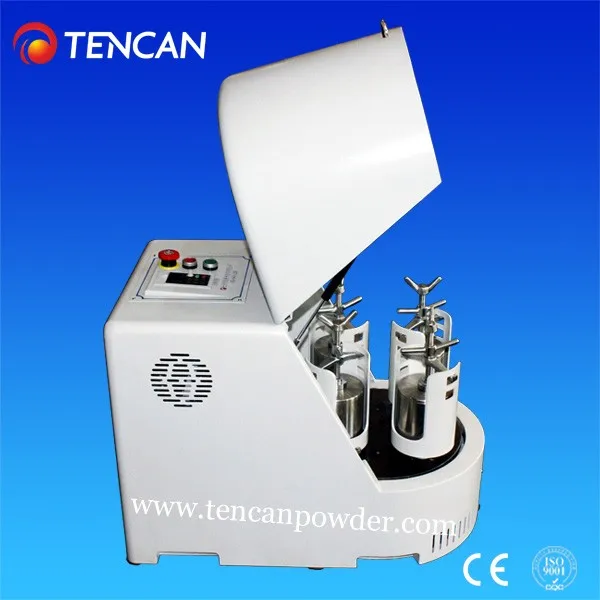

Our machine has four ball mill jars in a turnplate. The ball mill jars rotate with the turnplate when the turnplate rotates. And under the gear drive, the planetary ball mill jars do planetary motion  by central axis drive. The high speed movement of the milling media ball in the jar produces impact, shear, grinding force which can grind and mix the sample.

Verticle Laboratory experiment planetary ball mill  technical features:

• Stable revolving speed of the gear transmission ensure the consistency and repeatability of the experience.


• Planetary ball mill adopts planetary movement and has high speed, large energy, high efficiency, small particle.


• Four different size, different material samples can be produced at the same time.


• The speed can be adjusted as per the experience result. The frequency converter has undervoltage and over-current protection function to protect the motor.


• The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, timing and untiming operation.


• Our planetary ball mill is functional which has low barycenter, stable performance, compact structure, easy operation, reliable safety, low noise, low wastage.

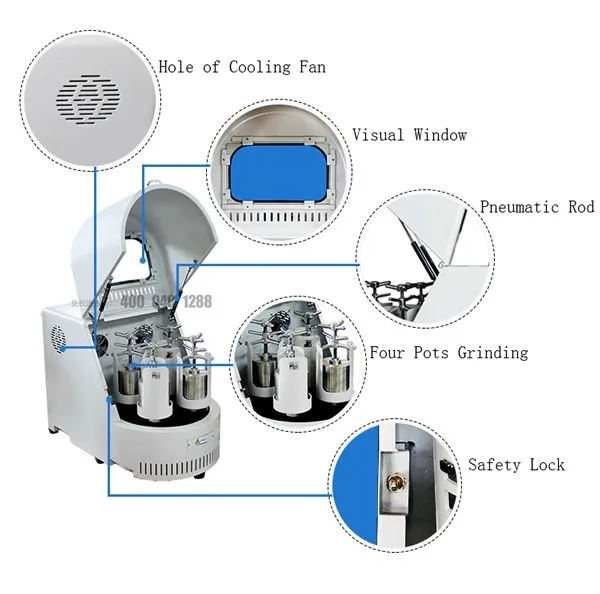

• Safety switch is installed to avoid machine start when the safety cover opened.










Accessories for planetary ball mill:

Model	Specification	Ball milling tanks		Remarks
		Spec	Qty(Items/Set)
XQM-0.4L	0.4L	50-100ml	4pcs	50ml vacuum ball milling tanks
XQM-1L	1L	50-250ml	4pcs	50-100ml vacuum ball milling tanks
XQM-2L	2L	50-500ml	4pcs	50-250ml vacuum ball milling tanks
XQM-4L	4L	50-1000ml	4pcs	100-500ml vacuum ball milling tanks
XQM-8L	8L	0.5-2L	4pcs	250-1000ml vacuum ball milling tanks
XQM-12L	12L	1-3L	4pcs	500-2000ml vacuum ball milling tanks
XQM-16L	16L	1-4L	4pcs	500-3000ml vacuum ball milling tanks
XQM-20L	20L	1-5L	4pcs	1000-4000ml vacuum ball milling tanks
XQM-40L	40L	4-10L	4pcs	3000-9000ml vacuum ball milling tanks
XQM-60L	60L	6-15L	4pcs	5000-13000ml vacuum ball milling tanks
XQM-100L	100L	1-25L	4pcs	9000-20000ml vacuum ball milling tanks

Verticle Planetary Ball Mill tanks:



Verticle Planetary Ball Mill Ball Media:


Packaging for Verticle planetary ball mill:



Packaging Details:	One piece one wooden case plus styrofoam.
Delivery Detail:	Stock is available, some larger sizes need to take 20 days

After Sales Service

Our factory has one year free after-sales service. The details are:
a) Some easy broken parts are sent free together with the main machine, such as belt
 gears, etc.
b) We have cooperated with distributors in some countries: India, Vietnam, Korea, Netherland, South Africa, etc. If some problems cannot be solved, you are advised to find our local distributors. Some maintanence skills have been trained.
c) If the distributors can not solve the problems, you are advised to send us those problems photos.
Then we will shot one video of how to solve those problems.

Certificate for planetary ball mill

Our factory products have passed ISO 9001 certification. And the two main parts: motor and frequency converter have got the CE certificate.
