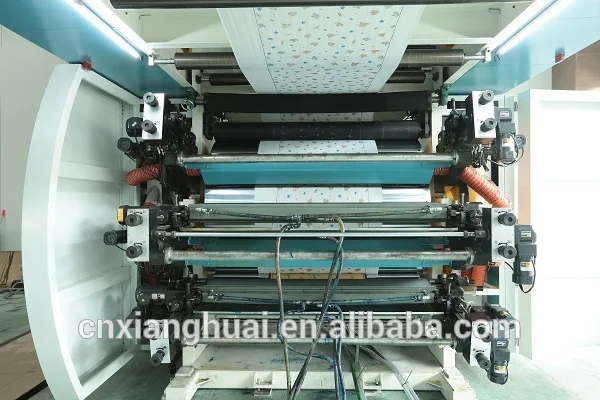

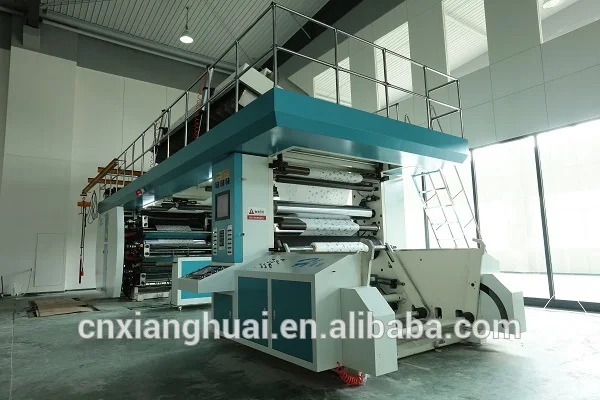

6 Color CI Type Flexo Printing Machine Central Drum Flexo Press

Product Overview

Description

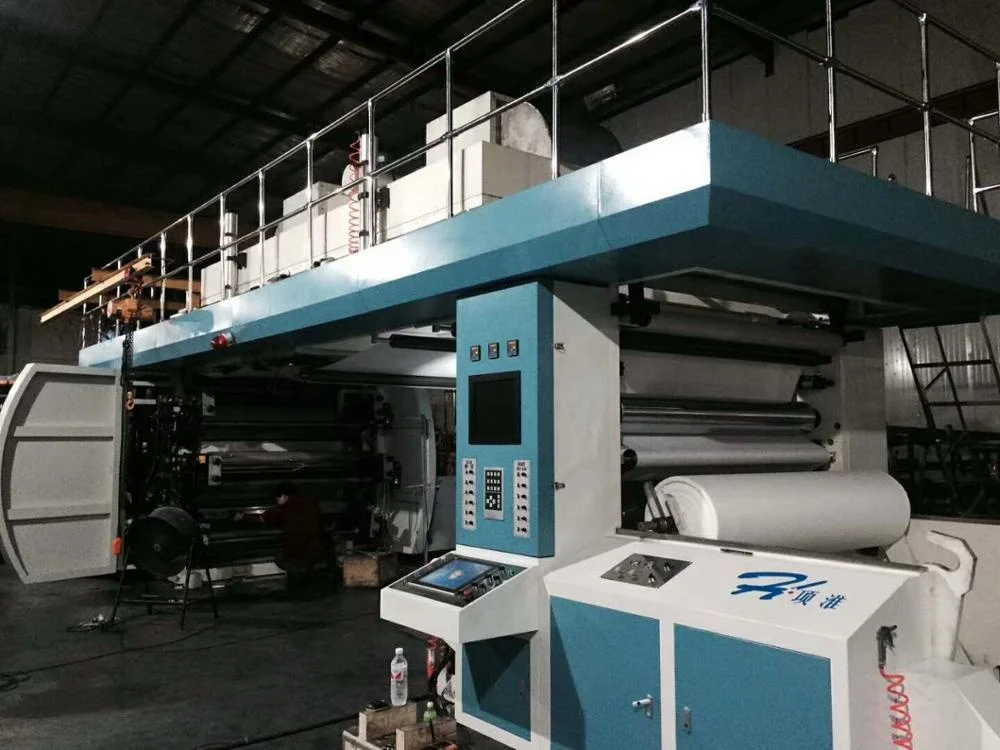

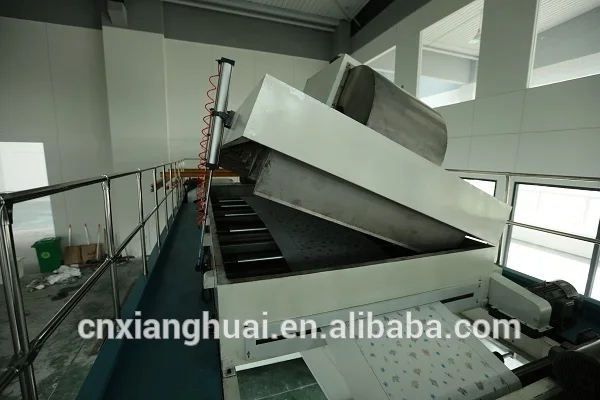

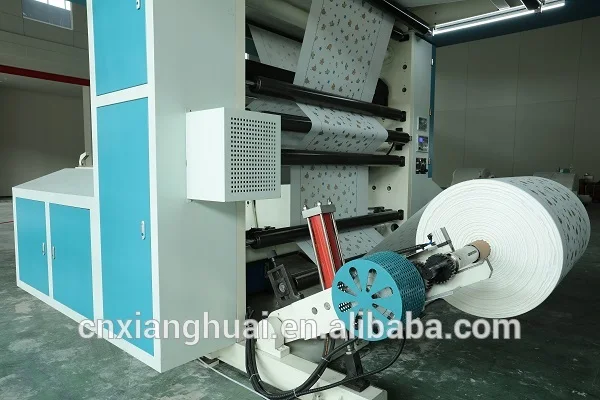

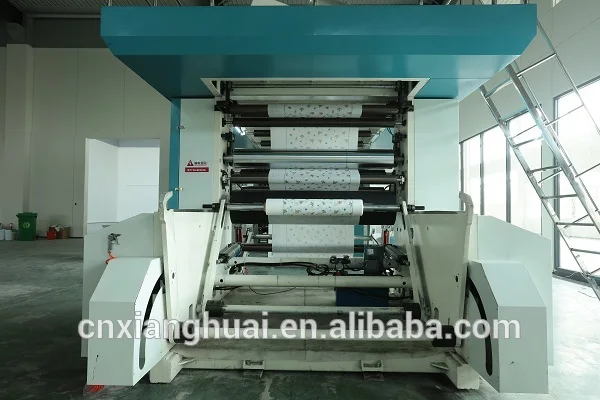

6 Color CI Type Flexo Printing Machine  Central Drum Flexo Press







Product Description



1). Features:

1. Ink anilox roller: ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot reproduction rate, screen printing, structured, three-dimensional sense of strong, registering accurately

2. Ink: adopt automated circulation system, transport ink adopt single small motor;

3. Speed control: adopt Japan frequency speed control, small fluctuations running;

4. Unwinding correcting: adopt high-grade automated sensitive-photocell correcting system;

5. Unwinding and winding ways: adopt magnetic automatic tension control;

6. Ink input pattern : adopt unique doctor blade, and equipped with automatic ink pump unit;

7. Up and down version: adopt hydraulic automatic landing version;

8. Smooth roller: adopt special steel processing, and after special treatment, with10um plating hard chromium protective layer thick, beat within 0.02mm;

9. Led guid roller: adopt a small semi-sealed bearings produced in Japan, with static balance and dynamic balance treatment, hard oxidation treatment, small resistance, small beating;

10. Machine control system: PLC devices, starting, stopping, running, line adopts PLC control, automation and better equipment and more humane. (can add voice prompts system)



2). Suitable material:

Kraft paper: 40 ~ 350g/m², single-sided coated paper: 30 ~ 350g/m², copy paper: 15 ~ 350g/m², firecrackers and paper: 40 ~ 350g/m², paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m², coated paper: 30 ~ 350g/m², dust-free paper: 25 ~ 350g/m², release paper: 40 ~ 350g/m²composite paper, 30 ~ 350g/m2

Non-woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm



3). Main technical specification:

Print color	Multi colors( 8+0,5+1,2+2,3+3... )
Web width	600-2000mm
Print width	560-1960mm
Machine speed	50~200m/min.
Print speed	50~180m/min.
Print length	200-1100mm
Anilox roller	Ceramic anilox roller
Register precision	±0.15( by hand)
Unwind diameter	1000 mm
Rewind diameter	1000 mm
Tension range	3~30kg
Tension precision	±0.2Kg



Printing Samples
