Inch tapered roller bearing 336/332 made in China:
| bearing modle | 336/332 |
| brand | BOBO China brand |
| series | single-row bearing |
| cone | 336 |
| cup | 332 |
| d(mm) | 41.275 |
| D(mm) | 80 |
| B(mm) | 22.403 |
| weight(kg) | 0.46 |
| inner ring nominal width B | 22.403 |
| outer ring nominal width C | 17.826 |
| bearing contact angle a | -6.2 |
| the biggest shoulder chamfering radius R | 0.8 |
| shoulder diameter da | 46 |
| shoulder diameter db | 47 |
| the biggest block shoulder chamfering radius r | 1.3 |
block shoulder diameter Da | 75 |
| block shoulder diameter Db | 73 |
| retainer Aa | 5.0 |
| retainer Ab | 4.5 |
| coefficient G1 | 26.5 |
| coeffecient G2 | 13 |
| coeffecient Cg | 0.0259 |
Products Show

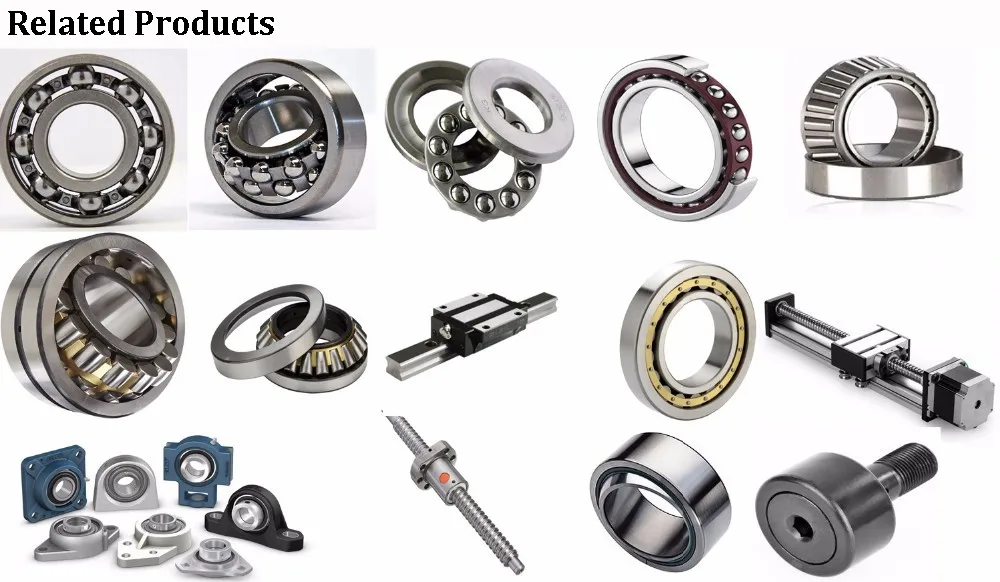

Related Products
