Yuxing mattress production machines,industrial quilting machine

Product Overview

Description

Important parameter:

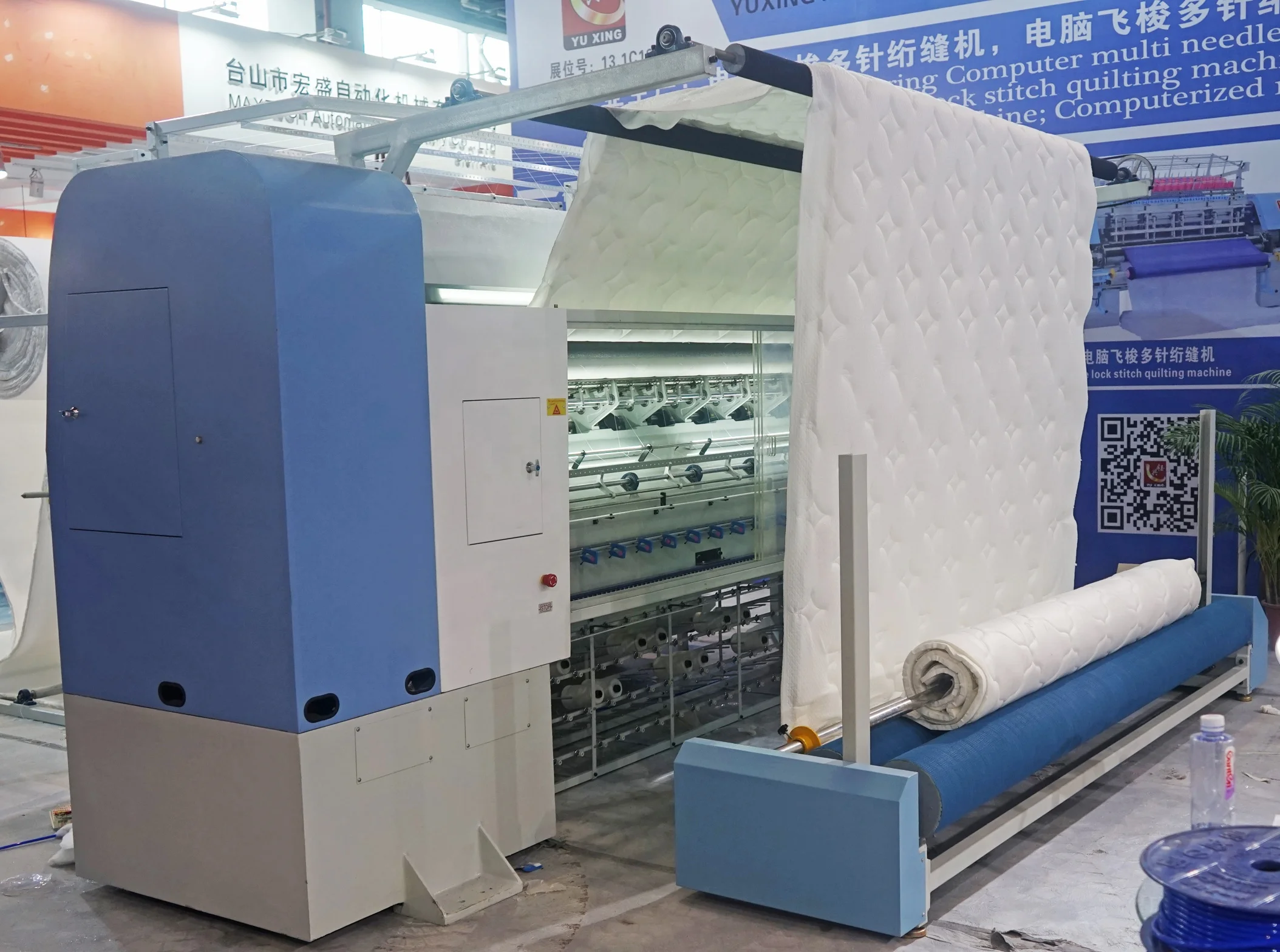

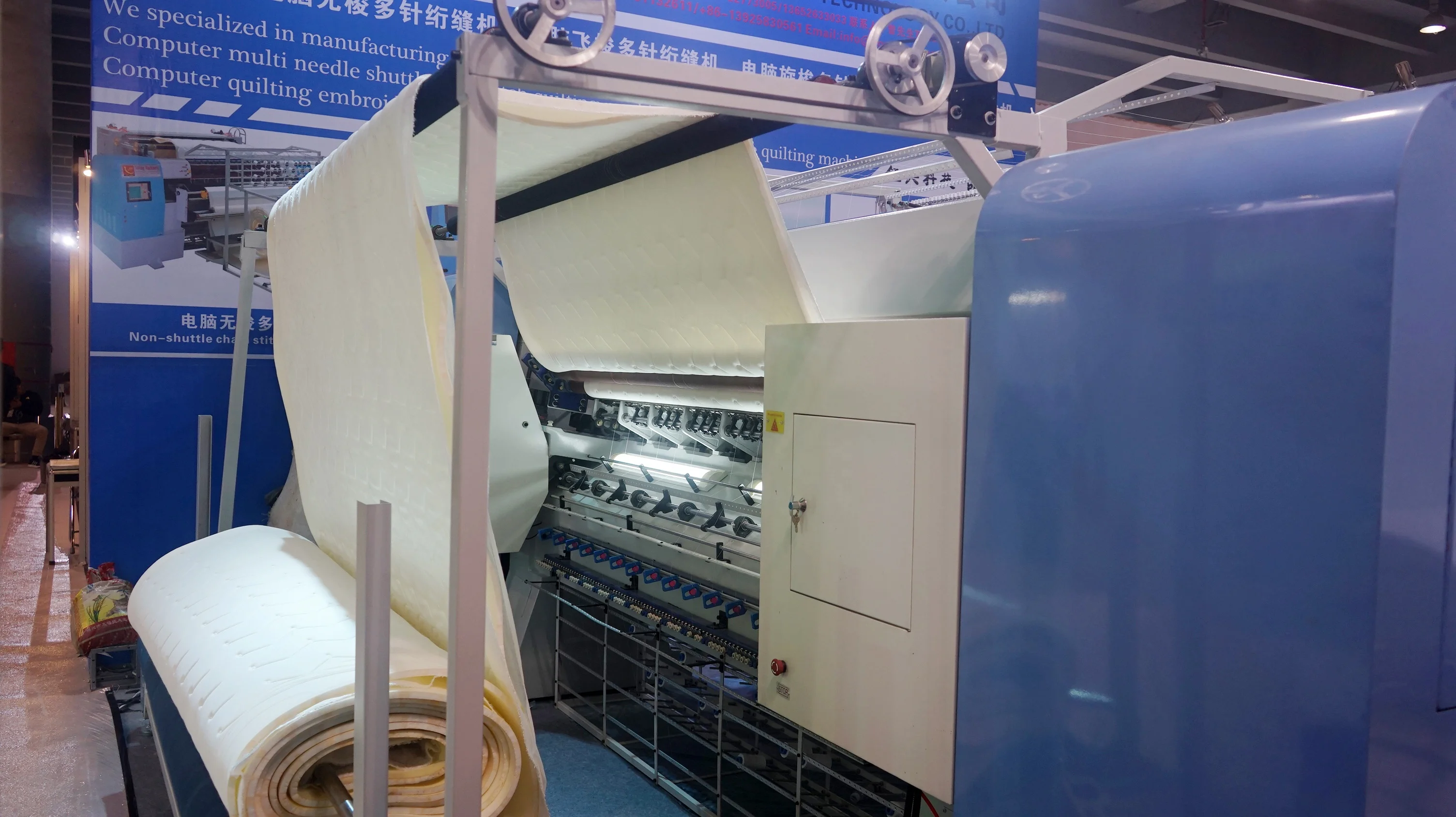

Product Name	Computerized Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3C(3"+3")
Size(L*W*H)	5000*1650*2000mm
Weight	4000kg
Quilting width	2485mm
Needle bar spacing	76.2,76.2 (3"+3")
Quilting thickness	50mm
Rolling speed	600-900r/min
Output	10-180m/hour
Needle type	#21-#24
X-axis movement	410mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	As request
Power	6.5KW









Special feature:

1.Adopt the advanced process design.

2.Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3.High rigidity machine body, perfect protecting equipment and steady-going control system.

4.X,Y motors are driven by Panasonic servo motor system, and principal axis takes frequency ports

system.

5.Test the working state of all sensors and computer in real time.

6.Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the

speed by computer.

7.Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.

8.360°quilting and limitless multi-span and independent quilting.Computer can be in store 1000

patterns with 300 patterns already existing, and with pattern editing function.

9.Steady running, high speed, low noise, very thick material with precise quilting.

10.Multi-span and independent quilting with pattern compensation function.



Important machine parts:



After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.

CE and ISO9001:2008 approved.



Certificates:





About our company:

Our company was established in 2002,is specialized in manufacturing computerized multi-needle quilting machine,computerized quilting and embroidery machine,cutting machine and bobbin winding machine,more than 10 kinds of products.



It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and

Technological Enterprises" by Dongguan city Science & Techonology Bureau and Dongguan City

Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.



We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive

market,we make progress and get innovation constantly.We firmly believe high quality and good

service are the best support for users' trust.





             Welcome to visit our factory any time!!^_^
