Compost turner also called as Window Turner, is mainly used to turn&mix raw material or organic fertilizer like: poultry manure, sludge, agricultural waste, agricultural stalks, sugarcane and corn leaves. Besides, the compost turner also helps to accelerate composing speed. ZFQ series compost turner is powered by tractor, rear PTO shaft mounted and walking besides tractor on working.
Model
ZFQ200
ZFQ250
ZFQ300
ZFQ350
Max.Windrow Width (m)
2
2.5
3
3.5
Max.Windrow Height (m)
1.1
1.4
1.4
1.4
Roller Length (mm)
2000
2500
3000
3500
Roller Dia. (mm)
600
800
800
800
Processing Capacity (m³/h)
500-900
800~1400
1000~1800
1500~2500
Engine Power (HP)
>60
>80
>100
>120
Weight (kg)
820
2100
2300
2500
Water Tank and Spraying Manifold
optional
Overall Dimentions (LxWxH)
1485x4260x1350
2850x3700x1560
2850x4200x1560
2850x4700x1560
Main Features
1, Highly-automatic: 1person enough for all operation 2, Short decomposed period: 4-6weeks 3, High yield: 30-50 thousand tons/year for one machine 4, Water tank and Spraying Manifold: option 5, Non-environmental pollution: Aerobic fermentation, no foul smell
Certifications
Detailed Images
Machine Parts
Name: Reducer Gearbox Brand: SAMTRA Original: China
Robust reducer gearbos is selected for the ZFQ Compost turner. Large power and torque can guarantee the heavy work of compost turner.
Main Features
Name: Water Spraying Manifold Brand: SAMTRA Original: China

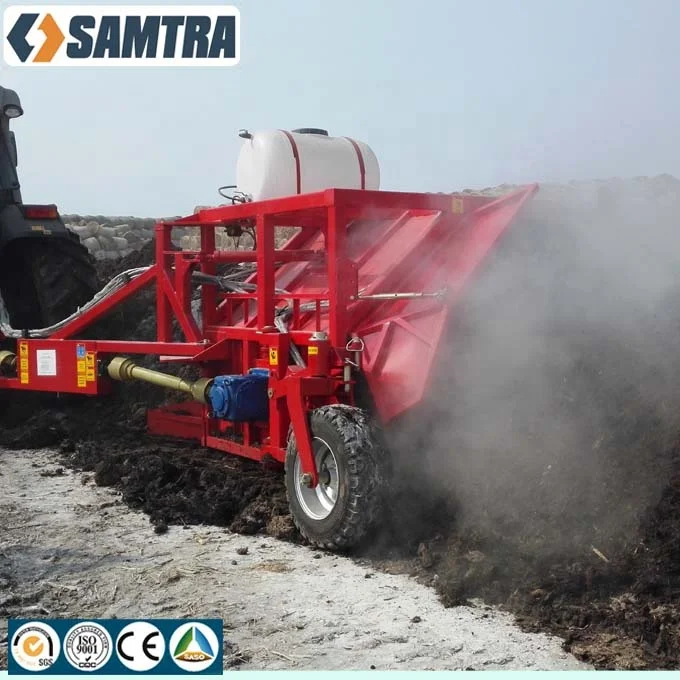

180-300L Water tank is as an optional device for the ZFQ Compost Turners. Water pump is driven by electric motor which power is from tractor battery.
Machine Parts
Name: Rotor Brand: SAMTRA Original: China
Rotor's diameter is 800 mm, which can finish different kinds of works. And its strong strength guarantees its capability to deal with different kinds of materials.
Main Features
Name: Transporting Wheel Brand: SAMTRA Original: China
The wheel can be swing from back side to middle side. In this way, the compost turner can be towed from other side by tractor. This is much more convenient for transportation.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
4250 (L) * 2200 (W) * 1850 (D)
Weight
1.8 T
Packaging Details
Packing size of ZFQ250, ZFQ300 and ZFQ350 is big for LCL. We suggested to deliver by FCL. LCL is not suggested
