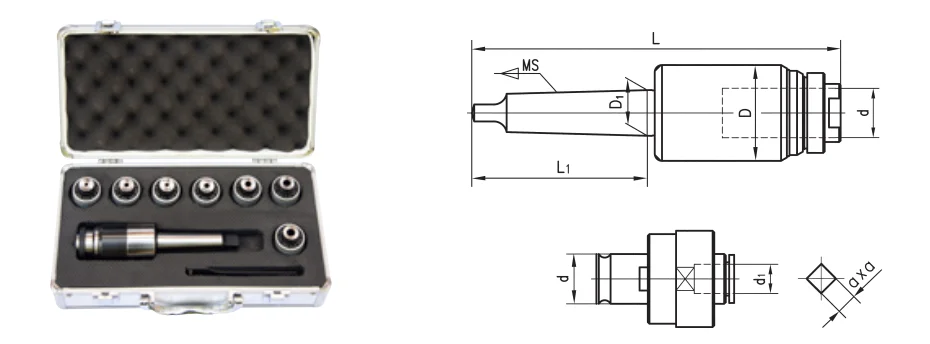

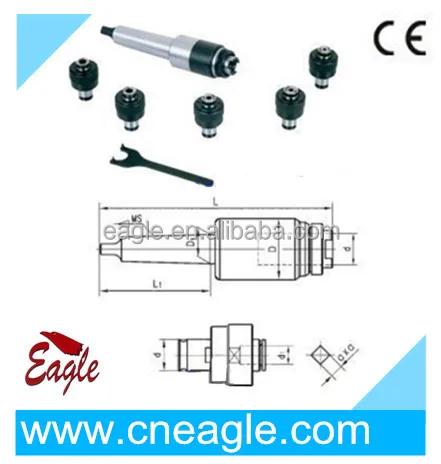

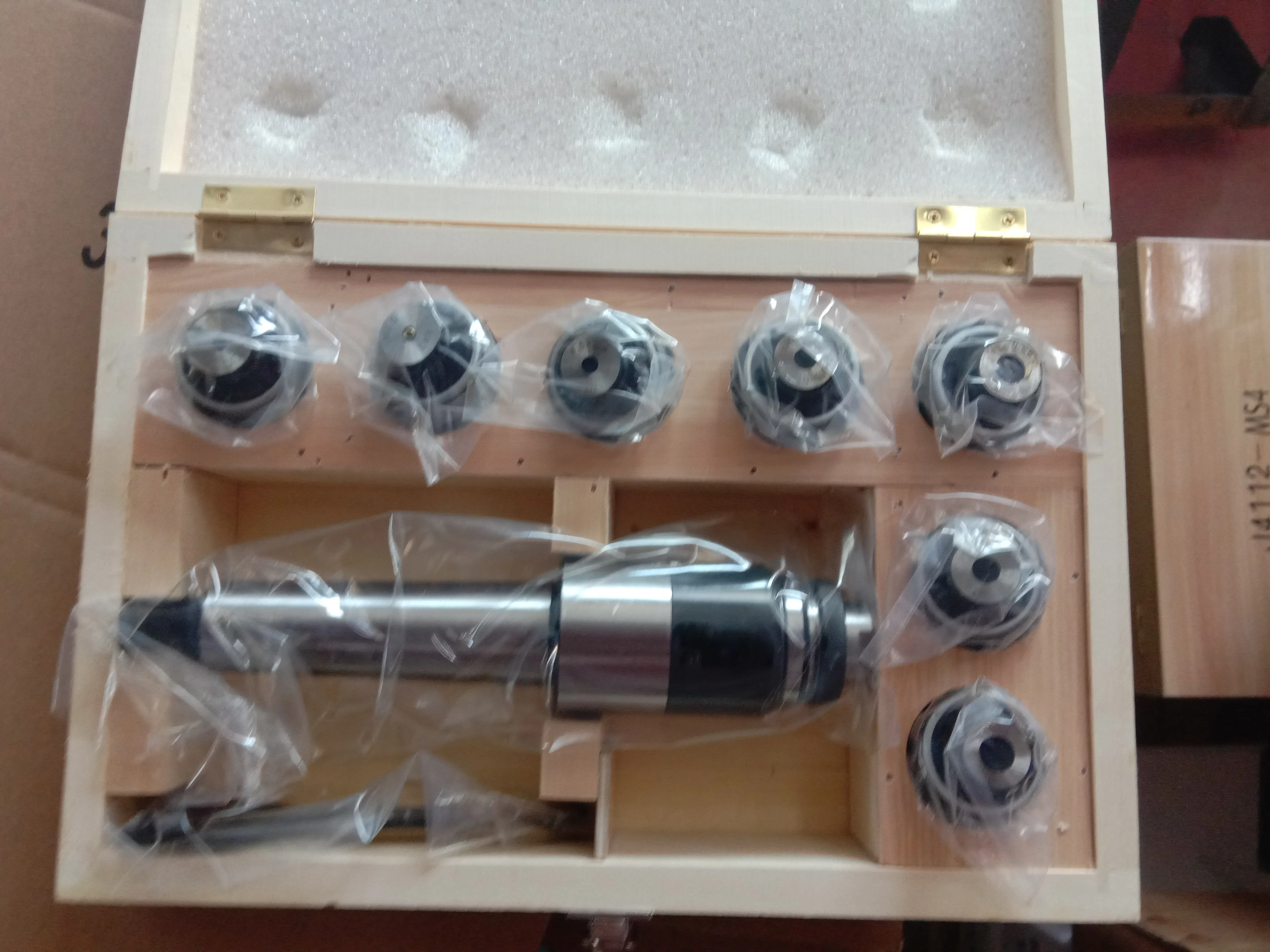

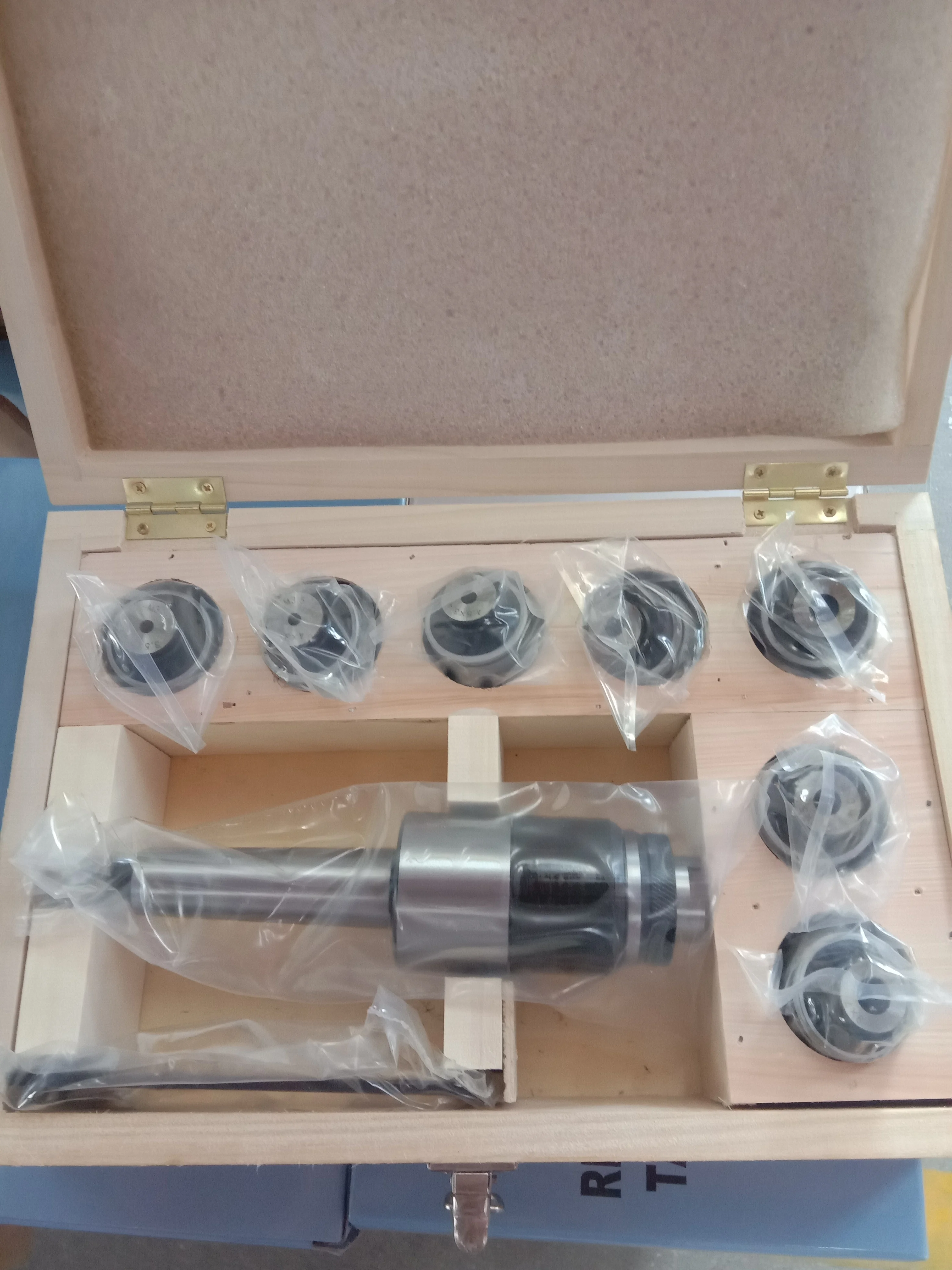

Specification of J48 Tapping chuck



Features:

   This device is consisted of a tap chuck and tap collets. The chuck has compensating device for thread pitch Collet chuck has overload torque protection device, which avoid tap breaking. In order to get the different release torques for different diameter taps, just adjust nuts. This device is most applicable to tap working on drill, lathe, boring machine,  milling machine and CNC machine center and so on.





Item No	Model	Shank taper	D(mm)	D1(mm)	d(mm)	L1(mm)	L(mm)	Tapping Range	Torque Nm	Wt(kg)
576311	J4812L/MT2	MS2	46	17.78	19	75	171.5	M3-M12	25	1.08
576310	J4812L/MT3	MS3		23.825		94	191			1.28
576318	J4812L/MT4	MS4		31.267		117.5	216			3
576312	J4816L/R8	R8		31.75		101.6	193.6	M3-M16	46.3	1.71
576313	J4816L/MT2	MS2		17.78		75	171.5			1.08
576315	J4816L/MT3	MS3		23.825		94	191			1.61
576316	J4816L/MT4	MS4		31.627		117.5	216			3
576314	J4824L/MT3	MS3	66	23.825	30	94	227	M12-M24	150	3.2
576322	J4824L/MT4	MS4		31.627		117.5	252			3.6
576326	J4824L/MT5	MS5		44.399		149.5	284			4.5







12 Type Tapping Range	M3	M4	M5	M6	M8	M10	M12
67Type d1*a(mm)	4*3	4*3	5*3.8	6*5	6*5	8*6.3	9*7.1
83Type d1*a(mm)	2.24*1.8	3.15*2.5	4*3.15	4.5*3.55	6.3*5	8.*6.3	9*7.1



24 Type Tapping Range	M12	M14	M16	M18	M20	M22	M24
67Type d1*a(mm)	9*7.1	10.5*8	12.5*10	14*11	16*12	18*14.5	20*16
83Type d1*a(mm)	9*7.1	11.2*9	12.5*10	14*11.2	14*11.2	16*12.5	18*14
