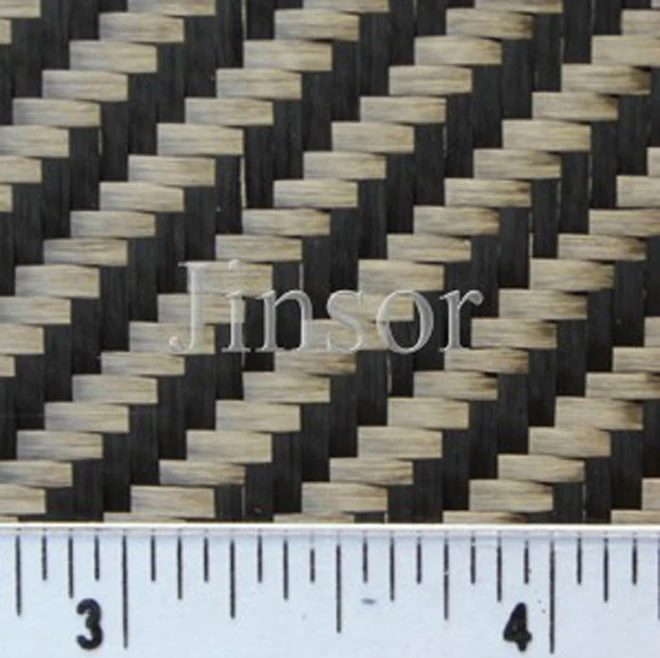

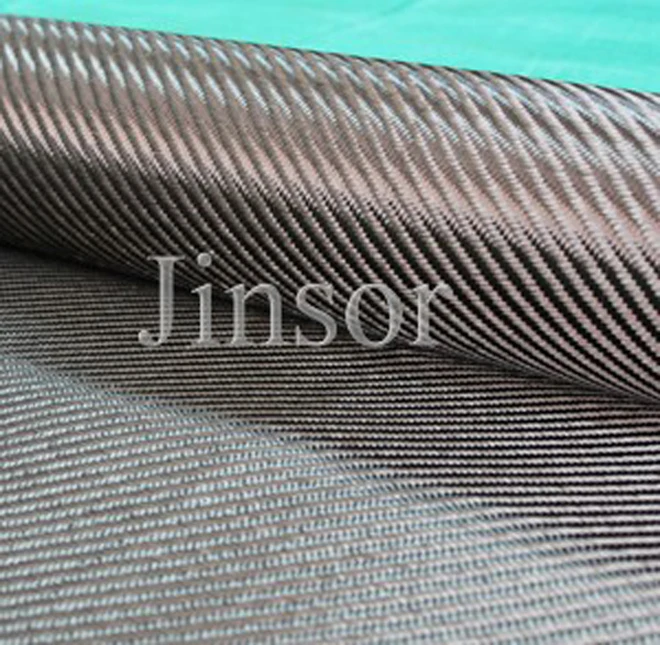

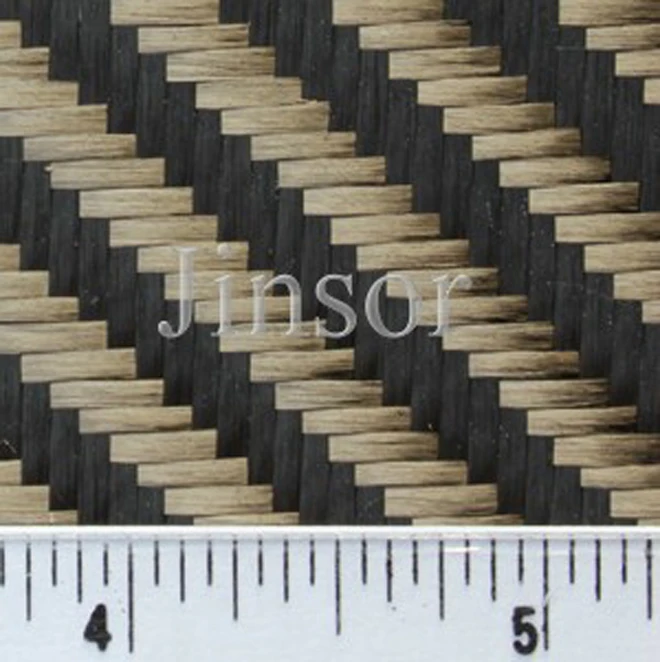

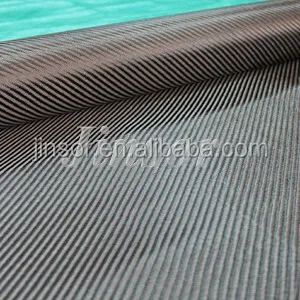

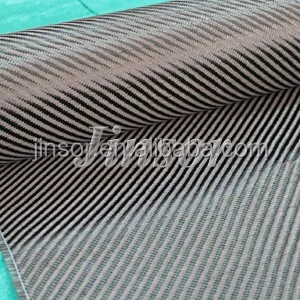

symmetric Big twill 4x4 carbon fiber fabric

Product Overview

Description

We can offer the twill carbon fiber fabric

fiber can be 3k,6k,12k
plain or twill2x2 or satin
width can be 10cm ~180cm
roll lentgh can be 100m

The application is for compsote car parts and sporting goods.

Please kinldy contact us for the detail specification and price quotation.



JINSOR carbon fiber fabrics detail specifications
Carbon fiber fabrics application are as follows 1. carbon sporting goods: golf shaft,tennis racket,ski board,snow board,surfboard,fishing rod...
2. carbon car parts: hood,front fender,steering wheel,gear shift,mirror cover,trunk cover. 3. carbon shoes parts:shoes sole,shoes trim...
4. carbon boat parts:mast,kayak,loom,loom blade,boat shell.. 5. carbon electronic parts:speaker cone,mobile phone shell,carbon laptope shell.

Code No (pictures) weave pattern Thickness (mm) width(cm) weight(g/m2) counts/inch fiber photos warp weft warp weft JSC 0151P Plain 0.16 50~200 136 17 17 1.5K 1.5K JSC 0151T Twill 0.16 50~200 136 17 17 1.5K 1.5K JSC 0152P Plain 0.17 50~200 162 20 20 1.5K 1.5K JSC 0153P Plain 0.15 50~200 100 12.5 12.5 1.5K 1.5K JSC 0154P Plain 0.16 50~200 145 18 18 1.5K 1.5K JSC 0156P Plain 0.14 50~200 96 12 12 1.5K 1.5K JSC 0301P Plain 0.3 50~200 200 12.5 12.5 3K 3K JSC 0302P Plain 0.35 50~200 225 15 13 3K 3K JSC 0303P Plain 0.35 50~200 240 15 15 3K 3K JSC 0304P Plain 0.25 50~200 160 10 10 3K 3K JSC 0305P Plain 0.25 50~200 164 12.5 8 3K 3K JSC 0306P Plain 0.28 50~200 273 17 17 3K 3K JSC 0311T Twill 2x2 0.3 50~200 200 12.5 12.5 3K 3K JSC 0312T Twill 1x3 0.3 50~200 200 12.5 12.5 3K 3K JSC 0313T Twill 2x2 0.35 50~200 240 15 15 3K 3K JSC 0313T3 Twill 3x3 0.35 50~200 240 15 15 3K 3K JSC 0314T Twill 2x2 0.25 50~200 160 10 10 3K 3K JSC 0316T4 Twill 4x4 0.38 50~200 272 17 17 3K 3K JSC 0321S Satin 8H 0.42 50~200 368 23 23 3K 3K JSC 0322S Satin 5H 0.4 50~200 280 17.8 17.8 3K 3K JSC 0601P Plain 0.5 50~200 320 10 10 6K 6K JSC 0604P Plain 0.4 50~200 290 9 9 6K 6K JSC 0611T Twill 2x2 0.5 50~200 320 10 10 6K 6K JSC 0612T Twill 2x2 0.55 50~200 400 12.5 12.5 6K 6K JSC 0613T Twill 2x2 0.35 50~200 205 6 7 6K 6K JSC 0621S Satin 5H 0.55 50~200 380 12 12 6K 6K JSC 1201P Plain 0.65 50~200 510 8 8 12K 12K JSC 1202P Plain 0.65 50~200 576 8 10 12K 12K JSC 1204P Plain 0.6 50~200 378 6 6 12K 12K JSC 1211T Twill 2x2 0.65 50~200 510 8 8 12K 12K JSC 1212T Twill 2x2 0.65 50~200 576 8 10 12K 12K JSC 1213T Twill 2x2 0.7 50~200 650 10.5 10.5 12K 12K JSC 1214T Twill 2x2 0.6 50~200 378 6 6 12K 12K JSC 1215T Twill 2x2 0.6 50~200 630 10 10 12K 12K JSC 2401P Plain 0.85 50~200 770 5 7 24K 24K SCP100 Plain 0.13 100 100 1.6 1.6 16mm spread 12K 16mm spread 12K
