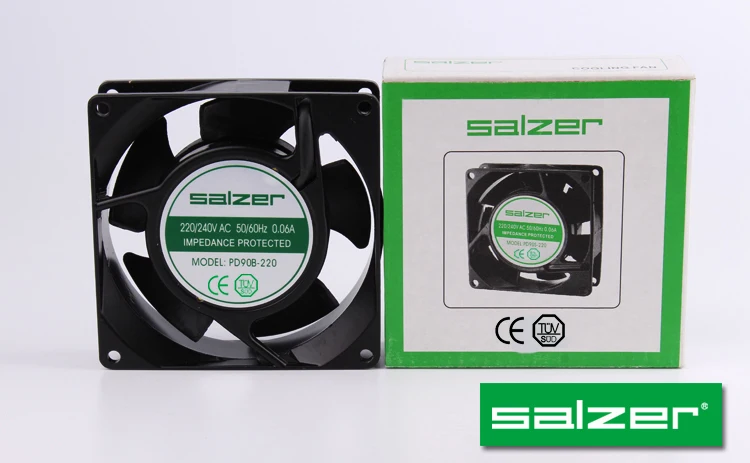

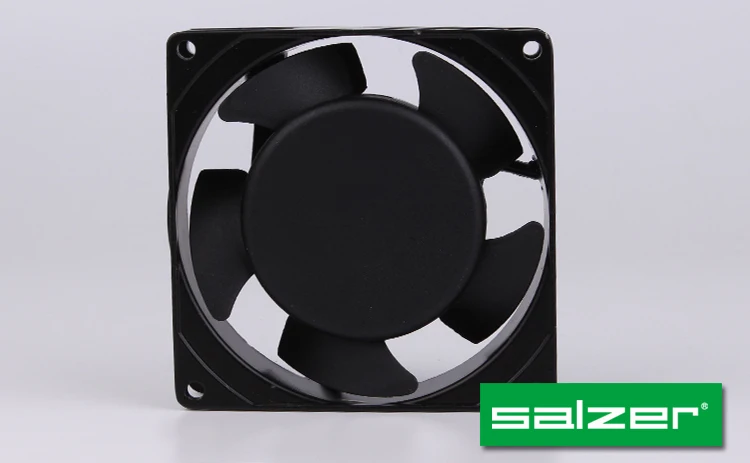

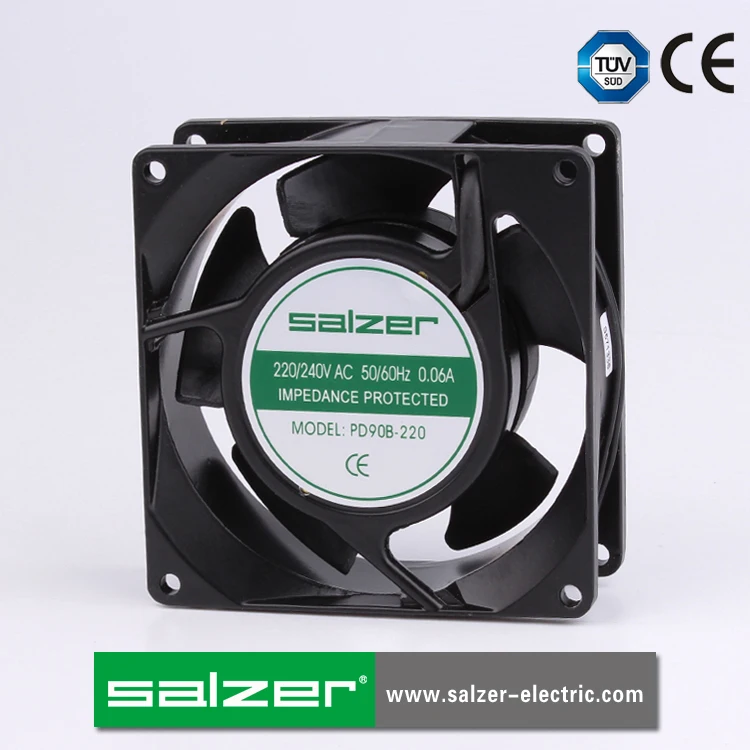

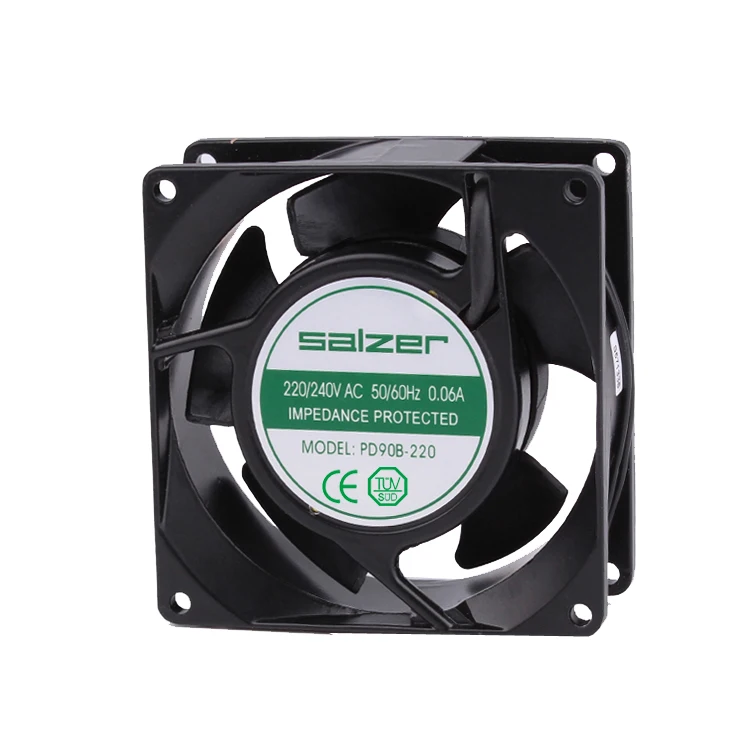

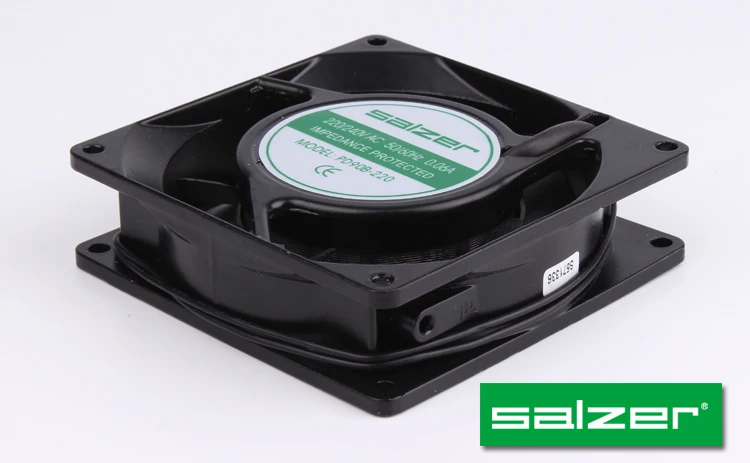

SALZER PD90B 220 AC AXIAL FAN 92X92X25MM BALL BEARING TUV CE

Product Overview

Description



SALZER PD90B-220 AC AXIAL FAN 92X92X25MM BALL BEARING

AC Axial Fan General Data

General Information

Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C

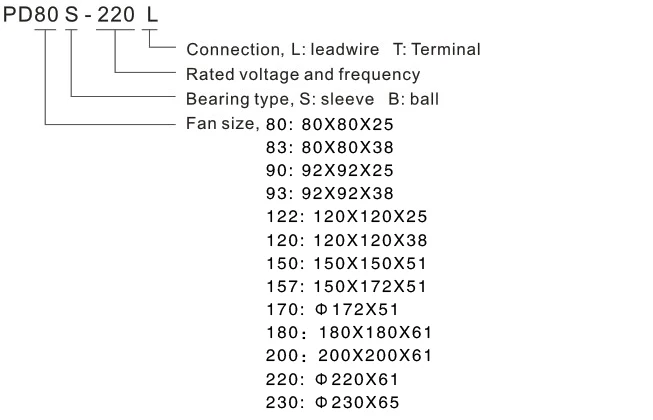

Ordering Information



92X92X25mm AC Axial Fan

Technical Parameters of AC Axial Fan

Dimension (mm)	Model	Vol- tage  (AC)	Freq- uency  (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M3/min	Pres- sure (Inch/ H2O)	Noise (dBA)	Weight (Gram)
92X92X25	PD90S-110	110/120	50/60	0.13	11	2300	36/1.0	0.12	23	270
	PD90S-127	110/127	50/60	0.14	12	2300	36/1.0	0.12	23	270
	PD90S-220	220/240	50/60	0.09	12	2300	36/1.0	0.12	23	270
	PD90B-110	110/120	50/60	0.13	11	2300	36/1.0	0.12	23	270
	PD90B-127	110/127	50/60	0.14	12	2300	36/1.0	0.12	23	270
	PD90B-220	220240	50/60	0.09	12	2300	36/1.0	0.12	23	270
