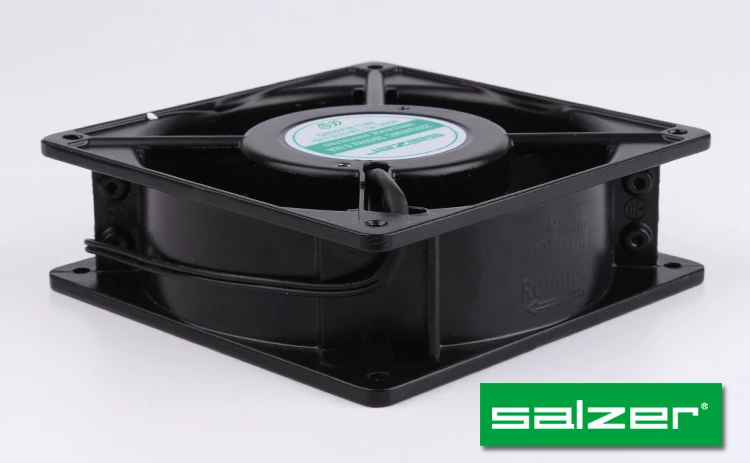

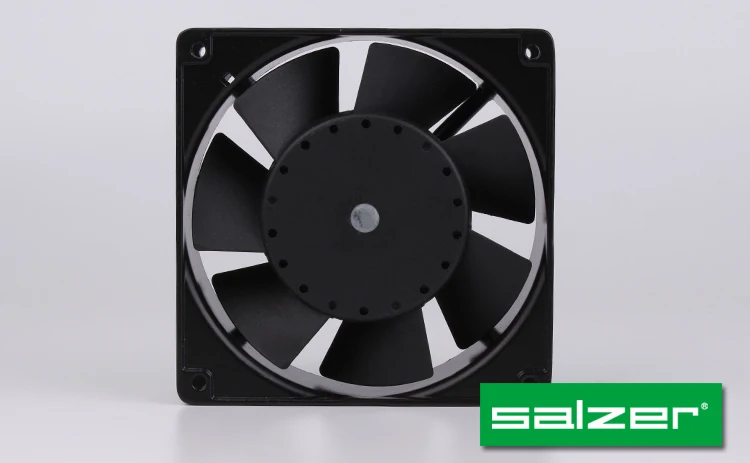

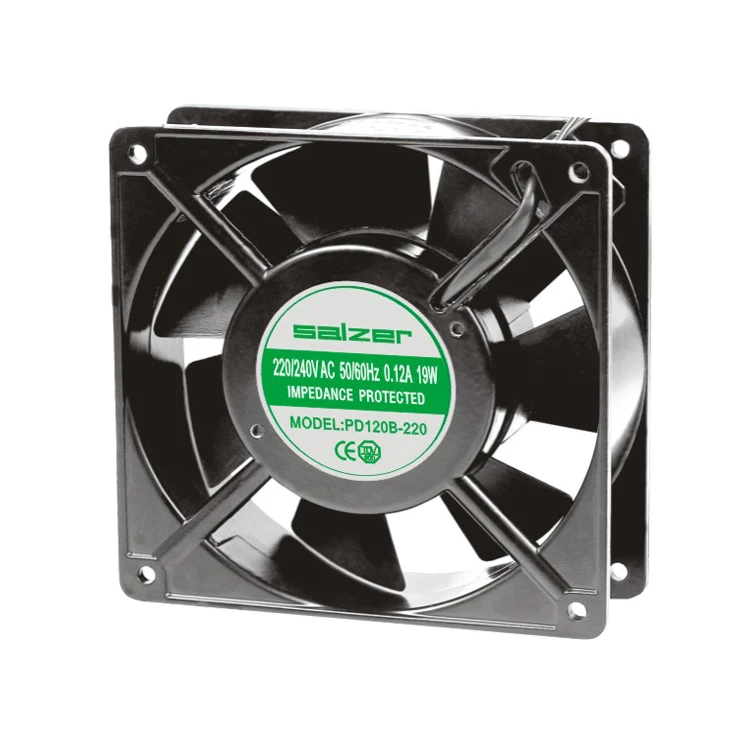

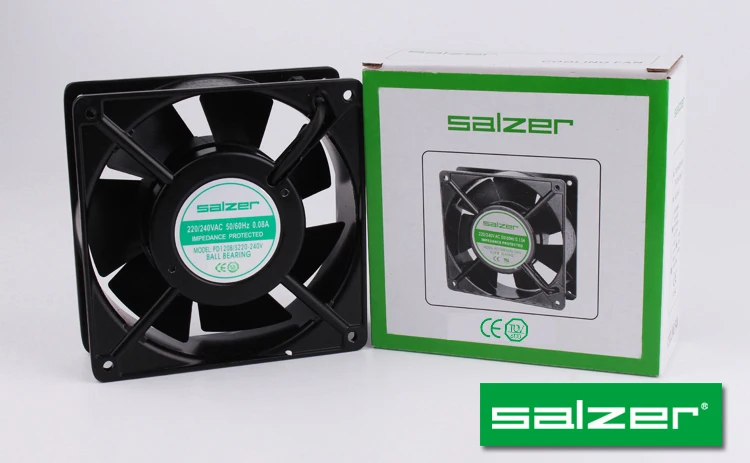

SALZER (CE, TUV,Approved )PD120B 220 120X120X38MM 220/240VAC 50/60HZ BALL BEARING ac cooling fan

Product Overview

Description



General Information

Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: 94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C



Ordering Information



120X120X38mm AC Axial Fan

Technical Parameters of AC Axial Fan

Dimension (mm)	Model	Vol- tage  (AC)	Freq- uency  (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M3/min	Pres- sure (Inch/ H2O)	Noise (dBA)	Weight (Gram)
120X120X38	PD120S-110 PD120S-127 PD120S-220	110/120 110/127 220/240	50/60	0.14 0.25 0.08	18 18 19	2600	98/2.75	0.23	46.5	515
	PD120B-110 PD120B-127 PD120B-220	110/120 110/127 220/240	50/60	0.14 0.25 0.08	18 18 19	2600	98/2.75	0.23	46.5	515

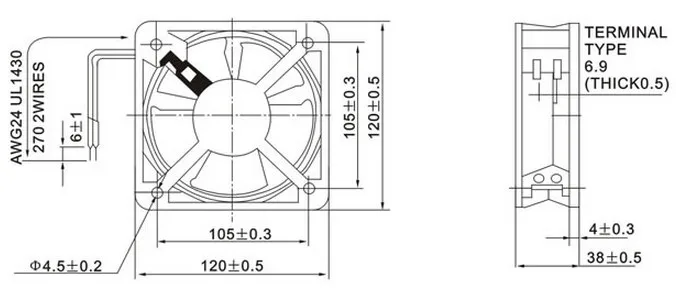

Outline drawing





We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
