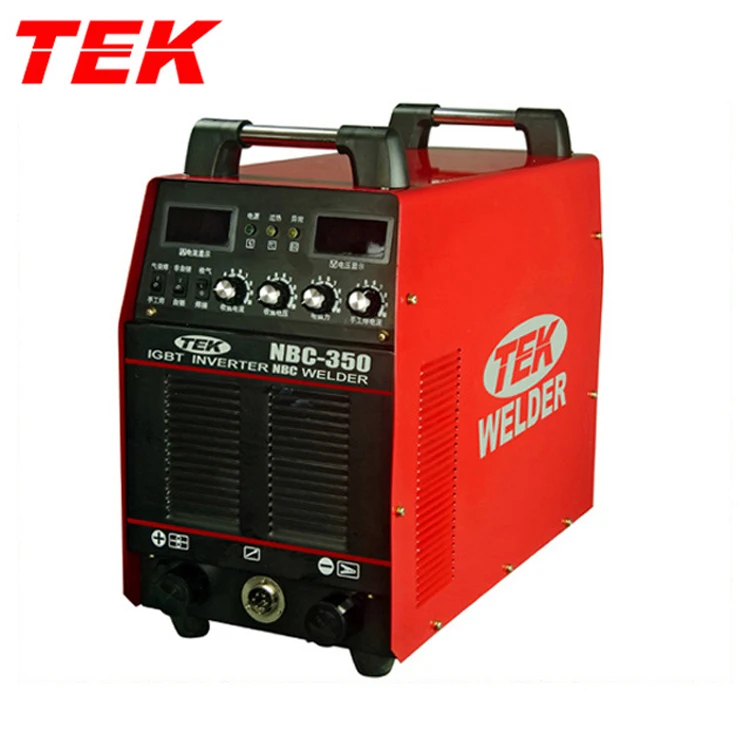

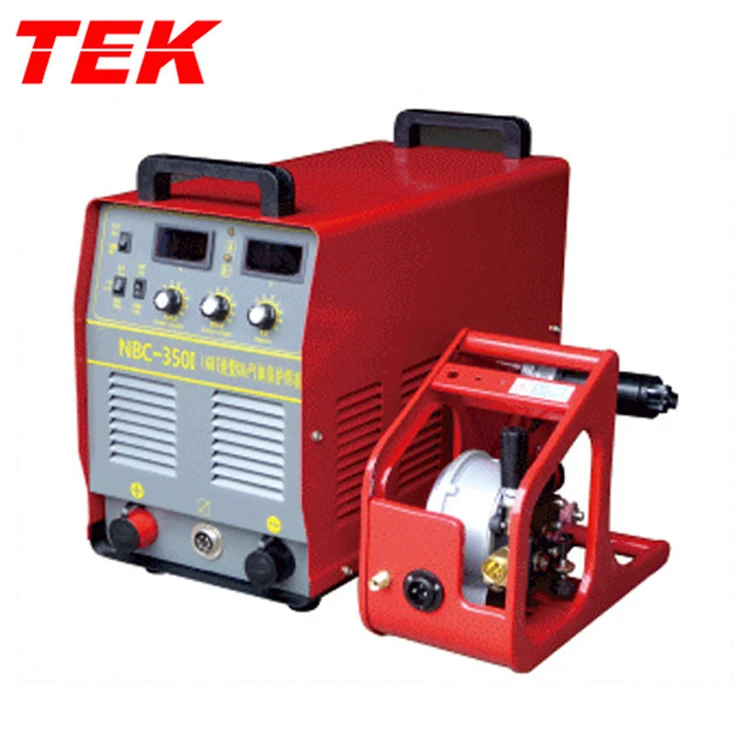

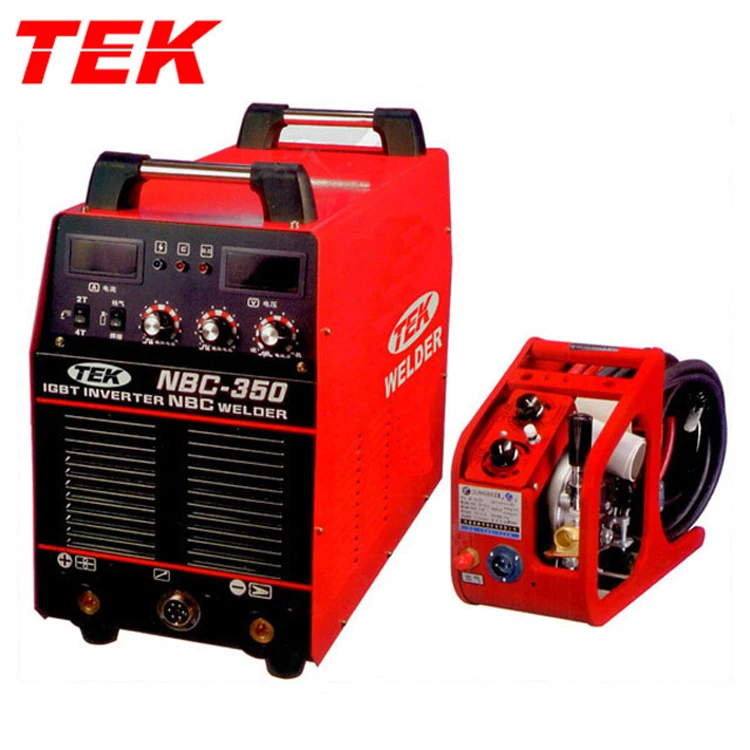

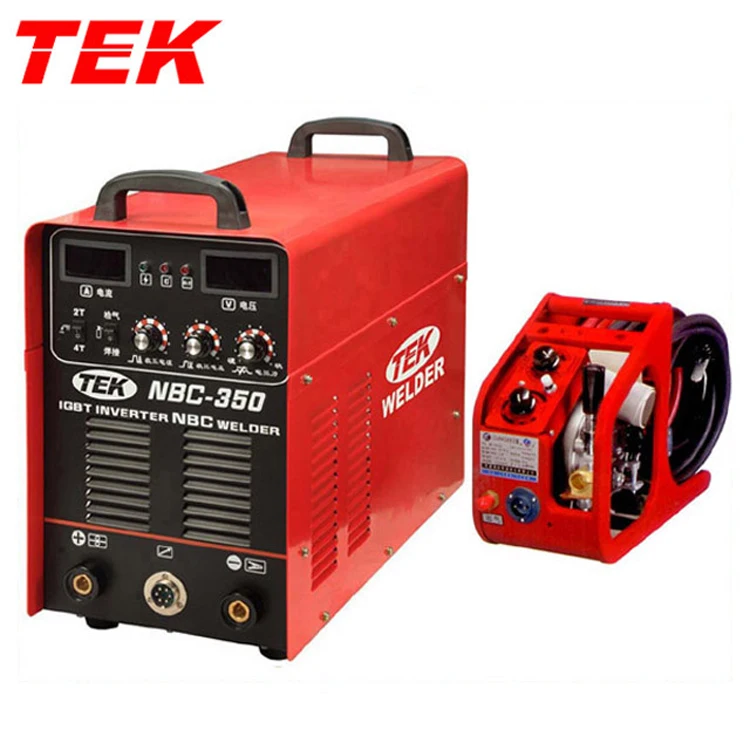

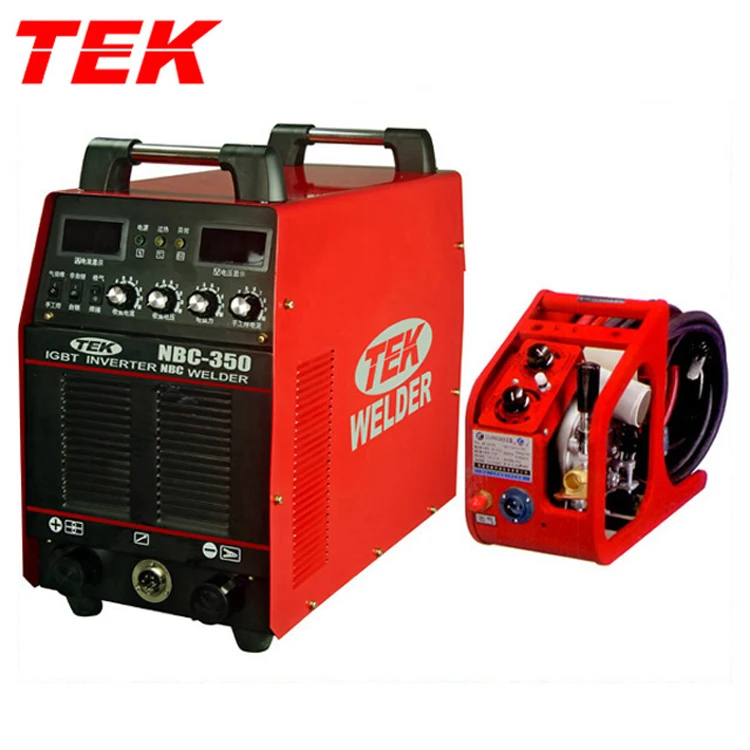

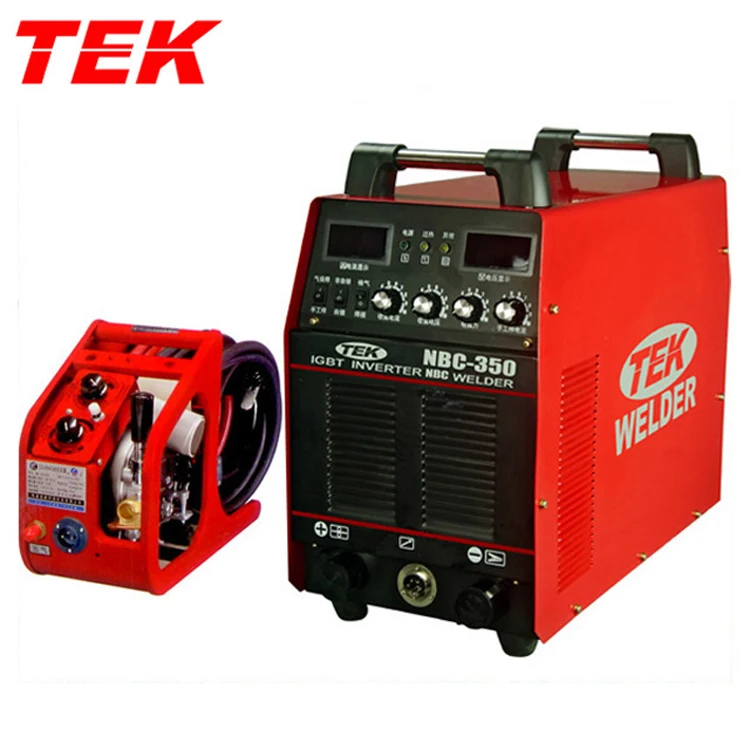

Single IGBT NBC350 MIG350 MAG350 FCAW350 GMAW350 Wire Feeder CO2 Protected Discrete IGBT DC Inverter Welding Machine OEM

Product Overview

Description

Single IGBT NBC350 MIG350 MAG350 FCAW350 GMAW350 Wire Feeder CO2 Protected Discrete IGBT DC Inverter Welding Machine OEM



1. IGBT inverter technology with current control, reliable quality, stable performance.
2. Equip with closed loop feedback, constant voltage output, good at protest fluctuation of voltage with automatic compensation function(±15%).
3. Be controlled by electronic reactor, make it possible for stable welding process, little spark, deep pool, excellent molding.
4. Can observe the current and voltage at the same time.
5. 2T/4T switch be selected, suitable for long distance operation.

6. Proper slowly wire feeding when igniting arc, wipe off molten drop after welding, can ensure the success rate of arc-strike.
7. Small volume and light weight, it is utility and economic, very easy to operate.
8. Suitable for sheet over 0.8mm
9. Cost saving and efficiency improving

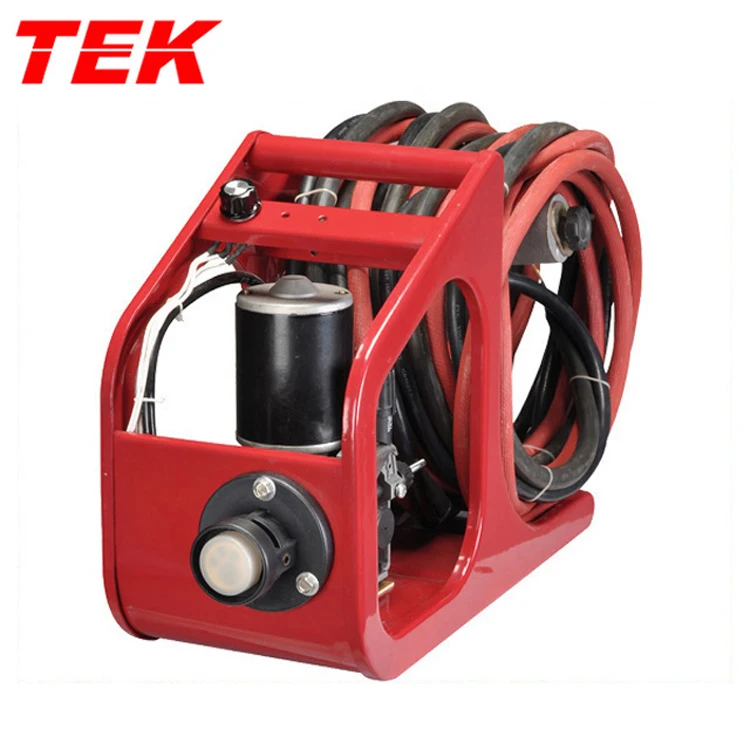

10. With wire machine, and easy and considerable for operation
11. High welding speed, high arcing success rate
12. Continuous and discontinuous welding function
13. Automatic voltage pulsation compensation capability
14. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
15. Little spatter, uniform welding pool, good welding shape



TECHNICAL SPECIFICATIONS
MODEL	Single IGBT NBC350
Power voltage frequency	AC.Three-phase 380V ±15% 50Hz-60Hz
Input current	12.6A
Power capacity	13.5KVA
Rate output current	50-350A
Output voltage	15-34V
Duty cycle	60%
Power factor	0.8
Efficiency	85
Insulation class	F
Type of wire feeder	Fission
Overall dimension	570*280*495mm
Protection class of case	IP21
Feeding speed	2.5-13m/min
Pastflow time	1±0.5
Diameter of coil	270mm
Weight	27kg
Diameter of earth cable	2.5m
