CAMA AFM32 Capacitive fingerprint module for finger print time attendance

Product Overview

Description

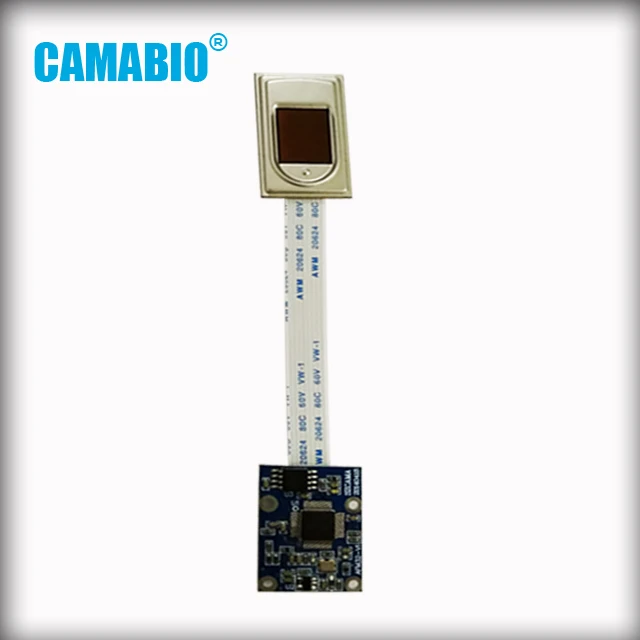

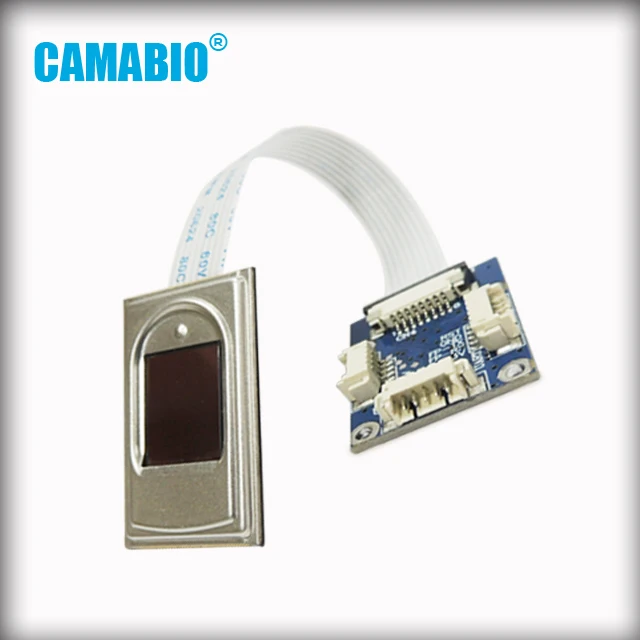

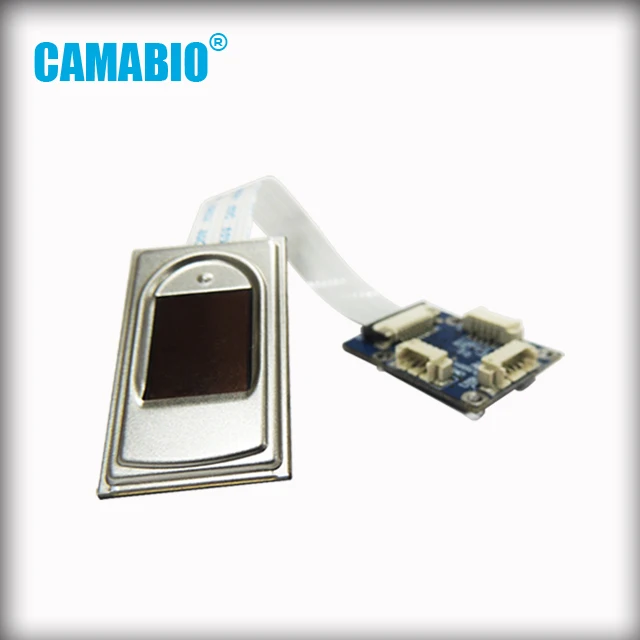

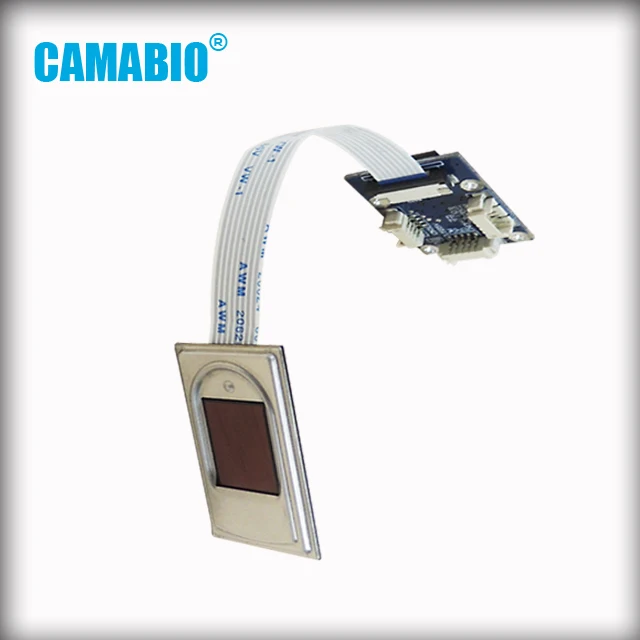

  CAMA-AFM32 Capacitive fingerprint module for finger print time attendance



CAMA-AFM32 Capacitive fingerprint module is an oem module for secondary development. It features small size, low power consumption, simple ports, high reliability, small fingerprint template (496bytes), large fingerprint capacity, etc. It is convenient to be embedded to user system for realizing clients required fingerprint verification products.
CAMA-AFM32 Capacitive fingerprint module has outstandingly features self-learning function. During the fingerprint verification process, the latest collected fingerprint features would be integrated into the fingerprint database automatically so that the users would obtain better and better fingerprint verification result.



Features:

      UART communication port

      Achieving fingerprint enrollment and verification at the condition of minimum storage
      Optical total reflection fingerprint sensor
      1:N verification and 1:1 identification function
      Self-learning function of the fingerprint features

      Able to collect fingerprint and upload its features so as to achieve matching function with current fingerprint
      Able to set baud rate and equipment Number
      Access to standby situation by instruction control module

Parameters:



Parameter	Description
Sensor	FPC1011 Capacitive Fingerprint Sensor
Fingerprint image	152 x 200 (pixel)
Resolution	500 dpi
Fingerprint Capacity	2000
FAR	< 0.001 %(Security Level 3)
FRR	< 0.1 %(Security Level 3)
Matching Method	1:N Identification and 1:1 Verification
Fingerprint Template	496 Bytes
Security Level	Level 1~ Level 5 can be set, Default setting:Level 3
Speed	Fingerprint pretreatment < 0.45 s, 1:N(2000 fingerprints)< 0.9s
Communication Port	UART, 3.3V TTL
BaudRate	9600, 19200, 38400, 57600, 115200(bps)Default:115200bps
Working Voltage	DC3.3V
Working Current	<100mA, Standby Mode less than 5mA
Working Environment	Working Temperature: -20 °C- 60 °C Working Humidity: 20%– 80%



Applications:
Access control systems
Time & Attendance
Locks, safes
POS, handheld terminals
Othe embedded system
