Static Var Generator (SSVG series)
- Category: >>>
- Supplier: Hubei Zhongsheng Electric Co. Ltd.
Share on (1979379627):
Product Overview
Description

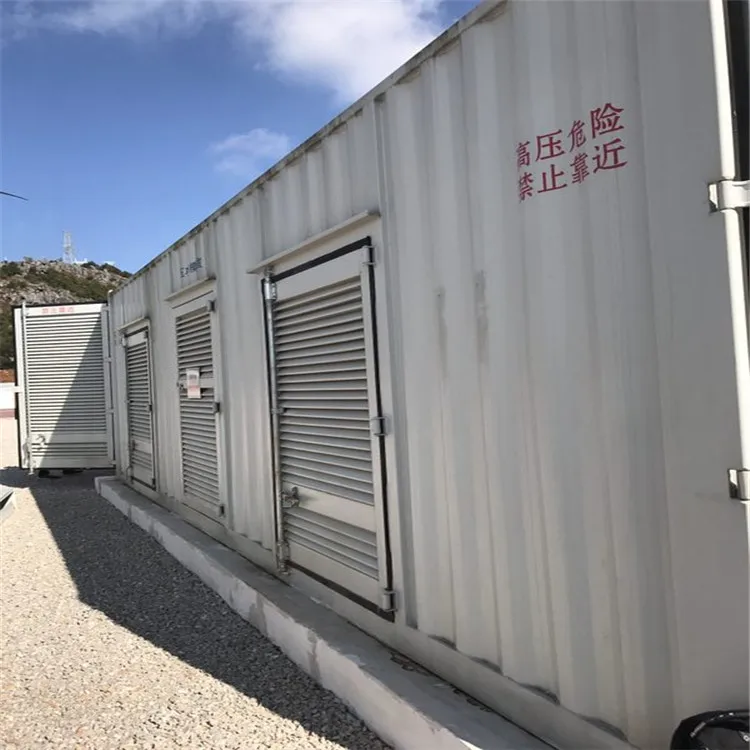

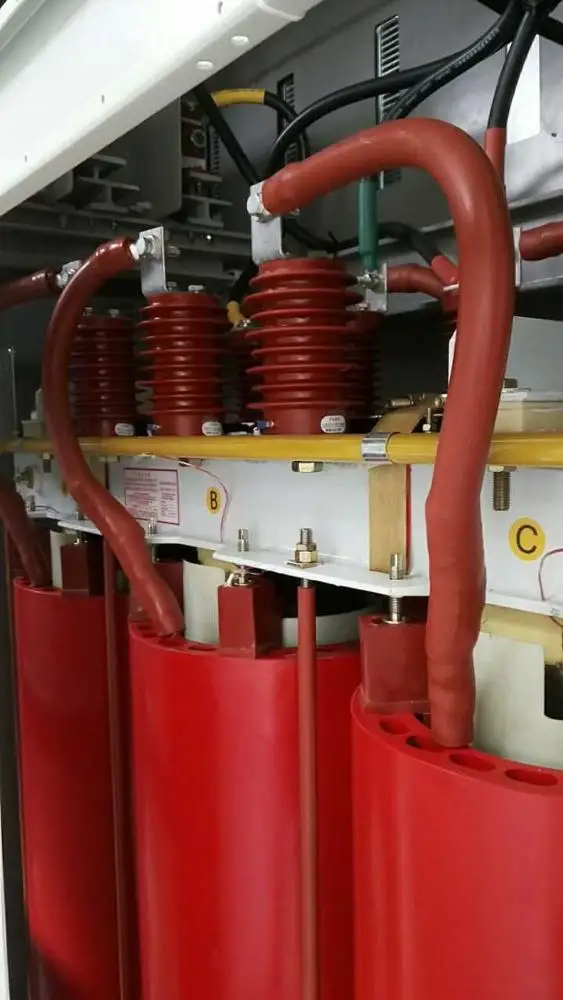

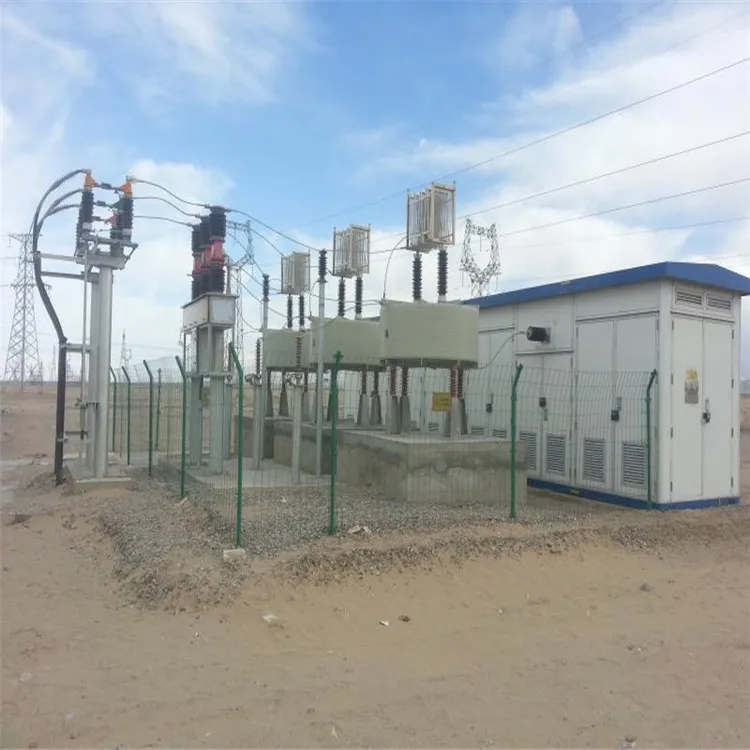

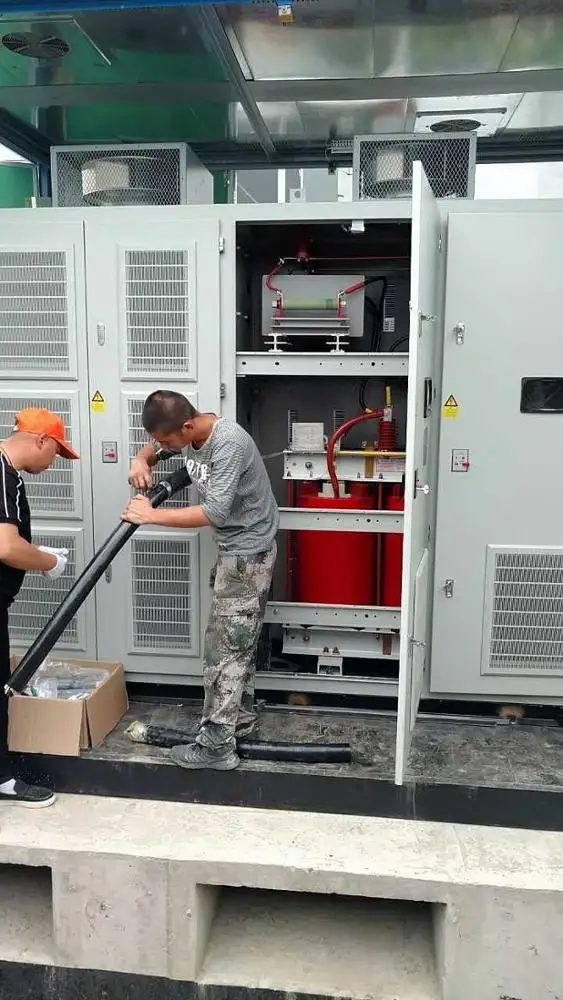

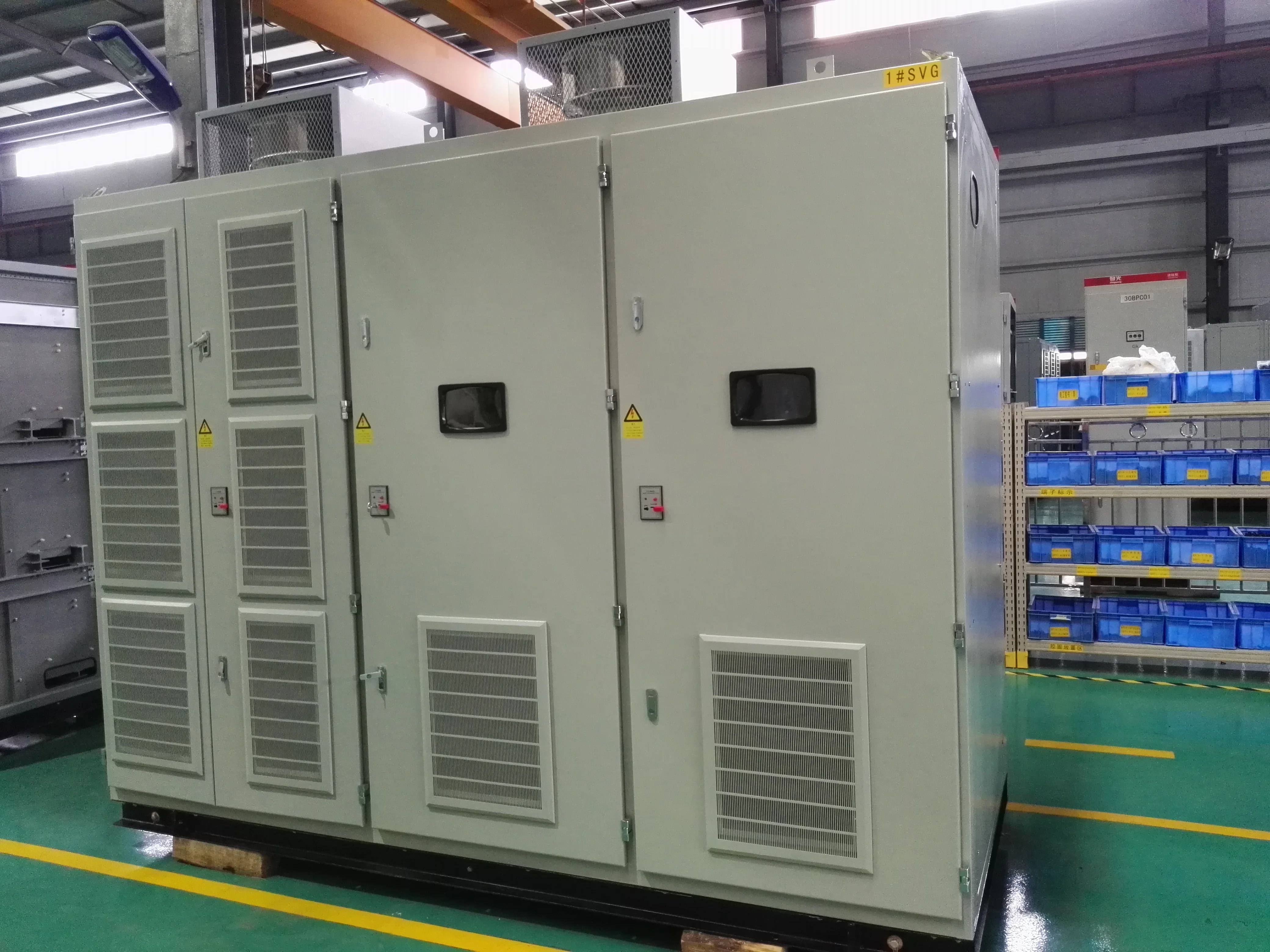

Static Var Generator (SSVG)
Static Var Generator (SSVG) are widely used in the fields of rolling mills, EAF, coal, heavy machinery, electric railway and power systems. SVG has made a great contribution towards the improvement of electric energy and energy-saving for the power distribution system.
Main function
(1) maintain receiving end voltage, strengthen system voltage stability
(2) compensate system reactive power, improve power factor, reduce line loss, save energy and reduce cost
(3) suppress voltage fluctuation and flicker
(4) suppress three phase unbalance
Technical advantages
1.diversified compensation function
2.faster response speed
3.stronger voltage flicker suppress ability
4.wider operating range
5.excellent harmonic output characteristic
6.small floor area
7.high efficiency
8.perfect protection function
Technical parameters
6kV/10kV series | |||||||
Model | voltage (kV) | capacity (kVar) | phase
| Cooling method | External dimension(mm) | ||
width | depth | highness | |||||
SSVG-500/6-HS | 6 | 500 | 3 | air cooling | 3800 | 1500 | 2200 |
SSVG-1000/6-HS | 1000 | 3 | air cooling | 3800 | 1500 | 2200 | |
SSVG-2000/6-HS | 2000 | 3 | air cooling | 3800 | 1500 | 2200 | |
SSVG-3000/6-HS | 3000 | 3 | air cooling | 4800 | 1500 | 2200 | |
SSVG-4000/6-HS | 4000 | 3 | air cooling | 4800 | 1500 | 2200 | |
SSVG-5000/6-HS | 5000 | 3 | air cooling | 5500 | 1500 | 2200 | |
SSVG-6000/6-HS | 6000 | 3 | air cooling | 5500 | 1500 | 2200 | |
SSVG-1000/10-HS | 10 | 1000 | 3 | air cooling | 6000 | 1500 | 2200 |
SSVG-2000/10-HS | 2000 | 3 | air cooling | 6000 | 1500 | 2200 | |
SSVG-3000/10-HS | 3000 | 3 | air cooling | 6000 | 1500 | 2200 | |
SSVG-5000/10-HS | 5000 | 3 | air cooling | 6800 | 1500 | 2200 | |
SSVG-6000/10-HS | 6000 | 3 | air cooling | 6800 | 1500 | 2200 | |
SSVG-8000/10-HS | 8000 | 3 | air cooling | 7500 | 1500 | 2200 | |
SSVG-10000/10-HS | 10000 | 3 | air cooling | 7500 | 1500 | 2200 | |
35kV series | |||||||
Model | voltage (kV) | capacity (kVar) | phase
| Cooling method | External dimension (mm) | ||
width | depth | highness | |||||
SSVG-2000/35-HS | 35 | 2000 | 3 | air cooling | 12000 | 1500 | 2500 |
SSVG-5000/35-HS | 5000 | 3 | air cooling | 12000 | 1500 | 2500 | |
SSVG-8000/35-HS | 8000 | 3 | air cooling | 12000 | 1500 | 2500 | |
SSVG-10000/35-HS | 10000 | 3 | air cooling | 12000 | 1500 | 2500 | |
SSVG-15000/35-HS | 15000 | 3 | air cooling | 15000 | 1500 | 2500 | |
SSVG-18000/35-HS | 18000 | 3 | air cooling | 15000 | 1500 | 2500 | |
SSVG-20000/35-HS | 20000 | 3 | air cooling | 15000 | 1500 | 2500 | |
SSVG-25000/35-HS | 25000 | 3 | air cooling | 16000 | 1500 | 2500 | |
SSVG-50000/35-HS | 50000 | 3 | air cooling | 18000 | 1500 | 2500 | |
