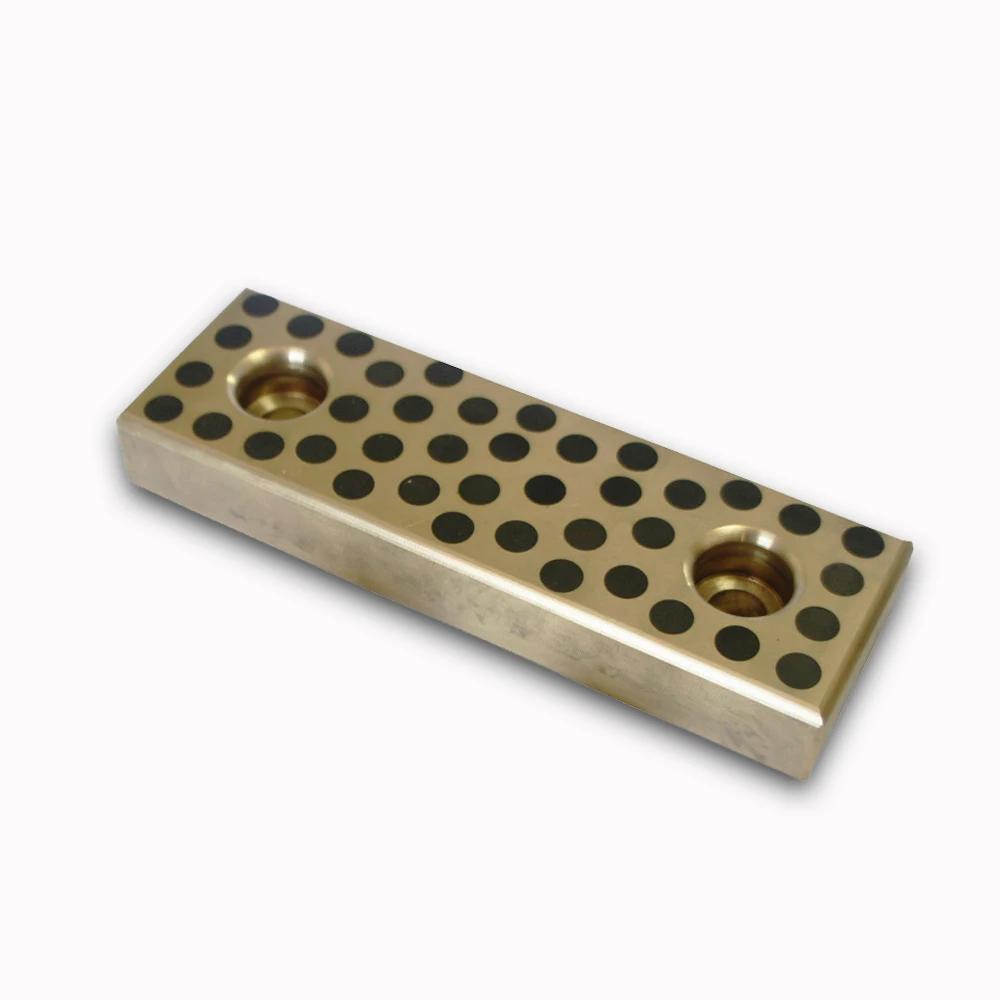

Slide Steel Baase Oilless Solid Bushing

Product Overview

Description

bucha de bronze grafitado

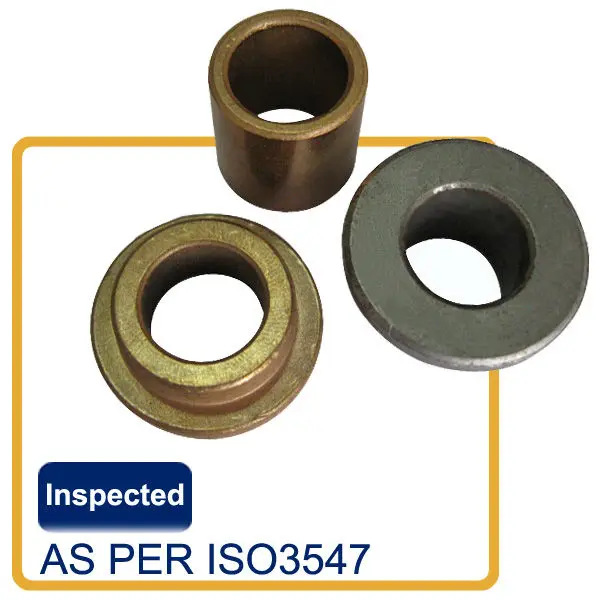

1. Introduction of oil sintered bearing

    1.1 Sintered Bronze bearings are all self-lubricating and maintenance free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications.

    1.2 We offers a full range of both plain and flanged cylindrical bushings in accordance with ISO 2795.



2. Features and advantages

    2.1 Very high sliding velocity

    2.2 No external lubrication required

    2.3 Maintenance-free operation

    2.4 Good frictional properties



3. Material

    3.1 Sintered Bronze/iron consists of a sintered metallic bronze or iron powder with fully impregnated porosity.

    3.2 The material compositions are in bronze or iron or bronze-iron with a porosity volume of 12%-18 % impregnated with mineral oil.

    3.3 Machining or grinding of the bearing surface of a porous sintered bushing is not recommended due to the risk of closing the bearing pores.



4. Applications

Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.

Examples of applications are:

    4.1 Electrical equipment, like toys

    4.2 Household equipment,like fans

    4.3 Printing machinery

    4.4 Machine tools,power tools



5. Lubrication

    5.1 While storing and mounting make sure that the bushing never comes into contact with any absorbent material, as this may drain the oil very quickly.

    5.2 It is therefore recommended to keep the bushing in the original packaging for as long as possible.

    5.3 Additional lubrication is usually not necessary.



6. Specifications



Material	Bronze	Bronze(CuSn6Zn6Pb3/CuSn10) + 12~18%Oil
	Iron	Fe + 12~18%Oil
	Cu-Fe	Cu20Fe80 + 12~18%Oil
		Customized is available
Load capacity		35~45N/mm2
Speed limit		2.5m/s
PV value limit		2.45N/mm2.m/s
Yeild Strength		147~294N/mm2
Hardness		20~60HB
Friction coef		0.12~0.2
Working temperature max.		-80~160°C



7. Standard Types

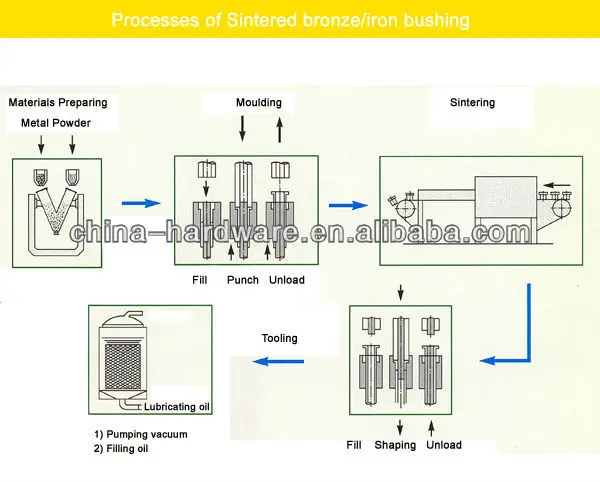

8. Production way

9. Plant





10. Packings:

11. Other bearings avialable

    11.1 SF-1(du) oilless bearing bushing (PTFE Composite)

    11.2 SF-2(dx) slide bearing bushing (POM Composite)

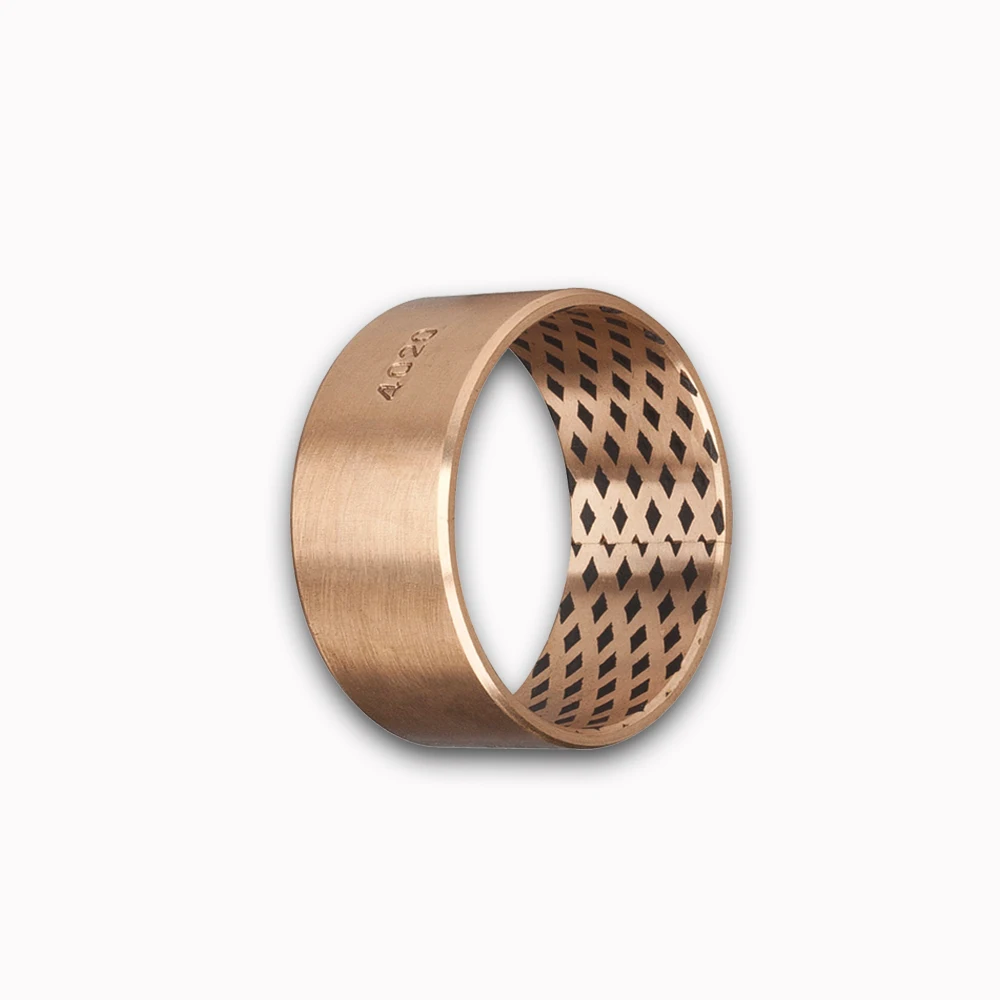

    11.3 FB090(FB090G) bronze bushing
    11.4 FB092 bronze bushing

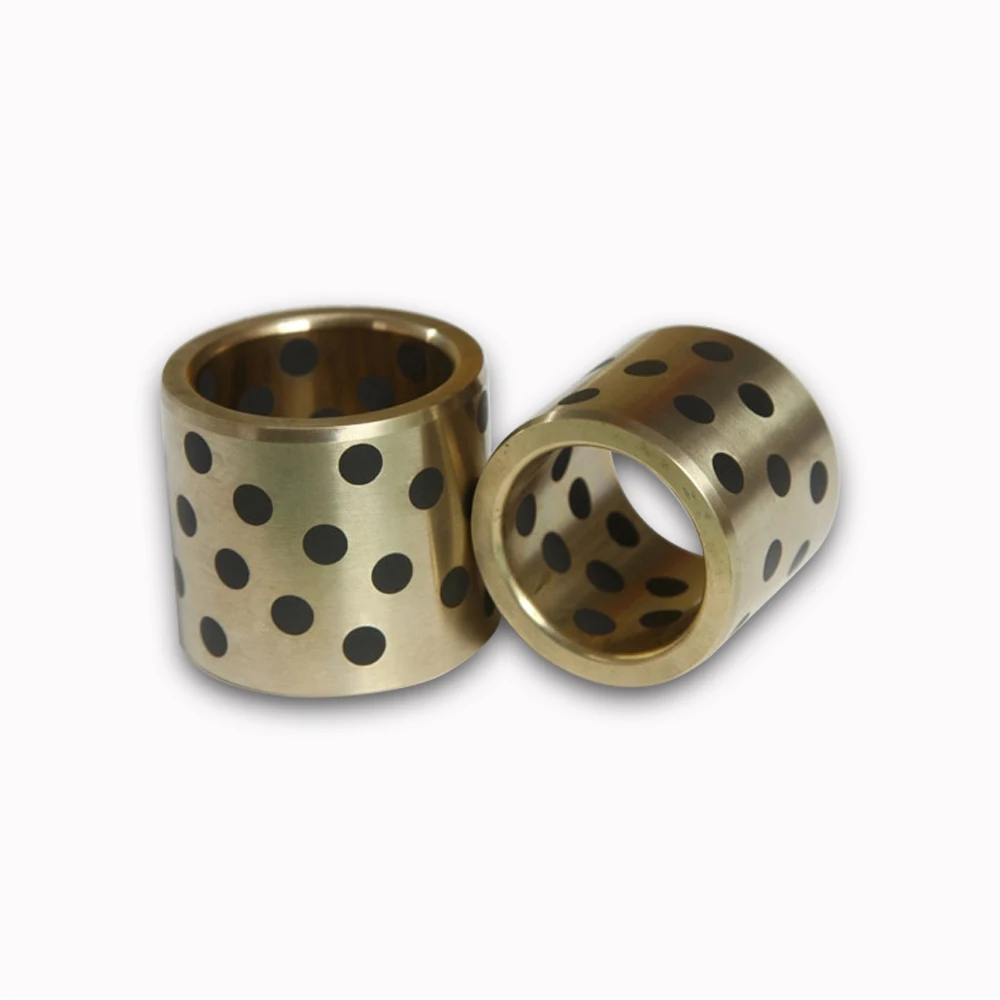

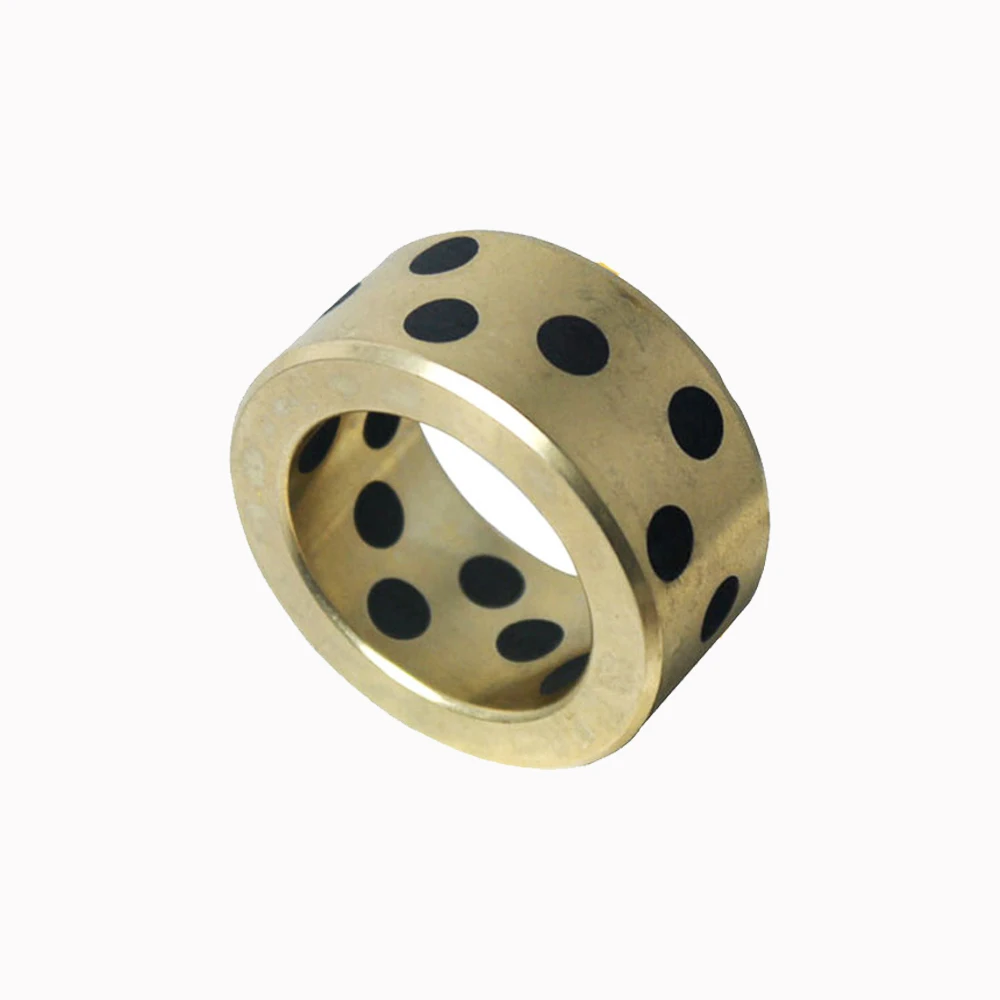

    11.5 JDB,JFB solid graphite lubricating bushing
    11.6 JF bi-metal bushing
    11.7 FU sintered bronze or iron bushing
    11.8 FZ POM/Al/Cu ball cage retainer
    11.9 FR metal mesh+PTFE Soft strips
    11.10 JGB Graphite bearings



oil sintered bush/graphite bronze bush/wrapped bronze bush/DX composit bush/ bimetal bush/Graphite bearing



12. Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
