Product Overview
Description
GETING MORE INFORMATION ,CLICK WWW.ONEBONDGROUP.NET
ONEBOND ALUMINUM HONEYCOMB PANEL DESCRIPTION:

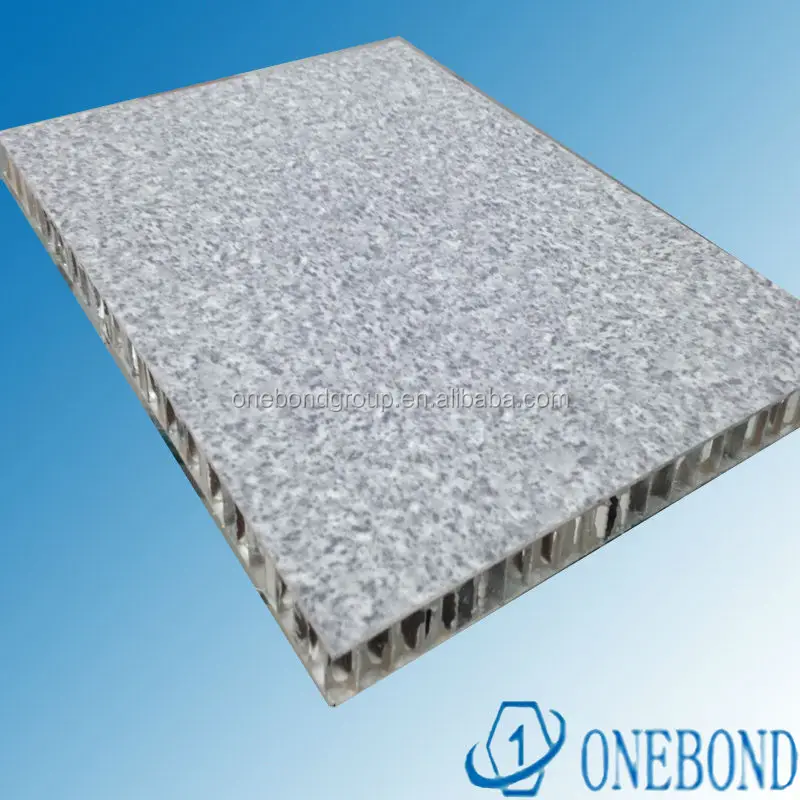

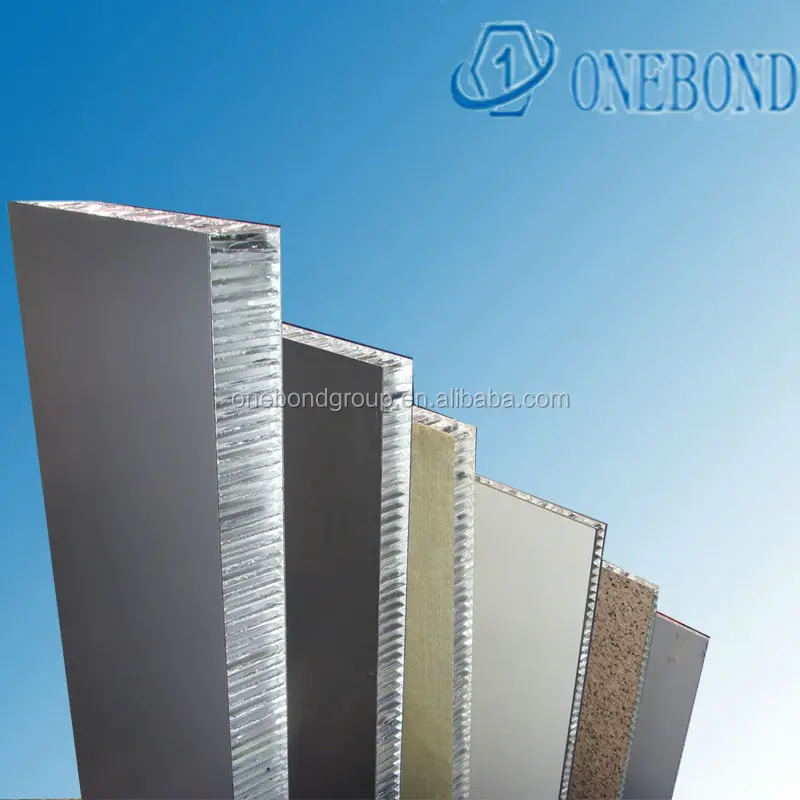

1.Surface Material: Aluminum(3003H24 or 5052H14), Formica(A2 fireproof sheet), Fiberglass, Stone
2.Aluminum Core: 3003H24, 5052H14
3.Coating: USA PPG PVDF COATING ,WARRANTY 20 YEARS,
4.Color: Any color
5.Size:(1) Width: Within 2000mm (2) Length: Within 6000mm
6. Delivery: 5-15 days.
7.Aluminum thickness : 0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm, 1.0mm, 1.5m, 2.0mm, 2.5mm,3.0mm
ONEBOND ALUMINUM HONEYCOMB PANEL SPECIFICATION:
(1) Aluminum sheet: 3003H24 or 5052H14 aluminum alloy with PVDF or PE coating as customers requirement with dry film thickness of 35um
(2) Aluminum honeycomb core: Hexagon aluminum honeycomb core made by 3003H24 &5052A14(thickness: 0.04-0.06mm, length: 5-6mm)
(3) Glue: DUPONT GLUE
ONEBOND ALUMINUM HONEYCOMB PANEL THICKNESS:
(1) Typical thickness: 6mm-200mm
(2) Special thickness: Available according to customers requirement
Size:
(1) Width: Within 2000mm
(2) Length: Within 10000mm

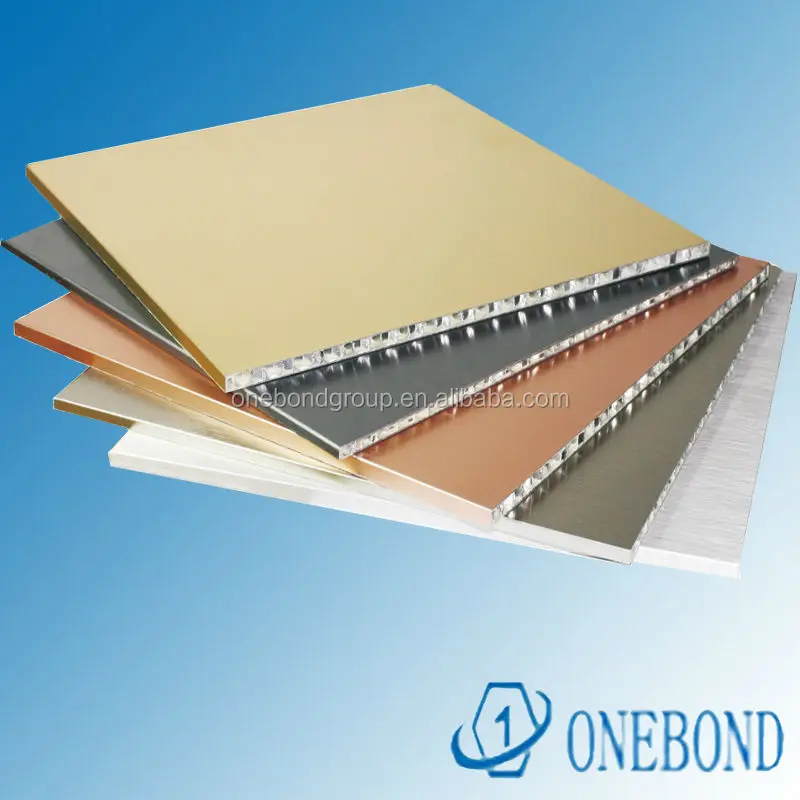

Color: Available in different colors including the wood and stone colors
Shapes: Available according customers requirement, such as the one side curved panel, two-side curved panel, columns, square, triangle, advertisement board etc.
ONEBOND PRODUCTION APPLICATION :
- Curtain wall decoration for buildings where security is important, such as airports, hospitals and research centers
- Curtain wallboards for outside walls of normal buildings
- Renovations of old buildings such as shopping mall and movable houses
- Reformation and decoration for indoor walls, ceilings, bathrooms,kitchens and balconies
- Facades/building wall cladding
- Billboards/advertising board, office desks/ exhibition desks and notice boards
- Wallboards and ceilings for tunnels
- Materials for industrial application, car ,bus and ship bodies
- Funiture,such as kitchen cabinet,wardrobe,door and so on
OUR FACTORY AND PRODUCTION EQUIPMENT
ONEBOND ALUMINUM HONEYCOMB PANEL DATA SHEET:
| Thickness | Unit | 6 mm | 10 mm | 15 mm | 20 mm | 25 mm | |||
| Cover sheet thickness, front | [mm] | 1.0 | |||||||
| Cover sheet thickness, rear | [mm] | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |||
| Weight | [kg/m²] | 4.7 | 5.0 | 6.7 | 7.0 | 7.3 | |||
| Technical properties | |||||||||
| Section modulus | W | [cm³/m] | 2.6 | 4.6 | 14 | 19 | 24 | ||
| Rigidity | EJ | [kNcm²/m] | 7.100 | 21.900 | 75.500 | 138.900 | 221.600 | ||
| Alloy / Temper of Aluminium Layers | Peraluman alloy (AIMg), H42 acc. EN 573-3 | ||||||||
| Modulus of Elasticity | E | [N/mm²] | 70.000 | ||||||
| Tensile Strength of Aluminium | R m | [N/mm²] |
| ||||||
| 0.2 % Proof Stress | R p0,2 | [N/mm²] |
| ||||||
| Elongation | A 50 | [%] |
| ||||||
| Linear Thermal Expansion | α | 2.4 mm/m at 100ºC temperature difference | |||||||
| Core | |||||||||
| Aluminium foils from AIMn alloys (EN AW-3003) Bare comprehensive strength | [N/mm²] | > 2.5 | |||||||
| Weight | [kg/m³] | > 50 | |||||||
| Surface | |||||||||
| Lacquering | Coil Coating Fluorocarbon based (e.g. PVDF) | ||||||||
| Gloss (initial value) | [%] | 25-40 | |||||||
| Pencil Hardness | HB-F | ||||||||
| Acoustical Properties | |||||||||
| Sound Absorption Factor | α s | 0.05 | |||||||
| Airborne sound insulation index (acc. to ISO 717-1, ISO 140-3) | R w | [dB] | 21 | 21 | 22 | 23 | 25 | ||
| Thermal Properties | |||||||||
| Termal conductivity (regarding total thickness, incl. cover sheets) | λ | [W/mK] | 0.95 | 1.35 | 1.78 | 2.25 | 2.70 | ||
| Thermal resistance | R | [m²K/W] | 0.0063 | 0.0074 | 0.0084 | 0.0089 | 0.0093 | ||
| Temperature Resistance | [ºC] | -40 to +80 | |||||||
PRODUTION FABRICATION METHODS
ONEBOND ALUMINUM HONEYCOMB PANEL PACKAGE WITH WOODEN CASE
OUR PROJECTS
