brass solenoid valve 2/2 way high pressure high temperature valve SLG5404 08

Product Overview

Description

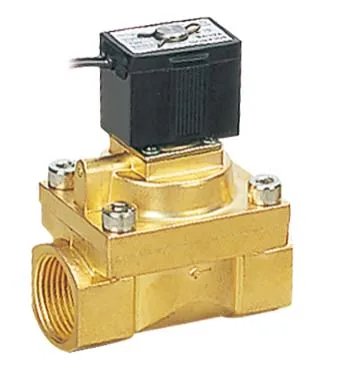

   High temperature valve SLG5404-08



                      SLG5404-08 solenoid valve hot water



Specification
Model	SLG5404-04	SLG5404-06	SLG5404-08
Working Medium	Air, Water, Oil
Motion Pattern	Guide Type
Type	Normal Close Type
Aperture of Flow Rate(mm)	12	25	25
Kv Value	2.0	5.0	10.0
Joint Pipe Bore	1/2"	3/4"	1"
Working-pressure(kgf/cm²)	Gas: 1~50  Liquid: 1~50	Gas: 1~30  Liquid: 1~25	Gas: 1~30  Liquid: 1~25
Max. Pressure Resistance (kgf/cm²)	75	40
Operating Temperature Range	-5~150
Voltage Range	±10%
Protect Class	IP65
Power Consumption	AC: 5.5VA    DC: 9W
Insulation	F Class
Material of Body	Brass
Material of Oil Seal	PTFE







We will give you a reply within 24 hours after receiving your inquiry.



Type	Normail close Type
Aperture of Flow Rate	12	25	25
CV value	2	5	10
Joint Pipe Bore	1/2"	3/4"	1"
Working-pressure(bar)	air:1~50 liquid:1~50	air:1~30 liquid:1~25	air:1~30 liquid:1~25
Max.Pressure Resistance(bar)	75	40
Operation Temperature Range(°C)	-5~150
Voltage Range	±10%
Protect class	IP65
Power consumption	AC:5.5VA DC:9W
Insulation	F Class
Material of Body	brass
Material of Oil Seal	PTFE





                          High temperature valve SLG5404-08







 Oevrall Dimension



Model	mm	Connector	A	B	F	E	L	A/F
SLG5404-04	12	1/2"	84	98	13	32	63.5	28
SLG5404-04B	15	1/2"	75	89	13	32	63.5	28
SLG5404-06	20	3/4"	99.5	125	16	60	91	41
SLG5404-08	25	1"	99.5	125	16	60	91	41



If you have special requirements, please feel free to contact us.

Stock, Quality Testing & Packing:
(1)We have stock for the order of small quantity(less than 50 pcs)
(2)Quality test: 100% pressure test and leakage test before packing.
(3)Packaging Detail: Standard export packing with SLGPC brand or according to customer's special requirement.

Delivery details:
Within 5 working days after confirmation, shipping ways can be by sea, by air or courier, furthermore, we can ship the goods according to customer's special request.



Return & Refund terms:
If there are defective parts, we can change the new one for you within half a year , and we can mend it for you within a year.



Our advantage:
(1)We can do the designs according to customers’ requirements.

 (2)We can open customers’ own mold as per their requirements.

 (3)We can offer you a good after-sell service.

 (4)Prompt delivery.

 (5)Small order is welcome, the MOQ is 1 pc.















This is Betty assistant manager of foreign trade department is at your service. If you need any further information, please feel free to contact me. My contact information is as follows:
TEL:0086-574-88816815
FAX:0086-574-88847138
CELL:0086-15669012130
Skype:rxb992

WeChat:461486689





PS: It is ok to arrange samples for your quality testing.
