cocoa jute sack machine

Product Overview

Description

GE2819   cocoa jute sack machine

Discription:

This machine is apt for many kinds of vegetable bag net machine, onion bag machine, fruit bag machine and shading net etc.
Purpose & Feature:



This machine is equiped with oil soaking connecting wheel system, embed latch needle, six spindle electronic let-off, electronic take up, and synchronous belt drive.



And this double needle Raschel Machine is adapt for production of many kinds of vegetable bags and shading net such as for planting vegetable,flowers,trees or green house.



Technical Data:

1 Machine type:GE2819 double needle-bar Shading Net Machine

2 Working needles:Latch needles

3 Machine gauge E2, E3, E6

4 Nominal width:4318mm(170’’),5334mm(210”),6604mm(260'')

5 Number of guide bars : 5 bars , 9 bars

6 Yarn let-off device:positive 3 roller system (4 sets )

7.range of yarn run-in :6.25   45.6mm/course

8 yarn creel :2 blocks of creel with 1064 ends each block  4 blocks of creel with 644 ends each block

9 Modified loop density range of fabric take-up: 2.0---14.5courses/cm

10Maximal diameters of fabric batching:1270 mm.

11Machine speed:max.600 rpm ( the speed can be adjusted stepless)

12Drive:Main motor:3-phase asynchronous motor, 5.5kw, with frequency convertor controlled.

Fabric batching motor:Motor with worm gearing,0.75kw

13Machine size:7200/8200*6460*2480 mm ( L×W×H)

14Machine weight:approx. 9000 Kg



Select Type:



	170"	210"	260"
GAUGE	E2/E3/E6	E2/E3/E6	E2/E3/E6
SIZE	7200×6460×2480mm	8220×6460×2480mm	9410×6460×2480mm
WEIGHT	about 7500kg	about 9000kg	about 12000kg













 GE2819  cocoa jute sack machine

Machine picture:







Out-put production picture:





Machine's Detail:







Machine installation & commissioning:



Business negotation:



Machine delivery:

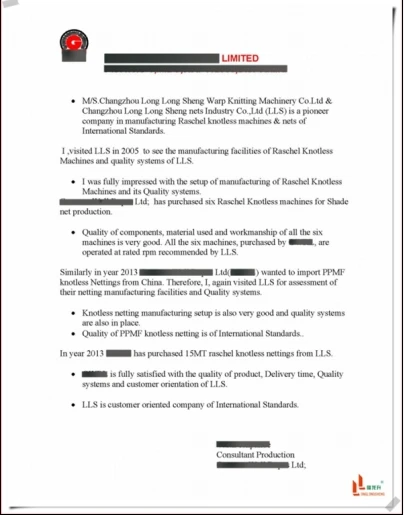

Reputation:







Our Factory:



Exhibition:





Our advantage:

(1): Many years experience.

(2): We are not only manufacturer but also expert in knitting net fabric.

(3): Solve full planning solution

(4): Taking a training skill on maintenance & knitting.

(5): One step after-sales service.



Factory Location:







Company profile:

  Changzhou LongLongSheng Warp Knitting Machinery Co.,Ltd mainly handles in the research and manufacture of Raschel warp knitting machine.

  Our products belong to the single needle-bar warp knitting machine and double needle-bar warp knitting machine series. It can manufactory fishing net, shading net, protective net, mosquito net, physical training net and 3D cushion etc.





Should you have any questions, please do not hesitate to contact us and welcome to visit our factory!
