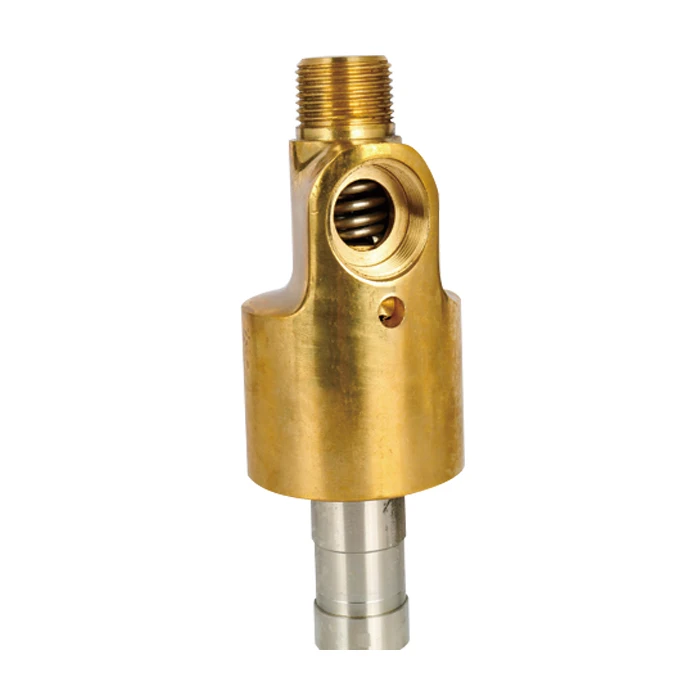

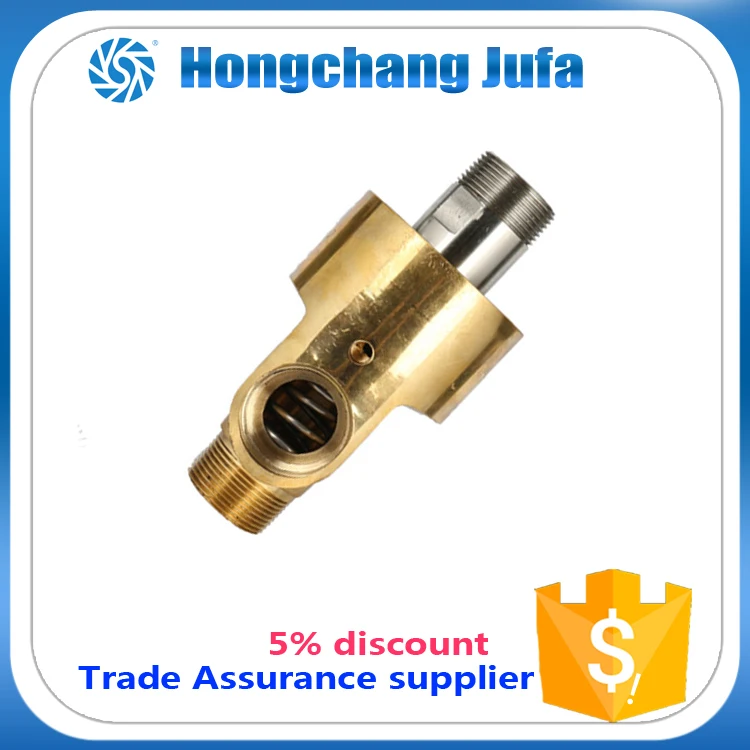

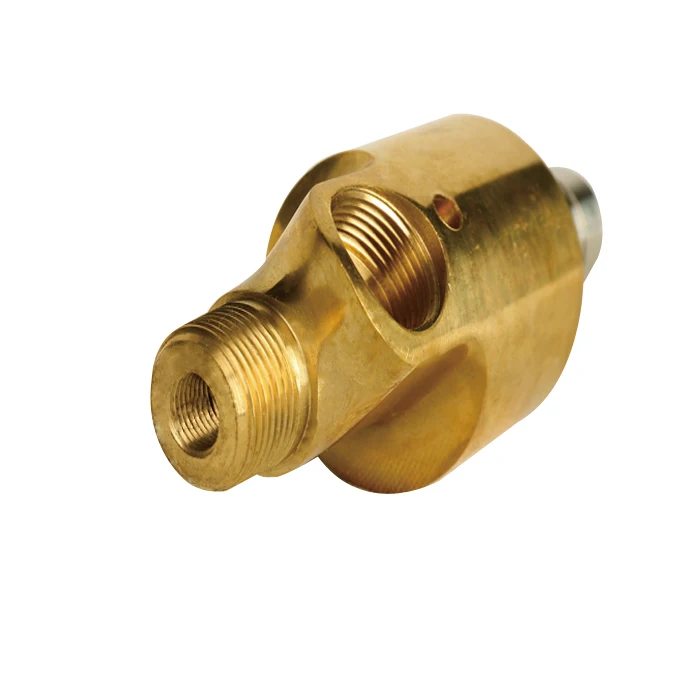

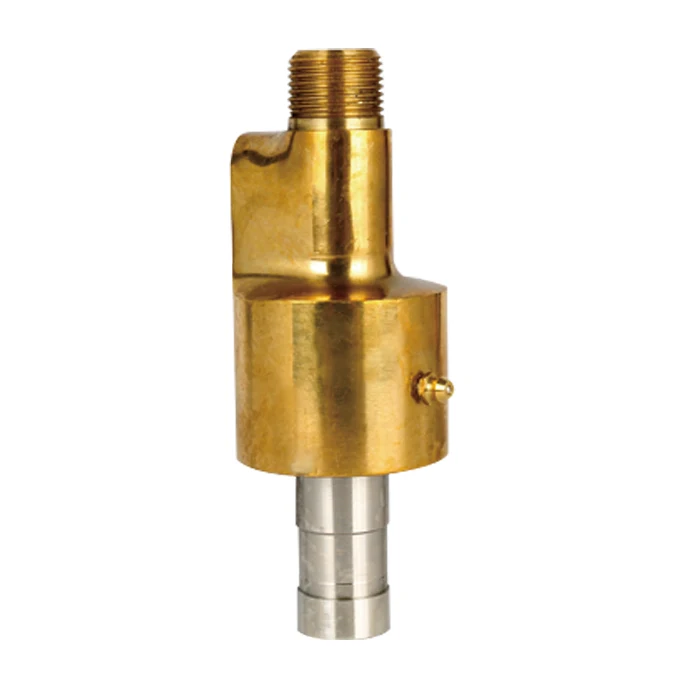

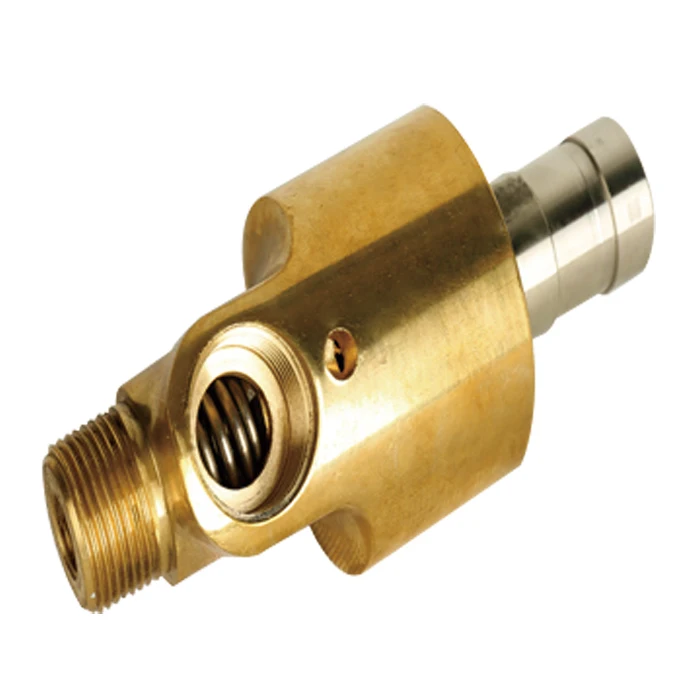

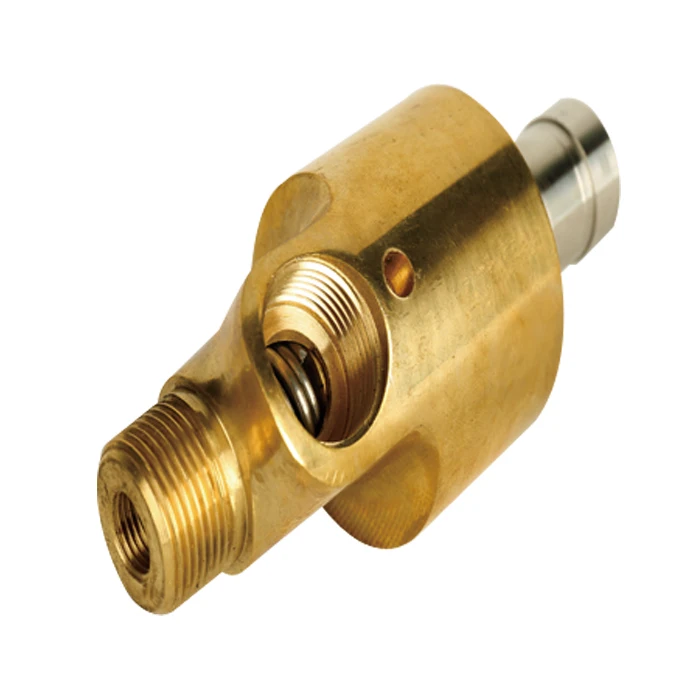

2 passage cooling water rotary coupling rotating joint swivel ball joint

Product Overview

Description









 Operating  Condition

Max Pressure          2.5MPa/25 BAR

Max Temperature   130°C

Max Speed              2000RPM









  Details

1. Simple but rugged design

2. Better resistance against vibrations, shock and corrosion

3. Available in both monoflow and duoflow models

4.Standard sizes available are from 3/8’’ to 4’’. Other sizes available upon request.

5.Brass hosing and stainless steel rotor to provide the ultimate protection against rust and  corrosion.

6.This type of rotary joint are designed for coolant and hot water service.this products uses

      corrosion-resistant materials such as stainless steel and brass.

7. Each joint thoroughly pressure tested ensuring longer life









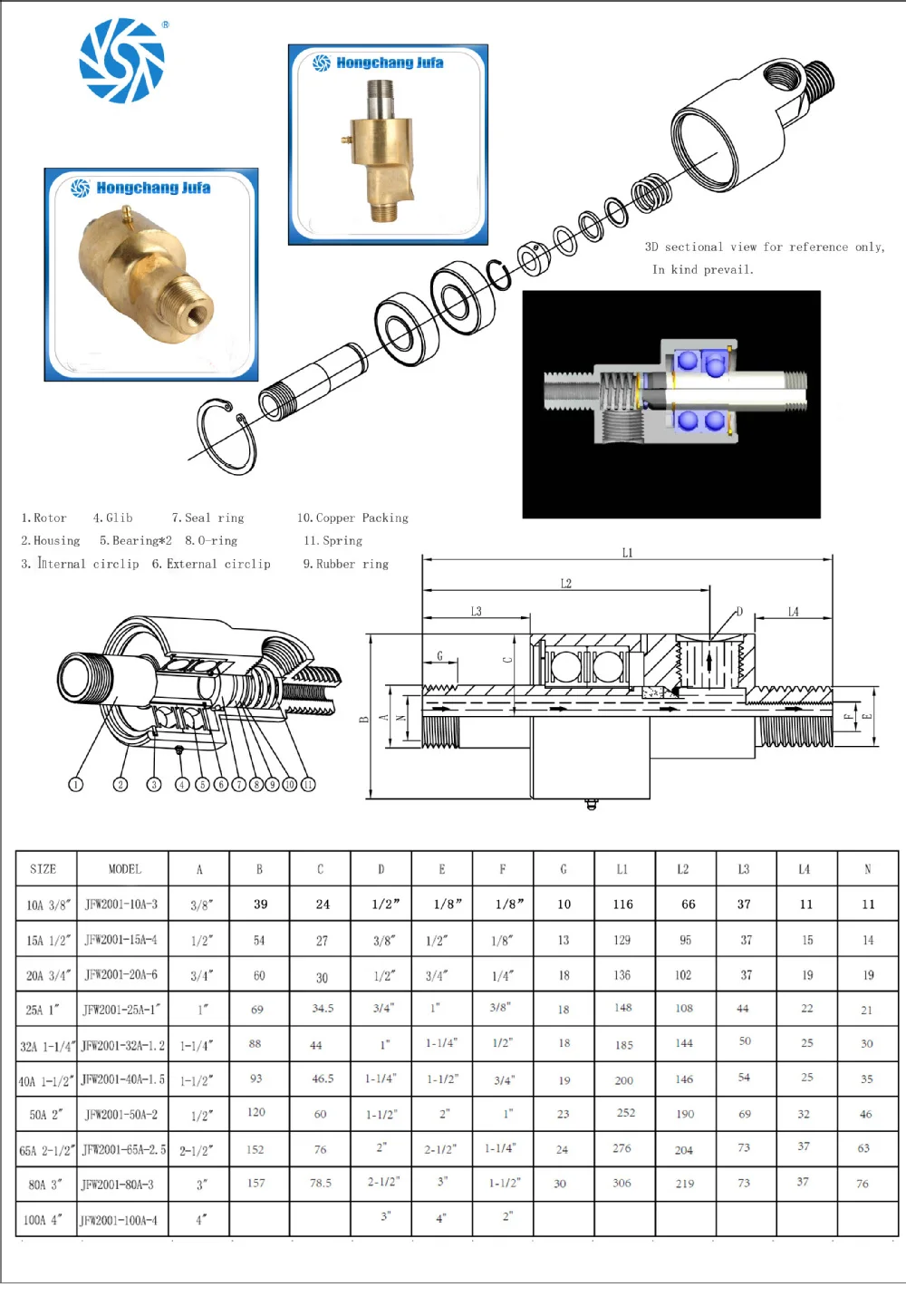

     Components

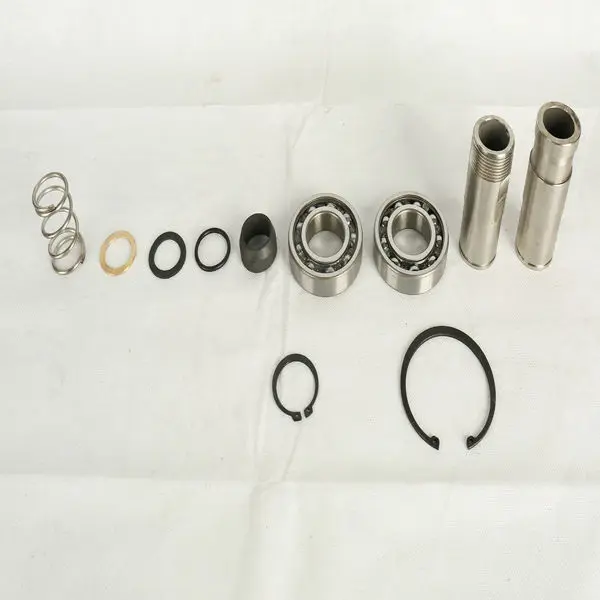

Parts	Material
Housing	Brass
Rotor	Stainless steel304
Spring	Stainless steel304
Gasket	Graphite Asbestos
Seal Ring	Carbon/ Graphite
Bearing	NSK Bearing
Head	Brass











   Structure


















Mechanical Seal

The heart of the Rotary Union or rotary joint is the seal. The seal prevents the medium (water, oil, air, etc) from leaking outside the Rotary Union while the Rotary Union is in operation.



Bearing

The second most important part of the Rotary Union is the bearing. We use imported NSK double bearing. The bearings are always used to allow a part of the joint, either the shaft or the housing, to rotate smoothly and steadily.



 Shaft

The shaft is the component that carries the medium through the Rotary Union into the drum or roll. In many cases, the shaft will turn with the drum or roll. In some cases, like in larger flanged rotary Unions, the shaft may be stationary while the housing rotates. The bearings and seal are typically assembled around the shaft.



Housing

The housing is the component that holds all of the other elements of the Rotary Union together. The housing has an inlet port, which is a threaded port to which the hose supplying the medium will be attached. The Rotary Union may also have an outlet port, if the same joint is being used both to supply fluid to a roll and to remove fluid from the roll.  In these cases, the housing rotates at the same speed as the drum.
