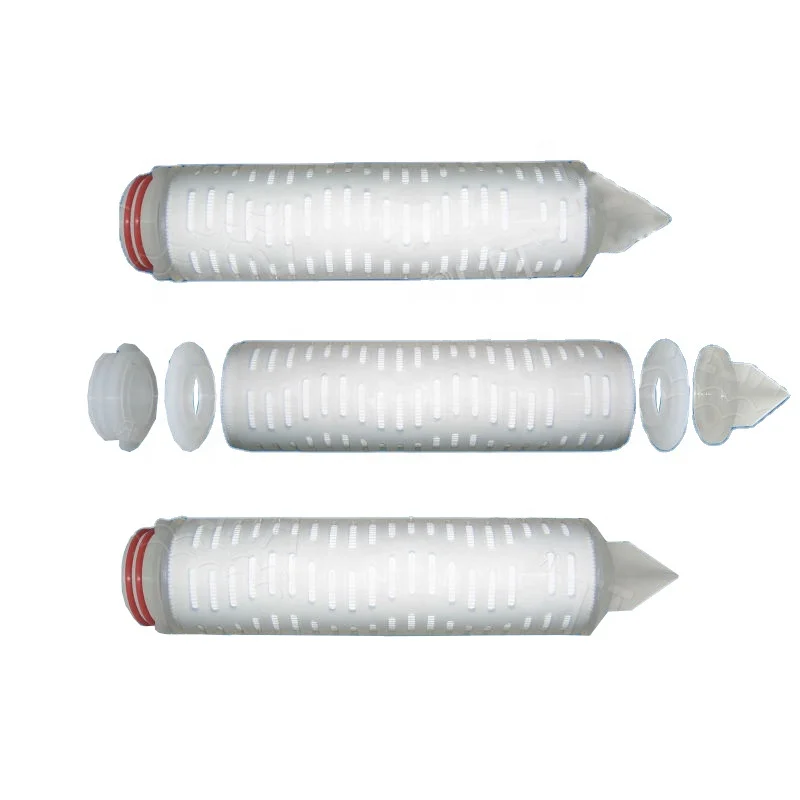

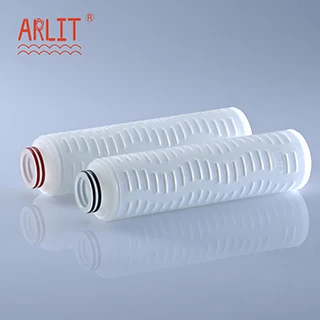

20 Inches PES Filter Cartridge Absolute Filtering For Wine Beer Liquor Support Customization Size
- Category: >>>
- Supplier: Shantou Yalida Filtration Equipment Co. Ltd.
Share on (1983312294):
Product Overview
Description
20 Inches PES Filter Cartridge Absolute Filtering For Wine Beer Liquor Support Customization Size
Packing ：24 pcs /carton
Carton size：64 * 33 * 50cm ；Carton G/W：17kg
Details Images
Specification
Filter medium | Hydrophily PES membrane |
Support layer | Polypropylene (PP) |
Filter cage | Polypropylene (PP) |
Pore size | 0.1、0.2、0.45、0.65、1(μm) |
Length | 5/10/20/30/40 inches |
OD/ID | 69 mm-34 mm |
Gasket / O - rings | Silicone, NBR, EPDM, Viton |
Interface | DOE,215,222,226flat/fins |
End caps | DOE,0050,0050A,0050B |
Sealing technique | Thermal bonding |
Effective filtration area | ≥0.6 ㎡/10" |
Max. operating temperature | 140℃, 0.28 Mpa |
Max. forwarder differential pressure | 0.42 Mpa (25℃) |
Max. reverse differential pressure | 0.21 Mpa (25℃) |
Sterilizing temperature | 121℃ 30min |
Typical Applications

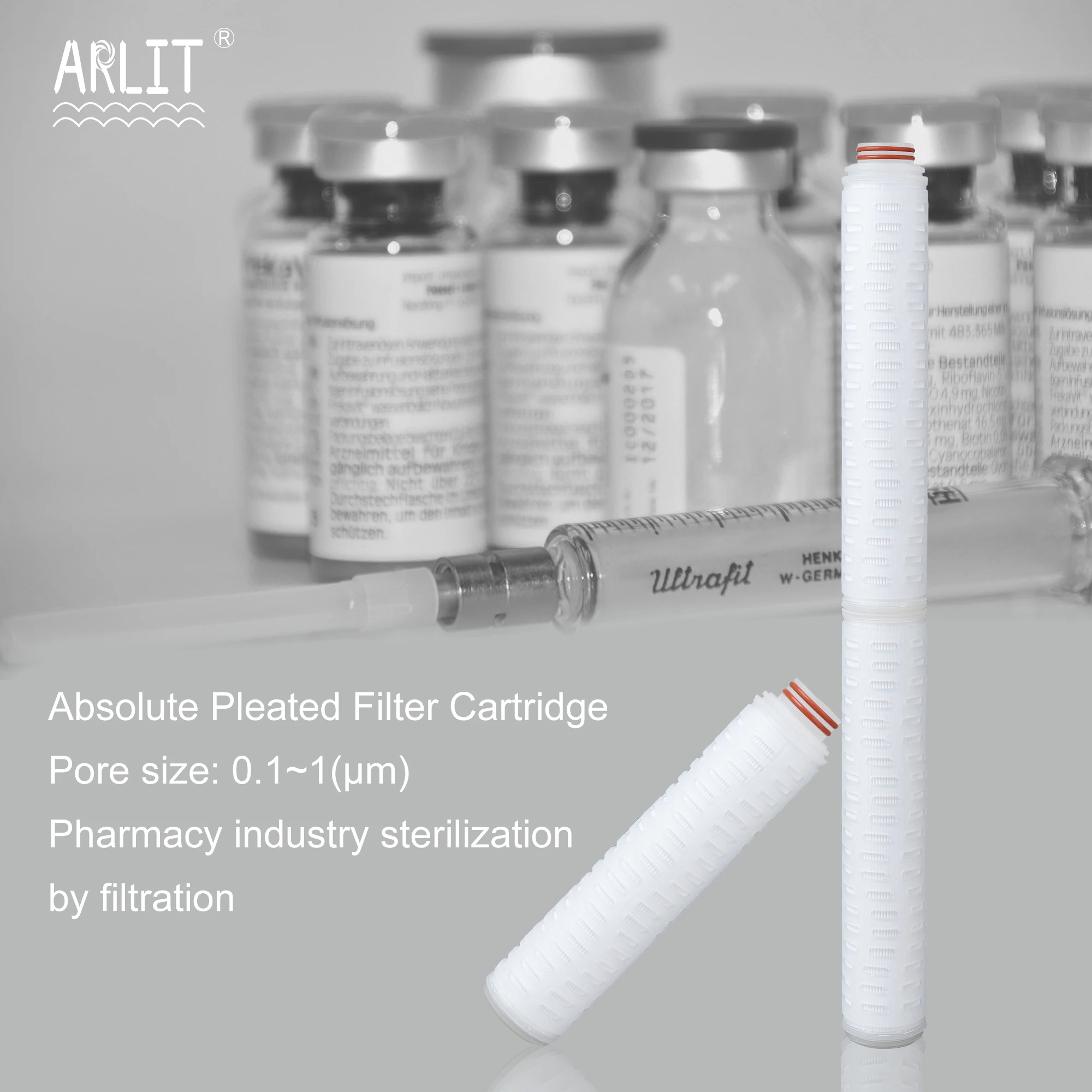

Pharmacy industry:final filtration of injecta, eye drops, non-high temperature sterilization products, biologicals, vaccine, serum
Food industry: wines, mineral water, drinking water, beverage
Electronic industry: final filtration of high purity water and chemical raw materials
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Micro rating (μm) | 0.1 | 0.2 | 0.45 | 0.65 | 1 |
Flow rate (L/min) | 11 | 21 | 27 | 33 | 40 |
Why Choose Us
Shantou Yalida Filtration Equipment Co.,Ltd. was established in 2005, which specialized in liquid and air filtration equipment manufacturer.Our company has introduced the advanced production equipments, quality control instruments and manufacture technology for micropore filter cartridge since it was found.
FAQ
1. Are you a manufacturer?
We are a manufacture,can offer competitive prices.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
2. Can we use our logo/brand?
Of course. Private Label is absolutely welcome. We also have Designing Dept to help you getyour own logo design and packing design free of charge.
3. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
4. What's the order delivery time?
Order delivering time has relations with the order quantity order models and packagingGenerally it takes about 15-20 days to get the order ready. And also we have large inventories for common items which also contribute to shorten delivery time.
We are a manufacture,can offer competitive prices.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
2. Can we use our logo/brand?
Of course. Private Label is absolutely welcome. We also have Designing Dept to help you getyour own logo design and packing design free of charge.
3. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
4. What's the order delivery time?
Order delivering time has relations with the order quantity order models and packagingGenerally it takes about 15-20 days to get the order ready. And also we have large inventories for common items which also contribute to shorten delivery time.
