FU650L200 SCQG22 650nm <200mW high brightness line laser module for bridge saw machine with built in PCB, 22*110mm, OEM housing

Product Overview

Description

---------------------------------------------------------------------------------------------------------------

FU650L200-SCQG22  650nm <1mW high brightness line laser module for bridge saw machine with built-in PCB, 22*110mm, OEM housing



Brand:FU(For You)
Model:   FU650L200-SCQG22  for bridge saw use.
Wavelength: 650~660nm
Output power:  <200mW  (Accept other power)
Operating voltage: DC3V

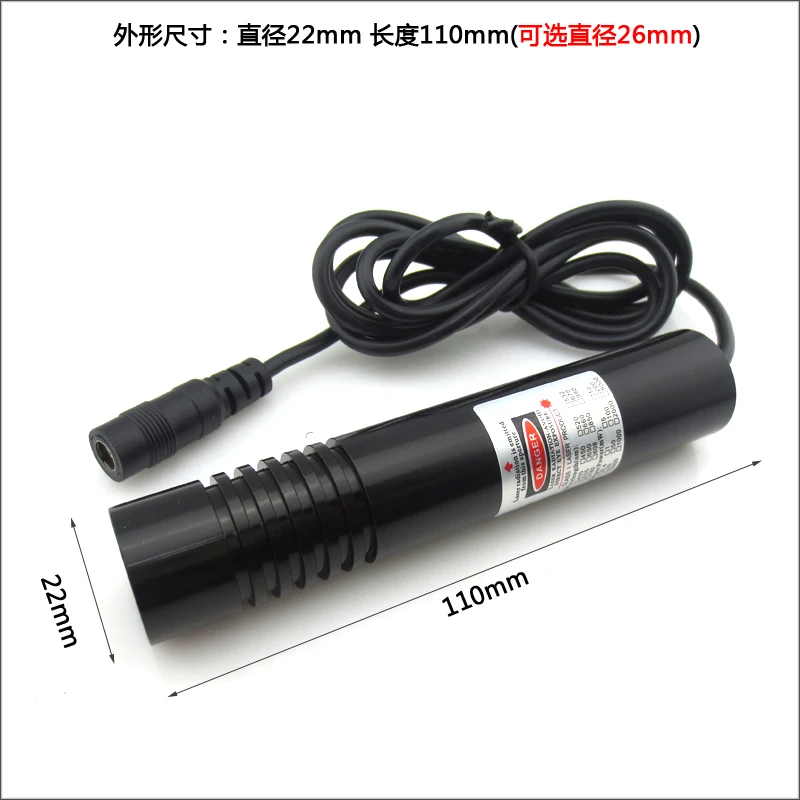

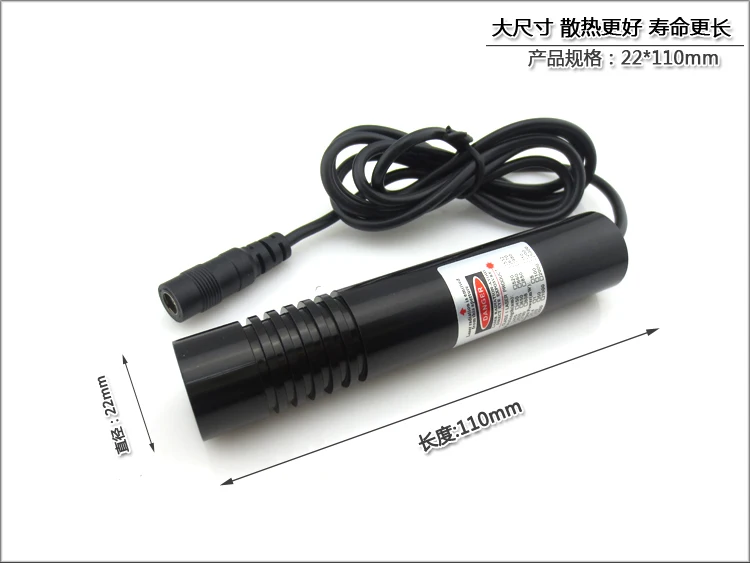

Dimension: φ22*110mm  (Accept OEM housing)

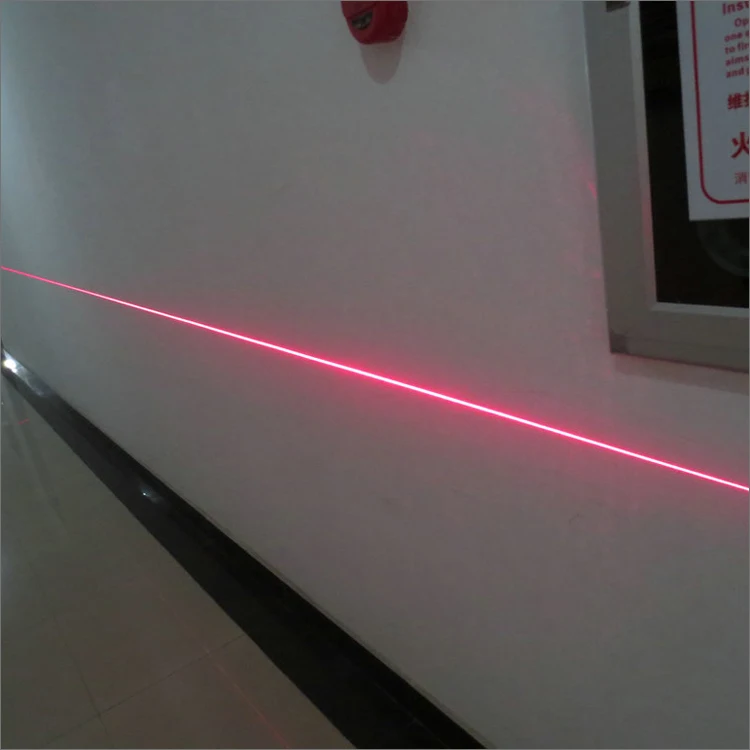

Beam mode: Fixed focus line, it show a 4-5meter line at the semi-outdoor, (Bridge saw can see this line clearly ).

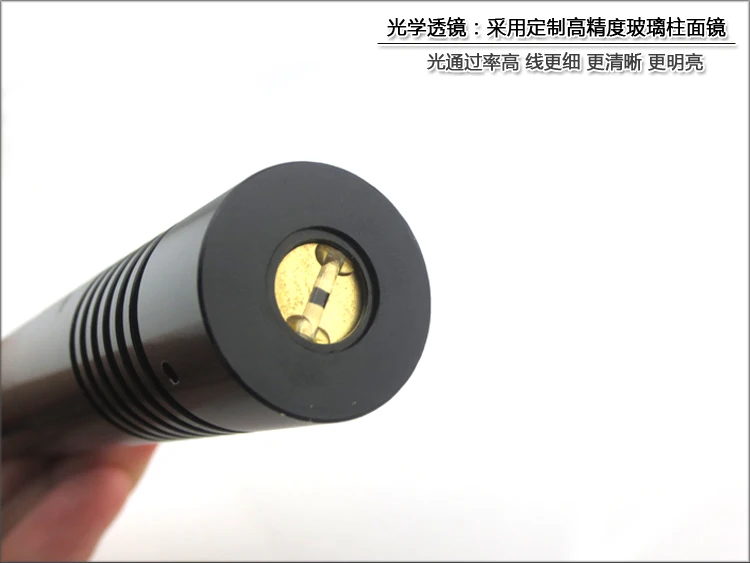

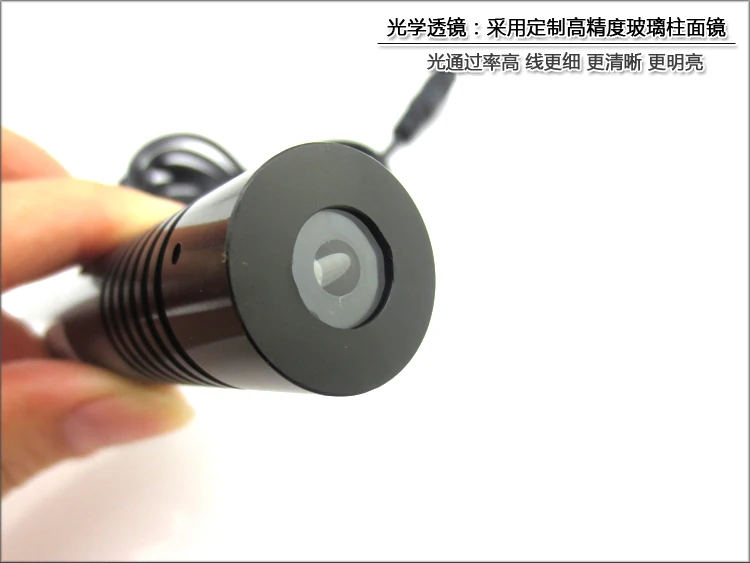

Lens:  glass lens
Operating temperature: -10-40 Centigrade degree
Storage temperature: -40-80 Centigrade degree

Application: Bridge saw machine.

Can also supply other kinds of line laser if you need ...



---------------

We can do so many kinds of blue/green/red/IR laser diode module...

Brand: FU
Model: provide after confirmed

Projection Type : dot/line/cross/ DOE or other beam shape

Projection Fan angle (full angle): line: 5/10/15/20/30/35/45/60/70/85/90/110/120/135/160degree, etc.
cross: 5/10/15/20/30/45/60/90/110/135degree, etc.

Lens: Glass lens or plastic lens

Wavelength(nM) and output power:405±10nm(0-150mW), 450±10nm(0-1500mW), 488±10nm(0-60mW), 520±10nm(0-850mW), 650±10nm(0-100mW), 635±10nm(0-120mW), 780±10nm(0-200mW), 808±10nm(0-300mW), 830±10nm(0-500mW), 850±10nm(0-300mW), 880±10nm(0-10mW), 905±10nm(0-200mW), 920±10nm(0-100mW), 940±10nm(0-300mW), 980±10nm(0-300mW), 1064±10nm(0-200mW)...some others not showed, please contact us for more details...

Operating Voltage(VDC): 3 or 3-5 or 12 or 24

Operating Temperature Range (°C): -10 to +40

Storage Temperature Range (°C): -20 to +50

Laser Head Dimensions (mm): 70(L) x 16(D) or 110(L) x 22(D) or OEM
---------------------------------------------------------------

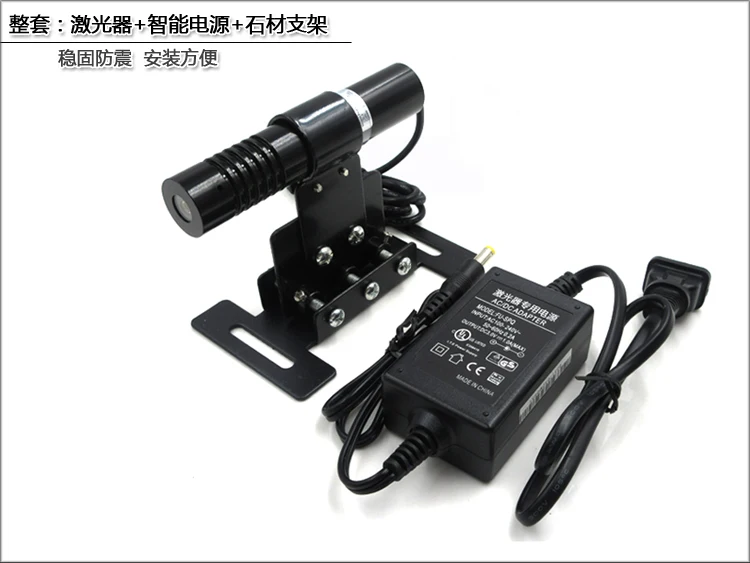

Package Includes:
Laser module -1 piece
Power supply- 1 piece

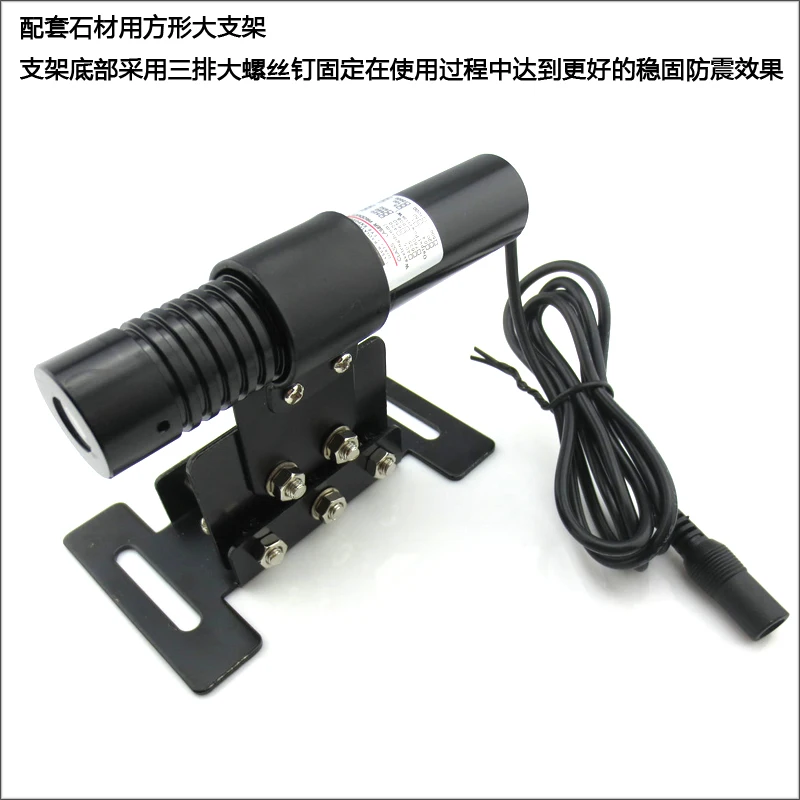

Tripod(Bracket/Mount)- 1 piece

We, Shenzhen Fuzhe Technology Co.,Ltd.(fulaser), is one of popular laser products manufacturer in China, our lasers have more better quality and lead time, and warm-hearted service, now we had exported more than 120+ countries and area.
Please email for more details.
