(SJY 120) Full Automatic polyethylene recycling machine
- Category: >>>
- Supplier: Ruian City Sanyuan Plastic Packing Machinery Co. Ltd.
Share on (1984755774):
Product Overview
Description
Main Technical Param
Model | SJY-100 | SJY-110 | SJY-120 | SJY-130 | SJY-140 | SJY-160 |
Production | 70-90kg/h | 90-120kg/h | 100-130kg/h | 130-180kg/h | 150-200kg/h | 200-250kg/h |
Main Extruder Screw Size | 97mm | 107mm | 117mm | 127mm | 137mm | 157mm |
Second Extruder Screw Size | 95mm | 97mm | 105mm | 115mm | 115mm | 135mm |
Hydraulic Screen Changer | Yes | Yes | Yes | Yes | Yes | Yes |
Force Feeder | Yes | Yes | Yes | Yes | Yes | Yes |
Main Motor Size | 22kw | 30kw | 37kw | 45kw | 55kw | 75kw |
Second Motor Size | 11kw | 11kw | 15kw | 15kw | 18.5kw | 30kw |
Main Extruder LD | 20:1 | 20:1 | 20:1 | 20:1 | 20:1 | 20:1 |
Second Extruder LD | 11:1 | 11:1 | 11:1 | 11:1 | 11:1 | 11:1 |
Main Motor Inverter | 22kw | 30kw | 37kw | 45kw | 55kw | 75kw |
Second Motor Inverter | 11kw | 11kw | 15kw | 15kw | 18.5kw | 30kw |
Cutter Motor | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 3kw | 2.2kw |
Force Feeder Motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
Main Extruder Gear Box Hard Teeth | 180Model | 200Model | 200Model | 225 Model | 250Model | 280 Model |
Second Extruder Gear Box Hard Teeth | 173Model | 173 Model | 173Model | 180 Model | 180Model | 200 Model |
Ceramic Heating Ring | 6 | 6 | 8 | 10 | 13 | 15 |
Main Extruder Die Head Heating Sheet | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs |
Second Extruder Die Head Heating Sheet | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs | 3pcs |
Main extruder heating pipe | 12pcs | 12pcs | 12pcs | 12pcs | 12pcs | 12pcs |
Second extruder heating pipe | 10pcs | 10pcs | 10pcs | 10pcs | 10pcs | 10pcs |
Die Head Hole Numbers For Second Extruder | 15 | 17 | 17 | 17 | 19 | 27 |
Air Blower Blow Water Off | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
Cutter Knife Width | 230mm | 230mm | 230mm | 230mm | 230mm | 230mm |
Cutter Knife Numbers | 9pcs | 9pcs | 9pcs | 9pcs | 9pcs | 9pcs |
Main Extruder Dimension(CM) | 250*70*220 | 300*80*220 | 330*95*240 | 400*110*240 | 450*120*240 | 500*120*240 |
Second Extruder Dimension(CM) | 180*120*160 | 180*120*160 | 200*120*160 | 200*140*160 | 210*150*160 | 220*160*170 |
Water Cool Box Dimension(CM) | 250*33*33 | 250*33*33 | 250*33*33 | 250*33*33 | 250*33*33 | 350*40*33 |
Electric Cabinet Dimension(CM) | 75*45*160 | 75*45*160 | 75*45*160 | 110*45*180 | 120*45*180 | 130*45*180 |
Grain Cutter Dimension(CM) | 80*80*110 | 80*80*110 | 80*80*110 | 80*80*110 | 80*80*110 | 80*80*110 |
Application:
SJY-120 waste plastics recycling machine is used for recycling of the used and waste plastic materials such as PP, PE .
Technical Descriptio
1. It equipped with automatic constant temperature controlling device.
2. The cutting machine adopts speed regulating motor, which can cut the material according to the feeding speed of the extruder.
3. With such features, with such as high output low noise, stable performance and easy operation, it is a more ideal waste plastic material regenerative pelletizer.
4. Applicable raw material: HDPE/LDPE, PP materials
5. Power supply: 380v, 50Hz 3 Phase
6. Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
7. Gear box: Hard Surface Gear
8. Automatic temperature controlling system
9. Including water-cooling device made of stainless steel
10. Including granule cutter
11. Force Feeding Unit is optional
Free Spare Parts
No. | Spare parts name | Quantity |
1 | Temperature meter | 1set |
2 | Electric Sensor | 2 pc |
3 | Heating ring | 3 pc |
4 | Tool box | 1set |
5 | English manual | 1pc |

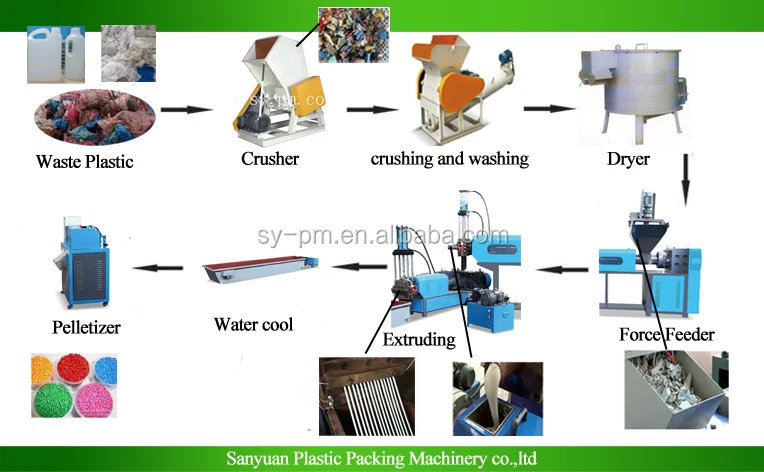

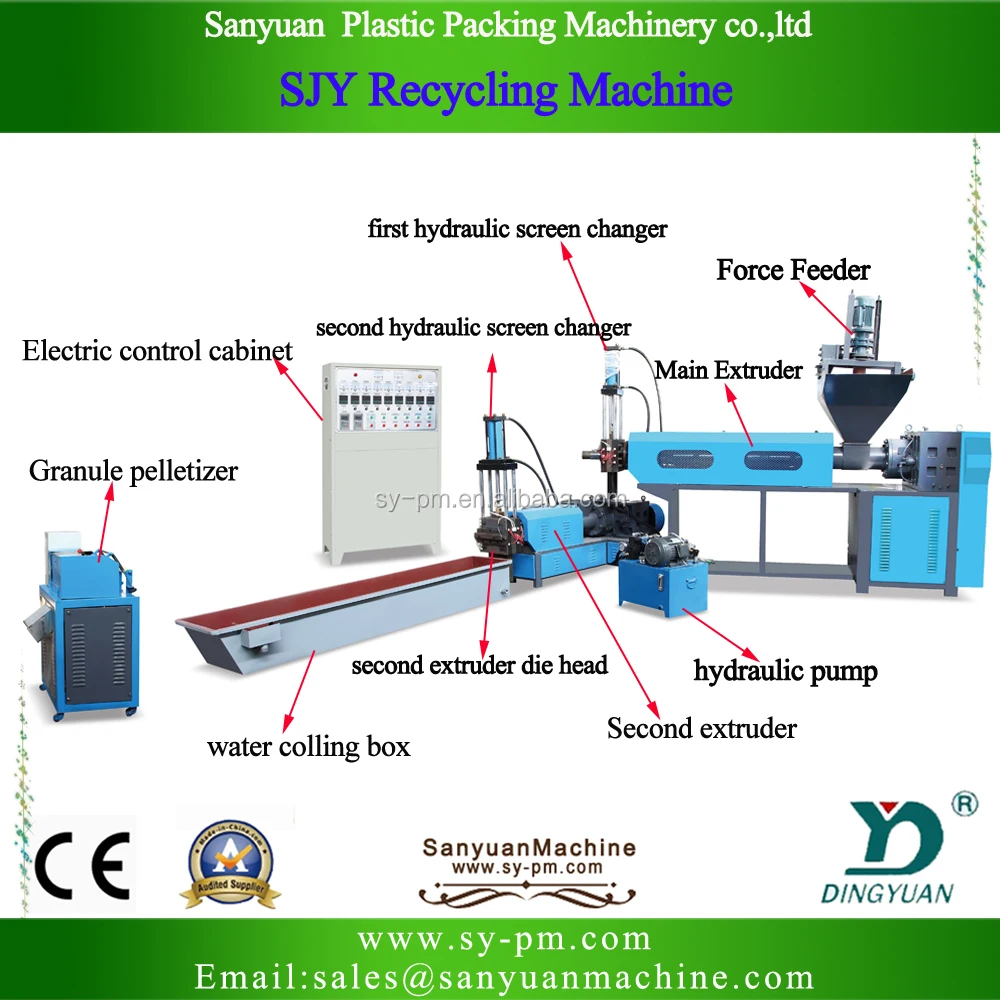

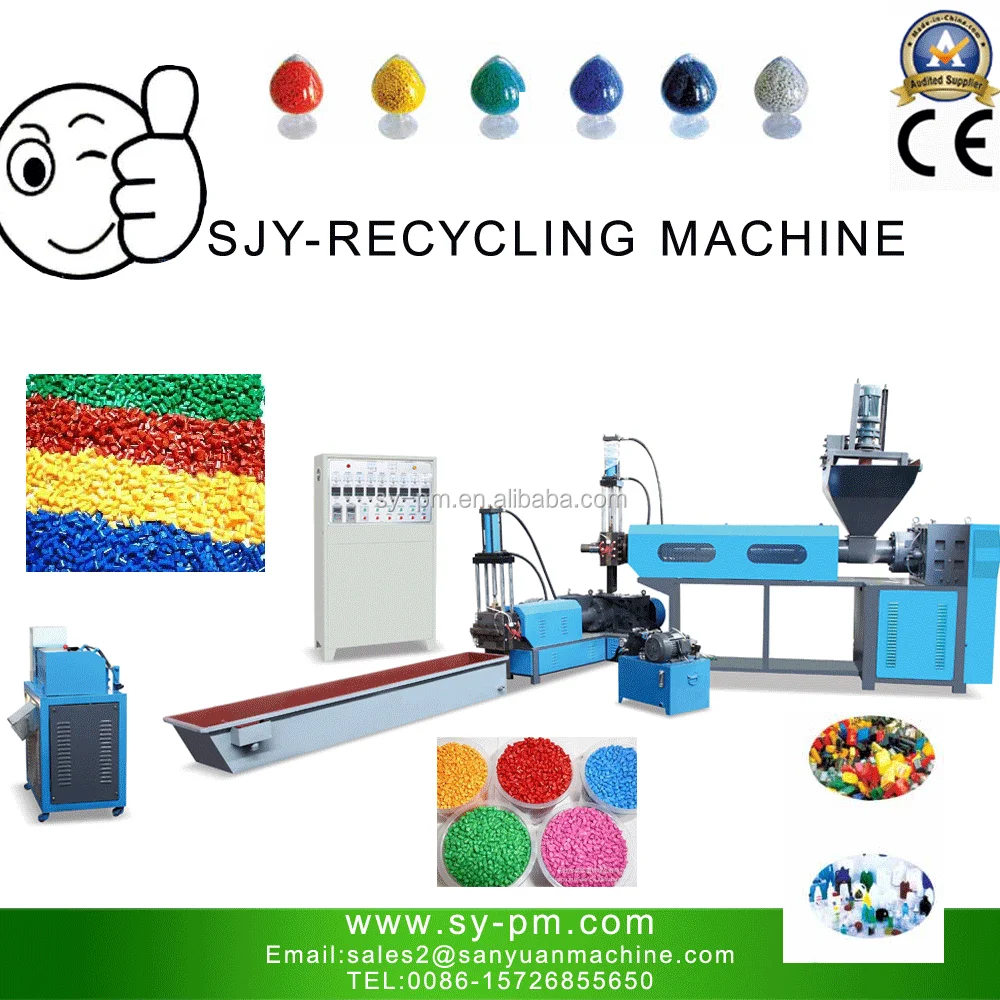

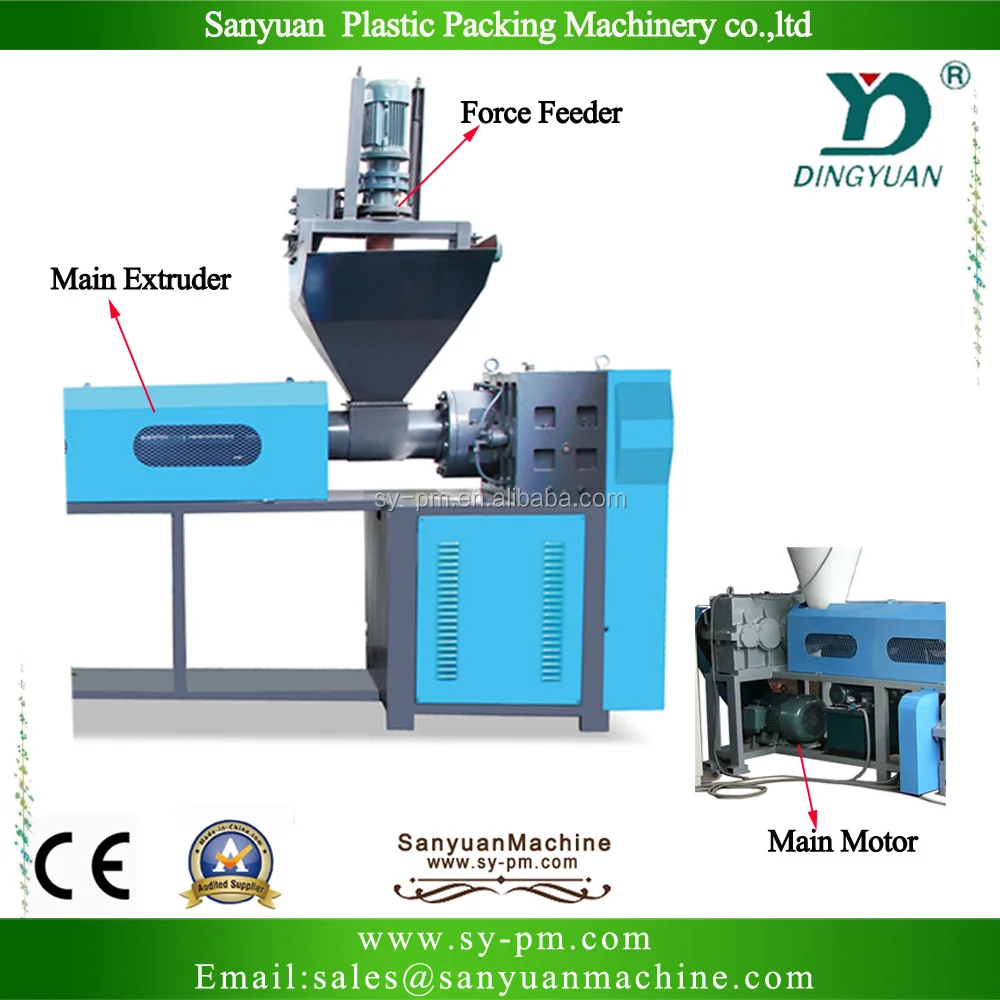

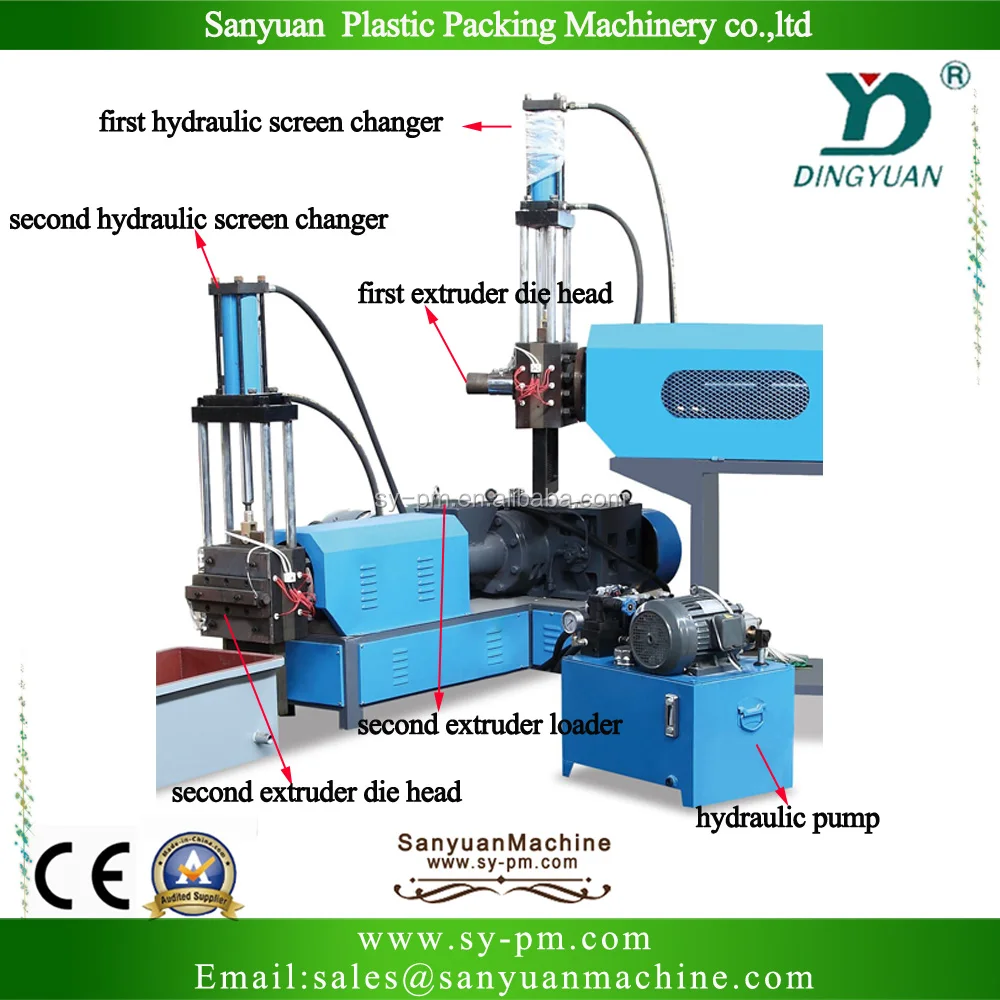

More Pictures:
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
