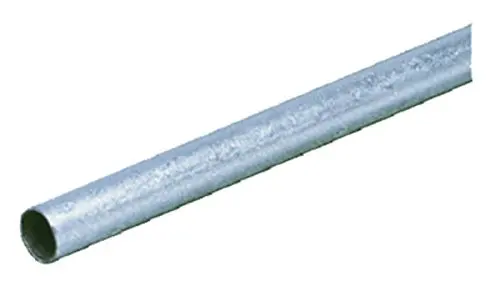

Heavy Duty 61386 Series EMT Conduit

Product Overview

Description

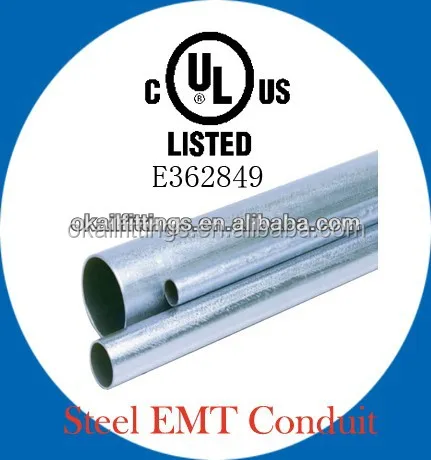

Steel EMT Conduit, EMT CONDUIT, EMT PIPE

Specifications

1.hot dip galvanized EMT UL797
2.UL File NO.E362849
3.UL certificate
4.Hot dip galvanized

Product Information
Product Name :	hot dip galvanized EMT UL797 ;
Standard:	UL797 & ANSI C80.3, UL File No.:E362849
Tade Size :	from 1/2” to 4” are available ;
Length:	3050mm or according to customer’s requirement;

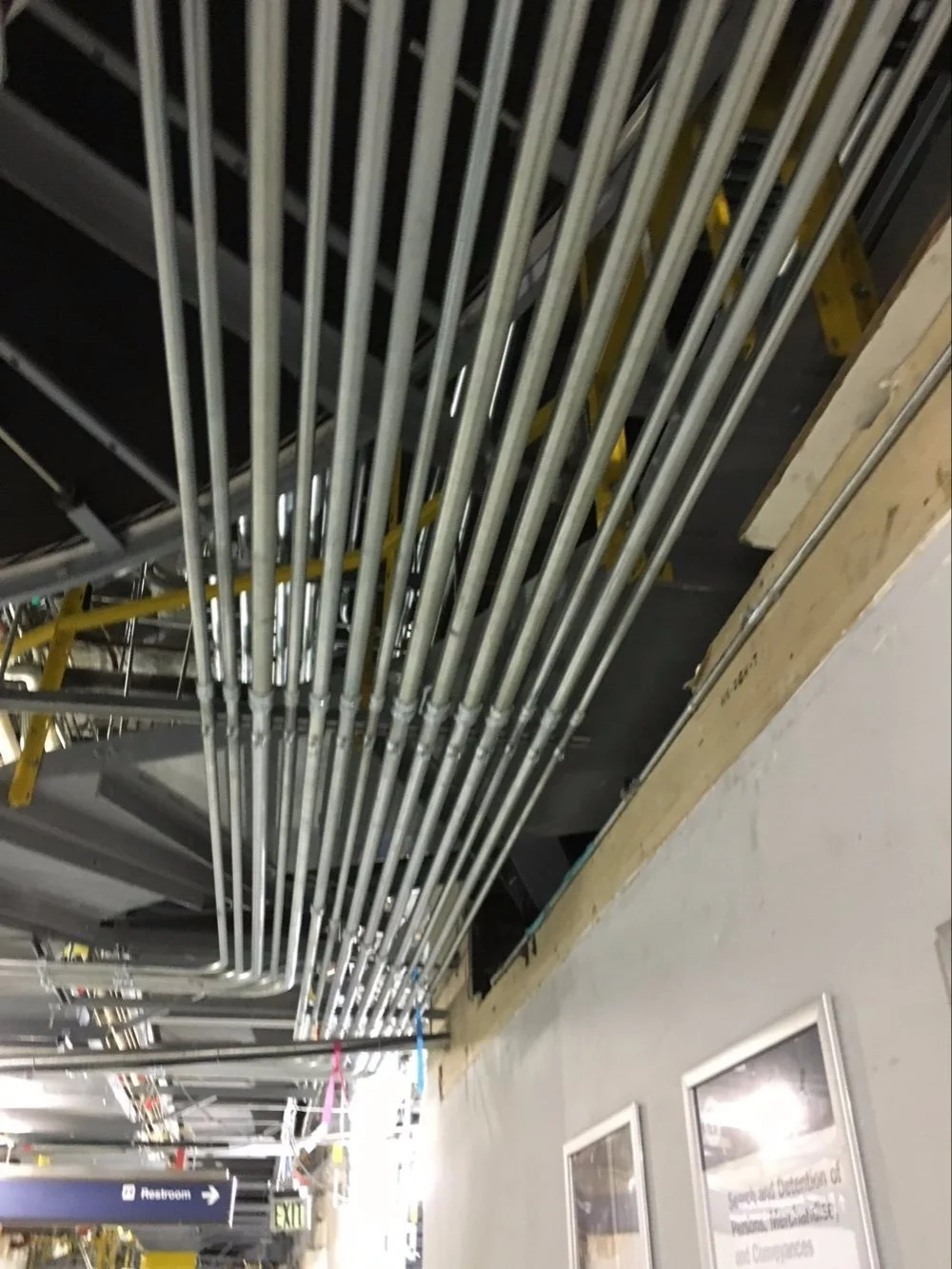

Usage:	through the electrical wires with the purpose of protection for the electrical raceway system;
Surface Finished:	Hot dip galvanized(HDG);
Material :	carbon steel coil;

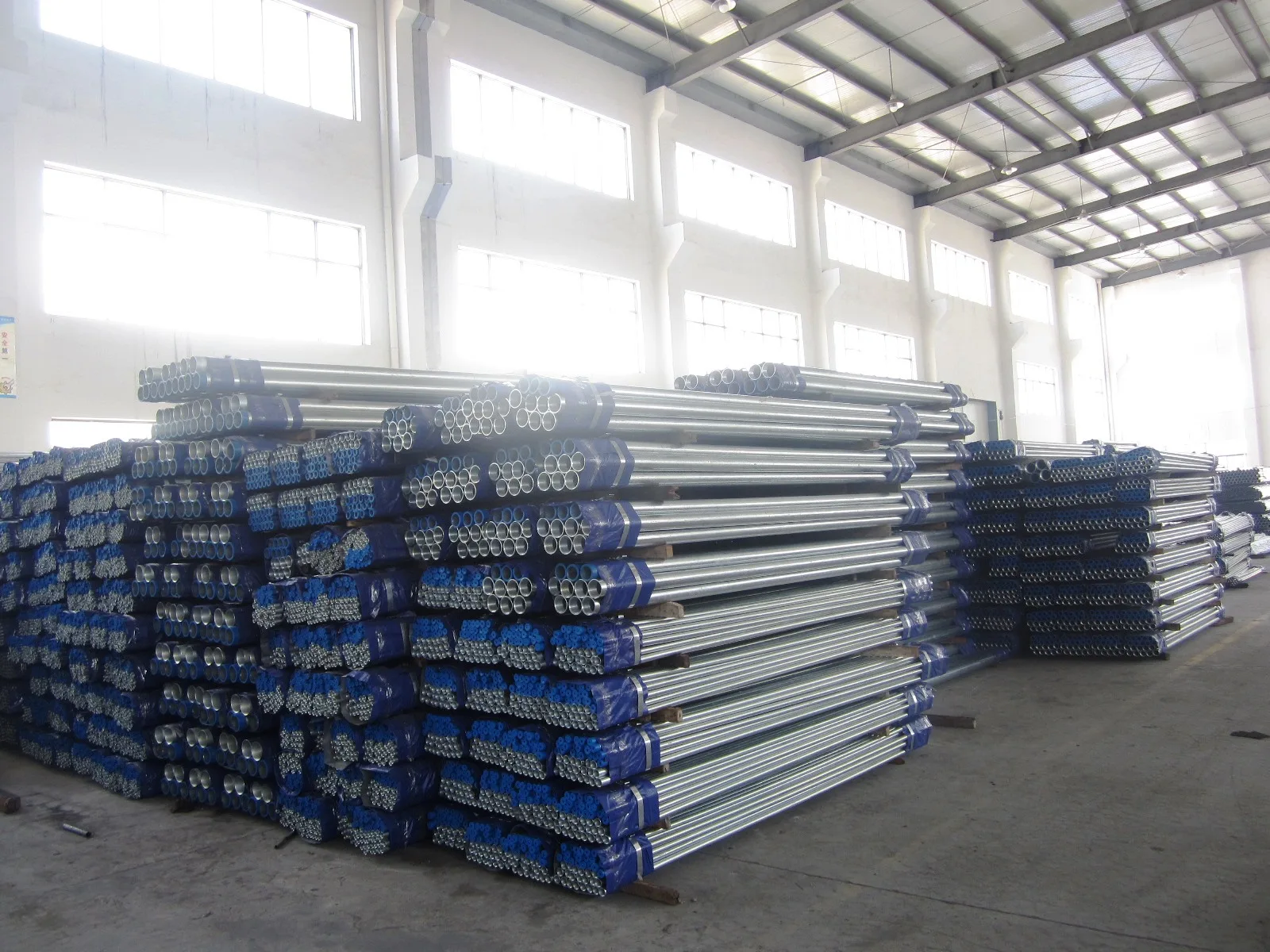

Package:	the conduits coverd with pvc paper then tied with steel straps;
Delivery Time:	20 to 30 days after we receive your advance payment or copy of L/C;
Payment Term:	L/C at sight or T/T;



Dimension and Weight Chart

Trade Size		Nominal Wt. per 100Ft(30.5M)		Nominal Outside Diameter		Nominal Wall Thickness
U.S.	Metric	Lbs	Kg	In.	mm	In.	mm
1/2"	16	30	13.5	0.706	17.93	0.042	1.07
3/4"	21	46	20.7	0.922	23.42	0.049	1.24
1"	27	67	30.6	1.163	29.54	0.057	1.45
1-1/4"	35	101	45.6	1.51	38.35	0.065	1.65
1-1/2"	41	116	52.8	1.74	44.2	0.065	1.65
2"	53	148	67.2	2.197	55.8	0.065	1.65
2-1/2"	63	216	97.9	2.875	73.03	0.072	1.83
3"	78	265	120	3.5	88.9	0.072	1.83
3-1/2"	91	348	158	4	101.6	0.083	2.11
4"	103	392	178	4.5	114.3	0.083	2.11



Applicable Tolerances:

Length: 10Ft (3.05m) ± ¼” (±6.35mm).

Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
