12 colors 300rotary screen printing machine

Product Overview

Description

KD-300 type 12 colors rotary screen carpet printing machine



1.Application:



This machine is mainly used for printing and drying carpet,blanket,massive textile.





2.Equipment structure:

      Standard Feeding device(frame material is Q235,include delivery device)—twelve rotary printing—Six ovens drying—open width pendulum deflection doffing(standard doffing,frequency conversion tramission,or rolling unwinding out—for carpet)







3.Technical Parameter:



1. Machine width:3100mm
2. Efficient width:2800mm
3. Machine direction:left hand or right hand(user chooses:face to feeding,driven motor in the left side,this is left machine,driven motor in the right side,this is right machine)
4. Design speed:4-90m/min
5. Practical speed:7-10m/min
6. Heating mode:steam,oil or gas direct heating
7. Design temperature: 115°C---135°C

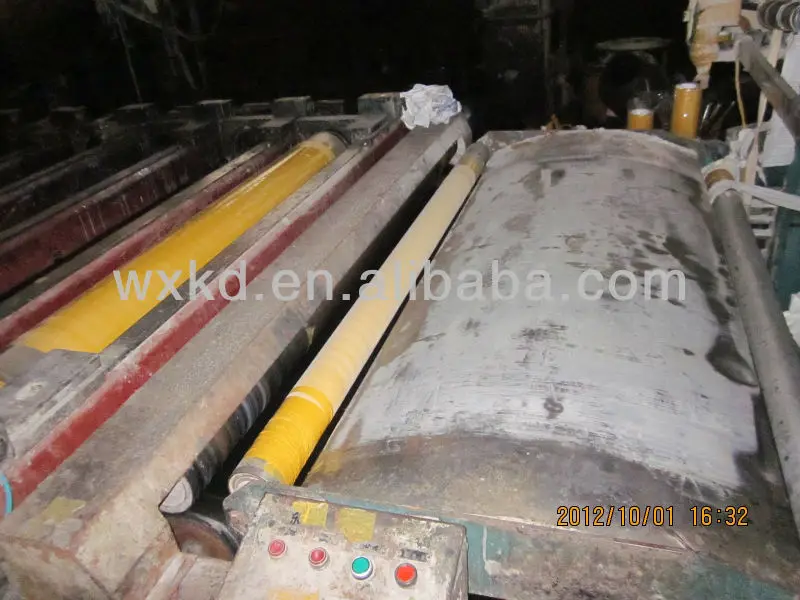

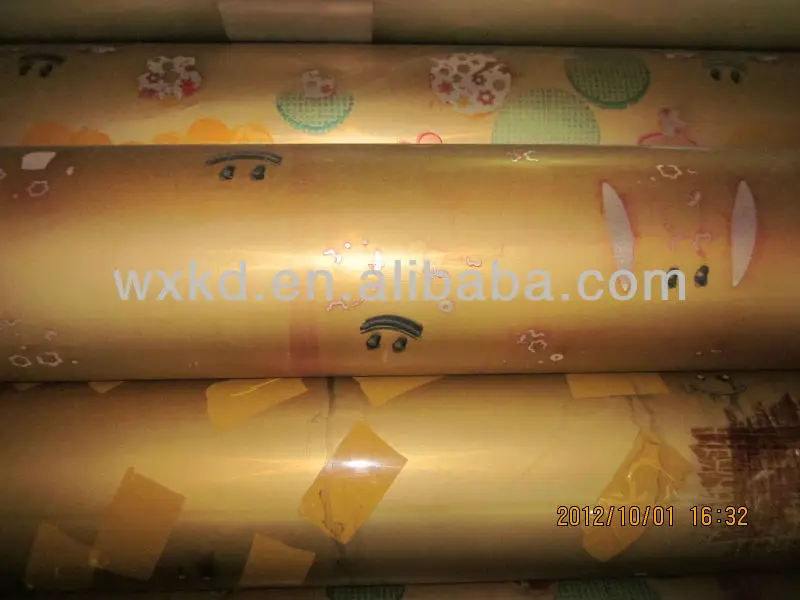

8. Rotary screen perimeter(cm):640,819,914,1018

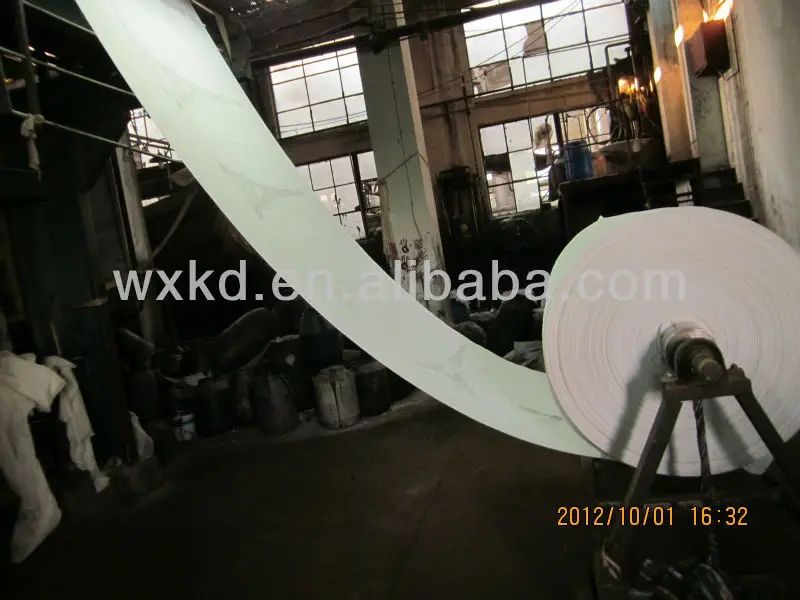

9. Feeding type:cloth car feeding or unwinding feeding(optional)

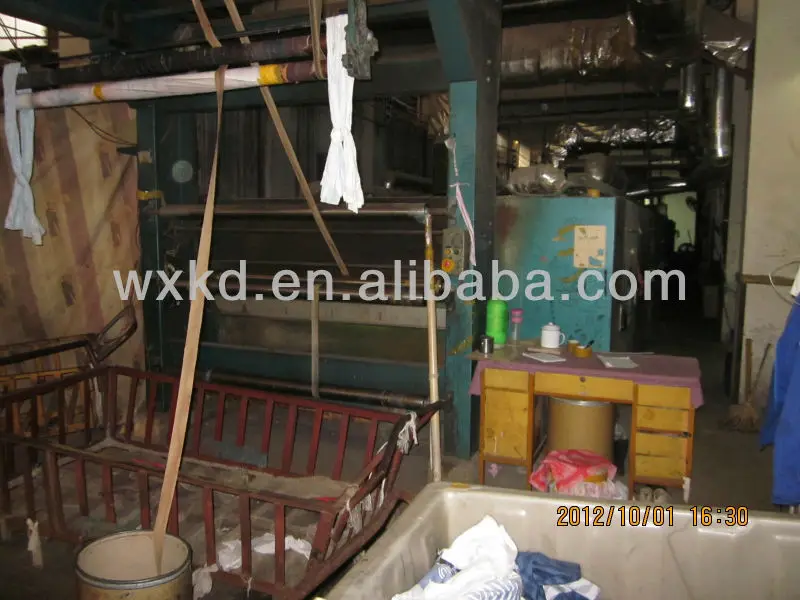

10. Drying type:three layers hot air drying,sectional type,compact constructure,covering less space,high effiency,synchronous operation.
11. Steam:steam pressure 0.2-0.4mpa
12. Oil:0.8-1 million kilo calorie/h
13. Quatity of Chambers: Six
14. Transmission way:AC motor frequency conversion synchronous transmission(individual drive).Man-machine interface,multi functions of failure warning and protection system.Once anomous,the protection system will start,the system automatic stop,man-machine interface will displace failure information.
15. Electrical control part:380V 50Hz,or according to local standard.129KW,auto system operation man-computer interface,PLC integrated control,printer specific program.
16. Compressed air:0.6-0.8 mpa
17. Water pressure(pool pressure not less than 3kg/m²
