hot sale P20 1.2311 mold steel with good quality

Product Overview

Description

P20 / 1.2311 steel plate description:



Grade:

AISI P20/DIN1.2311/3Cr2Mo



Chemical Composition:

Composition(%) Product	C	Si	Mn	Cr	Mo	S	P
P20	0.28-0.40	0.20-0.80	0.60-1.00	1.40-2.00	0.30-0.55	≤0.03	≤0.03



Delivery Condition:

Forged + Annealed + Machining (Peeled/Turned)

Annealed Hardness: HB≤235

Quenching Hardness: HRC = 28~35



Available sizes:

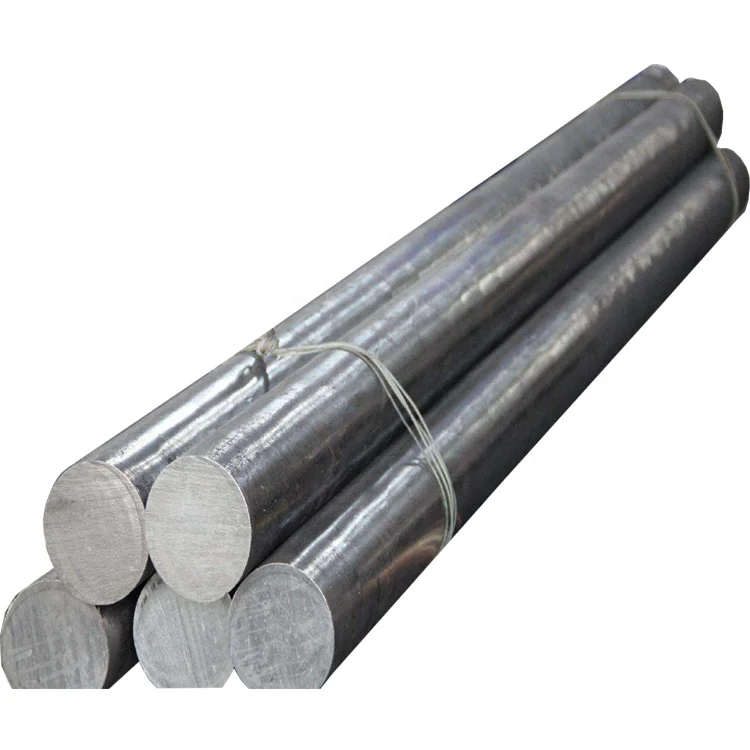

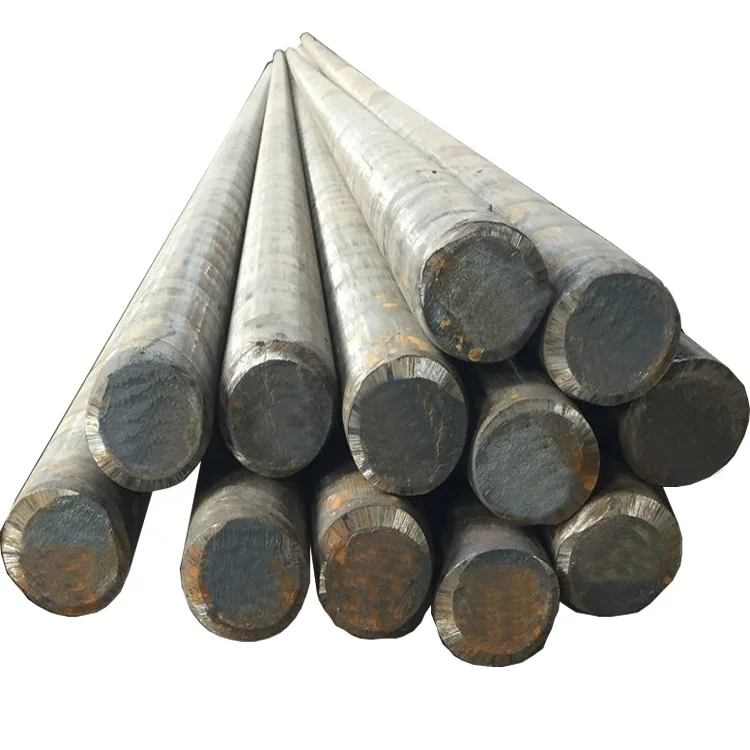

Round bar size:  60-300mm

Thickness: 20-300mm

Width: 185-2200mm

Length: 2000-5800mm



 Application :

Because of their high hardness when they were finished, their polishing, wear-resistance, tensile strength and compressive strength are more better. This kind of steel is apply to the mould of high polishing and high demand and the plastic of PA, POM, PS, PE, PP, ABS.



Physical properties:

Thermal conductivity:

Temperature/°c	20	100	200	300	400
Thermal conductivityλ/W•(m•K)¯¹	36.0	33.4	31.4	30.1	29.3



Coefficient of expansion:

Temperature/°C	18~100	18~200	18~300	18~400	18~500	18~600	18~700
Coefficient of expansion/°C-1	11.9*10-6	12.20*10-6	12.5*10-6	12.81*10-6	13.11*10-6	13.41*10-6	13.71*10-6



Packing situation:

Standard seaworthy packing or as customer required.



 Delivery time:

15 days after order confirmed.



 Payment:

T/T or L/C at sight.
