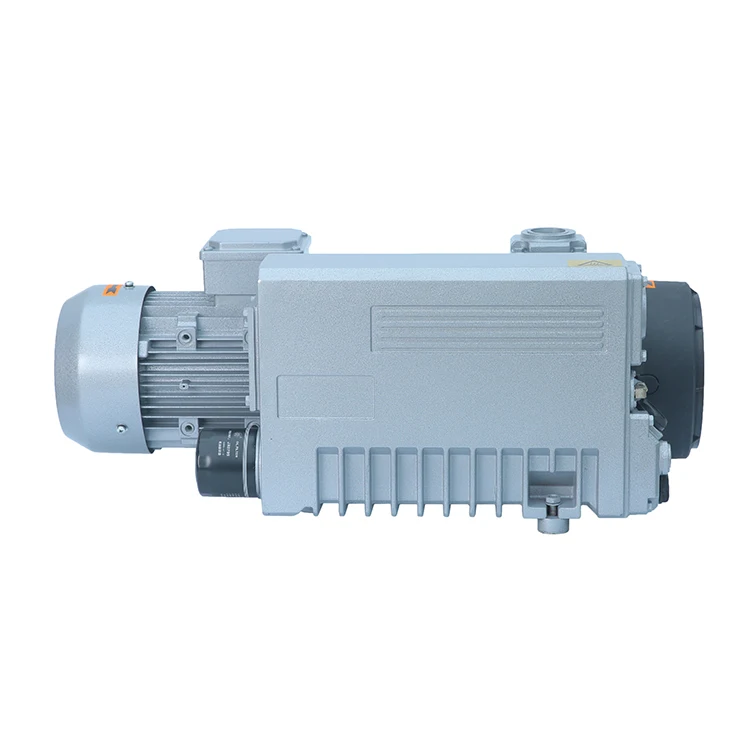

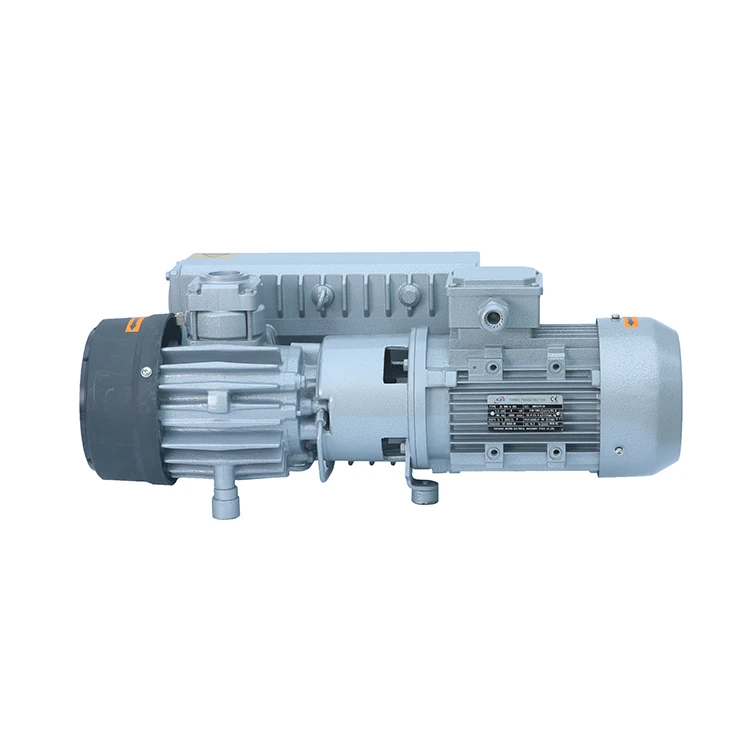

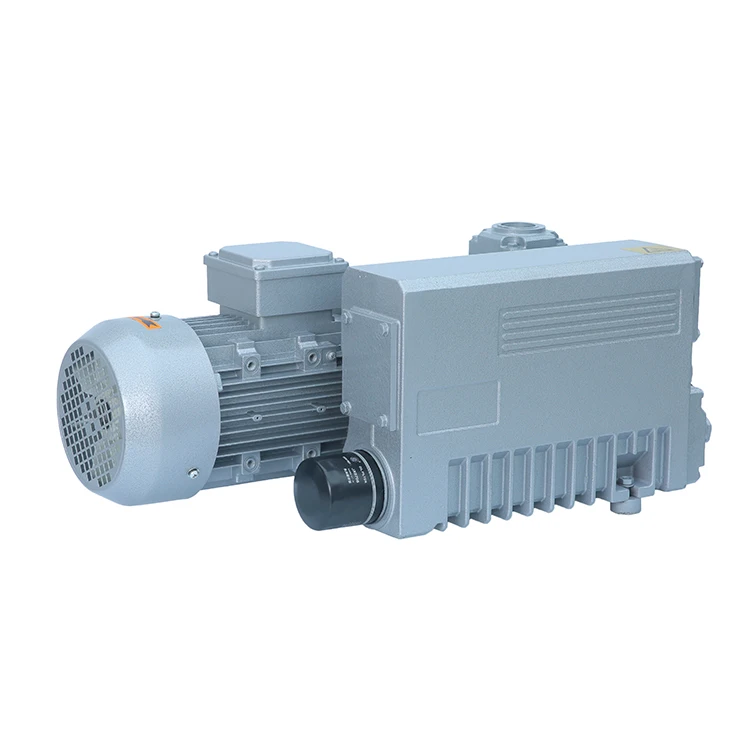

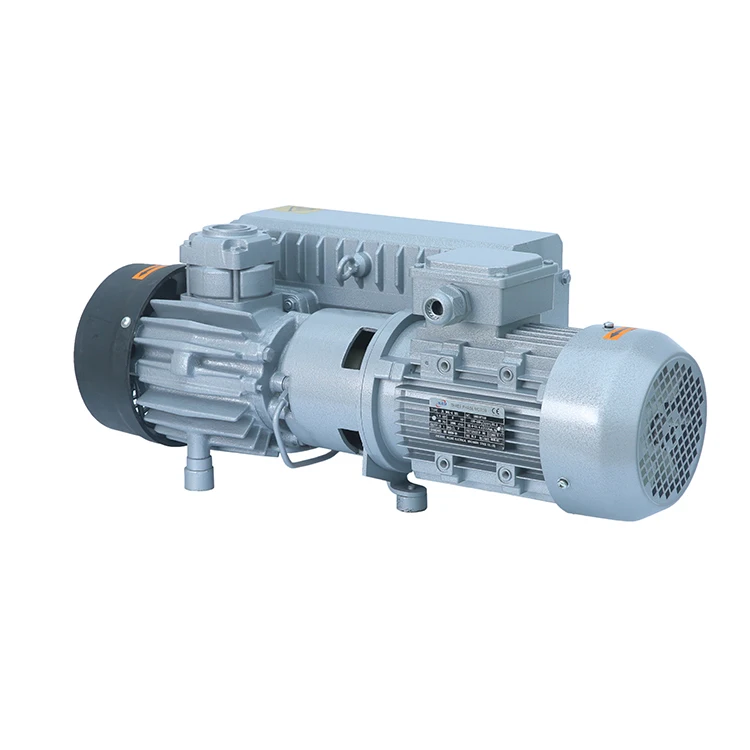

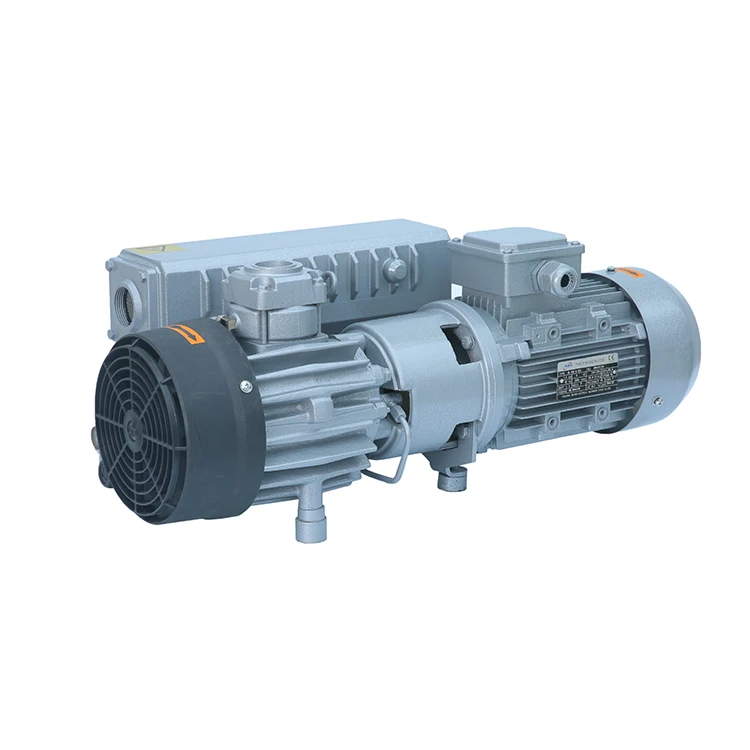

SV040 single stage rotary vane vacuum pump for water ring vacuum pump

Product Overview

Description

Introduction



SV (XD) single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment.

They are being used in all areas of vacuum engineering.

They are equally suited for both industrial production and research applications.

They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps or high vacuum pumps.





SV040 rotary vane vacuum pump



Model	Pump speed (m3/h)		Ultimate vacuum (Pa)	Motor Power (KW)	Inlet Diam (inch)	Rotary speed (rpm)	Oil Capacity (L)	G.W  (kg)	Noise dB (A)	Dimensions (mm)
	50HZ	60HZ
SV-040	40	48	50	1.5	G11/4	1440	1.0	48	67	660*300*270



 Features:
1:High utmost vacuum rate,it can be less than 0.5mbar
2:High deflating speed
3:Low noise while working, lower than 67db
4:Strong capacity in deflating the vapor
5:Protecting eveironment;an oil fog clearer is set in the vacuum pump,and no oil fog in the exhaust air.
6:Compact structure,scientific and reasonable design,and it is easy to install in the industry system Application Range of Single-stage Rotary Vane Vacuum Pump

Applications:



1:Car industry

2:Food industry

3:Furnaces and plants

4:Laser technology

5:Medicinal technology

6:Metallurgy

7:Power engineering, long-distance energy

8:Space simulation

9:Vacuum coating





SV-040 Overall dimension(Unit:mm):
