SDS Max Electric Hammer Drill Bit

Product Overview

Description

600mm SDS Max Electric Hammer Drill Bits

SDS-Max bits are carbide-tipped bits used for drilling holes in concrete, brick or block base material. The tip of the bit is made out of carbide. The SDS-Max carbide-tipped bits are used in large electro-pneumatic hammer drills. The SDS-Max bits are attached to the electro-pneumatic hammer drill via a keyless chuck. Our SDS-Max bits are American made from premium quality steel and carbide. The SDS-Max bits are available in diameters from 3/8" to 1-1/2" and lengths up to 48".





TP10 CROSS-HEAD TP-MAX SHANK ELECTRIC HAMMER DRILLS
Part NO	Diameter (mm)	Length (mm)
TP1001	10	280
TP1002	10	340
TP1003	10	400
TP1004	12	280
TP1005	12	340
TP1006	12	400
TP1007	12	505
TP1008	14	280
TP1009	14	340
TP1010	14	400
TP1011	14	505
TP1012	14	600
TP1013	16	280
TP1014	16	340
TP1015	16	400
TP1016	16	505
TP1017	16	600
TP1018	18	280
TP1019	18	340
TP1020	18	400
TP1021	18	505
TP1022	18	600
TP1023	20	400
TP1024	20	505
TP1025	20	600
TP1026	20	800
TP1027	20	1000
TP1028	22	400
TP1029	22	505
TP1030	22	600
TP1031	22	800
TP1032	22	1000
TP1033	25	400
TP1034	25	505
TP1035	25	600
TP1036	25	800
TP1037	25	1000
TP1038	28	400
TP1039	28	505
TP1040	28	600
TP1041	28	800
TP1042	28	1000
TP1043	30	400
TP1044	30	505
TP1045	30	600
TP1046	30	800
TP1047	30	1000
TP1048	32	600
TP1049	32	800
TP1050	32	1000
TP1051	35	600
TP1052	35	800
TP1053	35	1000
TP1054	38	600
TP1055	38	800
TP1056	38	1000
TP1057	40	800
TP1058	40	1000
TP1059	42	800
TP1060	42	1000
TP1061	45	800
TP1062	45	1000

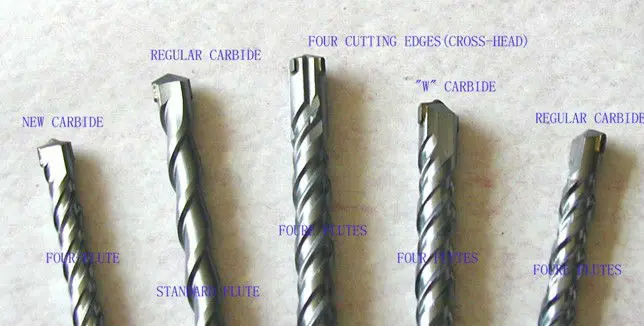

Different types of flute and tip:









Our regular packaging is plastic box or hanging,and we can make other packaging as your requirement.



The delivery method is courier,ship,or air.It depends on the total weight and your need.



Packing:
