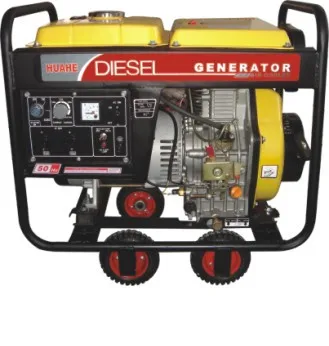

3gf diesel engine generator set,china diesel generator set

Product Overview

Description



     3gf diesel engine generator set,china diesel generator set









































Technical data

Model		Economical type						Luxury type						Silent type
		2GF-L		3GF-L		5GF-L		2GF-LH(E)		3GF-LH(E)		5GF-LH(E)		3GF-LDE		5GF-LDE
GENERATOR	Type	Revolving field type 2 pole generator
	Frequency(HZ)	50	60	50	60	50	60	50	60	50	60	50	60	50	60	50	60
	Cont.Output(KW)	1.7	2	2.8	3.3	4.2	5	1.7	2	2.8	3.3	4.2	5	2.8	3.3	4.2	5
	Voltage(A.C)(V)	230	240(120)	230	240(120)	230	240(120)	260	240(120)	230	240(120)	230	240(120)	230	240(120)	230	240(120)
	Current(A.C)(A)	7.4	8.3(16.7)	12.2	13.8(27.5)	18.3	20.8(41.7)	7.4	8.3(16.7)	12.2	13.8(27.5)	18.3	20.8(41.7)	12.2	13.8(27.5)	18.3	20.8(41.7)
	Engine Speed(r/min)	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
	Phase	Single phease
	Power factor(COS)	1
	Excitation system	Controlled Constant Self-excitation
	D.C output V/A	12V/8.3A
	Operation Capacity	12 hour Constant Operation
	Coupling Pattern	Straight shaft coupling
Model		170FG		178FG		186FG		170FG(E)		178FG(E)		186FG(E)		178FG(E)		186FG(E)
ENGINE	Type	Direct injection Vertical,4-cycle,air-cooled diesel engine
	Displacement(cu.in)	211(12.88)		296(18.06)		406(24.78)		211(12.88)		296(18.06)		406(24.78)		296(18.06)		406(24.78)
	Max.output(KW/rpm)	2.8	3.1	4.4	4.6	6.6	7.35	2.8	3.1	4.4	4.6	6.6	7.35	4.4	4.6	6.6	7.35
	Cont.output(KW/rpm)	2.5	2.8	4	4.4	5.9	6.6	2.5	2.8	4	4.4	5.9	6.6	4	4.4	5.9	6.6
	Starting system	Recoil						LE:Electric LH:Recoil						Electric
	Governor system	Centrfugal weight system
	Fuel	Diesel Light fuel(BS-AL or equivalent)
	Fuel tank capacity(L)	2.5		3.5		5.5		7.5		13.55		15		13.5		16
	Lube oil capacity(L)	0.8		1.1		1.65		0.8		1.1		1.65		1.1		1.65
	Bore x Stroke(mm)	70×55		78×62		86×70		70×55		78×62		86×70		78×62		86×70
	Protection System	Low oil,Warning System/Stop Device(not for L-series)
UNIT	Noise level at 7m dB(A)	79		82		85		79		82		85		70
	Dimensions(L×W×H)mm	575×400×500		640×480×530		720×480×580		575×400×500		640×480×530		720×480×580		840×520×640		905×520×680
	Dry weight(kg)	46		61		95		LE:70LH:65		LE:85LH:80		LE:100LH:95		126

















Product Option





Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.



Silencer:Use the large silencer produced by patented technology,to minimize the noise.



Oil alert:Oil level under the level line,the engine stops working automatically.



Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.



Fuel meter:Show the varietal of fuel accurately.

















About us





            Established in 2001, Zhejiang New Huahe General Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of forklift, generators, high pressure washer,water pumps, carriers, bumpers, motorcycle carriers and WHD series electric slide vehicles. All of our products comply with ISO9001 and are currently being shipped to Japan, America, Europe and Southeast Asia.



         We have over 300 employees and an annual sales figure that exceeds USD10,000,000. In addition, our experienced R&D team actively expands our product range to meet changing market trends and we welcome OEM orders.The company has all kins of generators, water pumps, high pressure washer, cutter, large punch machine, CNC machining center, large painting machine and other testing equipments, which ensures perfect quality of each forklift from HUAHE.



         If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.















Company Information













Assembly Line















Certificates















Packaging & Delivery



Packaging Detail: packed in strong carton, If you have special requirements, we will follow your request

Delivery Detail: in 15 days

















Main Markets



             Most of our machine exported to European Union ,Middle Easet ,Africa,South & East asian countries and regions

















HUAHE, is trustworthy!

• We inspect every machine before packing.
• All orders are shipped directly from our warehouse.
• Welcome to contact us if you have any question before you make an order.
• We will inform you and tracking for you in time after shipped the order.
• Feel free to contact us if you have any problem to use the machine when you received it.
