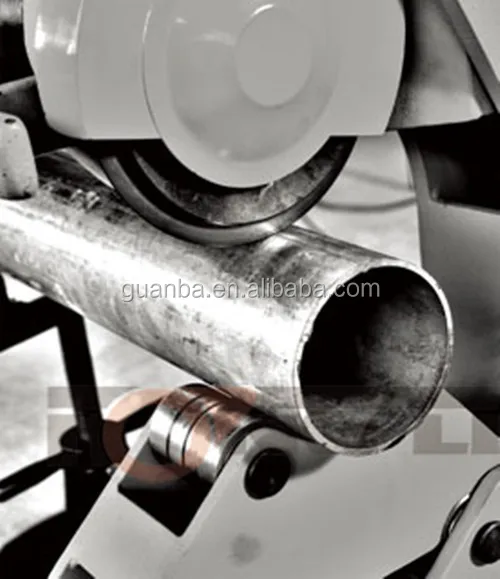

QG12 высококачественный стальной труборез/Электрический Резак для холодных труб, 2 12 дюймов

Product Overview

Description



Specifications

Description

Motor: 750W,induction type

Max pipe thickness: 8mm

Min pipe diameter: 2inch

Max pipe diameter: 12inch



Standard Equipment

•  QG12 Cutter Frame

• Foot Pump with Hose and Coupling

• Pipe Supports

• General Purpose Cutting Wheel

Features

1.Designed for pipe cutting ranging from 2"-12" with clean cutting edge

2.No sparks dust or abrasive comes out of work

3.Adaptable for beveling

4.Controlled the feeding rate by pumping the hydraulic foot pump

5.Heavy-duty design is ideal for field or shop use

Ordering information

Catalog No.		Model   No.		description			Weight
88020		QG12		2"-12",power pipe   cutter,220V-50HZ			120kg
88010		QG12		2"-12",power pipe   cutter,110V-60HZ			120kg



Catalog No.		Model   No.		description			Weight
				replacement cutter wheel			1kg
				pipe support			5.7kg





Using Pipe Supports

Pipe supports must be used to prevent cutter wheel damage. Failure to properly support the pipe

will result in shortened wheel life. When cutting pipe in lengths of 8”or longer, additional pipe

supports must be used.





Certifications



About us

Hangzhou Hongli Pipe Machinery Co.,Ltd established in 1986, is a company that brings

together technology and engineering to provide innovative solutions for our customers in

the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is

our sister company speciali-zing in exporting different kinds of threaders, groovers, pipe

cutters,etc..Our products enjoy a gre-at popularity in North and South America,Mid East,

Africa, etc..Our priority is to design, produc   and deliver products which facilitate your work.

Business market



About our R&D

Since the foundation of Huaxing Machinery Factory (our initial company) in 1988,

R&D is one of our main focus. It’s our belief that creativity and innovation is the key

 to success. In the past 20+ years, our engineers and technicians contributed lots of

 intelligence and efforts to many products. With these innovative products, we enjoy

 a high reputation in the range of pipe machinery.

Our progress:

1988	Designed the first 2”threading machine
1997	Designed the first portable threader in   China
2003	Designed the first hydralic pipe cutter
2005	Designed the first roll groover
2006	Coming with more high efficient threading   machines



Innovation is the soul of our company. Our R&D department will shoulder the expectations of

 the company and help us walking toward a bright future.
