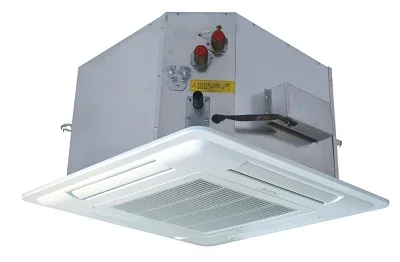

1/2/4/6 Way Ceiling Mounted Cassette Fan Coil Unit

Product Overview

Description

Features

• Capacity range: 180 CMH to 2,890 CMH, available in 2-pipe and 4-pipe.
• 220-240V/1Ph/50Hz power supply is standard, 208-230V/1Ph/60Hz can be customized.
• Units with PCB or without PCB are optional.
• 4-way air supply panel is standard for 4-way cassette, 360°air supply panel is standard for compact 4-way cassette.
• Unique design of the centrifugal fan ensures extra-quiet operation and high efficiency.
• Wireless remote control with LED display is standard, wired control is optional.
• Safety grill for safety maintenance.
• Built-in drain pump with high pumping head optional.
• Optional extended drainage pan for better protecting the ceiling.
• Four-speed motor with one reserved for more choice.
• Fresh air supply makes life healthier and more comfortable.

Specification

Model		Unit	FP-34KM4-VZ/A	FP-51KM4-VZ/A	FP-68KM4-VZ/A	FP-85KM4-VZ/A	FP-102KM4-VZ/A	FP-136KM4-VZ/A
Cooling mode	Cooling Capacity	kW	2.0	2.7	3.7	4.5	5.6	7.0
	Water flow rate	L/h	345	470	640	780	970	1,260
	Water pressure drop	kPa	7	9	11	16	18	19
Heating Capacity		kW	2.8	4.2	5.6	7.0	8.4	11.2
Fan	Type		Centrifugal			Centrifugal
	Wheel Dia.	mm	Φ315	Φ315	Φ315	Φ380	Φ380	Φ380
	Wheel Qty		1	1	1	1	1	1
Electrical  Data	Power Supply	V/Ph/Hz	220/ 1 / 50			220/ 1 / 50
	Power Input	W	39	52	62	76	96	132
	Current	A	0.18	0.24	0.27	0.33	0.38	0.58
Air flow rate	High	m3/h	340	510	680	850	1,020	1,360
	Medium	m3/h	280	390	520	640	790	1,030
	Low	m3/h	180	260	350	430	520	690
Noise		dB(A)	37	39	41	43	45	46
Dimension(LxWxH)		mm	580x580x395			710x710x395
Dimension of face panel		mm	680x680x30			830x830x30
Tranportation weight		kg	21			25
Water connection	Inlet	inch	ZG3/4"			ZG3/4"
	Outlet	inch	ZG3/4"			ZG3/4"
	Drain	mm	26			26





Specification (cont'd)

Model		Unit	FP-170KM4-VZ/A	FP-204KM4-VZ/A	FP-238KM4-VZ/A	FP-289KM4-VZ/A
Cooling mode	Cooling Capacity	kW	9.1	10.8	12.6	15.3
	Water flow rate	L/h	1,710	1,920	2,160	2,640
	Water pressure drop	kPa	17	19	22	36
Heating Capacity		kW	13.9	16.7	19.5	23.7
Fan	Type		Centrifugal
	Wheel Dia.	mm	Φ476	Φ476	Φ476	Φ530
	Wheel Qty		1	1	1	1
Electrical  Data	Power Supply	V/Ph/Hz	220/ 1 / 50
	Power Input	W	152	189	220	330
	Current	A	0.78	0.80	1.07	1.43
Air flow rate	High	m3/h	1,700	2,040	2,380	2,890
	Medium	m3/h	1,290	1,500	1,800	2,100
	Low	m3/h	860	1,030	1,200	1,600
Noise		dB(A)	47	50	52	57
Dimension(LxWxH)		mm	832x832x395			950x950x430
Dimension of face panel		mm	980x980x30			1140x1140x30
Tranportation weight		kg	33.5			52
Water connection	Inlet	inch	ZG3/4"
	Outlet	inch	ZG3/4"
	Drain	mm	26
