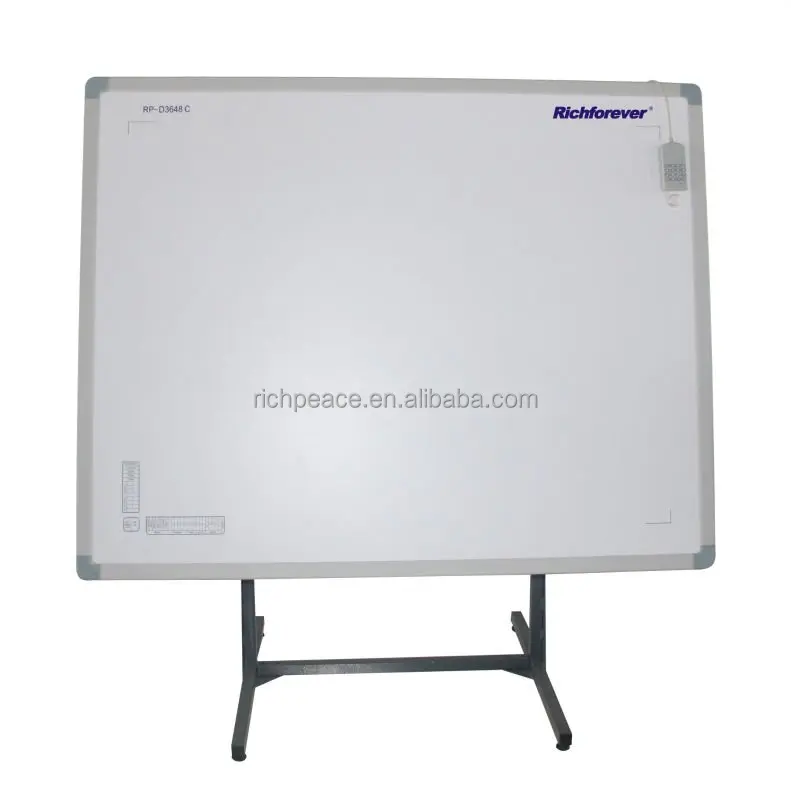

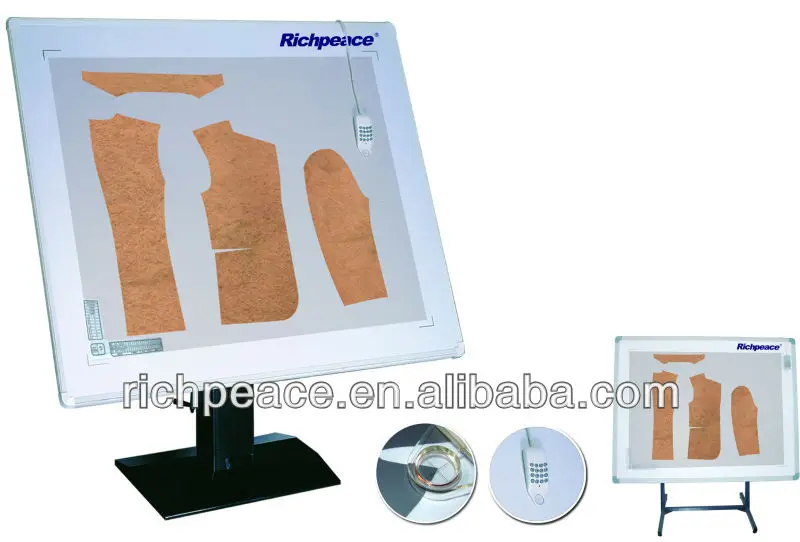

Garment pattern Digitizer

Product Overview

Description









 Richpeace Garment Digitizer   Hot Sale Brand New



Digitizer is very useful in all kinds of digital fields, i.e. Garment Industry, Fashion Designing, Mapping, Mining, Punching and Environment Protection. It allows saving most standard settings for more than 30 kinds of software in the option Parameters Setup and supports about 30 digital formats. It’s friendly, compatible and easy to connect with most popular graphic applications, i.e. AutoCAD, Mapgis, Citystar, Mapinfo, Arcinfo, Microstation, Supermap, Openinfo, Optitex, Arise, Billy, Cyber, GmCAD, Genamap, ViewGIS, MapEngin, ILWIS, SvCAD, DoCAD and Tajima Series, etc. Further, it supports working stations like SUN, SGI and so on.  Garment pattern Digitizer











n  Easily digitize your existing paper patterns for use in a CAD system.

n  16 digital locator keys are conveniently and easily for operating.

n  Accurate effect could help you to accelerate the design speed.

n  It is a powerful tool to digitalize the traditional hand-drawn design.



Accurate Richpeace Digitizer simplifies operation and provides high precision up to 0.127mm.

Powerful: Seven models, from A2 to A00, with 16-Button Cursor or 3-Button Pen Stylus, all available. It features faster point output rate than most digitizing tablets & supports WinTAB, which bases Windows95/Windows98/ME/NT/2000/XP platform.



STANDARD FEATURES: Garment pattern Digitizer

• Richpeace Garment Digitizer easily digitize your existing garment pattern into CAD system


• Richpeace Digitizer is a useful tool for all kinds of industrial data digitization need, i.e. Garment Manufacturing, Fashion Design, Map Making, Mining, Punching and Environment Protection.


• It saves set up time with more than 30 popular software parameter preset inside the digitizer.


• 16 button cursor for fast and convenient operation


• Fast and accurate markers input help to accelerate production process.


• It is a powerful tool for digitize traditional hand-drawn marker design


• User friendly, compatible to most popular grahpic applications, i.e. AutoCAD, Mapgis, Citystar, Mapinfo, Arcinfo, Microstation, Supermap, Openinfo, Optitex, Arise, Billy, Cyber, GmCAD, Genamap, ViewGIS, MapEengin, ILWIS, SvCAD, DoCAD and Tajima Series, etc...


• Furthermore, it supports workstations like SUN, SGI and others.



Specification/Model	RP-D3648C(A0)
Working Area	44X60inches
Operation System	Microsoft Windows 95/98/ME/NT/2000/XP
Hardware Interface	Standard RS-232
Power Supply	AC220V±10%
Other Option	Common Stand,Lifting Bracket,Tilt Angle Bracket
Baud Rate	Up to 19200
Output Rate	UP to 100PPS
Technology	Electromagnetic
Warranty	One Year Limited Warranty, Free Technical Support



MORE MODEL INFO:



MODEL INFO	SIZE	WORKING AREA(inches)	ACCURANCY(mm)
RP-D4406C	A00	44X60	0.20
RP-D3648C	A0	48X36	0.20
RP-D3648S	A0	48X36	0.127
RP-D2436C	A1	36X24	0.20
RP-D2436S	A1	36X24	0.127
RP-D1824C	A2	24X18	0.25
RP-D3DTAB	A2	24X18	0.25





HOW TO SET THE DIGITIZER WITH RICHPEACE GARMENT CAD SOFTWARE:



First, Please Keep the precision setup like following picture: Keep horizontal is 1000mm

Vertical is 500mm.



Second: you draw a rectangle , length is 1000mm, Width is 500 MMBy hand and digitizer the rectangle made by hand to cad,  then measure it in software

For example  length is 1002 mm,  widht is 499 mm, Then you click file-digitizer setup -precision

password 56789  input length is 1002, width is 499

Then you read the rectangle to computer again  and check if it is 1000mmx500mm
