Широко используемый 3 оси токарный станок с ЧПУ и фрезерный станок с ЧПУ контроллер/CNC990TDb 3

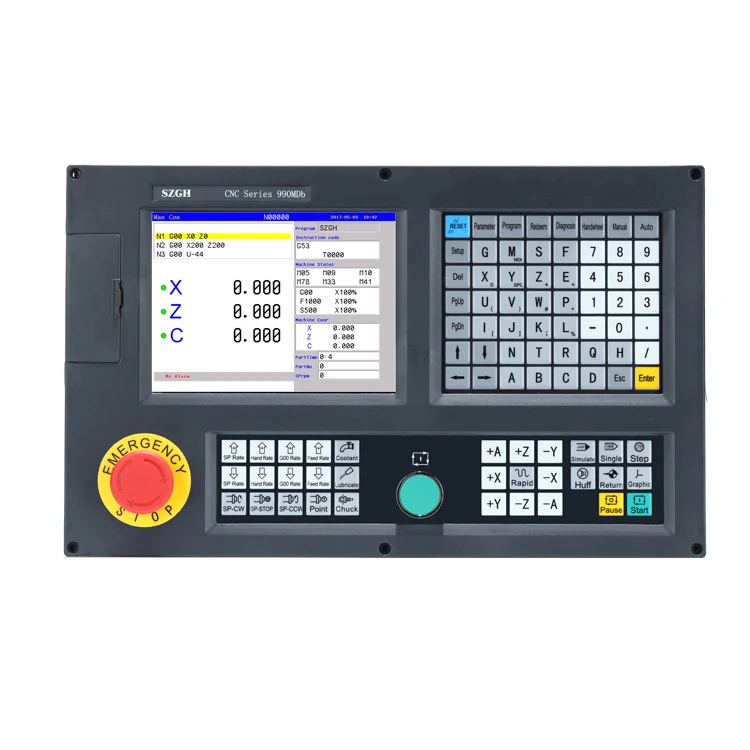

1) 800*600 8.4 inch real color LCD Display

2) Support ATC function , Macro function and PLC function

3) E4MB Memory , 32Mb user store room,

5) Pulse Output Frequency: 500KHz , Max speed is 30m/min, feeding speed is 15m/min

6) Adapted servo spindle can realize spindle continuous position, rigid tapping, rigid screw processing

7) High anti-jamming switch power(220VAC -> 24VDC)

8) Built-in plc programs, which can be edited freely.

9) With USB interface ,it supports file operation in flash disk,system configuration and software upgrade

10) Display in English, which can be selected by parameter.

11) Analog voltage output of 0~10V in two channels, support double spindles

12) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

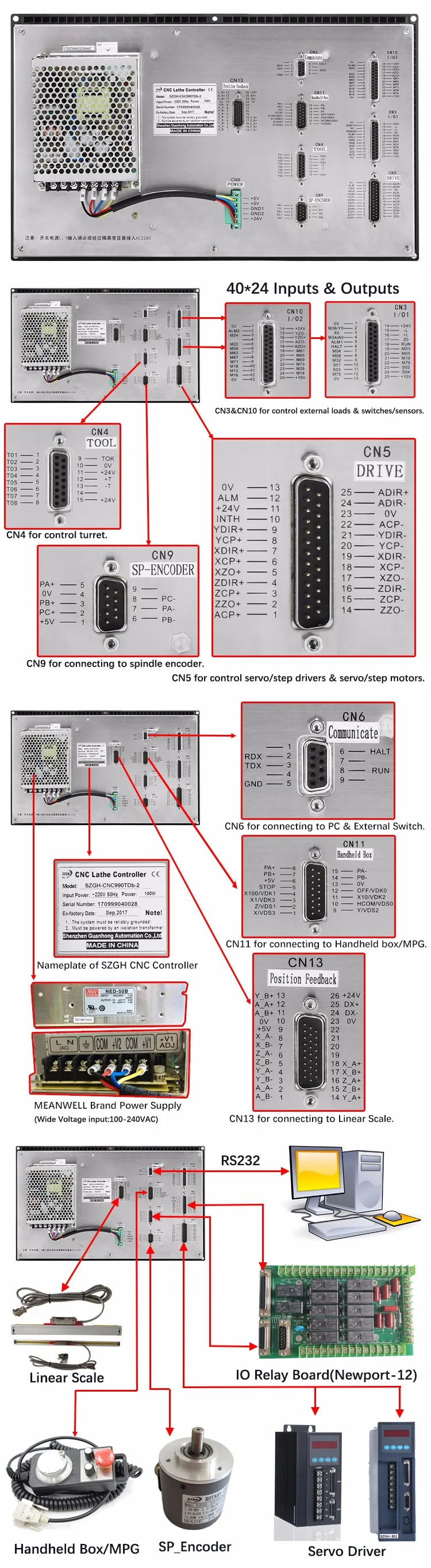

13) Basic I/Os : 40*24 , can be edited freely

14) cutter offset : C

15) English menu, program and interface, full screen edition

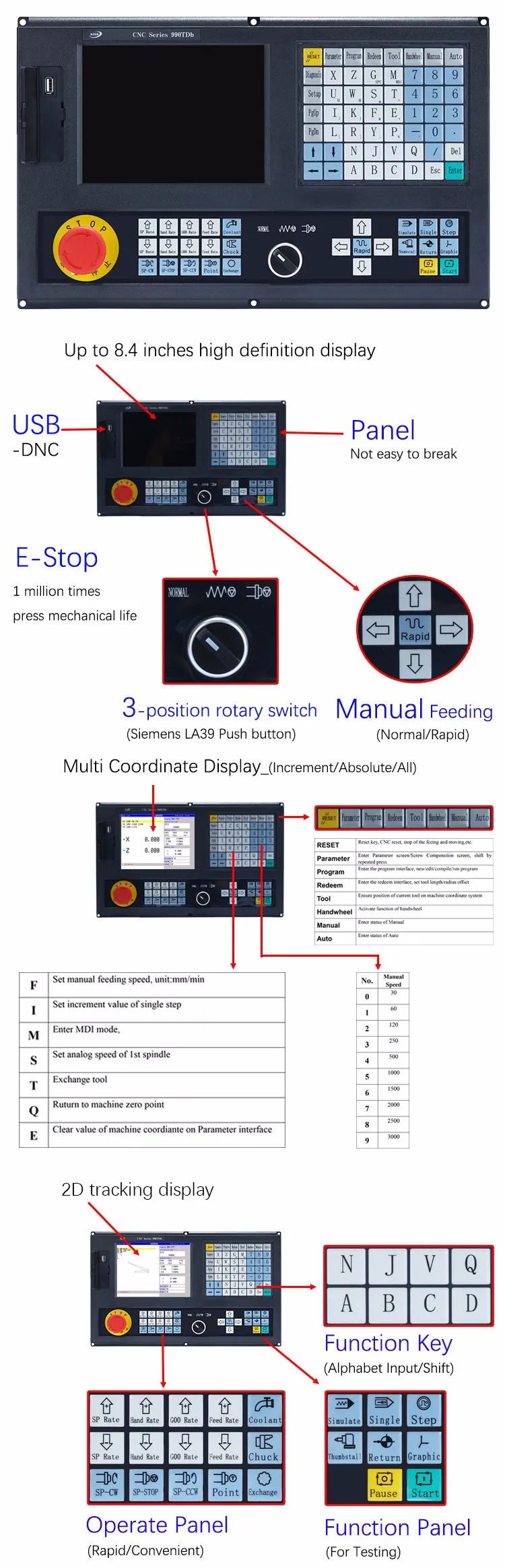

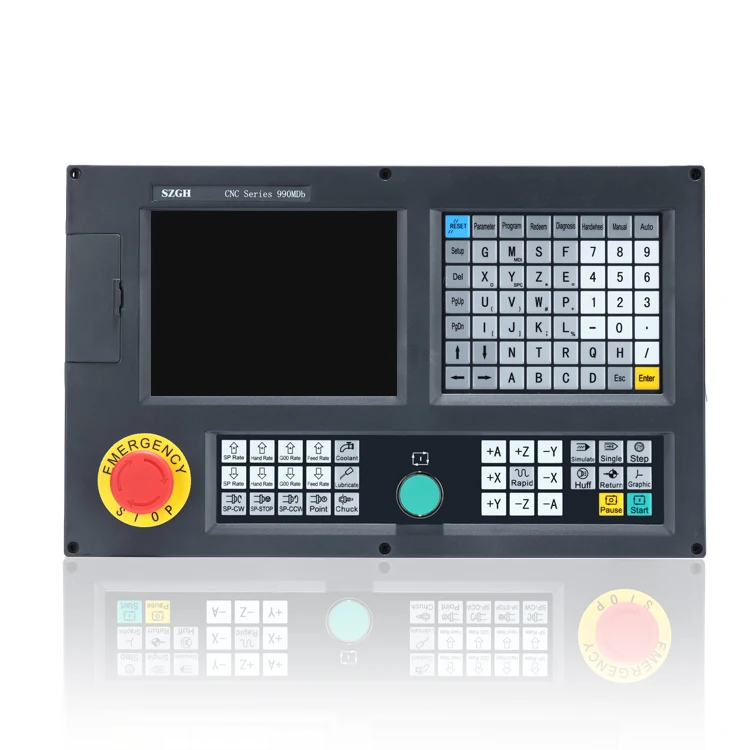

Product Details---Main Panel

Application: CNC milling machinery;  wood working machine; numerically control grinder,router retrofit etc
