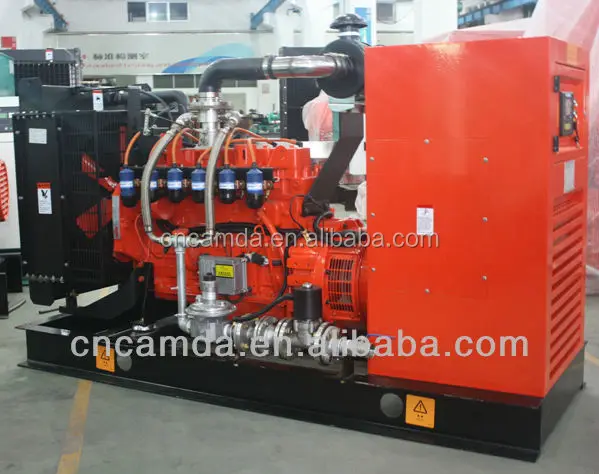

100KW LPG Oil Field Liquefied Petroleum Liquid Propane Gas Power Generator

Product Overview

Description

100KW LPG generator/ Oil field gas generator/ Liquefied Petroleum Gas Generator/ Liquid Propane Gas Power Generator



CAMDA lpg generator set,Automatic/manual control system, electronic governor,Automatic malfunction monitor, automatic shutdown protection.



100KW LPG generator/ Oil field gas generator/ Liquefied Petroleum Gas Generator/ Liquid Propane Gas Power Generator Specification Table



Genset Specification



Gas genset data
Genset model	KDGH120-G
Prime power(kW/KVA)	120/150
Continuous Power(kW/KVA)	100/125
Connection Type	3 Phases 4 Lines
Power factor cosfi	0.8 lagging
Frequency (Hz)	50
Rated speed (RPM)	1500
Open type Genset Overall Dimension (mm)	2950x1100x1800
Soundproof type Genset Dimension (mm)	4600x1600x2200
Net weight without canopy(kg)	2525







100KW LPG generator/ Oil field gas generator/ Liquefied Petroleum Gas Generator/ Liquid Propane Gas Power Generator advantages:



1. Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and  easier to start.



2. Main control parts are all the most advanced imported ones, to make more stable and reliable running.



3. Several gensets can be parallel connection or parallel  net, which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.



4. Low gas pressure is acceptable,  no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .



5. Self-contained parts of gensets needs few accessories



6. Economical and low-cost running.



7. The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.



8. The installation of  high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets

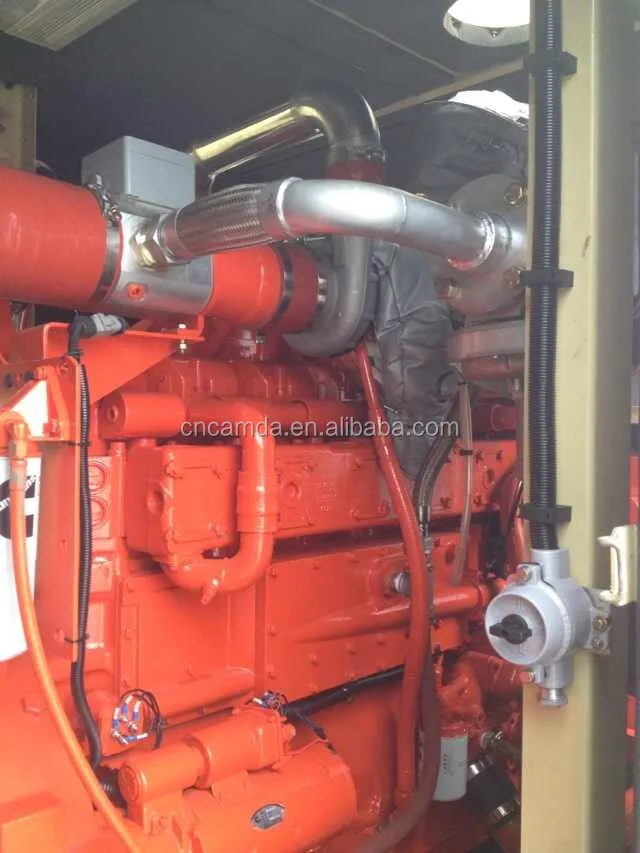

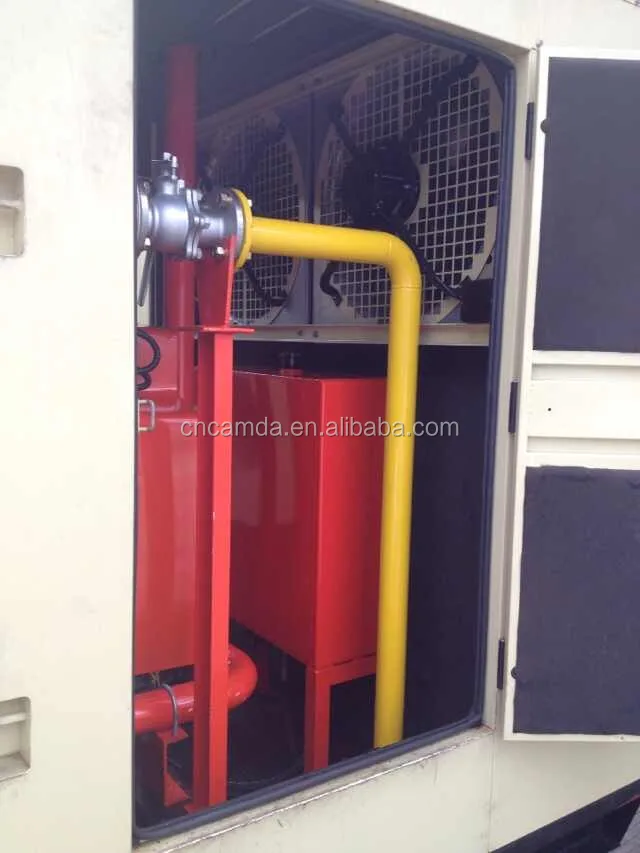

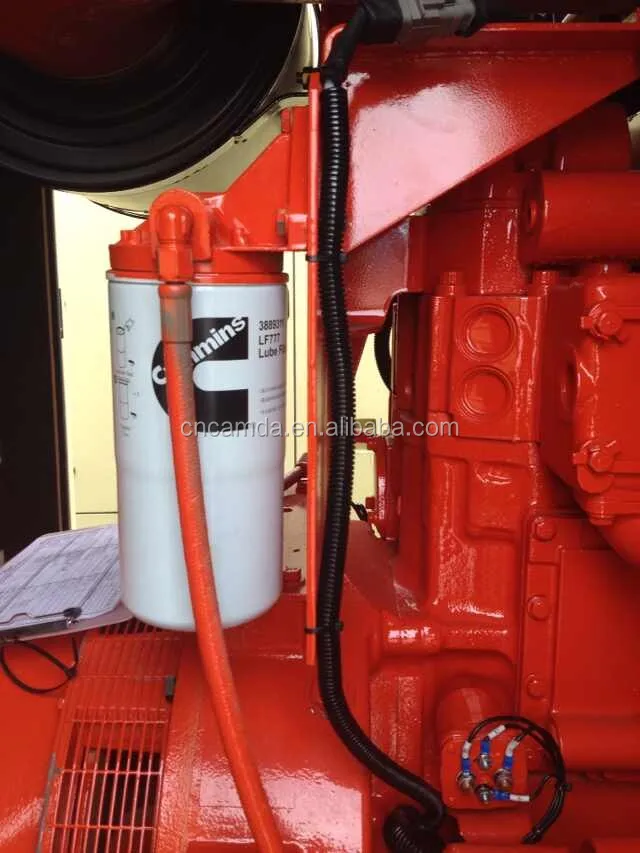

Some Main Parts of  100KW LPG generator/ Oil field gas generator/ Liquefied Petroleum Gas Generator/ Liquid Propane Gas Power Generator

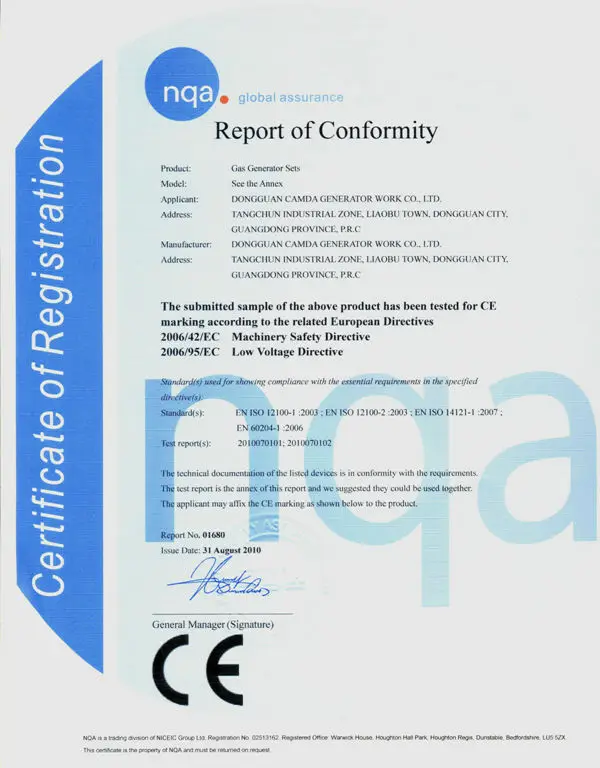

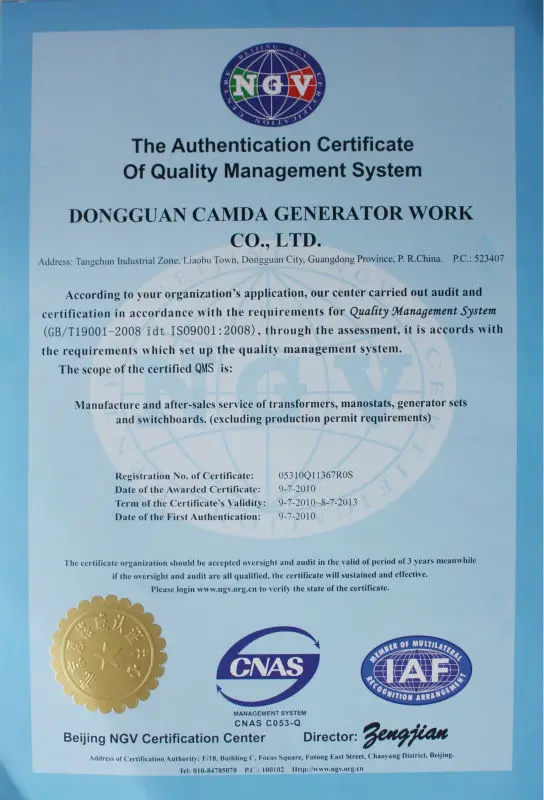

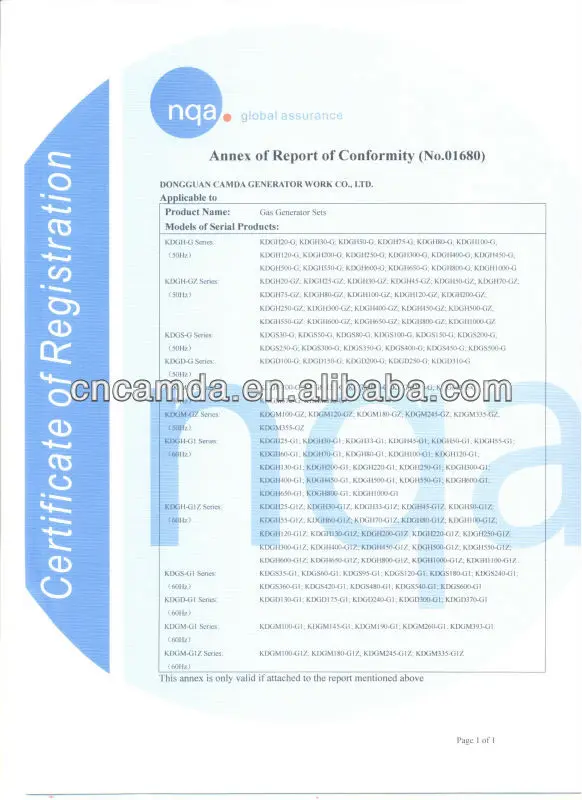

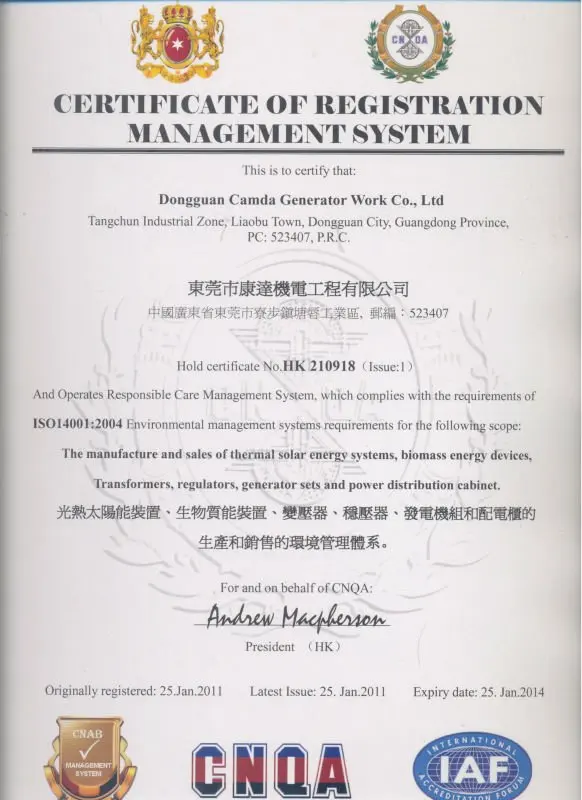

CE and ISO Certificates of 100KW LPG generator/ Oil field gas generator/ Liquefied Petroleum Gas Generator/ Liquid Propane Gas Power Generator
