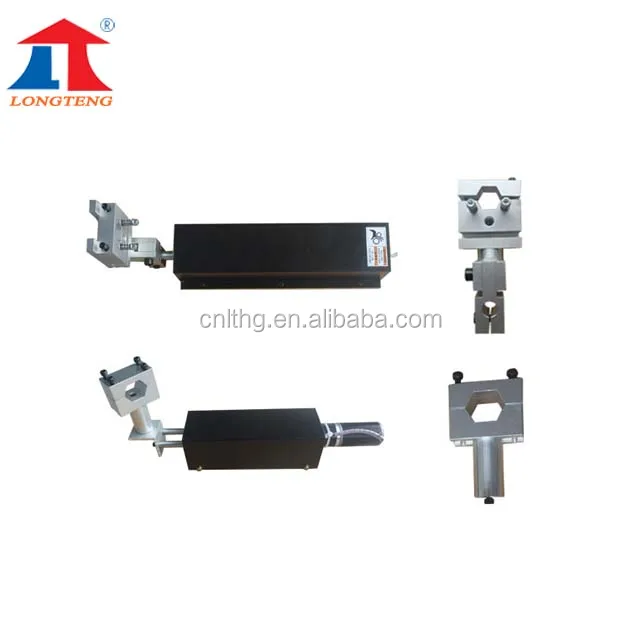

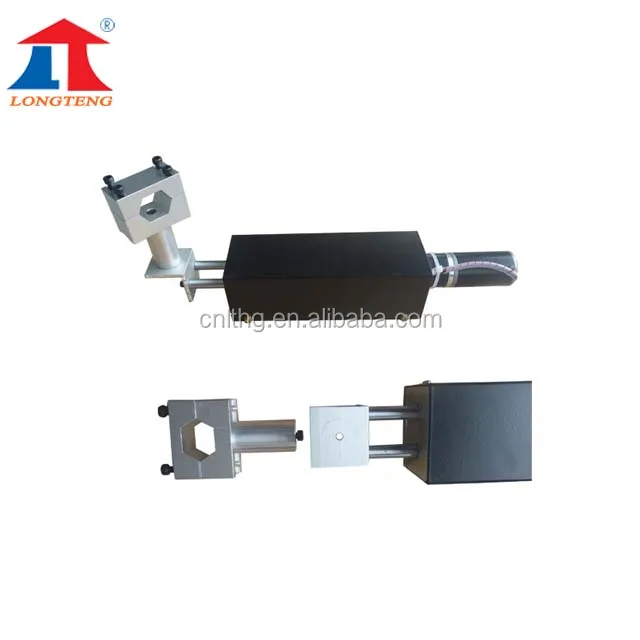

THC 200 plasma torch height controller with plasma torch holder

Product Overview

Description

THC-200 plasma torch height controller with plasma torch holder



1)Quick Detail:
1. Lifter for torch height controller
2. Used for Digital and Straight Strip Cutting Torch
3. Flame and Plasma Cutting Machine-use

2)Structural Features
1. Surface treatment: Smooth and beauty
2.100% inspection on critical dimensions with high accuracy +/-0.01-0.005mm

3)Applications:

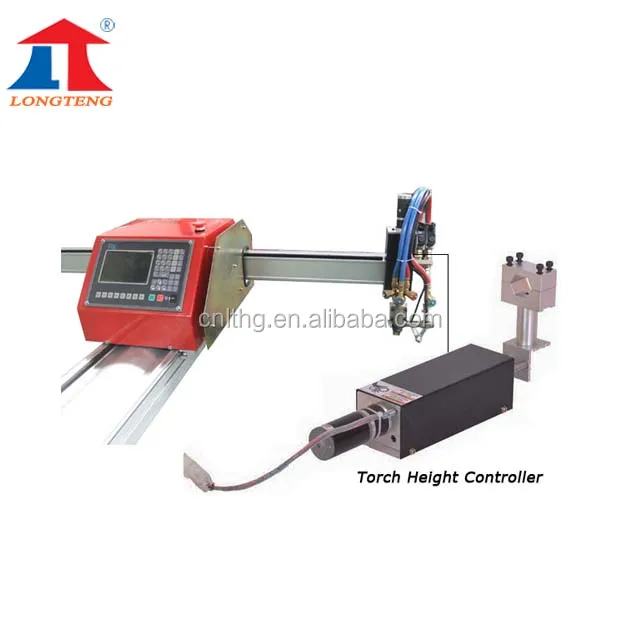

Torch height controller is used to adjust the distance between steel plate and cutting nozzle, in order to assure cutting quality and prolong the using of the cutting nozzle.

4)Working Principles:
The torch height controller has function of automatically control the height and adjust the location, it is suitable for plasma and flame cutting machine, connect digital /straight Strip cutting torch, control the height and adjust the location, then balance the distance of steel and cutting nozzle.

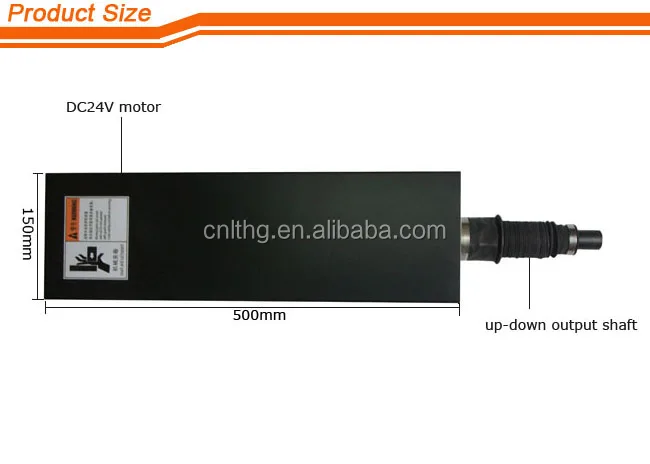

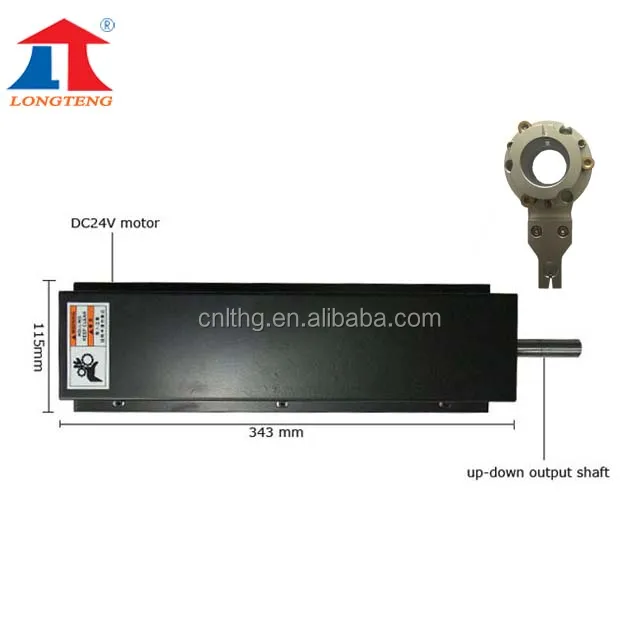

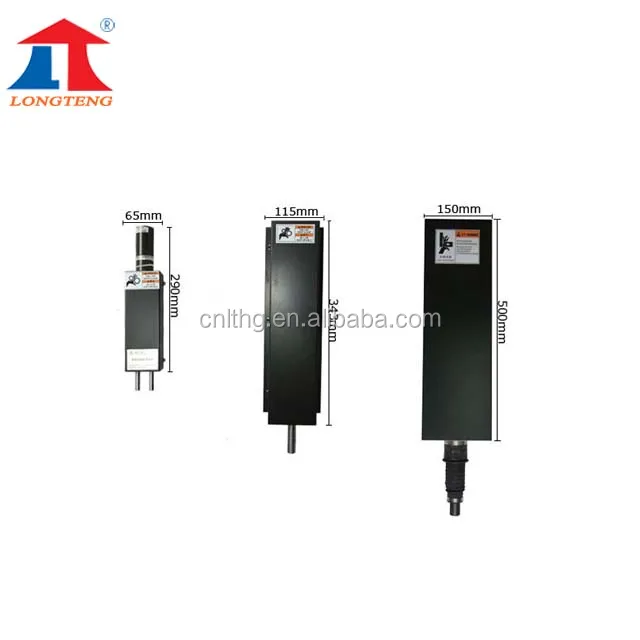

5)Specifications:



Model No.	Working Voltage	Motor	Working Temperature	Lifting Speed	Lifting Range	Self Weight	Max Lifting Weight
100	DC 24V 0.9A	11W	-25~60°	1200mm/min	max 100mm	1.9kg	8.5kg
150	DC 24V 1.5A	15W	-25~60°C	1200mm/min	max 150mm	3.5kg	14.8kg
200	DC 24V 2.2A	30W	-25~60°C	1800mm/min	max 200	11kg	20kg





6)Maintenance Skills:
1. Install the torch height controller correctlly.
2. Replace the consumbles in time before completely damaged.
3. Avoid the collision of the torch height controller.
4. Keep the connection threads clean.
5. Check if there are loose parts.

7) packing Details:



8)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
