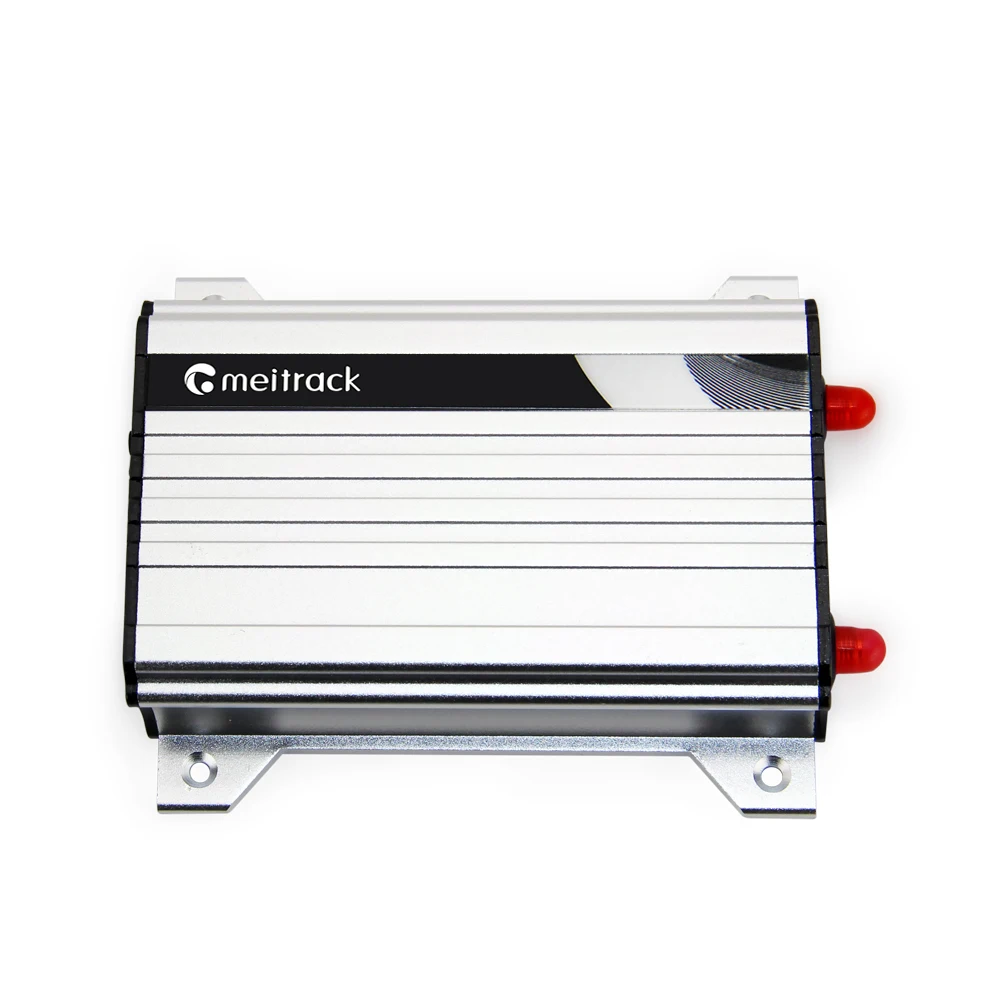

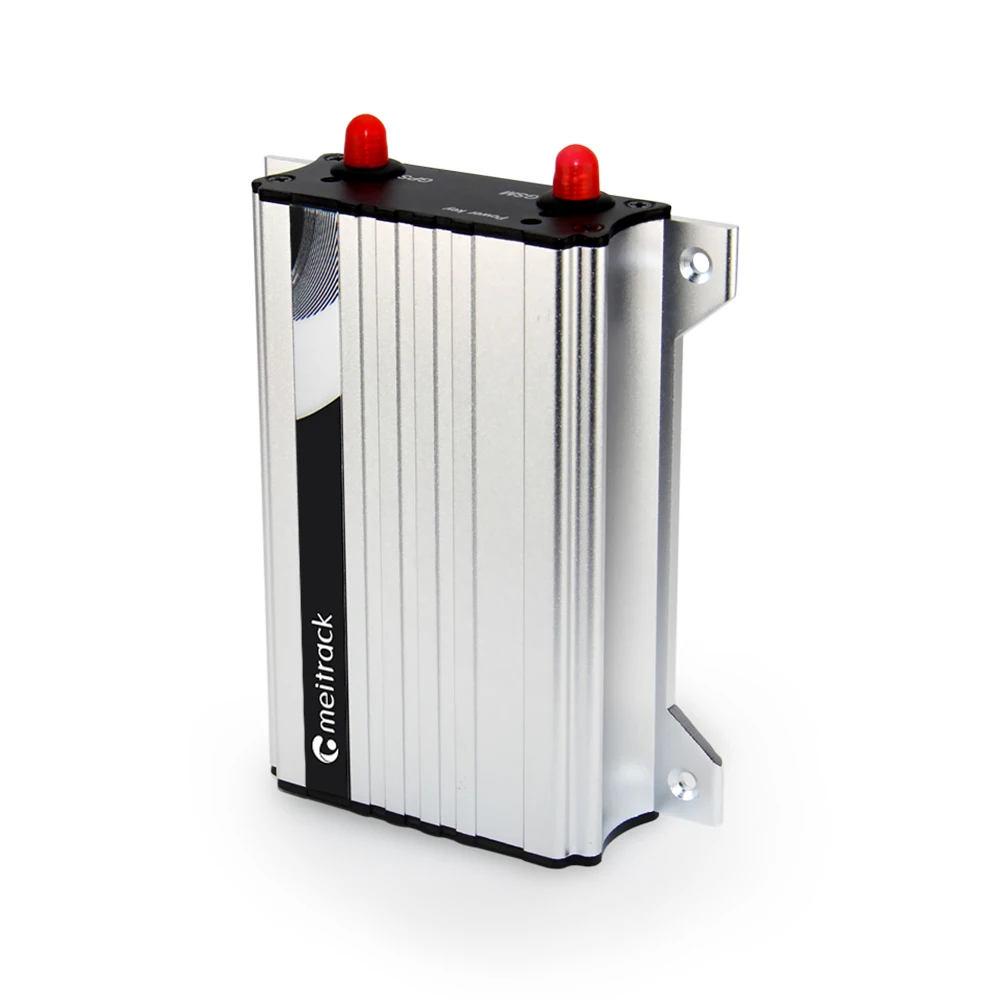

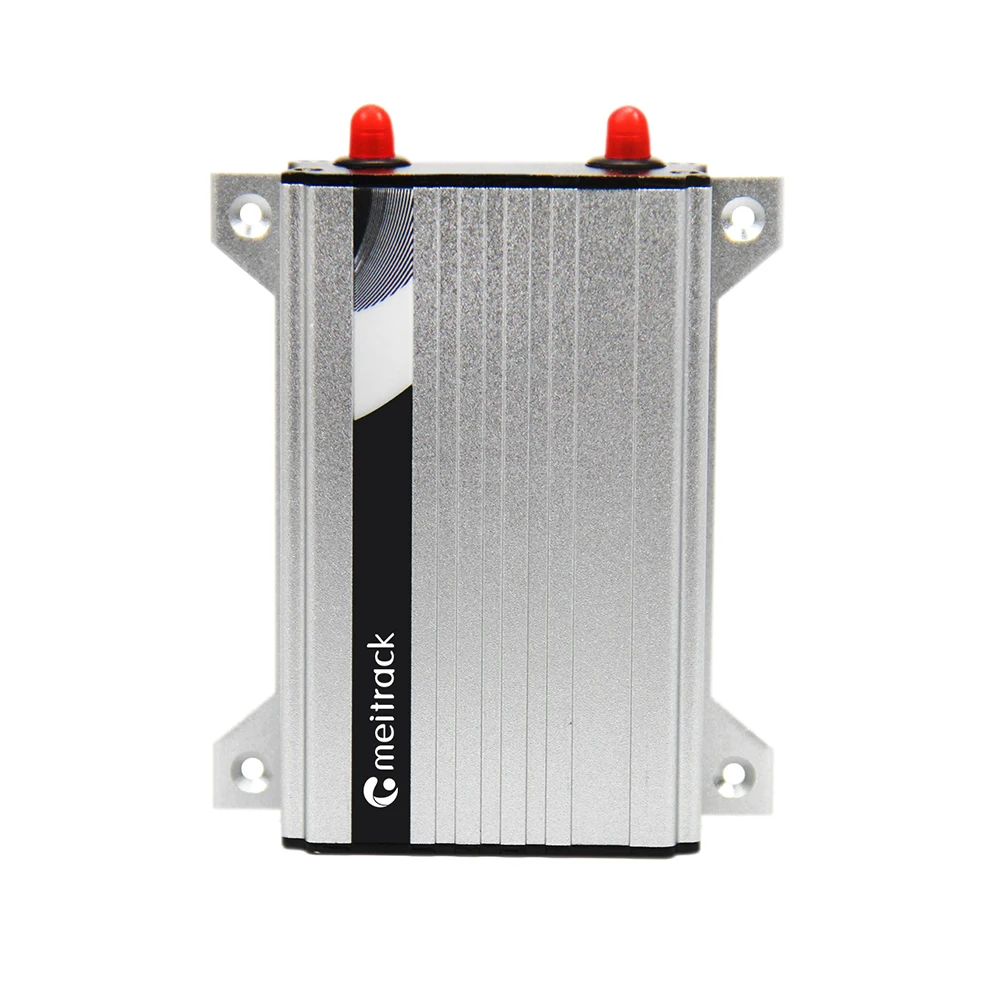

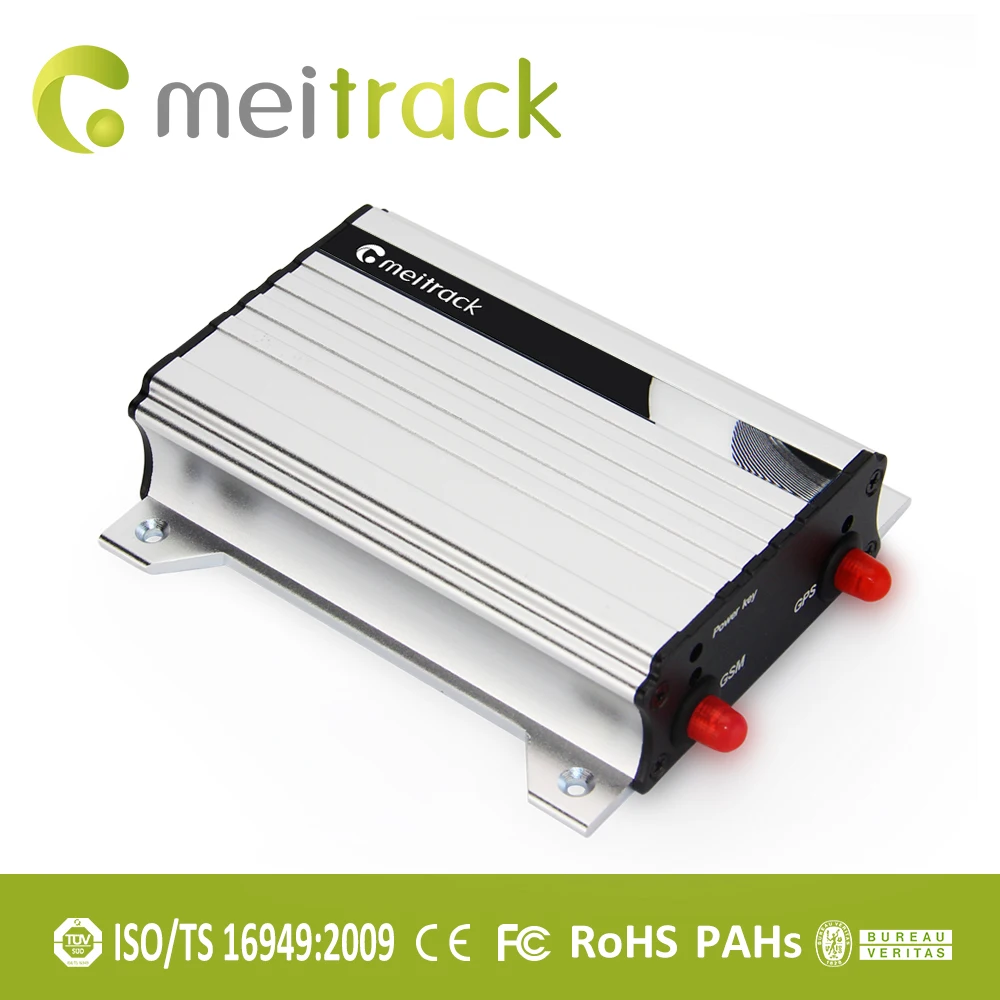

Бесплатное программное обеспечение 4G Автомобильный GPS трекер TK103 2 MEITRACK T333L

Share on (1990914851):


Price:79,00 $ - 86,00 $

Quantity:


Product Overview

Description



T333L















FUNCTION



  • Vehicle Tracking

  • Fleet Management



















































GPS + GSM (LBS) tracking



Geo-fence Alarm



Track by SMS/GPRS TCP & UDP



GPS Blind Area Alarm



Track on Demand



Low Battery Alarm



Track by Time Interval



Speeding Alarm



Track by Distance Interval



Tow Alarm



Track on Mobile Phone



GPS Antenna Cut Alarm



Listen-in or Two-way Audio (Optional)



External Power Cut Alarm



Inbuilt Motion Sensor



Mileage Report



Inbuilt Acceleration Sensor



Engine Cut (Engine immobilization)



GPS Log



Inbuilt Super Magnet (optional)



SOS Alarm



OTA












SPECIFICATIONS




































































Dimension


105 mm x 65 mm x 26 mm


Weight


190g


Power supply


DC 11–36 V/1.5 A


Backup battery


400 mAh/3.7 V



Power consumption



Standby mode: 5mA
Normal mode: 65mA


Working hour


47 hours in power-saving mode
4.7 hours in normal mode


Operating temperature


-20°C to 55°C (normal-temperature battery)
-5°C to 75°C (high-temperature battery)


Operating humidity


5% to 95%


LED indicator


Green indicator showing the GSM signal
Blue indicator showing the GPS signal


Button/Switch


1 SOS button (for sending SMSs or dialing)
1 power button


Memory


8 MB buffer


Sensor


3-axis accelerometer (used to wake the device up by vibration and detect towing alerts)


Frequency band


T333-ER:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8


Positioning accuracy


2.5m

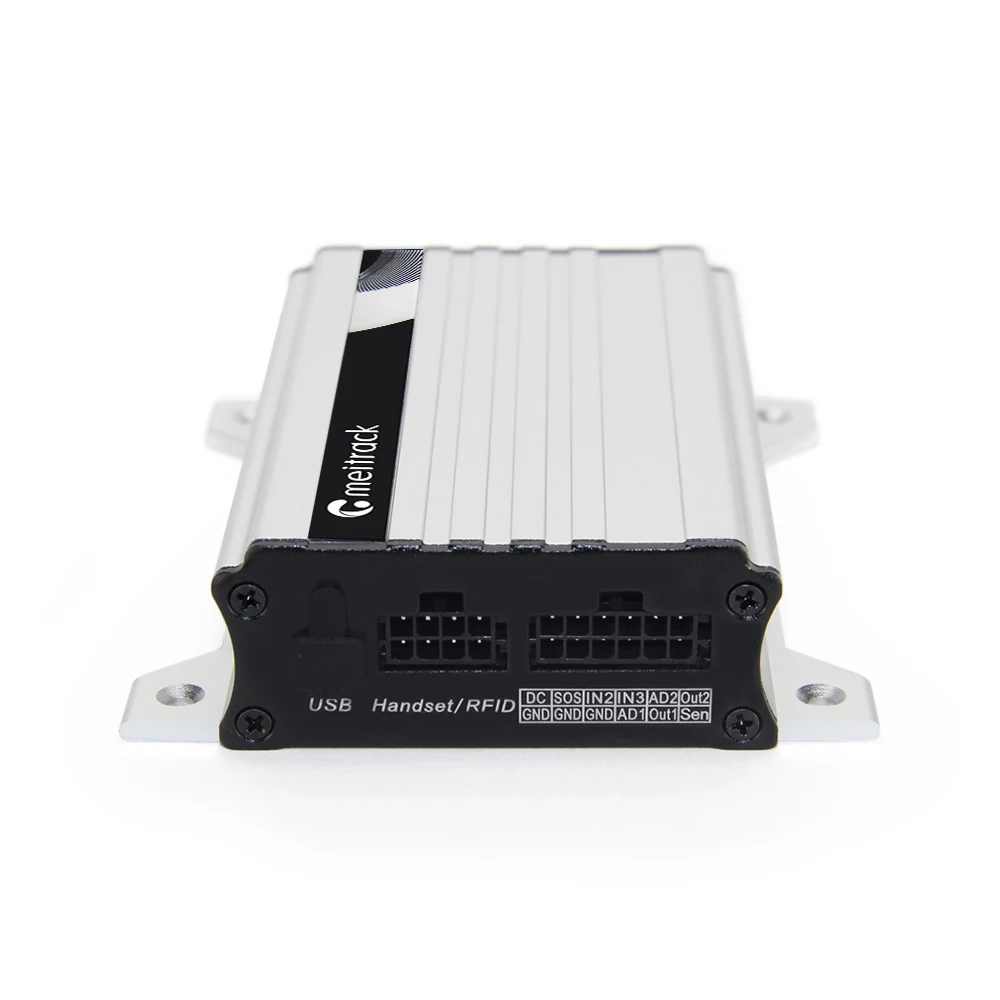

I/O port


3 digital inputs (2 negative inputs and 1 positive input)
2 analog detection inputs
2 outputs
1 RS232 port
1 USB port
1-Wire® iButton
1-Wire® temperature sensor
