C108 THD7 Trinocular digital microscope with lcd screen

Product Overview

Description

C108-H7 Trinocular digital microscope with lcd screen





1. Achromatic objective: 4x,10X,40X ( spring ),100X( spring,oil )



2.  Wide Field Eyepiece :WF10X,(WF16X optional)



3. Viewing head: compensation free trinocular head



4. Nosepiece: quadruple



5. Stage: double Layer Mechanical Stage Size 115X125mm



6. Focusing: coaxial coarse and fine adjustment , focusingr range  20mm



7. Condenser: N.A=1.25 Abbe condenser &Iris diaphragm



8. Illumination,  Halogen Lamp or LED



9. Power :  AC Input 220V or 110V,DC ouput 6V



10. 7 inches electronic eyepiece.





Achromatic objective	4X,10X,40X ( spring )	Optional
	10X,40X ( spring ),100X( spring,oil )	Optional
	4X,10X,40X ( spring ),100X( spring,oil )	Standard
Eyepiece	Wide field eyepieces WF10X,(WF16X optional)	Standard
Viewing Head	Compensation free trinocular head	Standard
Nosepiece	Triple	Optional
	Quadruple	Standard
Stage	Double layer mechanical stage,size:115x125mm	Standard
Focusing	Coaxial Coarse And Fine Adjustment , Focusing Range 20mm	Standard
	Separate Coarse And Fine Adjustment	Optional
Illumination&Condenser	N.A=1.25 Abbe condenser &Iris diaphragm	Standard
	Electric light source(Halogen Lamp or LED)	Standard
Power	AC Input 220V or 110V,DC output 6V	Standard
	Concave-plan reflector	Optional
	DC Power supply (can be charged)	Optional
optional	0.1 Mega-14 Mega pixels CCD camera or Electronic eyepiece	Optional

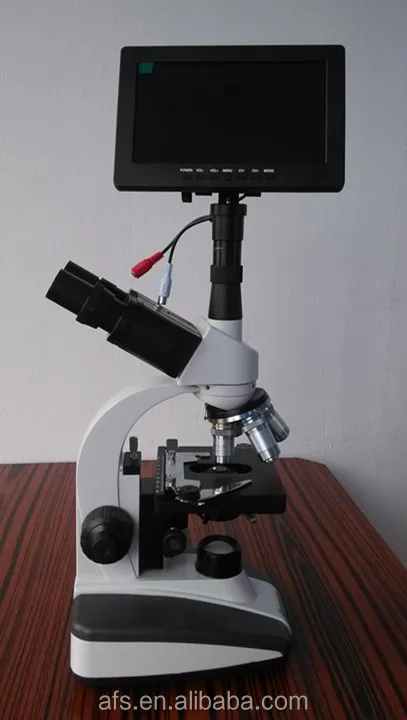

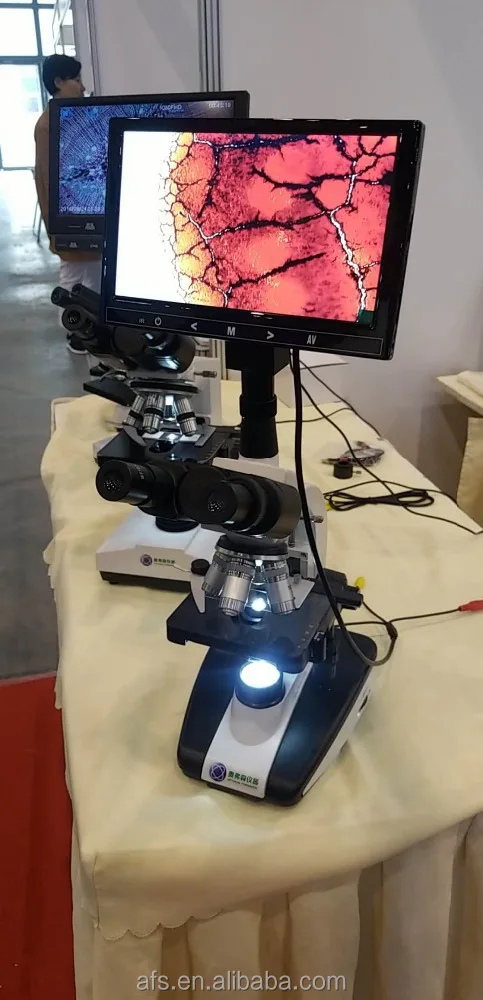

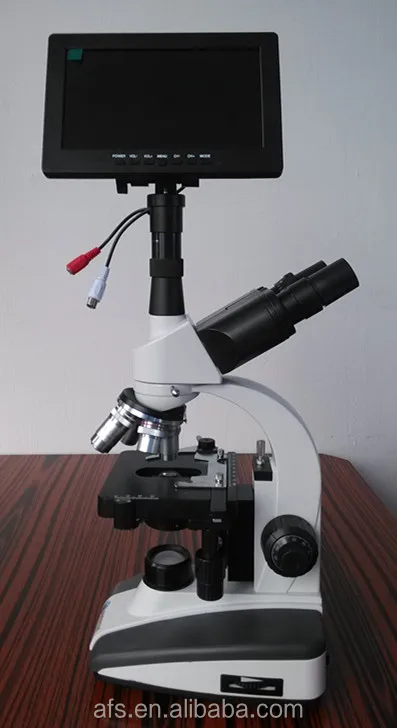

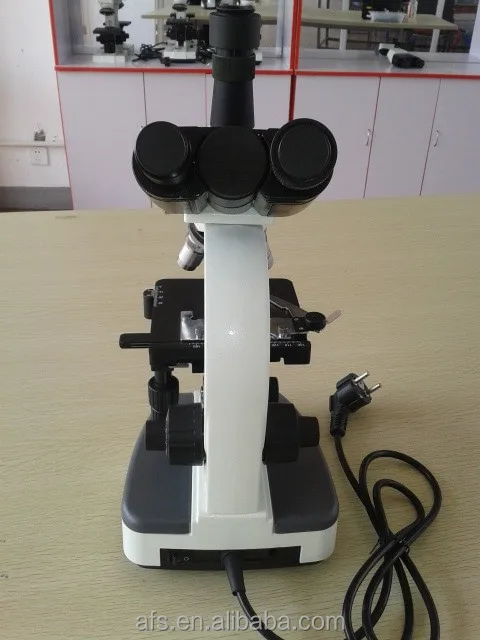

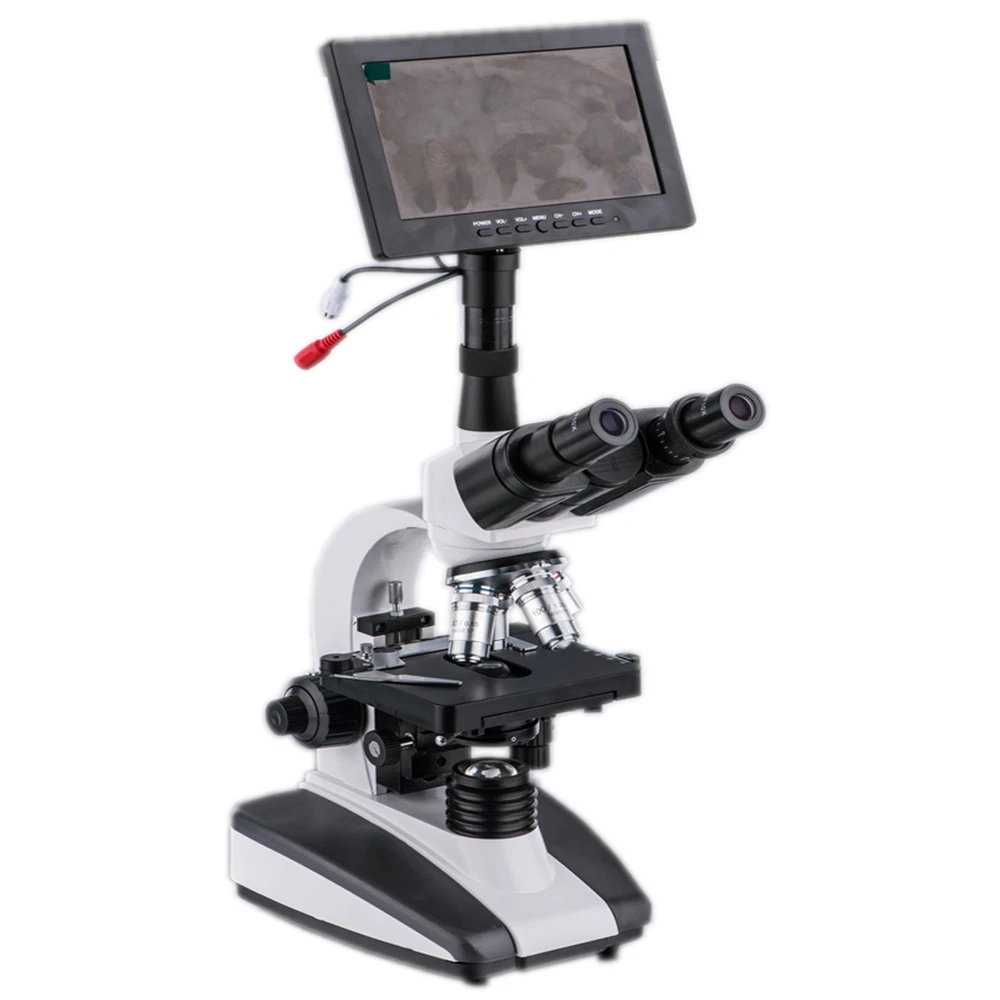

C108-H7 Trinocular digital microscope with lcd screen  picture:















C108-H7 Trinocular digital microscope with lcd screen  packing:











C108-H7 Trinocular digital microscope with lcd screen  shipping:



1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

Why Choose us?



1.We are Alibaba Assessed  Gold Supplier.

2.We are a factory manufacturing microscope best production capability ,

    best quality control, Best Service .

3.100% QC inspection Before Shippment.

4. CE/FCC listed,competitve price.





Our microscope  product including:

biological microscopes, student microscopes,stereo microscopes as well as corresponding accessories and

components such as electronic eyepiece, digital eyepiece, electronic camera, optical lenses, etc.



Our factory located in NINGBO ,nearly the port , so we can provide convenient transportation for your company .



 1.Production Workshop:







  2.Assembly Workshop:





Our Certifications







FAQ





Q1:Can I choose the color of customized parts accessories and function?

A1:Yes, we are a professional factory of microscope, we provide batch product fittings custom color, such as the      handwheel, base decorative plate.We support the function to reduce or increase at the same time, the                concrete can ask us, we will give you professional answer.



Q2:Could I use my own logo or design?

A2:Yes,customized logo and design on mass production are available.



Q3:How to inspect the goods?

A3:Products will be checked by our QC staff first,then our project manager,client can come and check by                  themselves or third party check is available.



Q4:Is there cheap shipping cost to import to our country?

 A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.



Q5:Can we get support if we have our own market position?

A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
