China Supplier of XY 100 Soil Drilling Machine for SPT

Product Overview

Description

ZZ-DEFY/ China Supplier of XY-100 Soil Drilling Machine for SPT





*Good for 100m depth geological coring ,or water well drilling

*Dismountable structure,easy to transport

*Widely used in Africa,South America,Southeast Asia,Russia and so on



I. Some Features of XY-100:

1. Power can be electrical motor or diesel engine, as per your project needs;

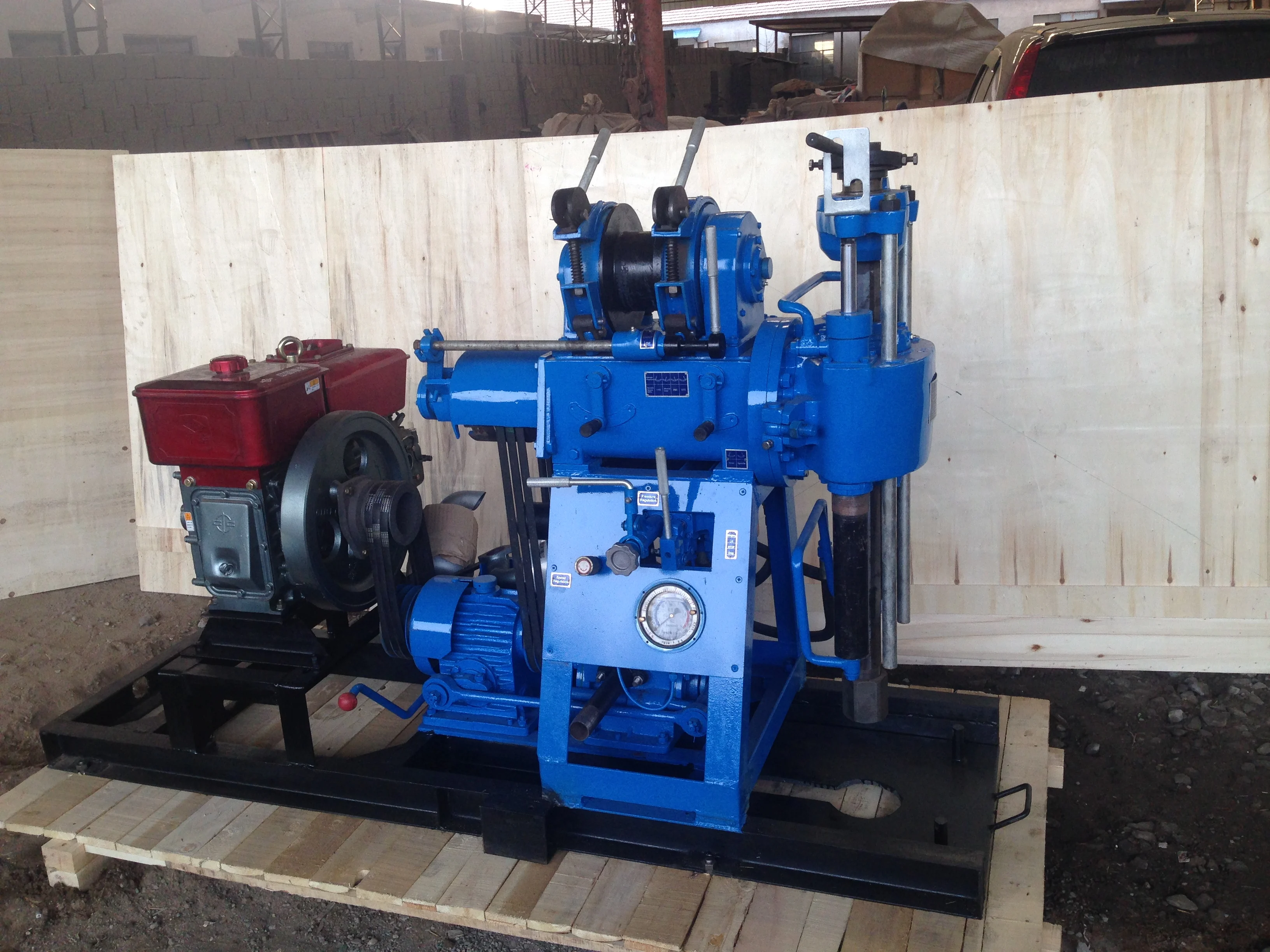

2. Engine and Mud pump,Reduction gears and Drill rig are all installed on one base,

   more compact structure and improve the overall rigidity;

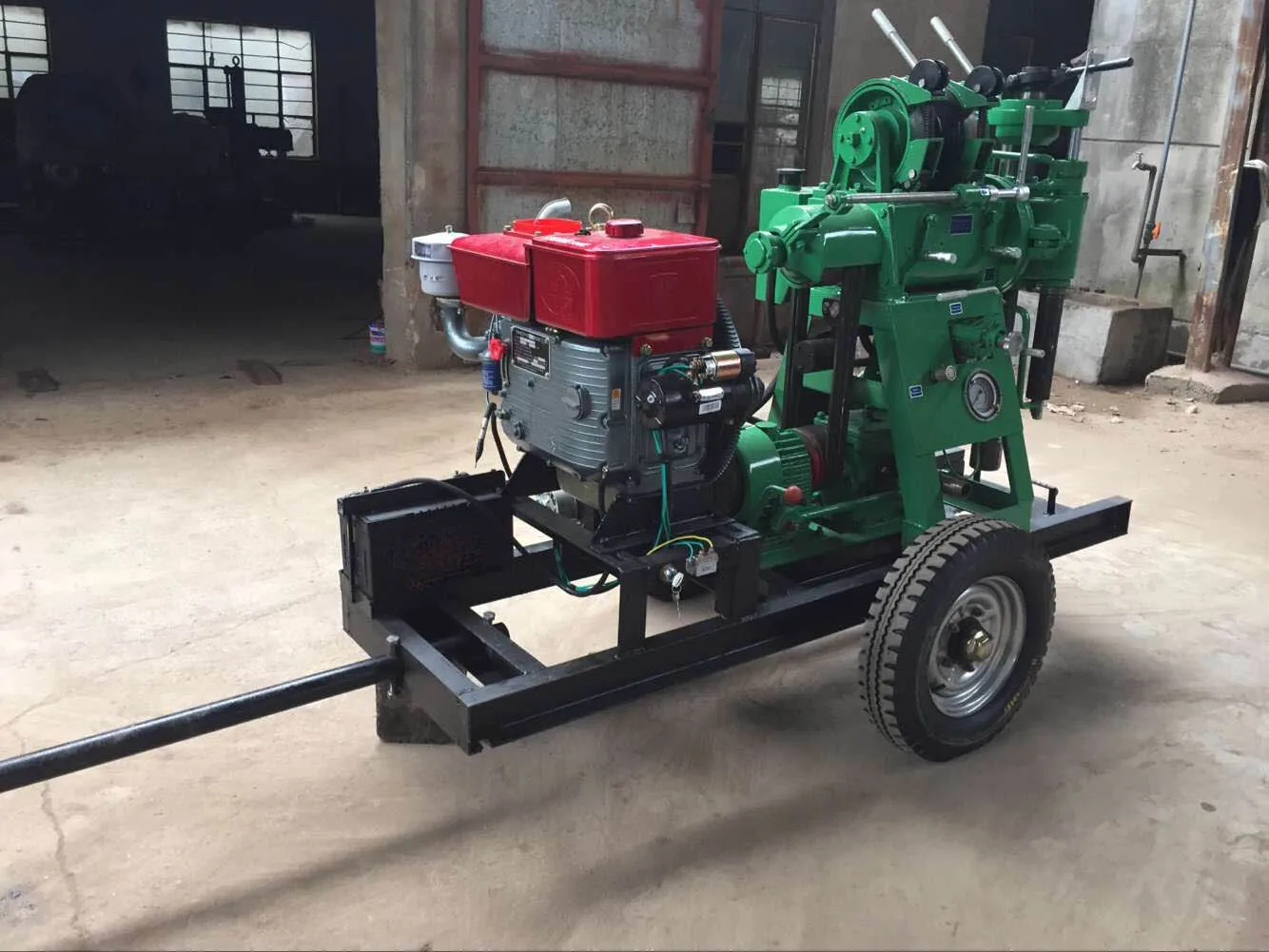

3. Mounted in 2-wheel trailer,easy to move around when working;

4. Easy to disassemble,installed and operation,

    the Heaviest part is less than 100KG,convenient for maintenance and transport;

5. Using alloy bit for soft ground,using diamond bits for hard ground.



II. Technical Parameters of XY-100 Drill Rig:



1.Overall parameters
Drilling depth	100m
Maximum open hole caliber	300mm
End hole caliber	75mm
Diameter of drill rod	42mm
Drilling angle	90~75
2. Vertical shaft
Rotating speed	142, 285, 570 r/min
Feeding stroke	450mm
3.Hoist
Max. single line hoisting capacity	1600Kg
Diameter of wire rope	11mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	95/77L/min
5.Power
Diesel engine	18HP, 2000r/min
Electrical motor	11KW, 1460r/min

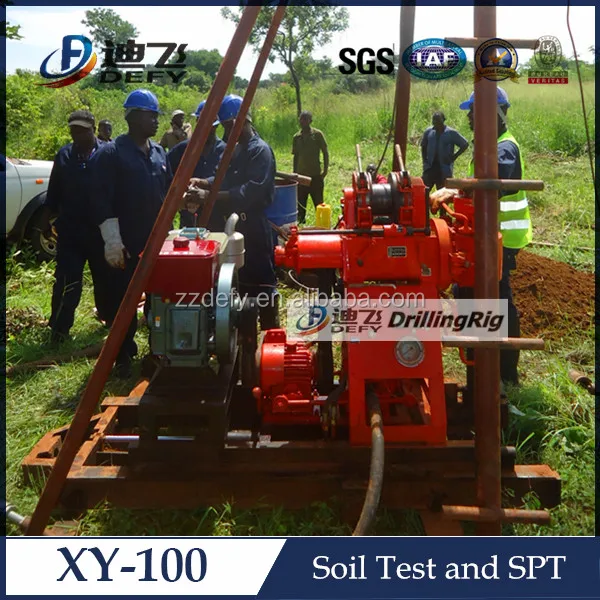

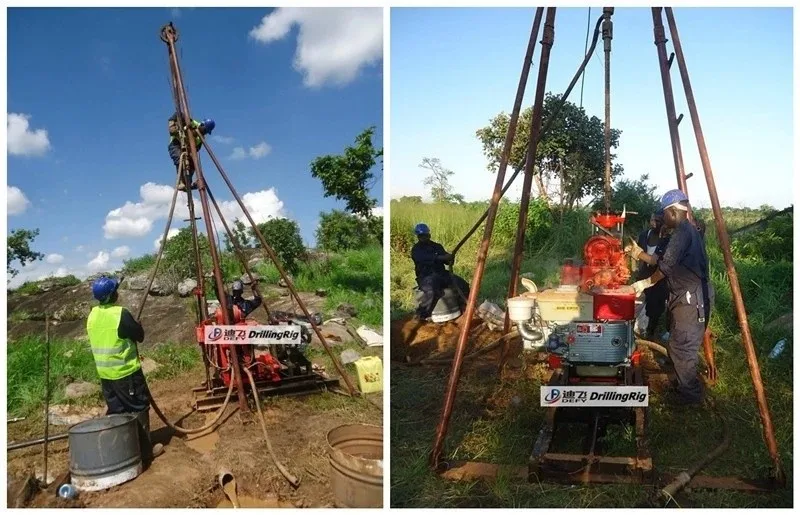

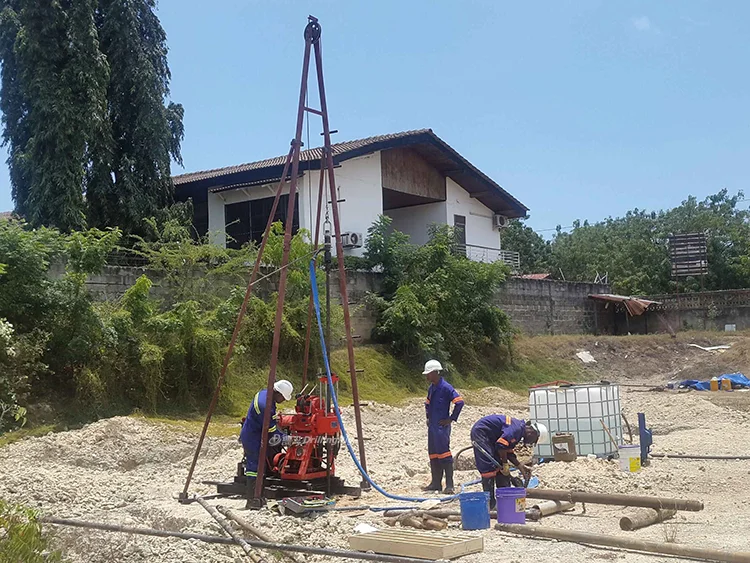

III.Working in Africa for soil test

IV. SPT and other drilling tools are available all year around~

1. Q:  How to buy?

    A:  After confirming the goods you will purchase,deposit for ordering the goods,then prodution---goods finished for confirmation,payment balance,and then shipment.



2. Q: What do I need to do after payment?

    A: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;

         b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick up the goods;All documents for customs clearance will be sent to you by international express after shipment.



3. Q: I am not familar with a new product,how to use it?

     A: We provide operation manual and DVD to guide you;we also provide Free training in our factory if you were possible to come;

         We provide engineers for overseas technic support;

         We provide 24 hours/7 days technic support all year around.



4. Q: How can I change the broken parts if the machine got broken?

    A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.

        All accessories of our machinery is available at Factory-price all Year around.
