YJ 90A semi automatic ampoule vial inspection machine

Product Overview

Description

Q15 Ampoule and vial inspection machine

1. Application:

Q15 is an efficient working platform for the visual inspection of transparent round containers such as ampoules, vials, pre-filled syringes, and different pharmaceutical bottles for foreign particles and on the cosmetics of the container. Illumination system using Tyndall effect helps uncovering foreign particles and defects. Quiet and dark background reduces stress to the operator’s vision and thus extends the working period. Movement and rotation speeds of the bottles can be adjusted based on material characteristics and working habits. Optional manual instructed automatic rejection mechanism to greatly increase operation efficiency.ms.

2. Technique parameters:

Application	Ampules, vials, pre-filled, infusion bottles, cartridges, diagnostic tubes
Operators	1
Output	Max.150 objects/min
Mode of operation	Continuous or intermittent (switch)
Eliminate mode	Hand command automatic eliminate
Working height	900mm±50mm
Power consumption	220VAC   50Hz   0.8-1.4Kw
Machine dimensions	(L)2,300×(W)1,000×(H)1,700 mm





3. Features:

   1). It increases the production capacity and reduces operator's fatigue.

   2). It can be used to inspect ampoules, vials, pre-filled syringes, infusion bottles, cartridges and etc..All sizes between 0.5 and 1000 ml

  3). Various kinds of products like solutions, antibiotics, suspensions, eye drops, freeze dried products can be inspected.

  4).  Several criteria can be inspected simultaneously, such as particulate matter, glassware defects, bottom, shoulder and cap area, micro-fissures.

 5).  By adopting Tyndall principle, the contrast of impurity particle is intensively enhanced under the concentrated light beam and the impurity can be detected very easily and quickly.

  6).   Adjustable cold lighting system combined working with mirrors and magnifying lens make the inspection more efficient.

 7).   Conveying speed and rotating speed are separately controlled and both speed could be variably adjusted

 8).   Color temperature, intensity of illumination and angle of illumination can be adjusted to optimize visual effect.

 9).   Advanced control system and touch screen provide friendly human-machine interface.

10).  Various counting functions are available, i.e. count of Infeed, count of outfeed, count of rejects.

 11).   Change-over is simple & quick without using tools, machine cleaning & maintenance is easy. It can be connected with other equipments to make up a production line.

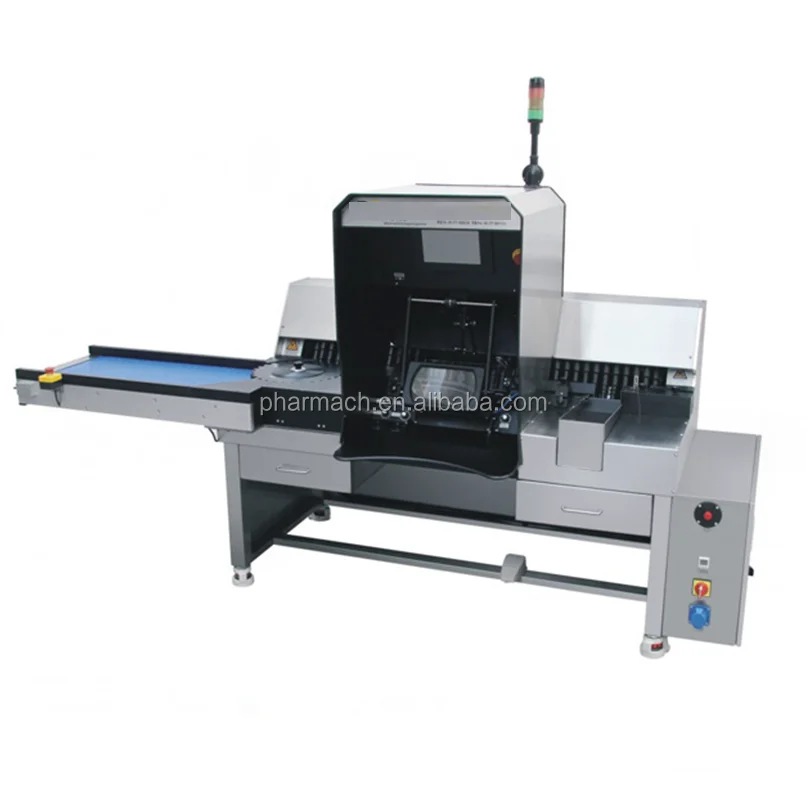

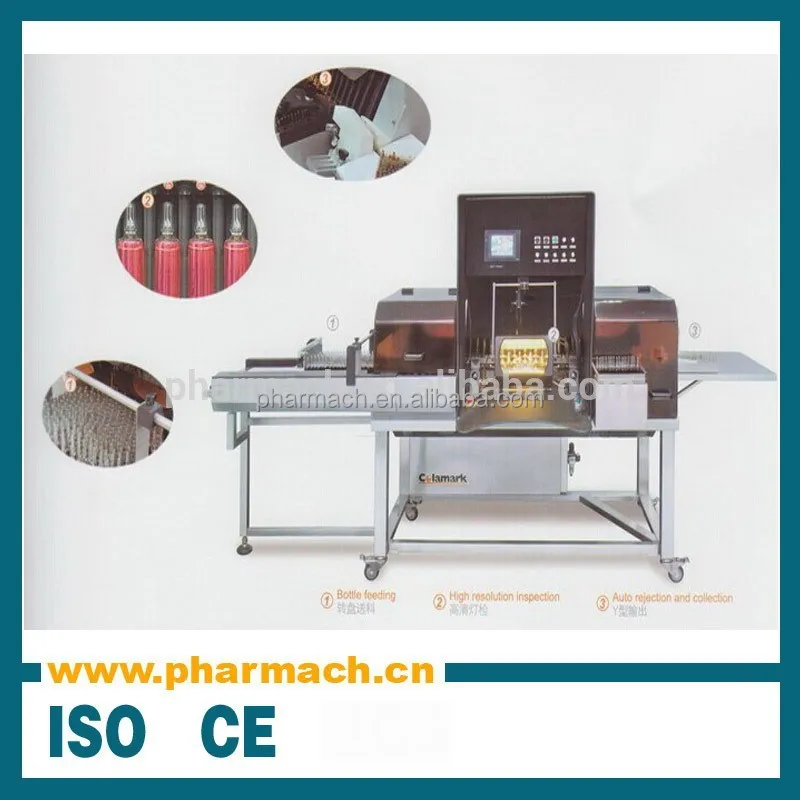

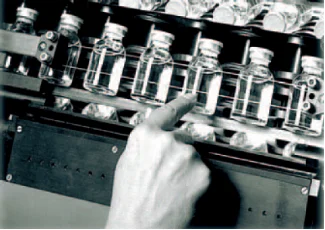

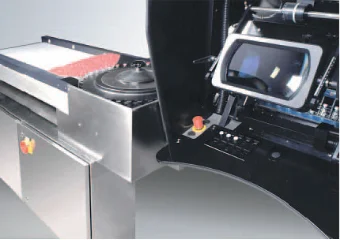

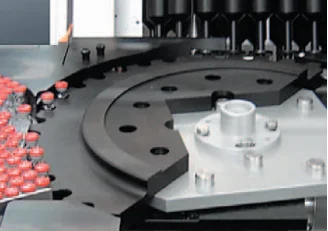

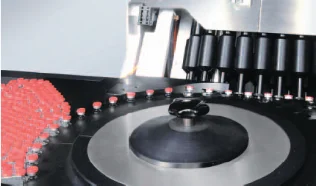

 4. Machine pictures:
