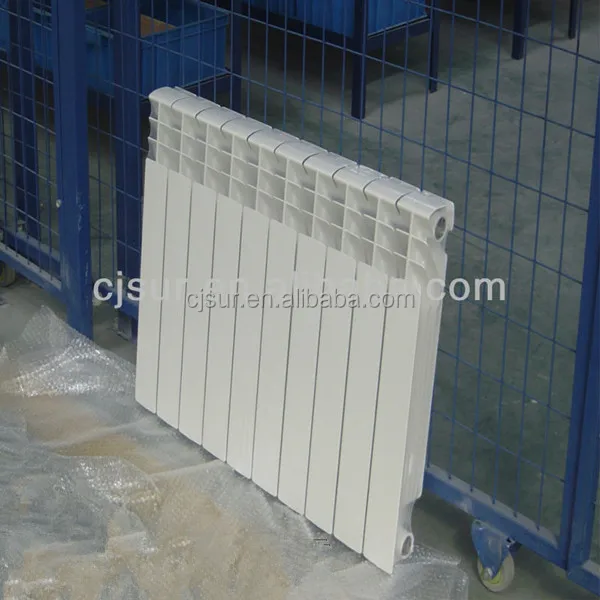

Центральное отопление тепловой алюминиевые радиаторы UR1001 350
- Category: Other Home Heaters >>>
- Supplier: Jiangsu Unbeatable Energy Group Co. Ltd.
Share on (1991686936):
Product Overview
Description
Description of China aluminum Thermal radiators UR1001
| Specification of China aluminum Thermal radiators UR1001 | ||||||||
| Model | Height (mm) | Width (mm) | Depth /Thickness (mm) | Central distance (mm) | Water capacity (L) | Thermal output ΔT=64.5°c (W/Kcal) | Weight (kg) | Available area (m²) |
| UR1001-300 | 380 | 80 | 85 | 300 | 0.27 | 140/120 | 0.93 | 0~1.65 |
| UR1001-350 | 432 | 80 | 85 | 350 | 0.31 | 158/136 | 1.01 | 0~1.86 |
| UR1001-500 | 582 | 80 | 85 | 500 | 0.36 | 196/169 | 1.24 | 0~2.30 |
| UR1001-600 | 685 | 80 | 90 | 600 | 0.39 | 216/186 | 1.44 | 0~2.54 |
1. We are welcome to send your price list by email.
2. Term payment: L/C at sight, or 30% deposit by T/T and 70% balance before shipment.
3. Guarantee period: 10 years
4. MOQ: 100 cartons
| ||||||||
Feature of our radiators:
1. Material: ADC12 Aluminum with strong anti-friction and anti-erosion.
2. Machine: Die casting machine with 800T to form once only.
3. Surface: Electric static spraying and then roast twice
4. Quality Standard: CE (EN-442), ISO9001:2000, IS014001:2004, GOST-R, RoHS
5. The testing pressure of our products is 20 bars three times
6. The working pressure is 20-24 bars. The Max pressure is more than 38 bars
7. Assemble: Rohs nipple and gasket
8. Pretreatment: Degreasing, passivation solution from world top 500 company Germany BASF
9. Electrophoresis: E-coat imported from Europe Germany BASF
10. Powder spraying: Four staggered spray guns
11. Packing: Automatic thermal film and sealing system
12. Monitoring: IR 24 hours recording
13. Hidden water channel prevents children from being hurt.

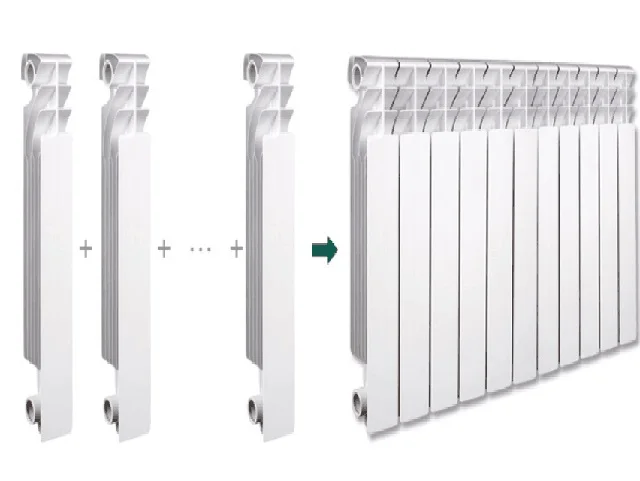

14. Easy to adjust the element quantity for different room size and temperature request.
15. Thanks to automatic pretreatment procedure and electrophoresis painting line, color on surface is prefect.
16. Efficient heating and high thermal output helps energy saving and environmental protection.

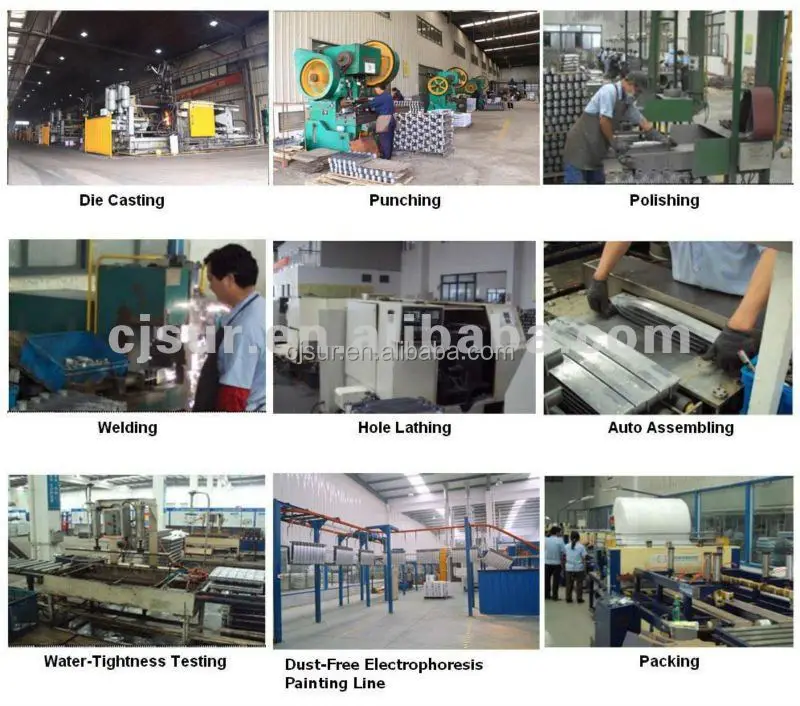

Production:
Test Report in Italian Labotory:
Certificates of CE(EN442), RoHs, GOST-R, ISO9001:2008, ISO14001:2004
Packaging & Shipping
Packing of water aluminium radiator:
(1)Automatic thermal film with sealing system
(2)Master carton,1 set/carton
(3)Double packing protection prevent products from damage
Our products:
1. Water heating system die casting aluminum radiators
2. Water heating system die casting bimetal radiators
3. Bathroom towel rails
4. Electric towel warmer
5. Electric heater radiators
6. Electric oil heater radiators
Company Information
Our factory is located in Qidong city with beeline distance of 50km from Shanghai. Unbeatable occupy more than 90,000m2. There are more than 200 employees.
We commit in strict QC system, which from each link of production to the loading in container.
Brand "Unbeatable" and "Aumax" have been well known brand and receives good reputation both at home and abroad.
All products are shipped to more than 30 countries and regions, such as United States, Spain, France, Russia, Poland.... Clients are happy about our manufacture ability and quality.
Our Services
1. Guarantee Period: 10 years
2. PICC
Our Sales Network:
HEATING SYSTEM:

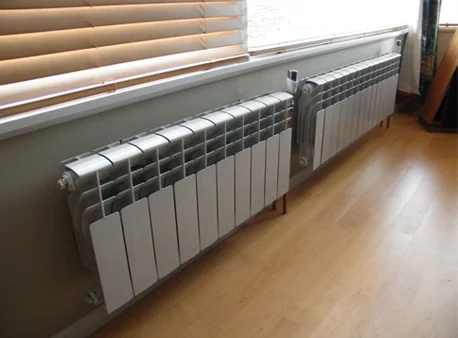

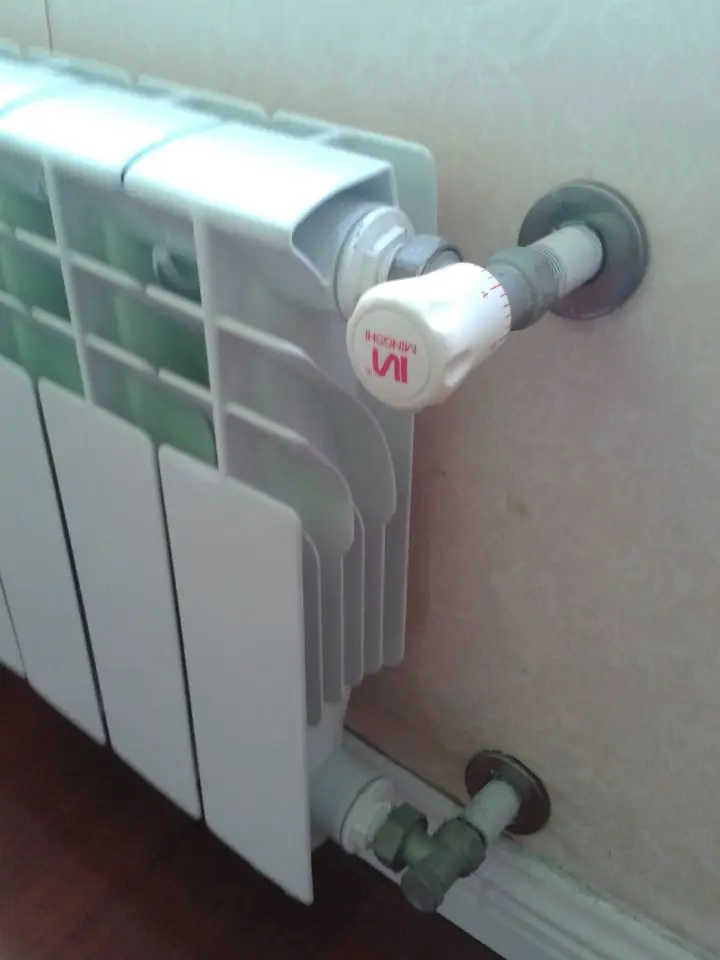

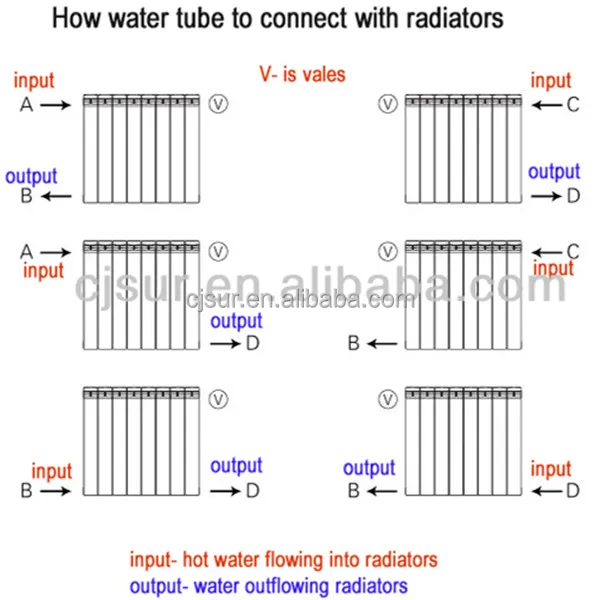

Installation of radiators:
