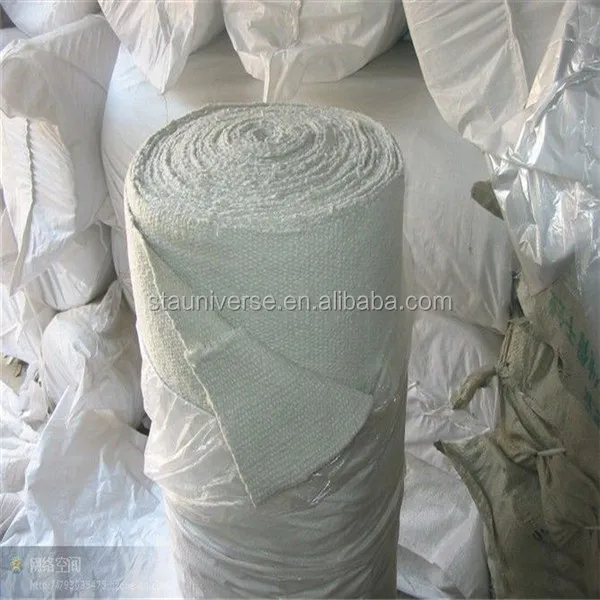

STA Ceramic Fiber Cloth for heating furnace

Product Overview

Description

STA Ceramic Fiber Cloth for heating furnace



1.Product description

Ceramic Fiber Cloth/Tape is a woven fabric made from our high quality ceramic fiber woven yarn. The cloth is reinforced with fiberglass filament, or optional Inconel/alloy steel wire reinforcement. Ceramic fiber textiles (cloth, tape and rope) contain a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property. It is featured with heat insulation and high temperature protective materials in all kind of thermal installations and heat-conducting systems, widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.





2.Advantages of the ceramic fiber cloth/tape

• Lightweight and low thermal conductivity.
• Excellent insulation at high temperature.
• Resists corrosive chemicals, commonly used acid and alkali.
• Strong and abrasive. It can be used in tough environment.
• Good substitute of asbestos products in many insulation and sealing applications.
• Reinforcing material: glass fiber wire, stainless steel wire, glass fiber and stainless steel wire.

3. Applications of the ceramic fiber cloth/tape

• Heat insulation furnace curtain, large area thermal insulation.
• Radiant heat shielding, flexible fabric expansion joints for high temperature piping.

4. Technical index



Item	Ceramic Fiber Cloth		Ceramic Fiber Tape
Classification Temperature	1260C	1260C	1260C	1260C
Work Temperature	450C	1000C	450C	1000C
Basic Material	Fiberglass Reinforced	Stainless Steel Reinforced	Fiberglass Reinforced	Stainless Steel Reinforced
Theoretical Density ( kg/ m3)	500±15		500±30
Moisture Content (%)	≤2
Warp Density	48~60 Piece/10cm
Weft Density	21~30 Piece/10cm
Organic Content (%)	≤15
Specification (mm)	L:30,000mm / W:1,000mm / T:2~3mm		L:30,000mm / W:75mm / T:2~3mm
Packing	Plastic bag inside, woven bag outside
