Modern venlo Polycarbonate Glass farming greenhouse Multi Span Commercial pc sheet Greenhouses Prefab green house overall system
- Category: >>>
- Supplier: Xiamen Heseng Agricultural Technology Co. Ltd
Share on (1992933577):
Product Overview
Description
NO. | ITEM | DETAIL | REMARKS |
1 | Steel structure | Hot-galvanized steel pipe | 275g/m2 |
2 | Roof cover | PC sheet | According to clients' requirement |
3 | Wall | According to clients' requirement | Built by clients/our side |
4 | Outer shading system | Sunshade net has different light transmission | Optional |
5 | Inner shading system | Sunshade net has different light transmission | Optional |
6 | Inner warming system | Install a thin film inside the greenhouse. it can keep warm. | According to clients' requirement |
7 | Cooling system | Cooling fans and cooling pad | According to clients' requirement |
8 | Ventilation system | Top & side window | According to clients' requirement |
9 | Heating system | 1.Boiler warming: boiler and water warming blower. The boiler type has gas boiler, coal boiler, oil boiler and bio fuel boiler, and gas/oil boiler. 2. Electric warming: only has electric warming blower | Optional |
10 | Irrigation and fertilization system | Drip irrigation or spray irrigation system based on different crops growing. | According to clients' requirement |
11 | Light compensating system | High - pressure sodium lamp, or LED lamp | According to clients' requirement |
12 | Seedling bed System | Using for seedling | According to clients' requirement |
13 | Soilless culture | Hydroponics system | NFT types, DFT type and Dutch bucket type,etc |
14 | Power distribution system | control cabinet | Optional |
15 | Other equipment | According to environmental requirement | Optional |
Details Images

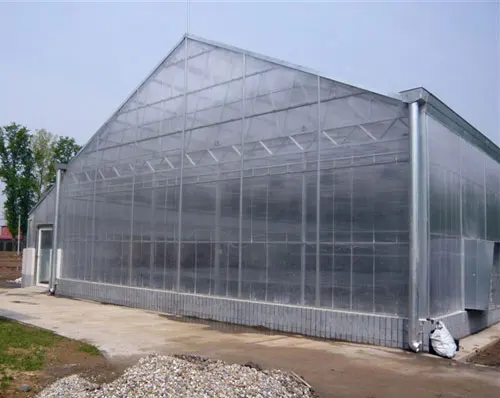

Greenhouse Agricultural Polycarbonate Greenhouse For Planting Growing
1-Structure: Hot-dip galvanized steel 275 g/m2, 15 year warranty; Three styles optional: Venlo-Triple A style, Big Peak Style & Gothic Arch Style;
2-Covering material: Twin-wall or corrugated polycarbonate sheet, 10 years warranty;
3-Feature: Long life, Good looking, Warm keeping, Energy saving in winter;
4-Suitable for greenhouse with good heat insulation, flower market, expensive flower & vegetable planting, research center or restaurant,etc;
Optional:
A-Outside & Inside Shading System Electric Controlled;
B-Cooling Pad & Fan System;
C-Auto Environment Controlled Style
3-Feature: Long life, Good looking, Warm keeping, Energy saving in winter;
4-Suitable for greenhouse with good heat insulation, flower market, expensive flower & vegetable planting, research center or restaurant,etc;
Span Width: | 7.0m/8.0m/9.6m or customized | ||||||
Section Size: | 4m/5m or customized | ||||||
Length: | 4m*n/5m*n or customized | ||||||
Gutter Height: | 2.5m,3m,3.5m,4m,4.5m,5m | ||||||
Wind Load: | 0.3KN/m2---0.5KN/m2 | ||||||
Snow Load: | 0.3KN/m2---0.5KN/m2 | ||||||
Crop Load: | Max 50KG/m2 | ||||||
Rain Drainage | Max 140mm/Hr | ||||||

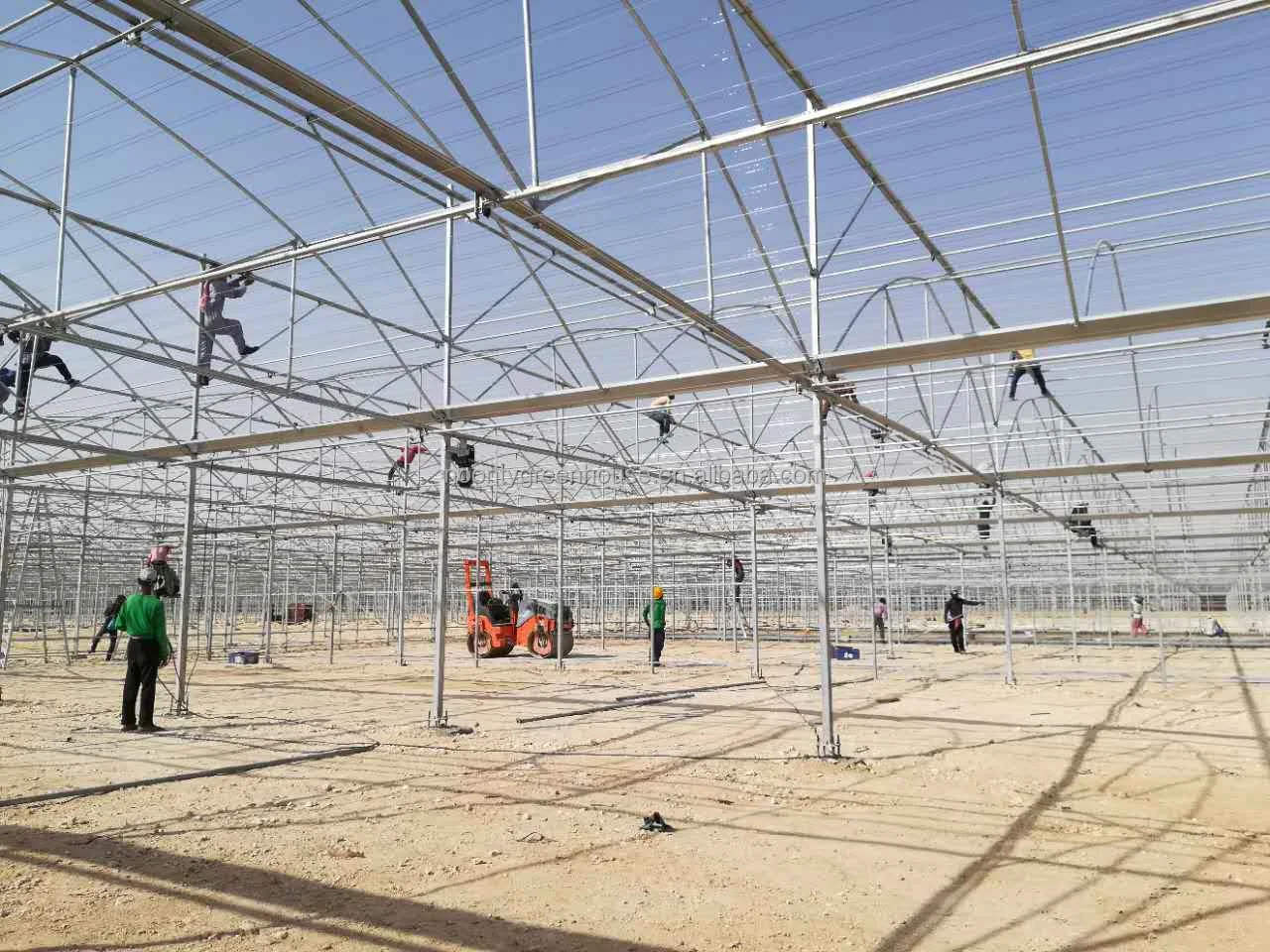

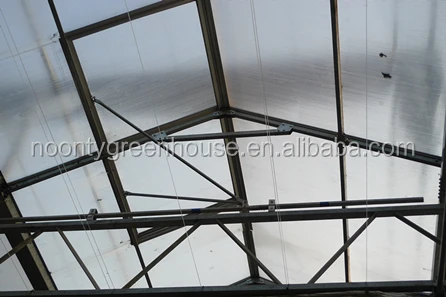

Frame System of Polycarbonate Greenhouse:
1-Hot dip galvanized steel framework,275/m2,15 year warranty;
2-Stable and Strong Structure;
3-Fully fabricated in factory, no welding;
4-Excellent anti-corrosion effectiveness;
5-Customized design is available;
6-Venlo Style,for Professional Grower.

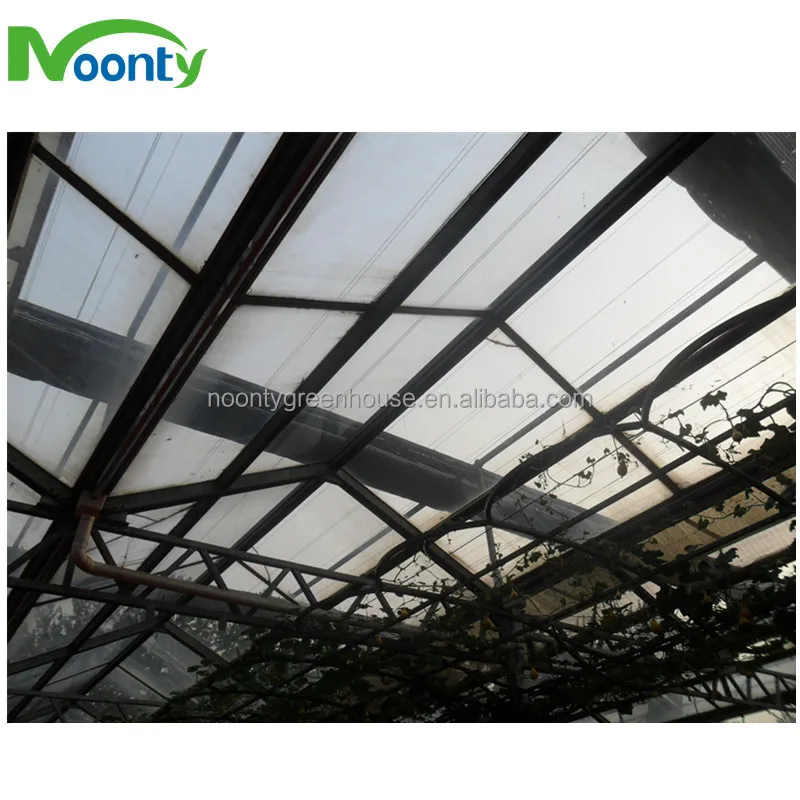

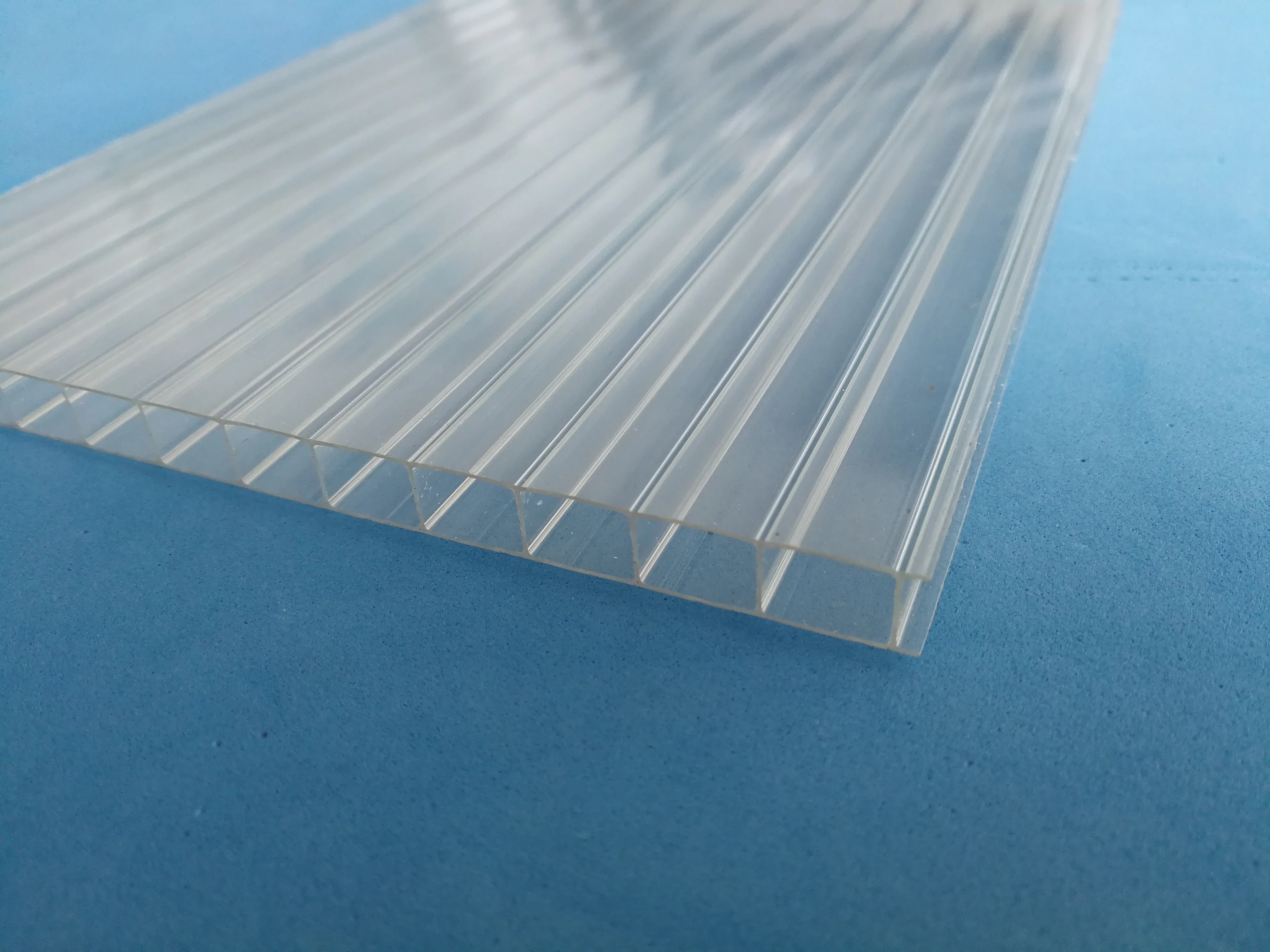

Covering of Polycarbonate Greenhouse:
1-Name: Twin-wall Polycarbonate panel or
corrugate polycarbonate sheet;
2-Thickness: 0.8mm to 1.2mm for corrugate sheet and 4mm to 10mm for twin-wall;
3- Virgin Material,Bayer or Samsung Brad, 10 year warranty and 15 year life;
4-Light transmission:＞87.0%.

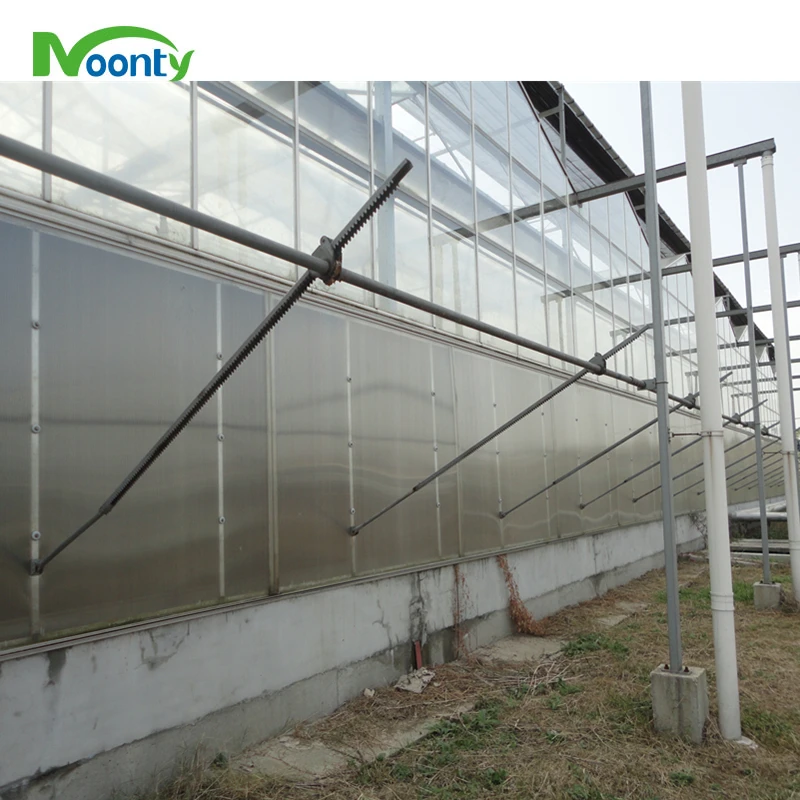

Ventilation of Polycarbonate Invernadero:
1- On 2 sides,gable end or roof;
2- By pinion & rack;
2- By pinion & rack;
3- Insect screen will be under the ventilation.

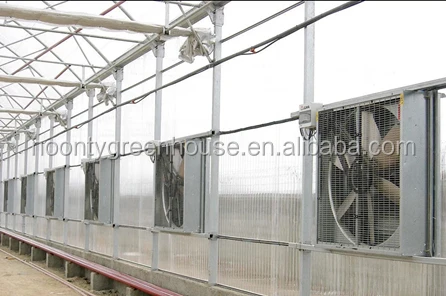

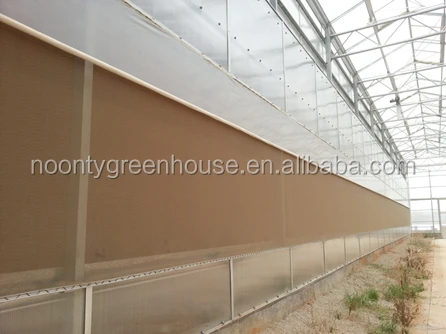

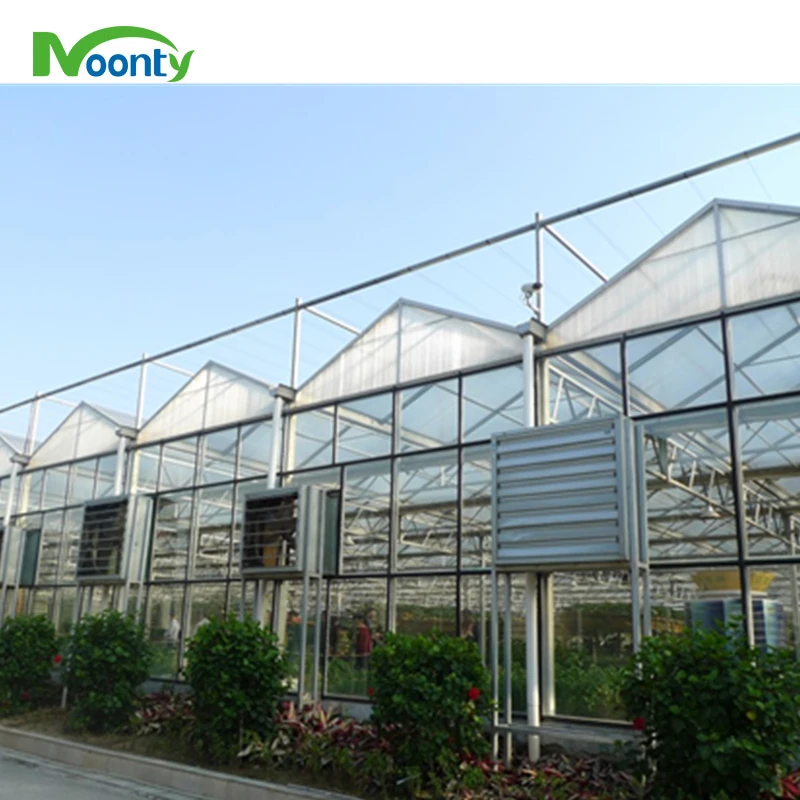

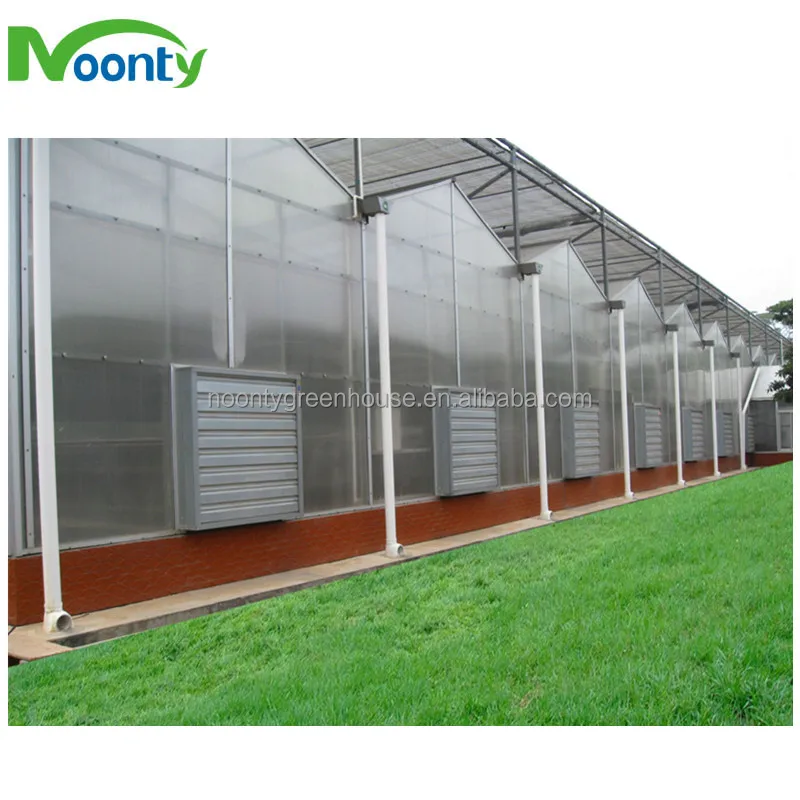

Cooling Pad & Fan System of Polycarbonate Greenhouse:
1-Cooling fans and cooling pads are popular for cooling;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite;
4-Circulation fan is optional.
1-Cooling fans and cooling pads are popular for cooling;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite;
4-Circulation fan is optional.

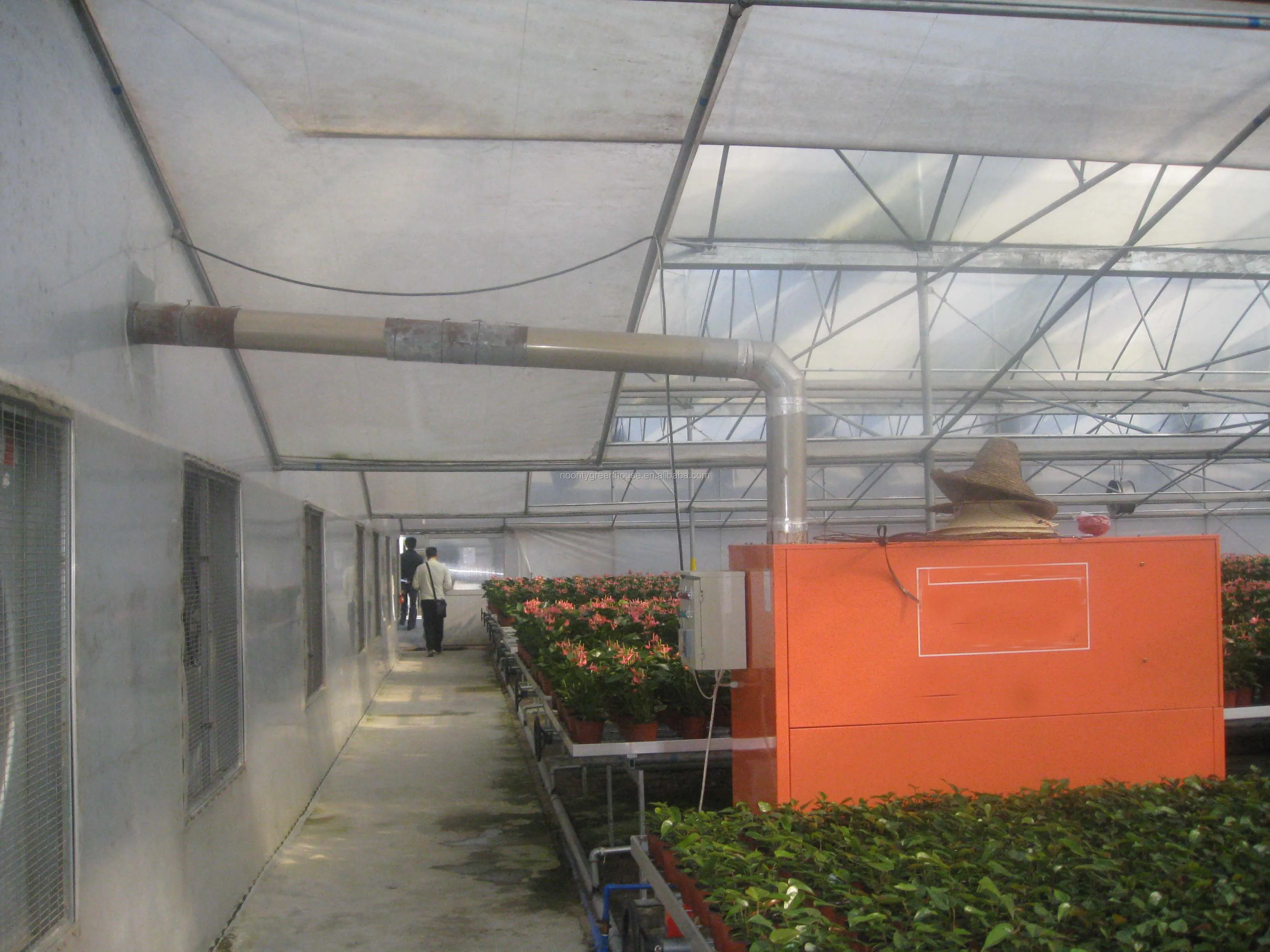

Heating System:
1.Boiler warming: boiler and water warming blower.
The bolier type has gas boiler, coal boiler, oil boiler and bio fule boiler, and gas/oil boiler.
2. Electric warming: only has electric warming blower
Irrigation and Fertilization System:
Drip irrigation or spray irrigation system based on different crops growing.

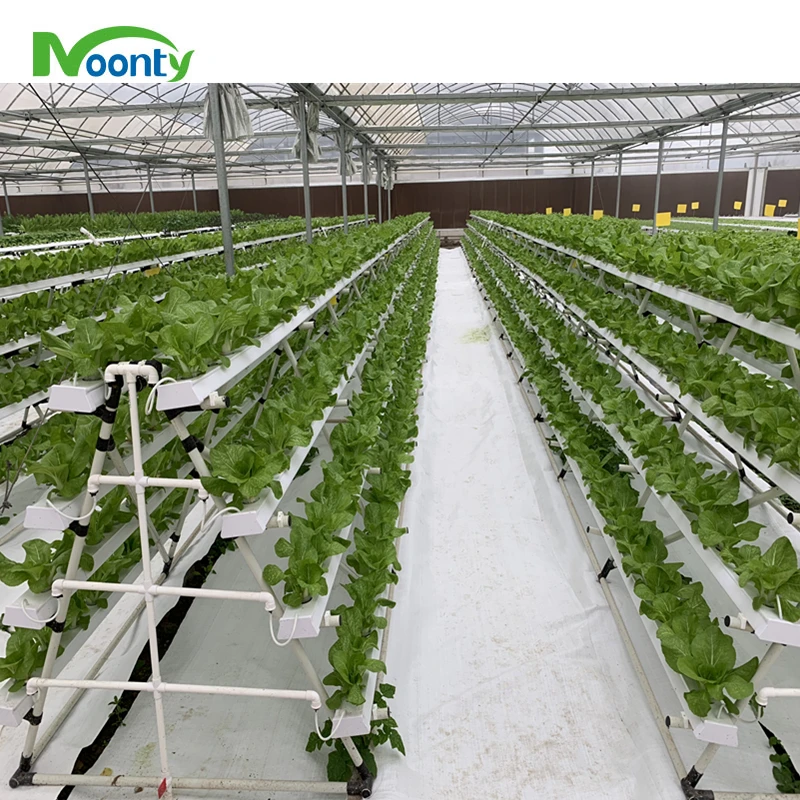

Hydroponics Growing System:
1-Different hydroponics system is optional;
2-DFT,NFT,Medium,etc is optional;
3-For tomatoes,cucumber,chilly, lettuces,herbs,etc;
4-Efficient,Healthy,eco-friendly.
Company Profile
Is the Mother Company of Noonty Greenhouse Company Limited, which is specialized in greenhouse and hydroponics industry.
Greenhouse types we offer include Single Tunnels, Gothic Multi-span Plastic Film Greenhouses, Double-layer Warm-keeping Greenhouses, Saw-tooth greenhouse, Venlo Polycarbonate,Venlo Glass Greenhouse, Light Deprivation Greenhouse, etc.
Our Advantages
Team Appearance
Customer Photos
Product packaging
FAQ
Q: How could we get the quotation?
A: Agriculture Greenhouse is customized based on detailed climate condition, land area prepared for the greenhouse,etc.
Q: How could we assemble the greenhouse?
A: Greenhouse is prefabricated and no welding is required. Detailed drawing and assembly manual will be offered for each order.
Q: Is engineer supervision available for greenhouse assembly?
A: Yes,engineer supervision is available to send to the project within customers requirement.Two-way tickets,local accommodation and salary is arranged by customer.
Q: What is the delivery time?
A:Usually about 25days to 60days based on greenhouse design and size.
