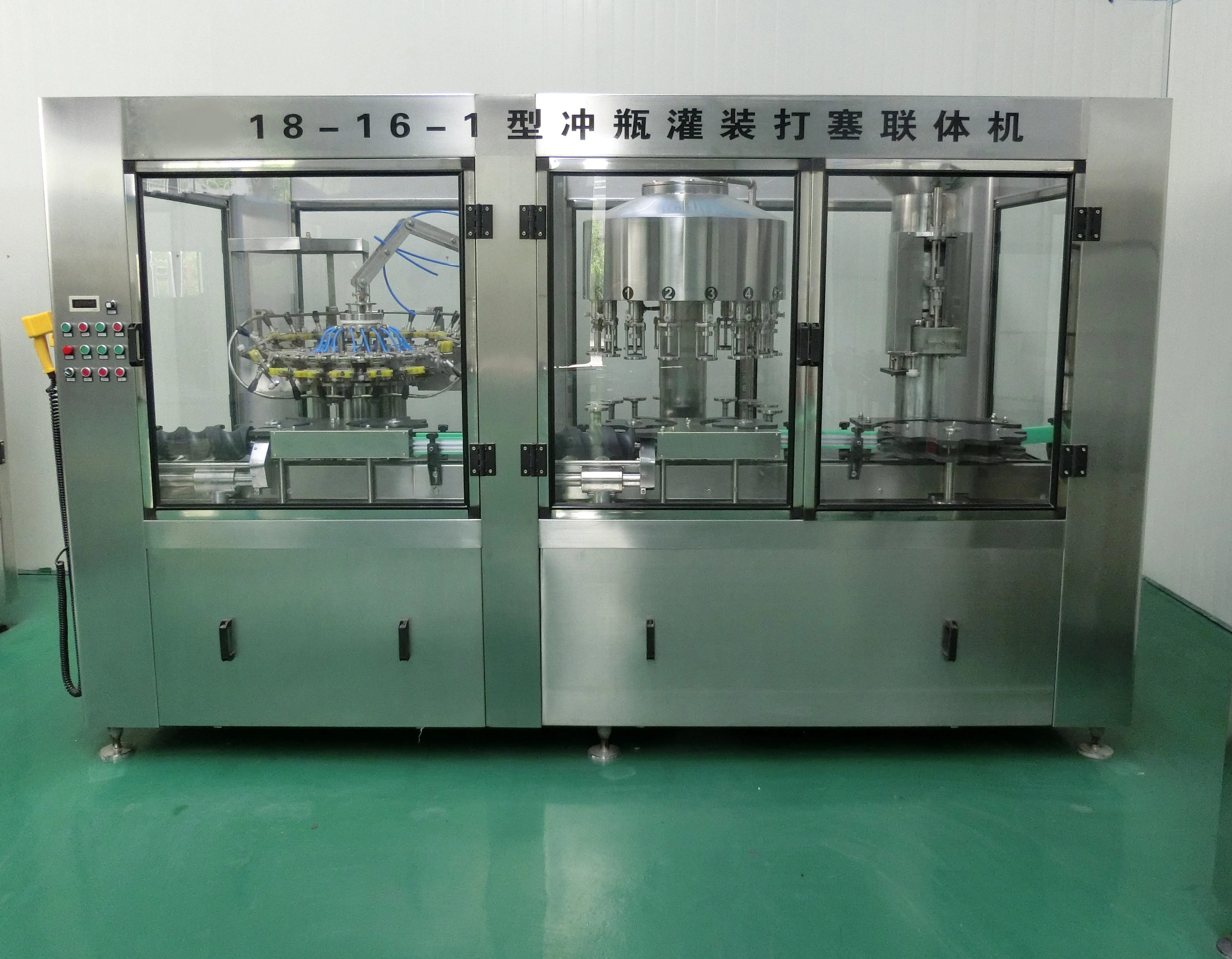

16 Heads 12 Heads 2000BPH 750ML Wine Bottle Automatic Vacuum Filling Machine Equipment Line

Product Overview

Description

750ML Wine Bottle Automatic Vacuum Filling Machine Equipment Line



Equipment description:



1.This kind of  wine filling machinecombines washing,filling and rotary capping functions  in one unit.It is a fully automatic and high efficiency liquid packing equipment.



2.  wine filling machine is suitable for packing beverage containing gas. wine filling machine 's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.



3. wine filling machine Using programmable controller to realize fully automatic control from bottles entering to finishing packing, wine filling machine Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements, Adopting equal pressure filling principle and current spring valves in order to assure beverage quality, Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.



Technical parameters:



Model	JCGF12-12-1	JCGF16-12-1	JCGF18-16-1	JGF9-1	JGF12-1	JGF16-1
Head of washing, filling, sealing	12-12-1	16-12-1	18-16-1	9-1	12-1	16-1
Production capacity (bottle/hour)	2000-2500	2000-2500	2500-3000	2000	2000-2500	2500-3000
Suitable bottle diameter(mm)	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310   330-1500ml	φ=50-100 H=150-310   330-1500ml	φ=50-100 H=150-310   330-1500ml	φ=50-100  H=150-310   330-1500ml
Filling precision	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Motor power	3.84kw	4.1kw	5.6kw	7.5kw	9kw	11kw
Filling pressure	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Overall dimension     (mm)	2400×1900×2300	3200×1760×2100	3500×1760×2100	2000×1500×2100	2100×1560×2150	2400×1800×2100
Weight(Kg)	3000	4000	5000	2000	2400	2800



Product show
