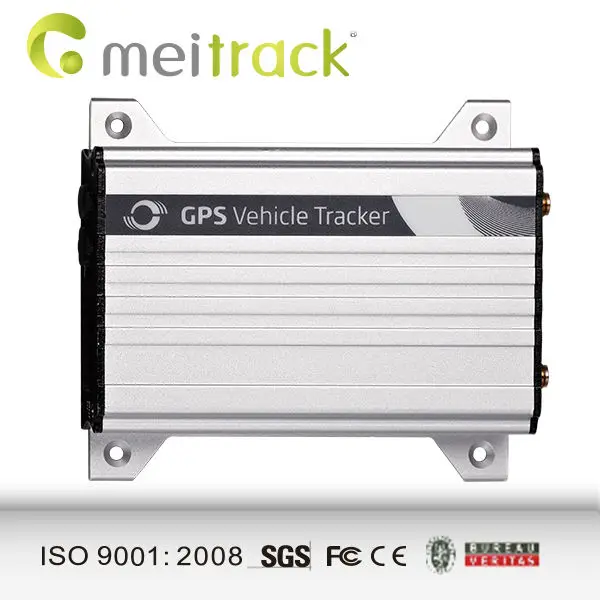

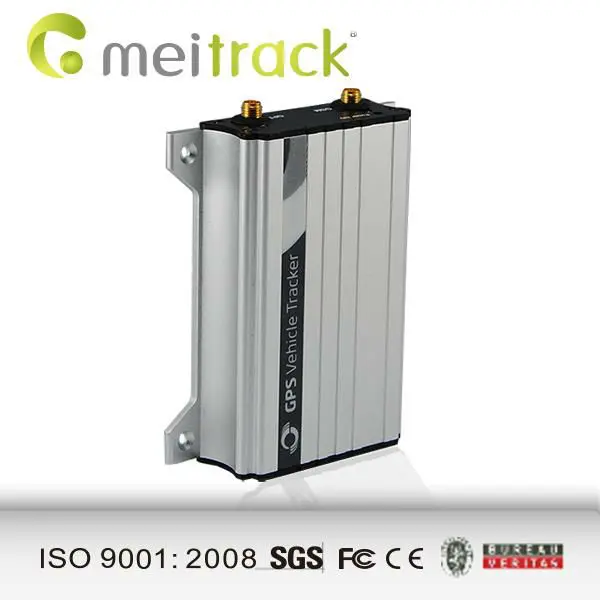

Manual GPS SMS GPRS Tracker Vehicle Tracking System T333

Product Overview

Description



Application



m  Vehicle Tracking

m  Fleet Management





FUNCTIONS



GPS + GSM (LBS) tracking	Geo-fence Alarm
Track by SMS/GPRS TCP & UDP	GPS Blind Area Alarm
Track on Demand	Low Battery Alarm
Track by Time Interval	Speeding Alarm
Track by Distance Interval	Tow Alarm
Track on Mobile Phone	GPS Antenna Cut Alarm
Listen-in or Two-way Audio (Optional)	External Power Cut Alarm
Inbuilt Motion Sensor	Mileage Report
Inbuilt Acceleration Sensor	Engine Cut (Engine immobilization)
GPS Log	Inbuilt Super Magnet (optional)
SOS Alarm	OTA





SPECIFICATIONS



Items	Specifications
Dimension	105*65*26mm
Weight	190g
Input Voltage	DC 11V~36V/1.5A
Back-up Battery	850mAh/3.7V
Power consumption	65mA standby current
Operating Temperature	-20°C~55°C
Humidity	5%~95%
Work Time	43 hours in power-saving mode and 10 hours in normal mode
Indicator	Two indicator show GPS, GSM and other status
Button	1 SOS and 1 power on/off
Microphone	Optional
Memory	8M Byte
Sensor	Vibration  and acceleration sensor
Frequency band	T333-E: UMTS/HSDPA: 900/2100MHz GSM/GPRS: 900/1800MHz T333-A: UMTS/HSDPA: 850/1900MHz GSM/GPRS: 850/900/1800/1900MHz
GPS Sensitivity	-161 dB
Positioning Accuracy	10 meters
I/O	3 Digital Input ( 2 positive triggering and 1 negative triggering) 2 Analog Input Detection 3 Output 1 RS232 Interface (for connecting to handset phone/RFID reader/LCD display etc) 1 USB port





ACCESSORIES

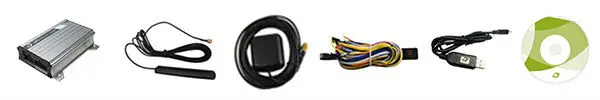

    T333 with Battery          3G Antenna         GPS Antenna             I/O Cable              USB Port Cable                  CD



       Warranty Card    Qualification Certificate





OPPTIONAL ACCESSORIES

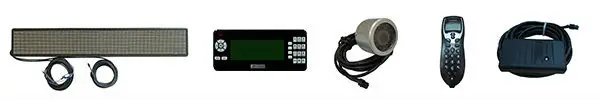

                      LED Display                            A21 LCD Display           Camera                Handset           RFID

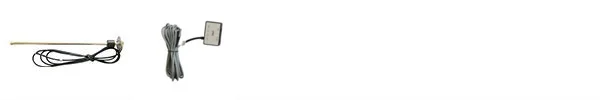

        A53 Fuel Sensor      A52 digital temperature sensor + A61sensor box





DETAILS









PACKAGE

GPS TRACKING SYSTEM



Meitrack Family GPS Tracking System MS02



m  Cell-ID Location

m  I/O Status Dynamic Display

m  Polygon Geo-fence

m  Group Command-sending

m  Route Deviation Alarm

m  More Than 20 Language Versions

m  Map: OSM, Google, Bing, MapABC

m  Android APP for Smart Phone

CERTIFICATE



Focusing on products that are truly superior and innovative, Meitrack has been awarded China National Hi-tech Enterprise and ISO9001 Quality Certification, Meitrack’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc and grown to become one of the largest manufacturers and exporters of GPS tracking products in China.











OUR TEAM



Meitrack based in Shenzhen, China; two branch offices are situated in Hong Kong and California, USA.  Combining the in-house 58 Engineers from China Mainland, Taiwan and America with 20,000 square meters state-of-the-art modern factory, Meitrack’s dedicated R&D team has over 11 years of experience in design, prototyping, integration and testing products that are high quality and truly innovative, and satisfying buyers from 147 countries.





OUR PARTNER



Meitrack keeps a long collaboration with Telecom Operator China Mobile, British Telecom, Digicel, AT&T, Vodafone, etc.
