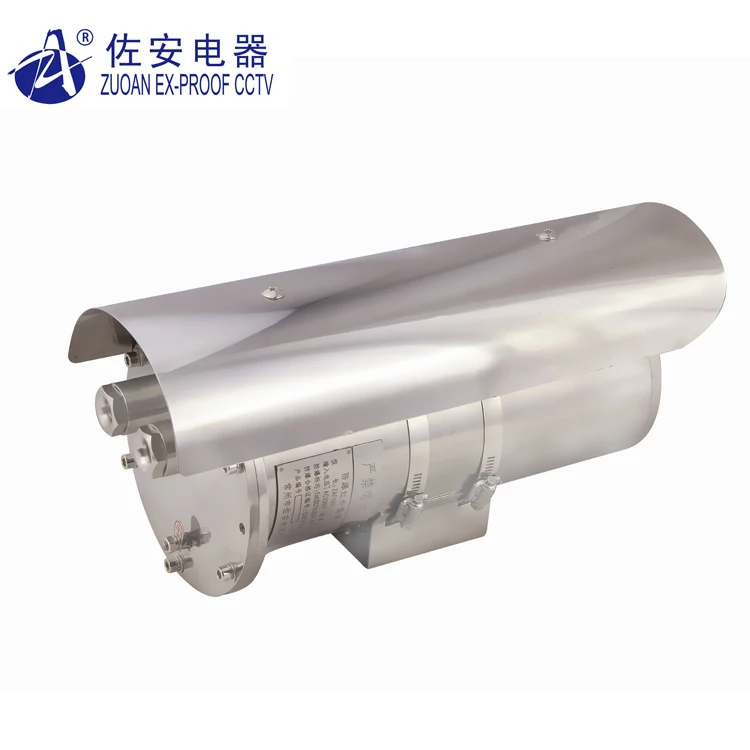

Stainless steel IP68 ExdII explosion proof CCTV camera housing
- Category: >>>
- Supplier: Changzhou Zuoan Electronics Co. Ltd.
Share on (1993484894):
Product Overview
Description
Stainless steel IP68 ExdII explosion proof CCTV camera housing
Product Description
ZUOAN is a 8 years industrial famous CCTV camera brand name, housing manufacturer. ZAF105 series is a middle size of stainless steel CCTV camera case. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF105 series's explosion proof marking is Exd II BT6/DIP A20 TA, T6. its dust protection rate reaches to IP68, which means dust tight, and can protect agaist continuous immersion in water. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF105 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. ZAF105 serise adopts 12mm thickness tempered window glass, which is fit for indoor /outdoor mounting. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF105 camera housing inner Size: 260*70*70mm, net weight: 7.8KG 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Applications
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Main Features
·CNEx certificated
·Adopts stainless steel 304
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands

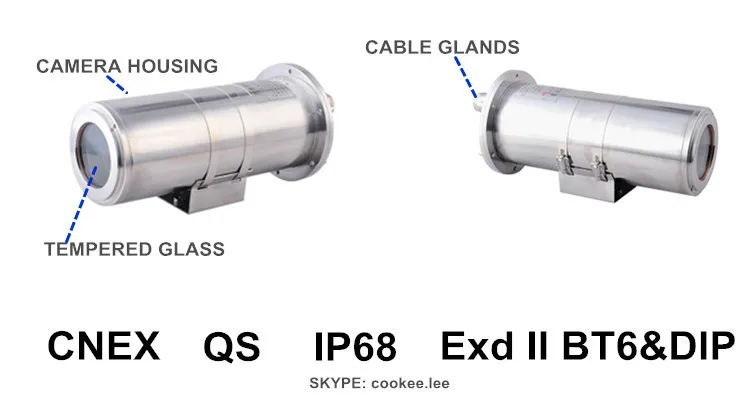

·Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder,auto-heating,
·Output: AV/optical fiber/twisted pair/H.264
Product Parameter
| Explosion proof camera housing | ZAF105-S |
| Housing material | stainless steel 304 |
| Housing inner size | 260*70*70mm |
| Ingress rate | IP68 |
| Explosion proof marking | Exd II BT6 & DIP A20, TA, T6 |
| explosion proof certificates No. | CNEx13.2138 |
| ZUOAN produce permission certificate No. | XK06-014-01196 |
| Net weight | 7Kg |
| cable threaded hole | 2 sets of G3/4 glands |

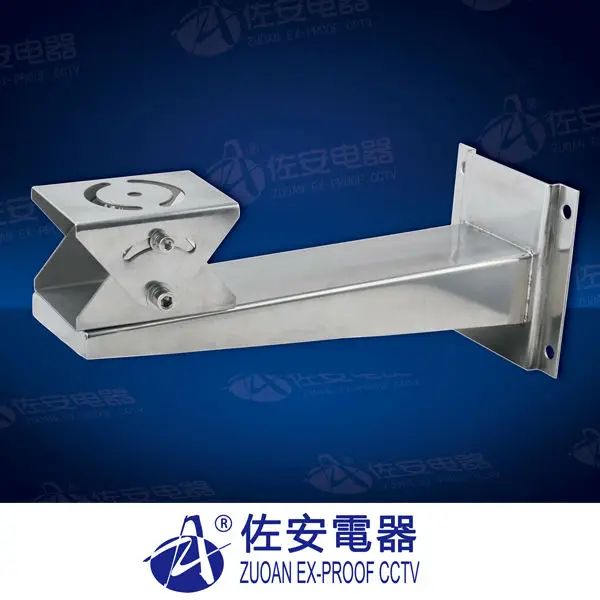

| Wall Bracket, ZAZ100B-S | 4Kg |
price include: ZAF105 camera housing + ZAZ100B wall brackets + flexibility tube
